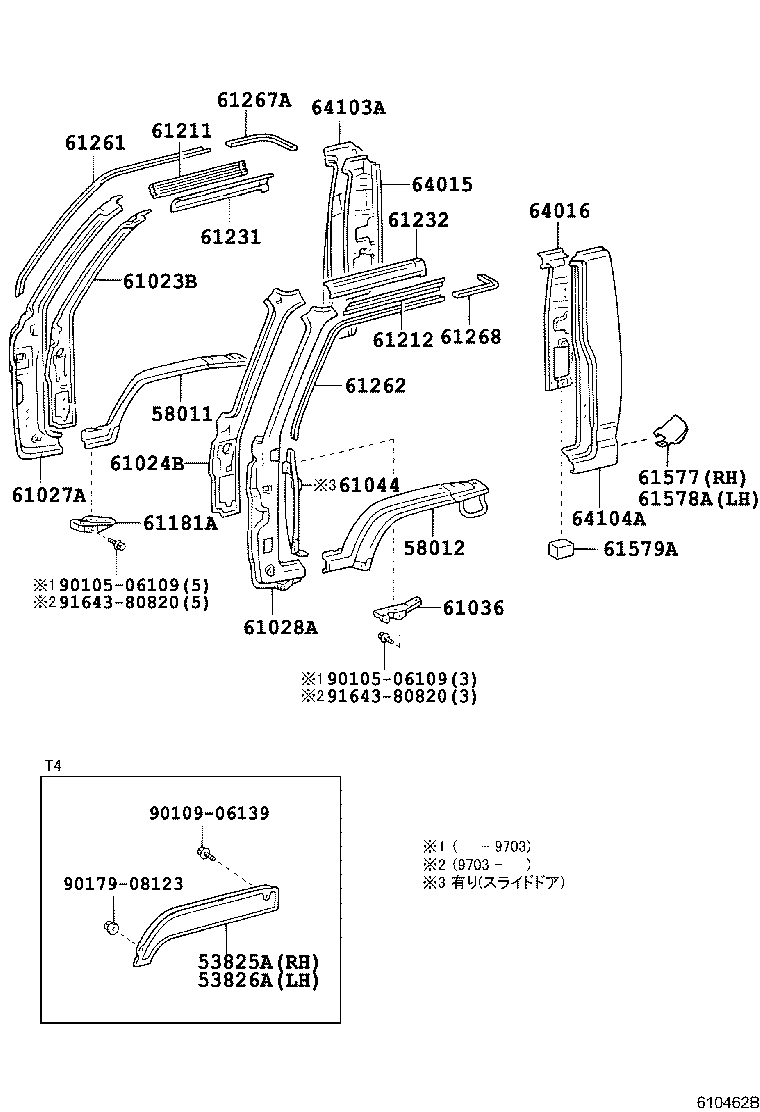

BU162A-TMMMS (1995)
Toyota Dyna 200/Toyoace G25
(9505- )ALV,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5 ; (9702- )TL4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH | ||||
| 58011-37010 |
BU212,222..ALV,T2,T3;BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5 |
1 | ||
| 58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH | ||||
| 58012-37010 |
BU212,222..ALV,T2,T3;BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130 |
1 | ||
| 61023-37011 |
BU10#,112,120,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-37030 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130 |
1 | ||
| 61024-37031 |
BU10#,112,120,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-37031 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-37031 |
BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61036-37011 |
BU10#,112,120,13#,14#,162,172,182,RZU100,140,XZU130,140 |
1 | ||
| 61036-37010 |
BU10#,112,12#,13#,14#,162,172,182,RZU100,XZU130 |
1 | ||
| 61181A - BRACKET, INSTRUMENT SIDE, RH | ||||
| 61181-37011 |
BU10#,112,120,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 61181-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-95403 |
BU120;BU10#,112,122,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..02S,03S |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-95403 |
BU120;BU10#,112,122,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..02S,03S |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-37010 |
RZU100..DM6..LPG;BU102,120..ST..CBU;BU102,14#,172,182..(02S,03S)..IV3;BU102..(DM2,DM3,DM5,T2,T4,T5)..CBU;BU100,112,122,132,162,RZU100..(02S,03S)..(DSL,EFI) ｱﾘ(STD ﾙ-ﾌ ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 61231-37010 |
BU112..30T..IV3;BU102,14#..03S..IV3;RZU100..20T..LPG..IV3;BU102..(DM2,DM3,DM5,T5)..CBU;BU102,120,142..(TR,V)..20T..CBU..5F;BU132,RZU100..(DM6,T2,T3,T4)..(DSL,EFI);BU100,107,112,122,137,162..(02S,03S)..20T ｱﾘ(STD ﾙ-ﾌ ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 61231-37010 |
BU112..30T..IV3;BU182..T3..20T..IV3;RZU100..20T..LPG..IV3;BU102,142,145,147..03S..IV3;BU102,120,142..20T..CBU..5F;BU100,105,107,112,137,140,162..(02S,03S)..20T;BU132,RZU100..(DM5,DM6,T2,T3,T4)..(DSL,EFI,LPGB) ｱﾘ(STD ﾙ-ﾌ ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-37010 |
BU102..ST..CBU;RZU100..DM6..LPG;BU102,14#,172,182..(02S,03S)..IV3;BU102..(DM2,DM3,DM5,T2,T4,T5)..CBU;BU100,112,132,162,RZU100..(02S,03S)..(DSL,EFI) ｱﾘ(STD ﾙ-ﾌ ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 61232-37010 |
BU112..30T..IV3;BU102,14#..03S..IV3;RZU100..20T..LPG..IV3;BU102,142..T3..20T..CBU..5F;BU102..(DM2,DM3,DM5,T5)..CBU;BU100,107,112,137,162..(02S,03S)..20T;BU132,RZU100..(DM6,T2,T3,T4)..(DSL,EFI) ｱﾘ(STD ﾙ-ﾌ ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 61232-37010 |
BU112..30T..IV3;BU182..T3..20T..IV3;RZU100..20T..LPG..IV3;BU102,142..20T..CBU..5F;BU102,142,145,147..03S..IV3;BU100,105,107,112,137,140,162..(02S,03S)..20T;BU132,RZU100..(DM5,DM6,T2,T3,T4)..(DSL,EFI,LPGB) ｱﾘ(STD ﾙ-ﾌ ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-37020 |
BU10#,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-37020 |
BU10#,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..02S,03S |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..02S,03S |
1 | ||
| 61579A - SILENCER, CAB REAR PILLAR | ||||
| 61579-37010 |
BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..02S,03S |
2 | ||
| 64015 - PANEL SUB-ASSY, BACK CORNER, INNER RH | ||||
| 64015-37050 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..02S,03S |
1 | ||
| 64016 - PANEL SUB-ASSY, BACK CORNER, INNER LH | ||||
| 64016-37050 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..02S,03S |
1 | ||
| 64103A - PANEL SUB-ASSY, BACK CORNER, OUTER RH | ||||
| 64103-95403 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5 |
1 | ||
| 64104A - PANEL SUB-ASSY, BACK CORNER, OUTER LH | ||||
| 64104-95403 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5 |
1 | ||
| Common parts | ||||
| 90105-06109 | ||||
| 90109-06139 | ||||
| 90179-08123 | ||||
| 91643-80820 | ||||
