BU162A-TMMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU120 ; (9505- )BU132..T3,T4 ; (9505- )BU10#,112,122,137,14#,162,1

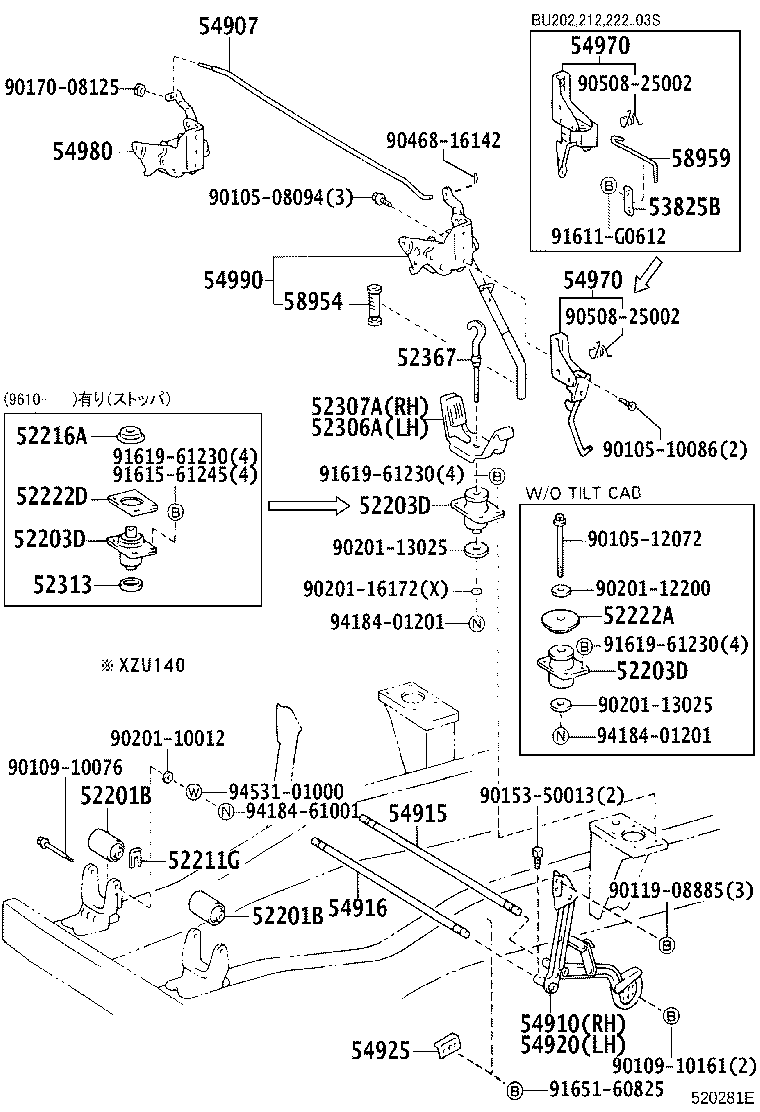

Click highlighted areas on diagram

diagram 52201B 52201B 52203D 52203D 52203D 52211G 52216A 52222A 52222D 52306A 52307A 52313 52367 53825B 54907 54910 54915 54916 54920 54925 54970 54970 54980 54990 58954 58959 9010508094 9010510086 9010512072 9010910076 9010910161 9011908885 9015350013 9017008125 9020110012 9020112200 9020113025 9020113025 9020116172 9046816142 9050825002 9050825002 91611G0612 9161561245 9161961230 9161961230 9161961230 9165160825 9418401201 9418401201 9418461001 9453101000
Part # Description Qty Price
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-37020

BU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182..02S,05S,06S

 2
52201-37020

BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130

 2
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-37020

BU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182..02S,05S,06S

 2
52201-37020

BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-37010

BU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182,212..02S,05S,06S,07S

 2
52203-37010

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-37010

BU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182,212..02S,05S,06S,07S

 2
52203-37010

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-37010

BU132..4FC;BU142..LPGB;BU132..(T4,TL4)..5F;BU12#,162,RZU100,XZU130;BU102,142..T2,T4,TW1,TW4;BU100,107,147,172,182,212..02S,05S,06S,07S

 2
52203-37010

BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130

 2
52211G - SPACER, CAB FRONT MOUNTING
52211-36020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
52306A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1
52306-36020

BU102..DM2,DM3,DM5,DM6,T2,T3,T4,T5,TW1;BU100,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S,05S

 1
52307A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2
52307-36020

BU102..DM2,DM3,DM5,DM6,T2,T3,T4,T5,TW1;BU100,112,132,14#,162,172,182,202,212,222,RZU100,XZU130..02S,03S,05S

 1
52367 - HOOK, CAB REAR MOUNTING
52367-36030

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..ALV,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5

 2
54907 - PIPE SUB-ASSY, TILT CAB LOCK CONNECTING
54907-95402

BU162,172,182,XZU130,140..02S,03S

 1
54910 - ARM ASSY, TILT CAB SPRING SUPPORT, RH
54910-37010

BU102..DM2,DM3,DM5,DM6,T2,T3,T4,T5,TW1;BU100,112,132,14#,162,172,182,RZU100,XZU130..02S,03S,05S

 1
54910-37011

BU162,172,182

 1
54910-37011

BU102..DM2,DM3,DM5,DM6,T2,T3,T4,T5,TW1;BU100,112,132,14#,162,172,182,RZU100,XZU130..02S,03S,05S

 1
54915 - SPRING, TILT CAB, NO.1
54915-37040

BU162,172,182,XZU130..02S,03S

 1
54915-37041

BU162,172,182,XZU130,140..02S,03S

 1
54916 - SPRING, TILT CAB, NO.2
54916-37030

BU162,172,182,XZU130..02S,03S

 1
54916-37031

BU162,172,182,XZU130,140..02S,03S

 1
54920 - ARM ASSY, TILT CAB SPRING SUPPORT, LH
54920-37020

BU162,172,182..02S,03S

 1
54920-37021

BU162,172,182..02S,03S

 1
54925 - RETAINER, TILT CAB SPRING
54926-37010

BU132..T3,T4;BU100,102,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140

左側

 1
54925-37020

BU132..T3,T4;BU100,102,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140

右側

 1
54970 - LATCH ASSY, TILT CAB STOPPER
54970-95400

BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5

 1
54970 - LATCH ASSY, TILT CAB STOPPER
54970-95400

BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5

 1
54980 - LOCK ASSY, TILT CAB MOUNTING, RH
54980-95400

BU162,172,182,XZU130,140..02S,03S

 1
54990 - LOCK ASSY, TILT CAB MOUNTING, LH
54990-95403

BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5

 1
58954 - COVER, REAR LOCK HANDLE GRIP
58954-95400

BU100,102,105..DM2,DM3,DM5,DM6,T1,T2,T3,T4,T5,TW1;BU107,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..(ALV,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..(02S,03S,05S)

 1
Common parts
90105-08094
90105-10086
90105-12072
90109-10076
90109-10161
90119-08885
90153-50013
90170-08125
90201-10012
90201-12200
90201-13025
90201-16172
90468-16142
90508-25002
91611-G0612
91615-61245
91619-61230
91651-60825
94184-01201
94184-61001
94531-01000
