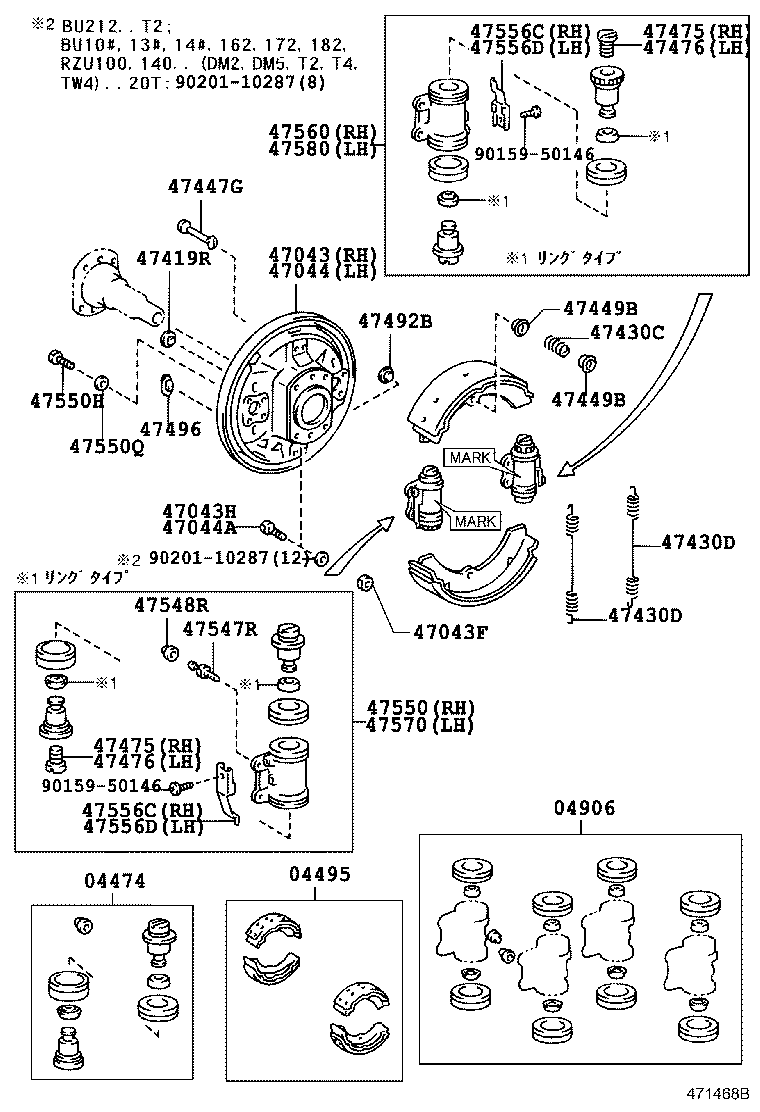

BU162A-TMMMS (1995)
Toyota Dyna 200/Toyoace G25
(9505- )WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-36020 |
BU182..T3;BU172..IV4;BU142..T3..20T..5F;RZU100..DM6..(EFI,LPG);BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG) 右側 |
2 | ||
| 04474-36030 |
BU182..T3;BU172..IV4;BU142..T3..20T..5F;RZU100..DM6..(EFI,LPG);BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG) 左側 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-36190 |
RZU100..DM6,T3,TW1;BU202,212,222..T3,T4,TW1,TW4;BU100,102,112,132,140,142,162,172,182,XZU130..(DM3,DM7,DM8,T3,T5,TL4,TW1)..WT |
1 | ||
| 04494-36190 |
BU202,212,222..T3,T4,TW4;BU10#,112,132,14#,162,172,182,RZU100,XZU130..(DM3,DM6,DM7,DM8,T3,T5,TW1)..WT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36170 |
BU182..T3;BU172..IV4;BU142..T3..20T..5F;RZU100..DM6..(EFI,LPG);BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36120 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU112,12#,202,222,XZU130,140;BU10#,132,140,145,147,162,172,182,RZU100..DM3,DM6,DM7,T1,T3,T5,TL4,TW1,TW2 |
12 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90114-10019 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU112,12#,202,222,RZU100,XZU130,140..DSL,LPGB,TD;BU172,RZU100..(DM6,T3,TW1)..(DSL,EFI,LPG)..(CBU,IV3);BU10#,132,140,145,147,162,182..DM3,DM6,DM7,T1,T3,T5,TL4,TW1,TW2 |
6 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36120 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90114-10019 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU112,12#,202,222,RZU100,XZU130,140..DSL,LPGB,TD;BU172,RZU100..(DM6,T3,TW1)..(DSL,EFI,LPG)..(CBU,IV3);BU10#,132,140,145,147,162,182..DM3,DM6,DM7,T1,T3,T5,TL4,TW1,TW2 |
6 | ||
| 47419R - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47419-35011 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM..(DSL,EFI,LPG,TD) |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100..(DM3,DM6,DM7,T3,T5,TL4,TW1)..WT..(DSL,EFI,LPG)..5F |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100..(DM3,DM6,DM7,T3,T5,TL4,TW1)..WT..(DSL,EFI,LPG)..5F |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
BU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100..(DM3,DM6,DM7,T3,T5,TL4,TW1)..WT..(DSL,EFI,LPG)..5F |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
BU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100..(DM3,DM6,DM7,T3,T5,TL4,TW1)..WT..(DSL,EFI,LPG)..5F |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36200 |
BU182..T3;BU172..IV4;RZU100..DM6;BU142..T3..20T..5F;BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG) ｱﾘ(ﾏﾆｭｱﾙ ｱｼﾞｬｽﾀ) |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-10127 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-10287 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
16 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130..(DSL,EFI,LPG,TD)..5F |
2 | ||
| 47555-36051 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM..(DSL,EFI,LPG,TD) |
2 | ||
| 47555-36051 |
BU100,102..(DM2,DM3,DM5,T1,T2,T3,T4,T5,TW1,TW2,TW4)..5F;BU112,12#,132,140,142,162,172,182,202,212,222,RZU100,XZU130..(DSL,EFI,LPG,TD)..5F |
2 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130..(DSL,EFI,LPG,TD)..5F |
2 | ||
| 47555-36051 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM..(DSL,EFI,LPG,TD) |
2 | ||
| 47555-36051 |
BU100,102..(DM2,DM3,DM5,T1,T2,T3,T4,T5,TW1,TW2,TW4)..5F;BU112,12#,132,140,142,162,172,182,202,212,222,RZU100,XZU130..(DSL,EFI,LPG,TD)..5F |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130..(DSL,EFI,LPG,TD)..5F |
2 | ||
| 47555-36051 |
BU100,102..(DM2,DM3,DM5,T1,T2,T3,T4,T5,TW1,TW2,TW4)..5F;BU112,12#,132,140,142,162,172,182,202,212,222,RZU100,XZU130..(DSL,EFI,LPG,TD)..5F |
2 | ||
| 47555-36051 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM..(DSL,EFI,LPG,TD) |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130..(DSL,EFI,LPG,TD)..5F |
2 | ||
| 47555-36051 |
BU100,102..(DM2,DM3,DM5,T1,T2,T3,T4,T5,TW1,TW2,TW4)..5F;BU112,12#,132,140,142,162,172,182,202,212,222,RZU100,XZU130..(DSL,EFI,LPG,TD)..5F |
2 | ||
| 47555-36051 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM..(DSL,EFI,LPG,TD) |
2 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36200 |
BU182..T3;BU172..IV4;BU142..T3..20T..5F;RZU100..DM6..(EFI,LPG);BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG) ｱﾘ(ﾏﾆｭｱﾙ ｱｼﾞｬｽﾀ) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36200 |
BU182..T3;BU172..IV4;RZU100..DM6;BU142..T3..20T..5F;BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG) ｱﾘ(ﾏﾆｭｱﾙ ｱｼﾞｬｽﾀ) |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36200 |
BU182..T3;BU172..IV4;BU142..T3..20T..5F;RZU100..DM6..(EFI,LPG);BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG) ｱﾘ(ﾏﾆｭｱﾙ ｱｼﾞｬｽﾀ) |
1 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 90201-10287 | ||||
(9505-9905)WT ; (9905- )T4..LPGB ; (9905-)BU10#,142,162,182,212
ｱﾘ(ｵ-ﾄｱｼﾞﾔｽﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-36020 |
BU182..T3;BU172..IV4;BU142..T3..20T..5F;RZU100..DM6..(EFI,LPG);BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG) 右側 |
2 | ||
| 04474-36030 |
BU182..T3;BU172..IV4;BU142..T3..20T..5F;RZU100..DM6..(EFI,LPG);BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG) 左側 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-36190 |
RZU100..DM6,T3,TW1;BU202,212,222..T3,T4,TW1,TW4;BU100,102,112,132,140,142,162,172,182,XZU130..(DM3,DM7,DM8,T3,T5,TL4,TW1)..WT |
1 | ||
| 04494-36190 |
BU202,212,222..T3,T4,TW4;BU10#,112,132,14#,162,172,182,RZU100,XZU130..(DM3,DM6,DM7,DM8,T3,T5,TW1)..WT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36170 |
BU182..T3;BU172..IV4;BU142..T3..20T..5F;RZU100..DM6..(EFI,LPG);BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36120 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU112,12#,202,222,XZU130,140;BU10#,132,140,145,147,162,172,182,RZU100..DM3,DM6,DM7,T1,T3,T5,TL4,TW1,TW2 |
12 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90114-10019 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU112,12#,202,222,RZU100,XZU130,140..DSL,LPGB,TD;BU172,RZU100..(DM6,T3,TW1)..(DSL,EFI,LPG)..(CBU,IV3);BU10#,132,140,145,147,162,182..DM3,DM6,DM7,T1,T3,T5,TL4,TW1,TW2 |
6 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36120 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90114-10019 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;BU212..ALV,T3,T4,TW1,TW4;BU112,12#,202,222,RZU100,XZU130,140..DSL,LPGB,TD;BU172,RZU100..(DM6,T3,TW1)..(DSL,EFI,LPG)..(CBU,IV3);BU10#,132,140,145,147,162,182..DM3,DM6,DM7,T1,T3,T5,TL4,TW1,TW2 |
6 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100..(DM3,DM6,DM7,T3,T5,TL4,TW1)..WT..(DSL,EFI,LPG)..5F |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100..(DM3,DM6,DM7,T3,T5,TL4,TW1)..WT..(DSL,EFI,LPG)..5F |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
BU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100..(DM3,DM6,DM7,T3,T5,TL4,TW1)..WT..(DSL,EFI,LPG)..5F |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36060 |
BU142..T3..20T..5F;BU142..MTM..30T..DSL;BU102..T4..30T..DSL..5F;BU112,140,202,212,222,XZU130,140..(ALV,DM7,DM8,T3,T4,TW1,TW4)..MTM;BU100,102,132,162,172,182,RZU100..(DM3,DM6,DM7,T3,T5,TL4,TW1)..WT..(DSL,EFI,LPG)..5F |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
8 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36200 |
BU182..T3;BU172..IV4;RZU100..DM6;BU142..T3..20T..5F;BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG) ｱﾘ(ﾏﾆｭｱﾙ ｱｼﾞｬｽﾀ) |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-10127 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-10287 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
16 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36200 |
BU182..T3;BU172..IV4;BU142..T3..20T..5F;RZU100..DM6..(EFI,LPG);BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG) ｱﾘ(ﾏﾆｭｱﾙ ｱｼﾞｬｽﾀ) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36200 |
BU182..T3;BU172..IV4;RZU100..DM6;BU142..T3..20T..5F;BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG) ｱﾘ(ﾏﾆｭｱﾙ ｱｼﾞｬｽﾀ) |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36200 |
BU182..T3;BU172..IV4;BU142..T3..20T..5F;RZU100..DM6..(EFI,LPG);BU140,212,222,XZU140..(ALV,T3,T4,TW1,TW4)..MTM;BU100,102,112,162,XZU130..(DM3,DM6,DM7,DM8,TW1)..DSL..5F;BU102,132,142,172,RZU100..MTM..(275T,30T)..(DSL,EFI,LPG) ｱﾘ(ﾏﾆｭｱﾙ ｱｼﾞｬｽﾀ) |
1 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||
