BU162A-TMMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU102,112,162,RZU100..DM2,DM5,DM7,DM8..5F

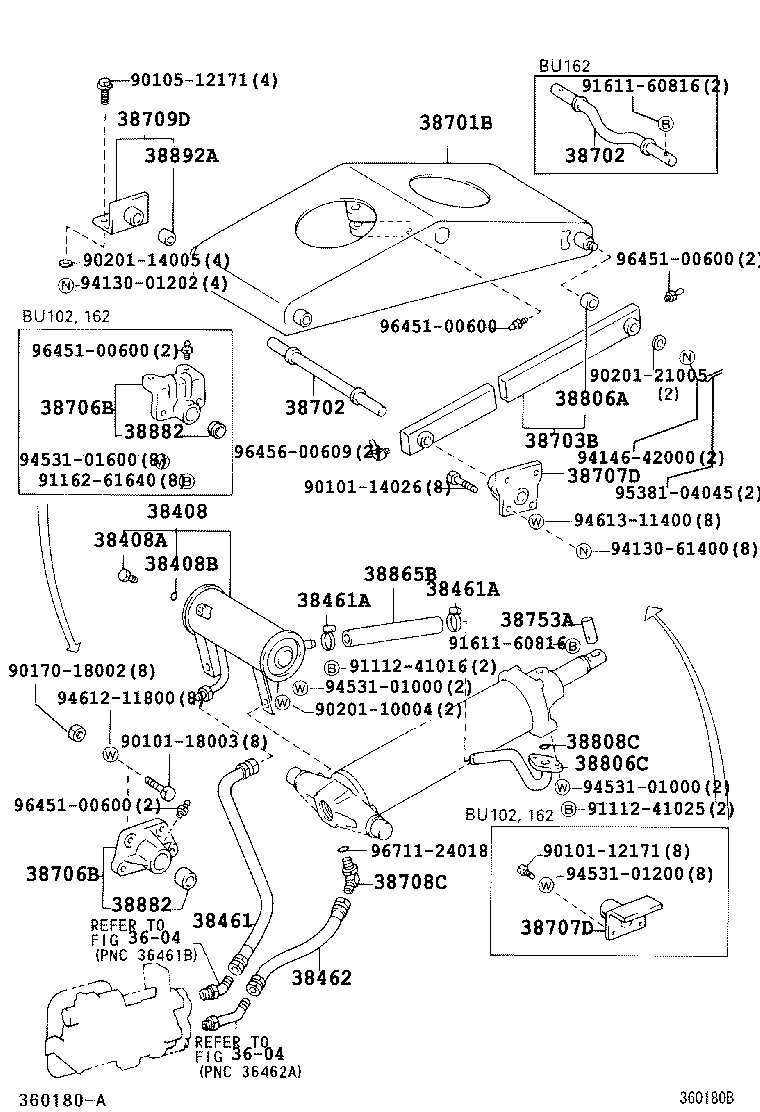

Click highlighted areas on diagram

diagram 3604 3604 38408 38408A 38408B 38461 38461A 38461A 38462 38701B 38702 38702 38703B 38706B 38706B 38707D 38707D 38708C 38709D 38753A 38806A 38806C 38808C 38865B 38882 38882 38892A 9010112171 9010114026 9010118003 9010512171 9017018002 9020110004 9020114005 9020121005 9111241016 9111241025 9116261640 9161160816 9161160816 9413001202 9413061400 9414642000 9453101000 9453101000 9453101200 9453101600 9461211800 9461311400 9538104045 9645100600 9645100600 9645100600 9645100600 9645600609 9671124018
Part # Description Qty Price
38408 - TANK SUB-ASSY, POWER
38408-93100

BU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU..5F

 1
38408A - PLUG (FOR POWER TANK)
90341-20001

BU102,112,162,RZU100,XZU130..(DM2,DM5,DM7,DM8)..CBU

 2
90341-20001

BU102,112,162,RZU100,XZU130..DMP..CBU

 2
38408B - RING, O (FOR POWER TANK PLUG)
90301-21007

BU102,112,162,RZU100,XZU130..DMP..CBU

 2
90301-21007

BU102,112,162,RZU100,XZU130..(DM2,DM5,DM7,DM8)..CBU

 2
38461 - HOSE, POWER OIL PUMP SUCTION
38461-93104

BU162..02S..CBU

 1
38461A - CLAMP (FOR POWER OIL PUMP SUCTION)
90460-44002

BU102,112,162,RZU100..DMP..CBU

 2
38461A - CLAMP (FOR POWER OIL PUMP SUCTION)
90460-44002

BU102,112,162,RZU100..DMP..CBU

 2
38462 - HOSE, POWER OIL PUMP DELIVERY
38462-93105

BU162..02S..CBU

 1
38701B - ARM SUB-ASSY, LIFT
38701-96309

BU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU

 1
38702 - SHAFT SUB-ASSY, TENSION ARM
38702-96305

BU162..02S..CBU

 1
38702 - SHAFT SUB-ASSY, TENSION ARM
38702-96305

BU162..02S..CBU

 1
38703B - ARM SUB-ASSY, TENSION
38703-96305

BU162..02S..CBU

 2
38706B - BRACKET SUB-ASSY, TRUNNION
38706-96303

BU102,162,RZU100..(DM2,DM5,DM7)..CBU

 2
38706B - BRACKET SUB-ASSY, TRUNNION
38706-96303

BU102,162,RZU100..(DM2,DM5,DM7)..CBU

 2
38707D - BRACKET SUB-ASSY, TENSION ARM SHAFT
38707-96310

BU162..02S..CBU

 2
38707D - BRACKET SUB-ASSY, TENSION ARM SHAFT
38707-96310

BU162..02S..CBU

 2
38708C - UNION (FOR DELIVERY HOSE)
90407-21001

BU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU..5F

 1
38709D - BRACKET SUB-ASSY, LIFT ARM
38709-96304

BU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU

 2
38753A - PIN, CROSSHEAD
38753-96303

BU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU

 1
38806A - BUSH, TENSION ARM HEAD
90384-35005

BU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU

 4
38806C - PIPE SUB-ASSY, HOIST CYLINDER SUCTION, NO.1
38806-93103

BU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU

 1
38808C - RING, O (FOR HOIST CYLINDER SUCTION)
90301-29009

BU102,112,162,RZU100..DMP..CBU

 1
90301-29009

BU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU

 1
38865B - HOSE, HOIST CYLINDER SUCTION
38865-93101

BU162..02S..CBU

 1
38882 - BUSH, TRUNNION
38882-96304

BU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU

 2
38882 - BUSH, TRUNNION
38882-96304

BU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU

 2
38892A - BUSH (FOR LINK ARM BODY BRACKET)
90384-35004

BU102,112,162,RZU100..(DM2,DM5,DM7,DM8)..CBU

 2
Common parts
90101-12171
90101-14026
90101-18003
90105-12171
90170-18002
90201-10004
90201-14005
90201-21005
91112-41016
91112-41025
91162-61640
91611-60816
94130-01202
94130-61400
94146-42000
94531-01000
94531-01200
94531-01600
94612-11800
94613-11400
95381-04045
96451-00600
96456-00609
96711-24018
Linked diagrams
3604
