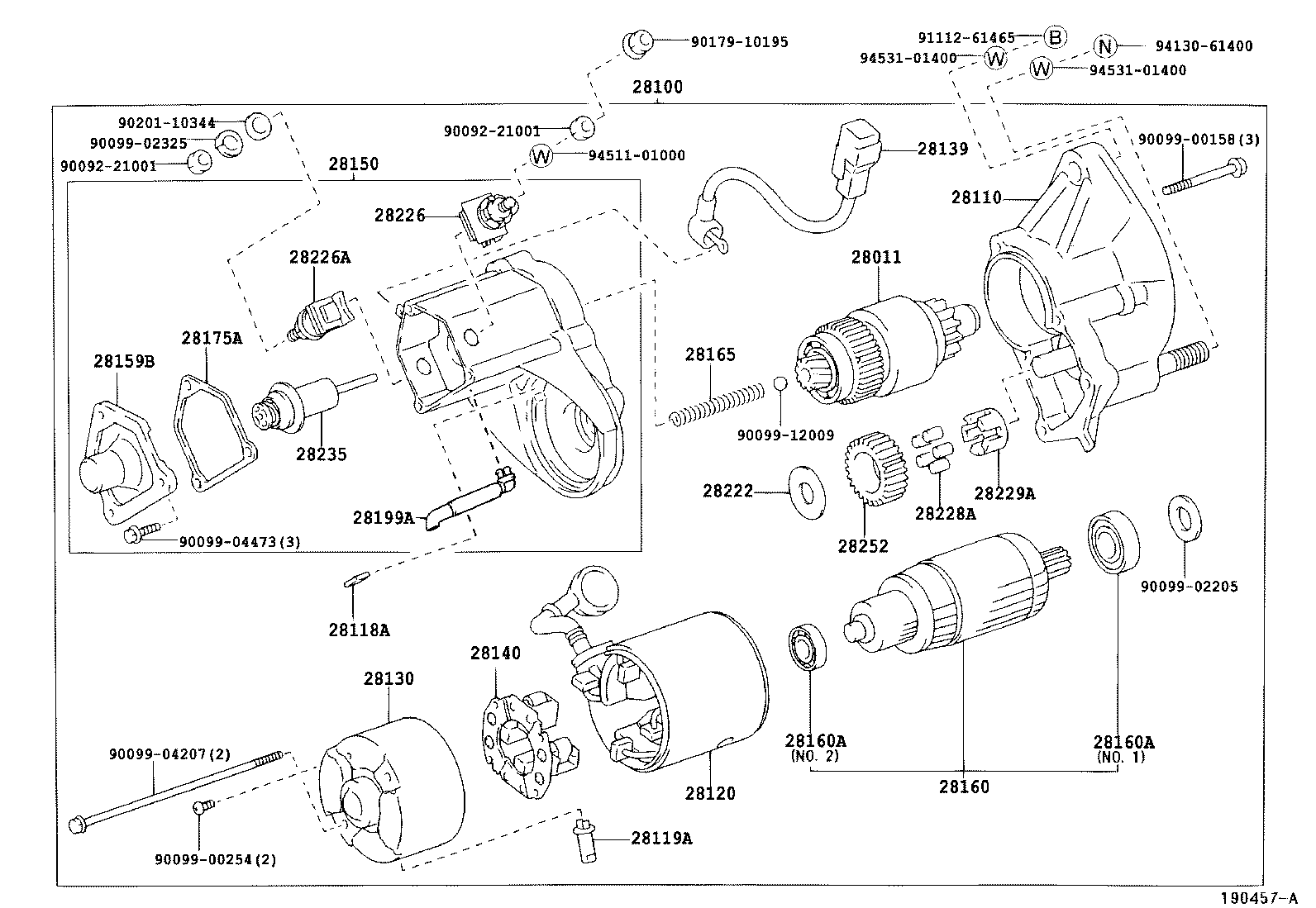

Toyota Dyna 200/toyoace g25 BU162 STARTER

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-54010	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100	05/1995 - 05/2000	1
28100 - STARTER ASSY
28100-56320	15BF..BU172;15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,182,202,212,222..CBU,IV3 24V 4.5KW	05/1995 - 08/1998	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-56150	15BF..BU172;15B#,3B..BU10#,112,12#,13#,14#,162,182,202,212,222..CBU,IV3	05/1995 - 08/1998	1
28118A - PLATE(FOR STARTER YOKE)
28118-77090	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100	05/1995 - 05/2000	1
28119A - COVER, STARTER END FRAME
28199-46080	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100	05/1995 - 05/2000	1
28120 - YOKE ASSY, STARTER
28120-56221	15BF..BU132..IV3;15BF..BU107..T2,T4;15BF..BU132..CBU..5F;15BF..BU102..20T..4FC;15BF..BU147..T2,T4,TW4;15BF..BU102,137..T4..20T..5F;15BF..BU107,172..(T3,TW1,TW4)..(02S,05S,06S)..5F;15BF..BU102,182..(DM2,DM3,DM5,DM6,T2,T3,T5,TW4)..5F;15BF,15BFT,3B..BU100,112,12#,140,142,162,202,212,222,297..4FC,5F ﾔﾏﾄｳﾝﾕｼﾖｳ	05/1995 - 06/1999	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-56260	15BF..BU132..IV3;15BF..BU107..T2,T4;15BF..BU132..CBU..5F;15BF..BU102..20T..4FC;15BF..BU147..T2,T4,TW4;15BF..BU102,137..T4..20T..5F;15BF..BU107,172..(T3,TW1,TW4)..(02S,05S,06S)..5F;15BF..BU102,182..(DM2,DM3,DM5,DM6,T2,T3,T5,TW4)..5F;15B#,3B..BU100,112,12#,140,142,162,202,212,222,297..4FC,5F ﾔﾏﾄｳﾝﾕｼﾖｳ	05/1995 - 06/1999	1
28139 - WIRE, LEAD, NO.1(FOR STARTER)
28139-56251	15BF..BU172;15B#,3B..BU10#,112,12#,13#,14#,162,182,202,212,222..CBU,IV3	11/1996 - 11/1997	1
28139-56250	15BF..BU172;15B#,3B..BU10#,112,12#,13#,14#,162,182,202,212,222..CBU,IV3	05/1995 - 11/1996	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100	05/1995 - 05/2000	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-56320	15BF..BU172;15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,182,202,212,222..CBU,IV3	05/1995 - 06/1999	1
28159B - COVER, MAGNET SWITCH
28159-56310	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100	05/1995 - 05/2000	1
28160 - ARMATURE ASSY, STARTER
28160-77090	15BF,15BFT..BU212..20T;15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,222,297 ｱﾘ(ﾌﾗｲﾎｲ-ﾙ)	05/1995 - 06/1999	1
28160A - BEARING, STARTER ARMATURE
90099-10107	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100 NO.2	05/1995 - 05/2000	1
90099-10119	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100 NO.1	05/1995 - 05/2000	1
28160A - BEARING, STARTER ARMATURE
90099-10107	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100 NO.2	05/1995 - 05/2000	1
90099-10119	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100 NO.1	05/1995 - 05/2000	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-77090	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100	05/1995 - 05/2000	1
28175A - GASKET, MAGNET SWITCH COVER
28175-56310	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100	05/1995 - 05/2000	1
28222 - WASHER, STARTER IDLE GEAR CLUTCH
28222-77090	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100	05/1995 - 05/2000	1
28226 - STARTER KIT, BATTERY TERMINAL
28226-54320	15BF..BU172;15B#,3B..BU10#,112,12#,13#,14#,162,182,202,212,222,297,RZU100..CBU,IV3	05/1995 - 05/2000	1
28226A - STARTER KIT, MOTOR TERMINAL
28226-54220	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100	05/1995 - 05/2000	1
28228A - ROLLER, STARTER CLUTCH
28228-56080	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100	05/1995 - 05/2000	5
28229A - RETAINER, STARTER IDLE GEAR
28229-56080	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100	05/1995 - 05/2000	1
28235 - PLUNGER, MAGNET SWITCH
28235-17030	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100	05/1995 - 05/2000	1
28252 - GEAR, STARTER IDLE
28254-77090	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100	05/1995 - 05/2000	1
Common parts
90092-21001
90099-00158
90099-00254
90099-02205
90099-02325
90099-04207
90099-04473
90099-12009
90179-10195
90201-10344
91112-61465
94130-61400
94511-01000
94531-01400

BU162A-TMMMS (1995)

(9505- )15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297
