BU162-TQMMS3 (1995)
Toyota Dyna 200/Toyoace G25

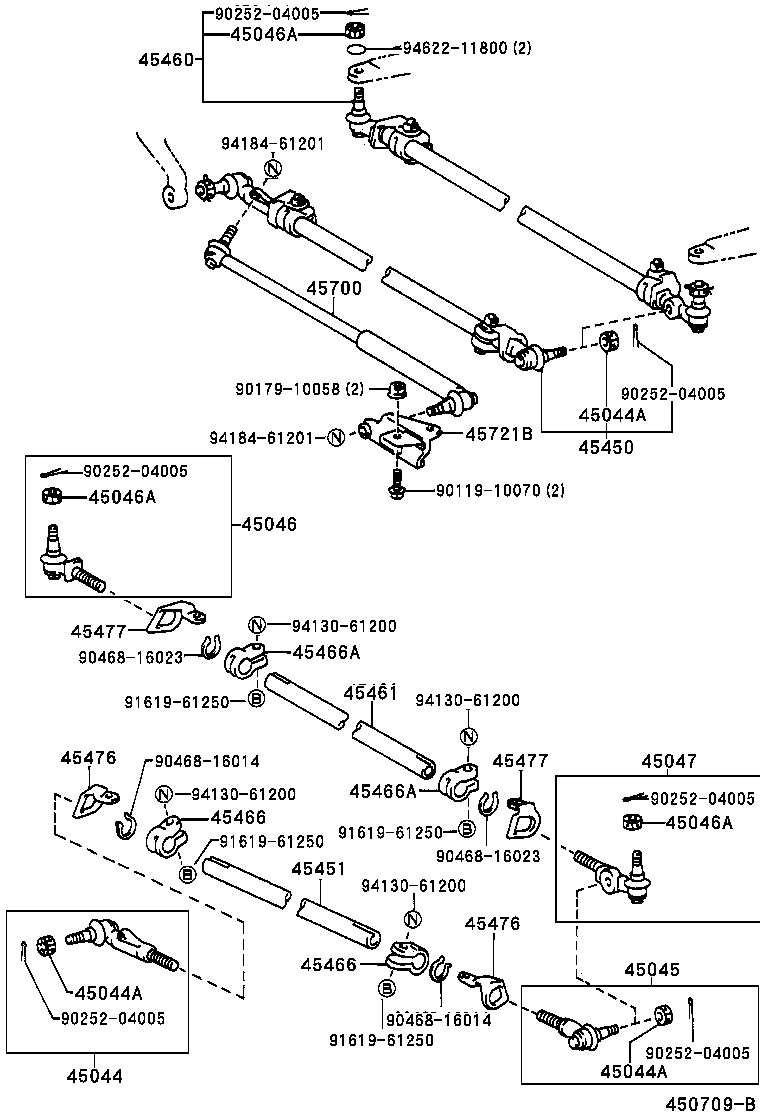

ILLUST NO. 3 OF 3(9505- )BU162,172,182
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45044 - END SUB-ASSY, STEERING RELAY ROD, RH | ||||
| 45044-39025 |
BU162,172,182 |
1 | ||
| 45044A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90171-18003 |
BU162,172,182 |
2 | ||
| 45044A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90171-18003 |
BU162,172,182 |
2 | ||
| 45044A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90171-18003 |
BU162,172,182 |
2 | ||
| 45045 - END SUB-ASSY, STEERING RELAY ROD, LH | ||||
| 45045-39025 |
BU162,172,182 |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39315 |
BU162,172,182 |
1 | ||
| 45046-39345 |
BU162,172,182 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39225 |
BU162,172,182 |
1 | ||
| 45047-39195 |
BU162,172,182 |
1 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45450-39235 |
BU162,172,182 |
1 | ||
| 45451 - ROD, STEERING RELAY | ||||
| 45451-36030 |
BU162,172,182 |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39415 |
BU162,172,182 |
1 | ||
| 45460-39465 |
BU162,172,182 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-36060 |
BU162,172,182 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-36010 |
BU132..TL4;BU162,172,182,202,212,222 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-36010 |
BU132..TL4;BU162,172,182,202,212,222 |
2 | ||
| 45466A - CLAMP, RELAY ROD END | ||||
| 45466-36030 |
BU162,172,182 |
2 | ||
| 45466A - CLAMP, RELAY ROD END | ||||
| 45466-36030 |
BU162,172,182 |
2 | ||
| 45476 - PLATE, TURNING STOPPER | ||||
| 45476-36010 |
BU162,172,182 |
2 | ||
| 45476 - PLATE, TURNING STOPPER | ||||
| 45476-36010 |
BU162,172,182 |
2 | ||
| 45477 - PLATE, STOPPER | ||||
| 45477-36020 |
BU162,172,182 |
2 | ||
| 45477 - PLATE, STOPPER | ||||
| 45477-36020 |
BU162,172,182 |
2 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-36010 |
BU162,172,182 |
1 | ||
| 45721B - BRACKET, STEERING DAMPER, NO.3 | ||||
| 45721-36010 |
BU162,172,182 |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90179-10058 | ||||
| 90252-04005 | ||||
| 90468-16014 | ||||
| 90468-16023 | ||||
| 91619-61250 | ||||
| 94130-61200 | ||||
| 94184-61201 | ||||
| 94622-11800 | ||||

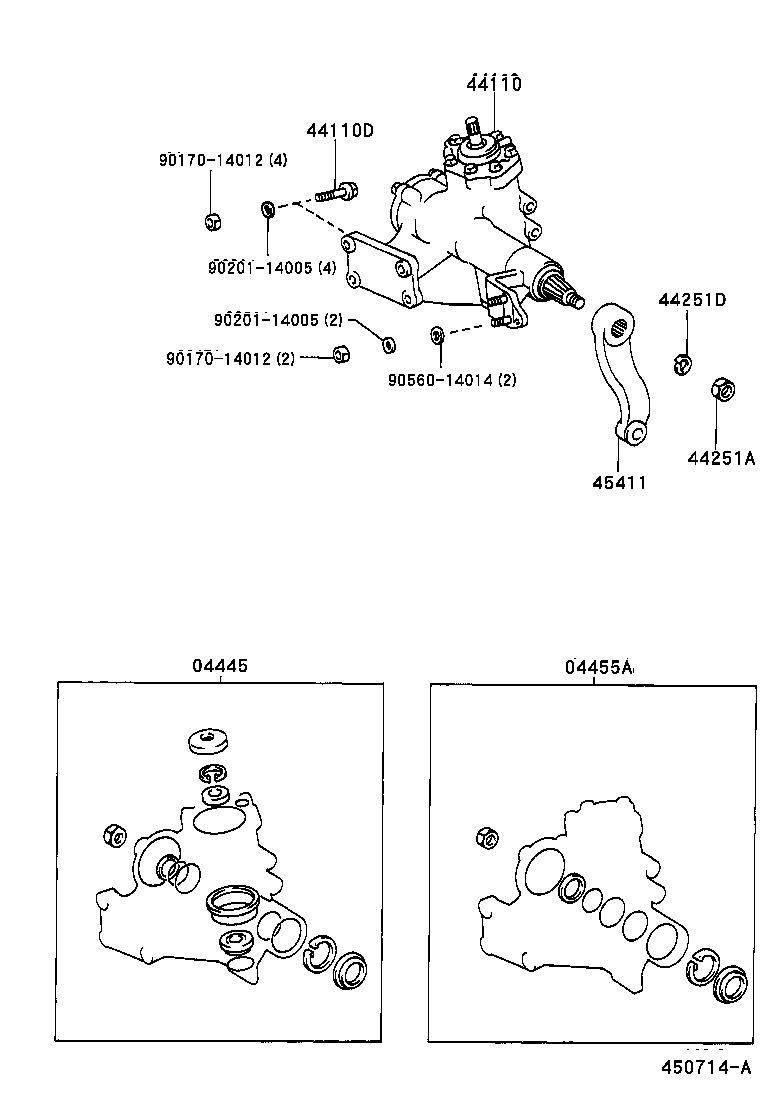

ILLUST NO. 1 OF 3(9505- )BU162,172,182
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-36090 |
BU162,172,182 |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-36070 |
BU162,172,182 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-37080 |
BU162,172,182 |
1 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14017 |
BU132..T3,T4;BU100,102,12#,140,142,162,172,182,RZU100,140,XZU130,140 長さ=45 |
1 | ||
| 90101-14477 |
BU162,172,182,202,212,222 長さ=60 |
3 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-27033 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44251D - WASHER(FOR PITMAN ARM) | ||||
| 90204-27020 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37030 |
BU162,172,182 |
1 | ||
| Common parts | ||||
| 90170-14012 | ||||
| 90201-14005 | ||||
| 90560-14014 | ||||

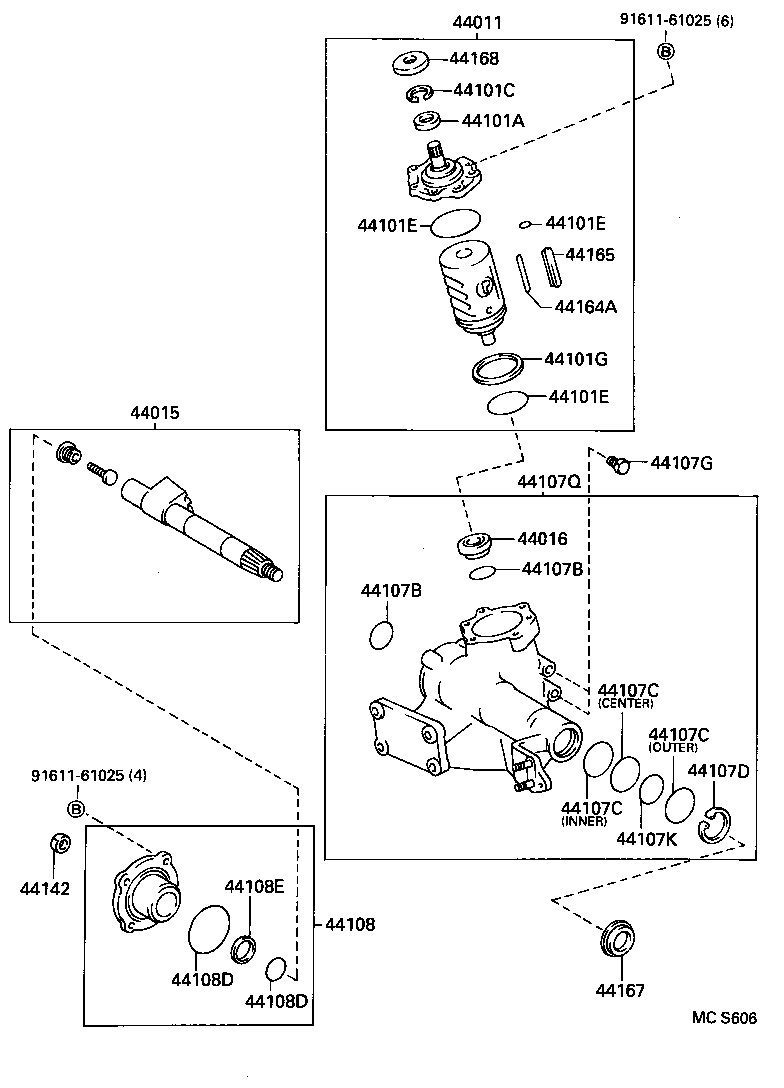

ILLUST NO. 2 OF 3(9505- )BU132..T3,T4 ; (9505- )BU100,102,112,12#,140,142,202,212,222,RZU100,1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44011 - PISTON SUB-ASSY, POWER | ||||
| 44011-36290 |
BU162,172,182 |
1 | ||
| 44015 - SHAFT SUB-ASSY, SECTOR | ||||
| 44015-36291 |
BU162,172,182 |
1 | ||
| 44016 - CASE SUB-ASSY, WORM BEARING | ||||
| 44016-25010 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44101A - SEAL, TYPE T OIL(FOR STEERING WORM) | ||||
| 90029-21012 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44101C - RING, HOLE SNAP(FOR STEERING WORM OIL SEAL) | ||||
| 96151-03200 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20014 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) ID=71.4 |
1 | ||
| 96711-19009 |
BU132..T3,T4;BU100,102,112,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 ID=8.8 |
1 | ||
| 90029-20010 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20014 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) ID=71.4 |
1 | ||
| 96711-19009 |
BU132..T3,T4;BU100,102,112,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 ID=8.8 |
1 | ||
| 90029-20010 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20014 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) ID=71.4 |
1 | ||
| 96711-19009 |
BU132..T3,T4;BU100,102,112,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 ID=8.8 |
1 | ||
| 90029-20010 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44101G - SEAL, DUST(FOR STEERING WORM) | ||||
| 90029-20702 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20020 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) 内径=38 |
1 | ||
| 90029-20007 |
BU132..T3,T4;BU100,102,112,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 内径=39.4 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20020 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) 内径=38 |
1 | ||
| 90029-20007 |
BU132..T3,T4;BU100,102,112,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 内径=39.4 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20032 |
BU162,172,182 内径=45.7,外径=52.7,外側 |
1 | ||
| 90029-56603 |
BU162,172,182 内径=38,ｾﾝﾀ |
1 | ||
| 90029-20034 |
BU162,172,182 内側 |
1 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-01502 |
BU132..T3,T4;BU100,102,12#,140,142,162,172,182,RZU100,140,XZU130,140 |
2 | ||
| 44107K - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-35038 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44107Q - HOUSING SUB-ASSY, STEERING W/NAME PLATE | ||||
| 44107-37080 |
BU162,172,182 |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-36290 |
BU162,172,182 |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20020 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 90029-20033 |
BU162,172,182 ID=79.6 |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20020 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 90029-20033 |
BU162,172,182 ID=79.6 |
1 | ||
| 44108E - RING(FOR SECTOR COVER) | ||||
| 90029-56603 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-37010 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 44164A - RING, POWER PISTON | ||||
| 44164-36050 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44165 - RING, SEAL, NO.1 | ||||
| 44165-36050 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44167 - COVER, SECTOR SHAFT DUST | ||||
| 44167-36020 |
BU162,172,182 |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 44168-25010 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| Common parts | ||||
| 90029-01001 | ||||
| 90029-01002 | ||||
| 90101-10435 | ||||
| 91611-61025 | ||||
| 94512-01000 | ||||
ILLUST NO. 1 OF 3(9505- )BU132..T3,T4 ; (9505- )BU100,102,112,12#,140,142,202,212,222,RZU100,1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-36090 |
BU162,172,182 |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-36070 |
BU162,172,182 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-37080 |
BU162,172,182 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-37080 |
BU162,172,182 |
1 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14017 |
BU132..T3,T4;BU100,102,12#,140,142,162,172,182,RZU100,140,XZU130,140 長さ=45 |
1 | ||
| 90101-14477 |
BU162,172,182,202,212,222 長さ=60 |
3 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14017 |
BU132..T3,T4;BU100,102,12#,140,142,162,172,182,RZU100,140,XZU130,140 長さ=45 |
1 | ||
| 90101-14477 |
BU162,172,182,202,212,222 長さ=60 |
3 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14017 |
BU132..T3,T4;BU100,102,12#,140,142,162,172,182,RZU100,140,XZU130,140 長さ=45 |
1 | ||
| 90101-14477 |
BU162,172,182,202,212,222 長さ=60 |
3 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14017 |
BU132..T3,T4;BU100,102,12#,140,142,162,172,182,RZU100,140,XZU130,140 長さ=45 |
1 | ||
| 90101-14477 |
BU162,172,182,202,212,222 長さ=60 |
3 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-27033 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-27033 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44251D - WASHER(FOR PITMAN ARM) | ||||
| 90204-27020 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44251D - WASHER(FOR PITMAN ARM) | ||||
| 90204-27020 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37030 |
BU162,172,182 |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37030 |
BU162,172,182 |
1 | ||
| Common parts | ||||
| 90170-14012 | ||||
| 90201-14005 | ||||
ILLUST NO. 2 OF 3(9505- )BU162,172,182
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44011 - PISTON SUB-ASSY, POWER | ||||
| 44011-36290 |
BU162,172,182 |
1 | ||
| 44015 - SHAFT SUB-ASSY, SECTOR | ||||
| 44015-36291 |
BU162,172,182 |
1 | ||
| 44016 - CASE SUB-ASSY, WORM BEARING | ||||
| 44016-25010 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44101A - SEAL, TYPE T OIL(FOR STEERING WORM) | ||||
| 90029-21012 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44101C - RING, HOLE SNAP(FOR STEERING WORM OIL SEAL) | ||||
| 96151-03200 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20014 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) ID=71.4 |
1 | ||
| 96711-19009 |
BU132..T3,T4;BU100,102,112,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 ID=8.8 |
1 | ||
| 90029-20010 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20014 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) ID=71.4 |
1 | ||
| 96711-19009 |
BU132..T3,T4;BU100,102,112,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 ID=8.8 |
1 | ||
| 90029-20010 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20014 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) ID=71.4 |
1 | ||
| 96711-19009 |
BU132..T3,T4;BU100,102,112,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 ID=8.8 |
1 | ||
| 90029-20010 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44101G - SEAL, DUST(FOR STEERING WORM) | ||||
| 90029-20702 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20020 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) 内径=38 |
1 | ||
| 90029-20007 |
BU132..T3,T4;BU100,102,112,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 内径=39.4 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20020 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) 内径=38 |
1 | ||
| 90029-20007 |
BU132..T3,T4;BU100,102,112,12#,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 内径=39.4 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20032 |
BU162,172,182 内径=45.7,外径=52.7,外側 |
1 | ||
| 90029-56603 |
BU162,172,182 内径=38,ｾﾝﾀ |
1 | ||
| 90029-20034 |
BU162,172,182 内側 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20032 |
BU162,172,182 内径=45.7,外径=52.7,外側 |
1 | ||
| 90029-56603 |
BU162,172,182 内径=38,ｾﾝﾀ |
1 | ||
| 90029-20034 |
BU162,172,182 内側 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20032 |
BU162,172,182 内径=45.7,外径=52.7,外側 |
1 | ||
| 90029-56603 |
BU162,172,182 内径=38,ｾﾝﾀ |
1 | ||
| 90029-20034 |
BU162,172,182 内側 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 96151-05500 |
BU162,172,182 |
1 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-01502 |
BU132..T3,T4;BU100,102,12#,140,142,162,172,182,RZU100,140,XZU130,140 |
2 | ||
| 44107K - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-35038 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44107Q - HOUSING SUB-ASSY, STEERING W/NAME PLATE | ||||
| 44107-37080 |
BU162,172,182 |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-36290 |
BU162,172,182 |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20020 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 90029-20033 |
BU162,172,182 ID=79.6 |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20020 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 90029-20033 |
BU162,172,182 ID=79.6 |
1 | ||
| 44108E - RING(FOR SECTOR COVER) | ||||
| 90029-56603 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-37010 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 44164A - RING, POWER PISTON | ||||
| 44164-36050 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44165 - RING, SEAL, NO.1 | ||||
| 44165-36050 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44167 - COVER, SECTOR SHAFT DUST | ||||
| 44167-36020 |
BU162,172,182 |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 44168-25010 |
BU162,172,182;BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| Common parts | ||||
| 91611-61025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
