BU147-TQMMS3 (1996)

Toyota Dyna 200/Toyoace G25

Production Oct 1996 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

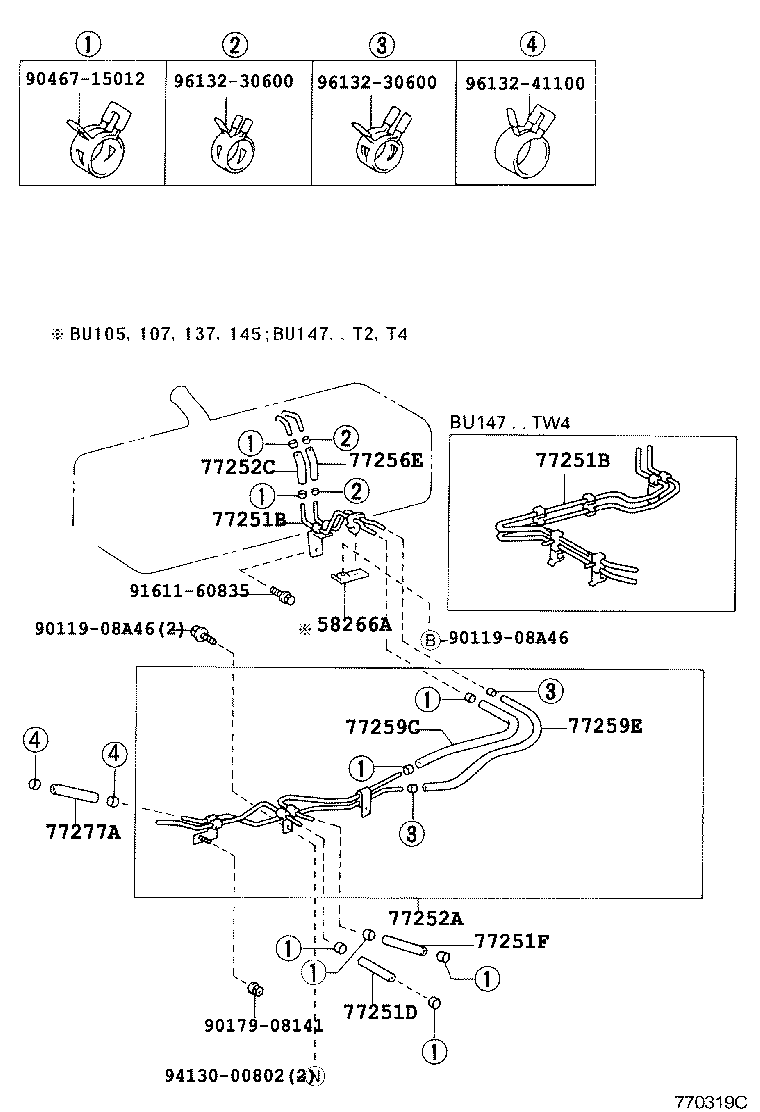

ILLUST NO. 2 OF 2(9610- )BU105,107,137,145,147

Click highlighted areas on diagram

diagram 58266A 77251B 77251B 77251D 77251F 77252A 77252C 77256E 77259C 77259E 77277A 9011908A46 9011908A46 9017908141 9046715012 9161160835 9413000802 9613230600 9613230600 9613241100
Part # Description Qty Price
58266A - BRACKET, FUEL TUBE CLAMP
58266-36201

BU147..03S;BU105,107,137,145

 1
77251B - TUBE, FUEL MAIN
77205-36481

BU142,147..03S..DSL..(4FC,5F);BU10#,12#,13#,140,145..DSL..(CBU,IV3)

 1
77251B - TUBE, FUEL MAIN
77205-36481

BU142,147..03S..DSL..(4FC,5F);BU10#,12#,13#,140,145..DSL..(CBU,IV3)

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
77259-36171

BU132..T3,T4;BU10#,12#,137,14#,162,172,182..(02S,03S,06S)..DSL..(CBU,IV3)

 1
77251F - HOSE, FUEL
95332-10016

BU132..T3,T4;BU10#,12#,137,14#,162,172,182..(02S,03S,06S)..DSL..(CBU,IV3)

*H,L=160

 1
77252A - TUBE, FUEL MAIN, NO.2
77206-37150

BU105,107,137,145,147

 1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95332-10040

BU147;BU162..DM7;BU142..06S..IV3;BU100,102..T3..ST;BU107,137,172,182..02S,03S;BU140,142..(T3,TW4)..DSL..CBU;BU102,132..(T3,T5)..(275T,30T)

 1
95332-10040

BU147;BU100..T3..ST;BU102..ST..IV3;BU162..(DM7,T4)..IV3;BU105,107,137,145..03S;BU142,172,182..(T3,TW4)..(02S,06S);BU102,142,162..(DM7,T3)..DSL..CBU..(4FC,5F)

 1
95332-10040

BU147;BU100..T3..ST;BU142..T3..6F;BU172,182..T3;BU102..T3..CBU;BU102..ST..IV3;BU105,107,137,145..03S;BU140,142,162..(DM7,T3,TW4)..20T

ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ)

 1
77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE)
95333-06040

BU100..T3..ST;BU172,182..T3;BU102..ST..IV3;BU162..(DM7,T4)..IV3;BU105,107,137,145,147..03S;BU102,142,162..(DM7,T3)..DSL..CBU..(4FC,5F)

 1
95333-06040

BU162..DM7;BU100,102..T3..ST;BU140,142..T3..DSL..CBU;BU107,137,147,172,182..02S,03S;BU102,132..(T3,T5)..(275T,30T)

 1
95333-06040

BU100..T3..ST;BU102..ST..IV3;BU147..06S..IV3;BU142..T3..IV3..6F;BU162,172,182..DM7,T3;BU102,142..T3..DSL..CBU;BU105,107,137,145,147..03S

TECS=ﾄﾘﾌﾟﾙ ｷﾔﾌﾞ 60L

 1
77259C - HOSE, FUEL
77259-37020

BU105,107,137,145,147

 1
77259E - HOSE, FUEL
77259-37030

BU105,107,137,145,147

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-56010

BU10#,112,12#,13#,14#,162,172,182,202,212,222..DSL,TD

長さ=220

 1
Common parts
90119-08A46
90179-08141
90467-15012
91611-60835
94130-00802
96132-30600
96132-41100
