BU147-TQMMS3 (1996)

Toyota Dyna 200/Toyoace G25

Production Oct 1996 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )BU105,107,137,145,147

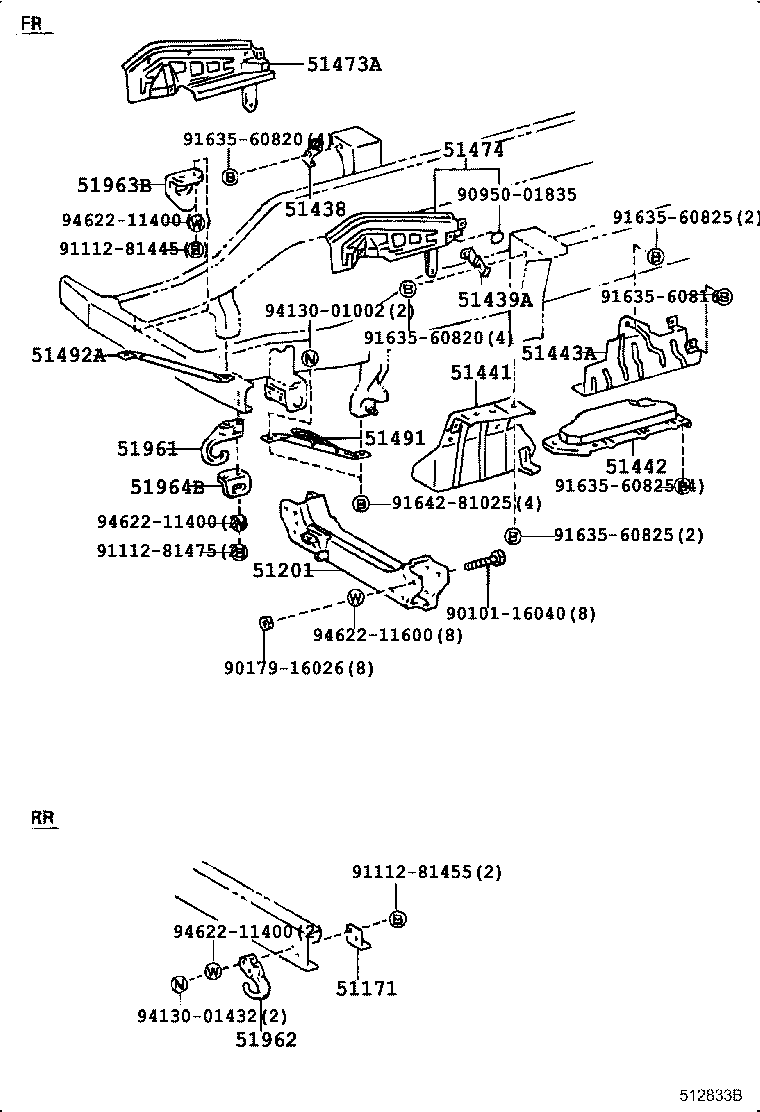

Click highlighted areas on diagram

diagram 51171 51201 51438 51439A 51441 51442 51443A 51473A 51474 51491 51492A 51961 51962 51963B 51964B 9010116040 9017916026 9095001835 9111281445 9111281455 9111281475 9163560816 9163560820 9163560820 9163560825 9163560825 9163560825 9164281025 9413001002 9413001432 9462211400 9462211400 9462211400 9462211600
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51210-37010

BU105,107,137,145,147

 1
51438 - BRACKET, ENGINE SIDE COVER, NO.2 RH
51438-37010

BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,RZU100,140,XZU130,140..02S,03S,06S

 1
51439A - BRACKET, ENGINE SIDE COVER, NO.2 LH
51439-37010

BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,RZU100,140,XZU130,140..02S,03S,06S

 1
51442 - COVER, ENGINE UNDER, NO.2
51405-37010

BU102,107,13#,142,147,XZU130,140..MTM..(02S,03S)..DSL

 1
51443A - COVER, ENGINE UNDER, REAR
51406-37040

BU107,137,147..03S..5F

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51043-37010

BU10#,112,12#,132,14#,RZU100,XZU130

 1
51043-37060

BU105,107,137,145,147

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51470-37010

BU10#,112,12#,132,14#,RZU100,XZU130

 1
51470-37030

BU105,107,137,145,147

 1
51491 - BAR, UNDER GUARD, FRONT NO.1
51491-37020

BU105,107,137,145,147

 1
51492A - BAR, UNDER GUARD, FRONT NO.2
51492-37010

BU105,107,137,145,147

 1
51961 - HOOK, NO.1
51961-36040

BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,RZU100,140,XZU130,140

 1
51962 - HOOK, NO.2
51961-36020

BU182..T4;BU182..T3..CBU;BU14#,202,212,222,RZU140,XZU140

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37020

BU105,107,137,145,147

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37030

BU105,107,137,145,147

 1
Common parts
90101-16040
90179-16026
90950-01835
91112-81445
91112-81455
91112-81475
91635-60816
91635-60820
91635-60825
91642-81025
94130-01002
94130-01432
94622-11400
94622-11600
