BU147-TQMMS3 (1996)

Toyota Dyna 200/Toyoace G25

Production Oct 1996 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

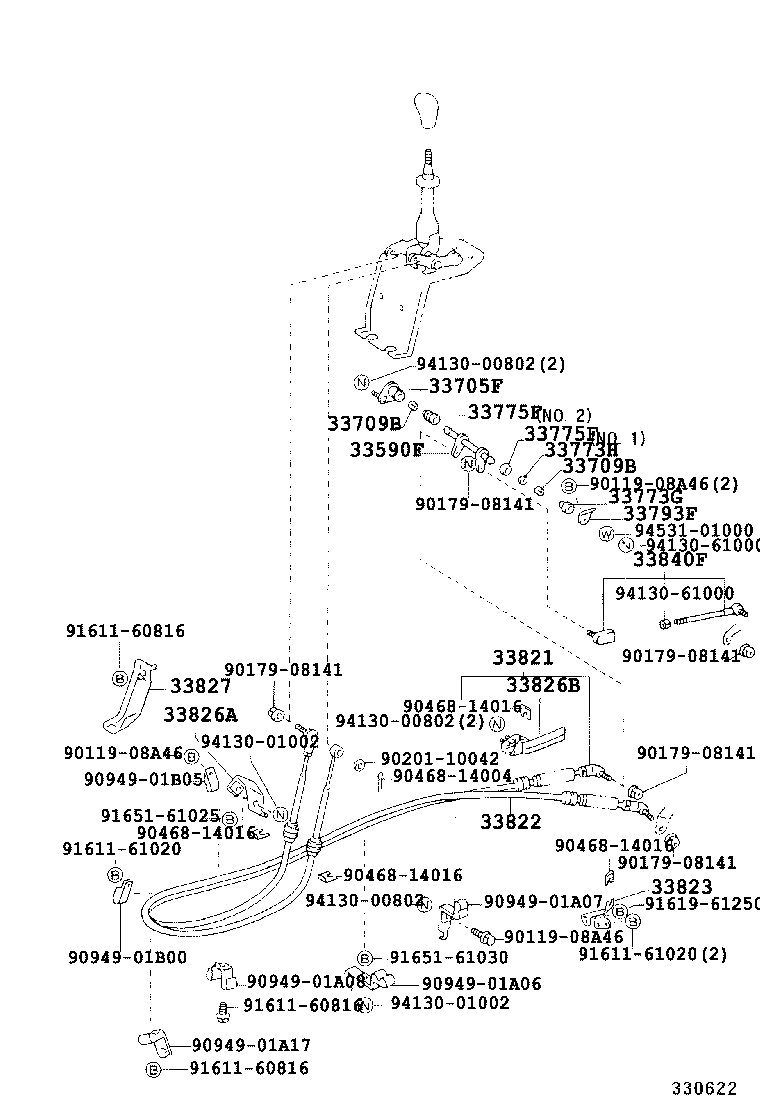

ILLUST NO. 2 OF 2(9610- )BU105,107,137,145,147..5F

Click highlighted areas on diagram

diagram 33590F 33705F 33709B 33709B 33773G 33773H 33775F 33775F 33793F 33821 33822 33823 33826A 33826B 33827 33840F 9011908A46 9011908A46 9011908A46 9017908141 9017908141 9017908141 9017908141 9017908141 9020110042 9046814004 9046814016 9046814016 9046814016 9046814016 9094901A06 9094901A07 9094901A08 9094901A17 9094901B00 9094901B05 9161160816 9161160816 9161160816 9161161020 9161161020 9161961250 9165161025 9165161030 9413000802 9413000802 9413000802 9413001002 9413001002 9413061000 9413061000 9453101000
Part # Description Qty Price
33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT)
33705-37020

BU10#,12#,13#,14#..(175T,20T)..DSL..(CBU,IV3)..5F

 1
33709B - BUSH (FOR CROSS SHAFT)
33772-26010

BU10#,12#,13#,14#,202,212,222,RZU100..(DSL,LPGB,TD)..(CBU,IV3)..5F

 2
33709B - BUSH (FOR CROSS SHAFT)
33772-26010

BU10#,12#,13#,14#,202,212,222,RZU100..(DSL,LPGB,TD)..(CBU,IV3)..5F

 2
33773G - SUPPORT, CROSS SHAFT
33773-20020

BU10#,12#,13#,14#,202,212,222,RZU100..(DSL,LPGB,TD)..(CBU,IV3)..5F

 1
33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP)
96151-01600

BU10#,12#,13#,14#,202,212,222,RZU100..(DSL,LPGB,TD)..(CBU,IV3)..5F

 1
33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
33775-20020

BU10#,12#,13#,14#,202,212,222,RZU100..(DSL,LPGB,TD)..(CBU,IV3)..5F

NO.1

 1
33775-20040

BU10#,12#,13#,14#,202,212,222,RZU100..(DSL,LPGB,TD)..(CBU,IV3)..5F

NO.2

 1
33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
33775-20020

BU10#,12#,13#,14#,202,212,222,RZU100..(DSL,LPGB,TD)..(CBU,IV3)..5F

NO.1

 1
33775-20040

BU10#,12#,13#,14#,202,212,222,RZU100..(DSL,LPGB,TD)..(CBU,IV3)..5F

NO.2

 1
33793F - BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT)
33793-37031

BU10#,12#,13#,14#..(175T,20T)..DSL..(CBU,IV3)..5F

 1
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33820-37131

BU10#,12#,132,14#..(175T,20T)..(CBU,IV3)..5F

 1
33820-37400

BU105,107,137,145,147..5F

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33820-37410

BU105,107,137,145,147..5F

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37080

BU10#,12#,132,14#..(175T,20T)..(CBU,IV3)..5F

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-37020

BU112..4FC;BU132..T3,T4;BU10#,12#,137,14#,RZU100,140,XZU130,140

 1
33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33826-37161

BU10#,12#,13#,14#..(175T,20T)..DSL..(CBU,IV3)..5F

 1
33826-37160

BU10#,12#,13#,14#..(175T,20T)..(CBU,IV3)..5F

 1
33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-37050

BU132,XZU130..DM7,T3,T4;BU10#,112,12#,137,14#,172,RZU100,140,XZU140..03S,05S,06S

 1
33840F - ROD ASSY, GEAR SHIFTING, NO.3
33840-37010

BU10#,12#,13#,14#..(175T,20T)..DSL..(CBU,IV3)..5F

 1
Common parts
90119-08A46
90179-08141
90201-10042
90468-14004
90468-14016
90949-01A06
90949-01A07
90949-01A08
90949-01A17
90949-01B00
90949-01B05
91611-60816
91611-61020
91619-61250
91651-61025
91651-61030
94130-00802
94130-01002
94130-61000
94531-01000
