BU147-TKPMS3 (1997)

Toyota Dyna 200/Toyoace G25

Production Aug 1997 - May 1999
Engine 15BF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

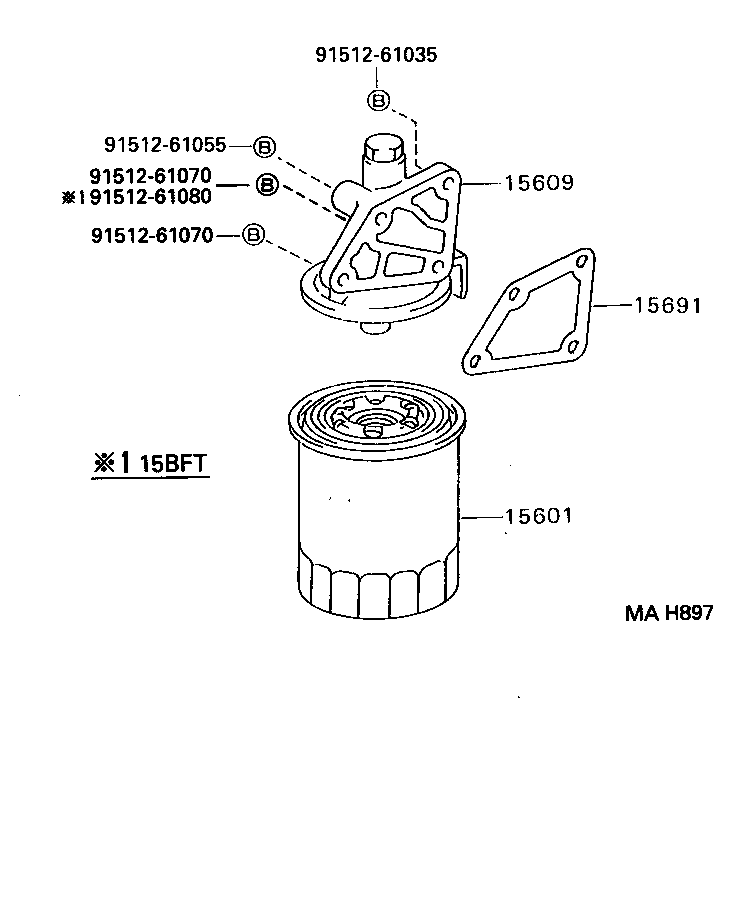

ILLUST NO. 1 OF 2(9505-9905)15B#,3B ; (9905-9906)15BF,3B

Click highlighted areas on diagram

diagram 15601 15609 15691 9151261035 9151261055 9151261070 9151261070 9151261080
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-30002

15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-56060

15BF,15BFP..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 1
15691 - GASKET, OIL FILTER
15691-56041

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
Common parts
91512-61035
91512-61055
91512-61070
91512-61080
