BU147-TKPMS3 (1997)
Toyota Dyna 200/Toyoace G25
(9505-9905)15B#,3B..BU10#,112,12#,13#,14#,202,212,222 ; (9905-9906)15BF,3B..BU10#,1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-56040 |
15BF..BU212..06S..5F;15BF,15BFP,3B..BU10#,112,12#,13#,14# |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12311-56040 |
15BF..BU212..06S..5F;15BF,15BFP,3B..BU10#,112,12#,13#,14# |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-58180 |
15BF..BU102,107,112,13#,142,147..4FC |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-58180 |
15BF..BU102,107,112,13#,142,147..4FC |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-58140 |
15BF..BU102,107,112,13#,142,147..4FC |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-58140 |
15BF..BU102,107,112,13#,142,147..4FC |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-56071 |
15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182 右側 |
1 | ||
| 12362-56011 |
15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182 左側 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-56071 |
15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182 右側 |
1 | ||
| 12362-56011 |
15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182 左側 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-56071 |
15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182 右側 |
1 | ||
| 12362-56011 |
15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182 左側 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-56071 |
15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182 右側 |
1 | ||
| 12362-56011 |
15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182 左側 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-56041 |
15B#,3B..BU10#,112,12#,13#,14#,202,212,222 |
1 | ||
| 12501 - BRACKET SUB-ASSY, ALTERNATOR | ||||
| 12501-58030 |
15B#,3B..BU10#,112,12#,13#,14#,202,212,222 |
1 | ||
| 12512A - BRACKET, ALTERNATOR, NO.2 | ||||
| 12512-58010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222..CBU,IV3 |
1 | ||
| 12512-58020 |
15B#,3B..BU10#,12#,13#,14#,202,212,222 ｵﾙﾀﾈ-ﾀ(24V-50A) |
1 | ||
| 16603C - PULLEY SUB-ASSY, IDLER | ||||
| 16603-58010 |
15B#,3B..BU10#,112,12#,13#,14#,202,212,222 |
1 | ||
| 16636C - SHAFT, IDLER PULLEY, NO.1 | ||||
| 16636-58010 |
15B#,3B..BU10#,112,12#,13#,14#,202,212,222 |
1 | ||
| 16639A - SPACER, IDLER PULLEY | ||||
| 16639-58010 |
15B#,3B..BU10#,112,12#,13#,14#,202,212,222 |
1 | ||
| 16649A - PLATE, IDLER PULLEY COVER | ||||
| 16649-58010 |
15B#,3B..BU10#,112,12#,13#,14#,202,212,222 |
1 | ||
| 16659A - PLATE, IDLER PULLEY COVER, NO.2 | ||||
| 16659-58010 |
15B#,3B..BU10#,112,12#,132,14#,202,212,222 |
1 | ||
| 16659A - PLATE, IDLER PULLEY COVER, NO.2 | ||||
| 16659-58010 |
15B#,3B..BU10#,112,12#,132,14#,202,212,222 |
1 | ||
| Common parts | ||||
| 90105-08335 | ||||
| 90105-10361 | ||||
| 90105-12085 | ||||
| 90105-16023 | ||||
| 90119-08B05 | ||||
| 90119-10348 | ||||
| 90119-10881 | ||||
| 90179-10201 | ||||
| 90179-12024 | ||||
| 90201-12023 | ||||
| 90201-17004 | ||||
| 91512-61025 | ||||
| 91642-81020 | ||||
| 91642-81225 | ||||
| 94130-01602 | ||||

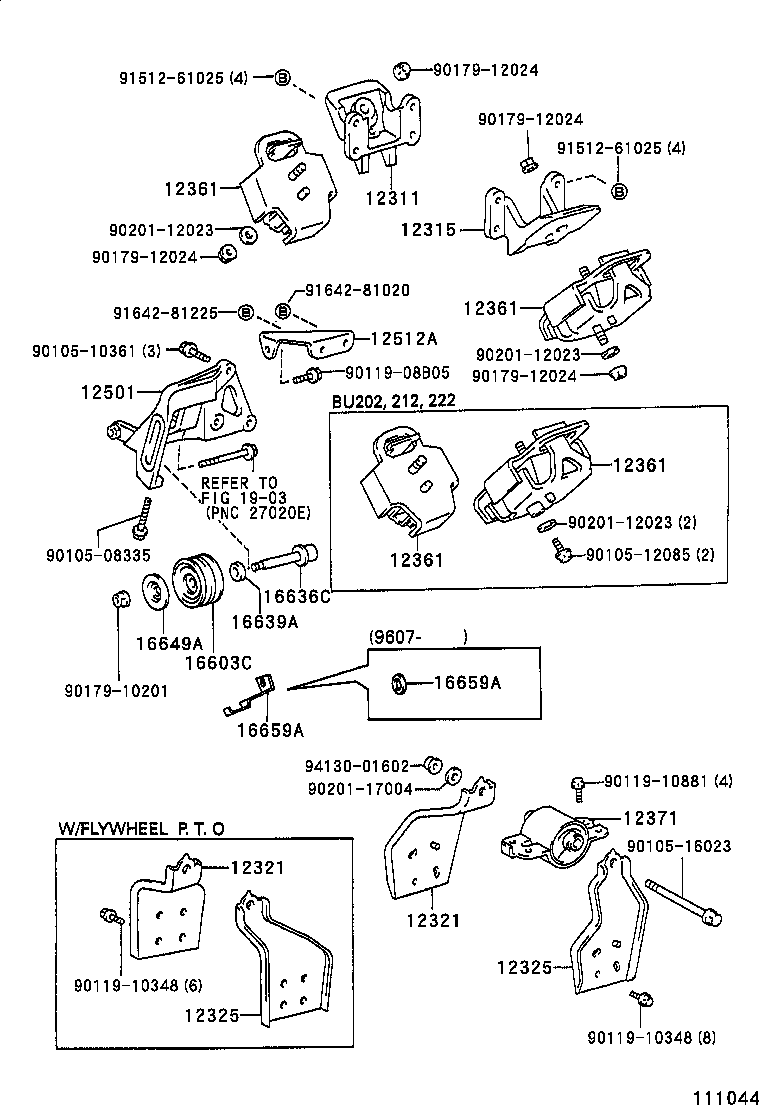

| Linked diagrams | ||||
| 1903 | ||||
