BU147-TKMMS3 (1997)
Toyota Dyna 200/Toyoace G25

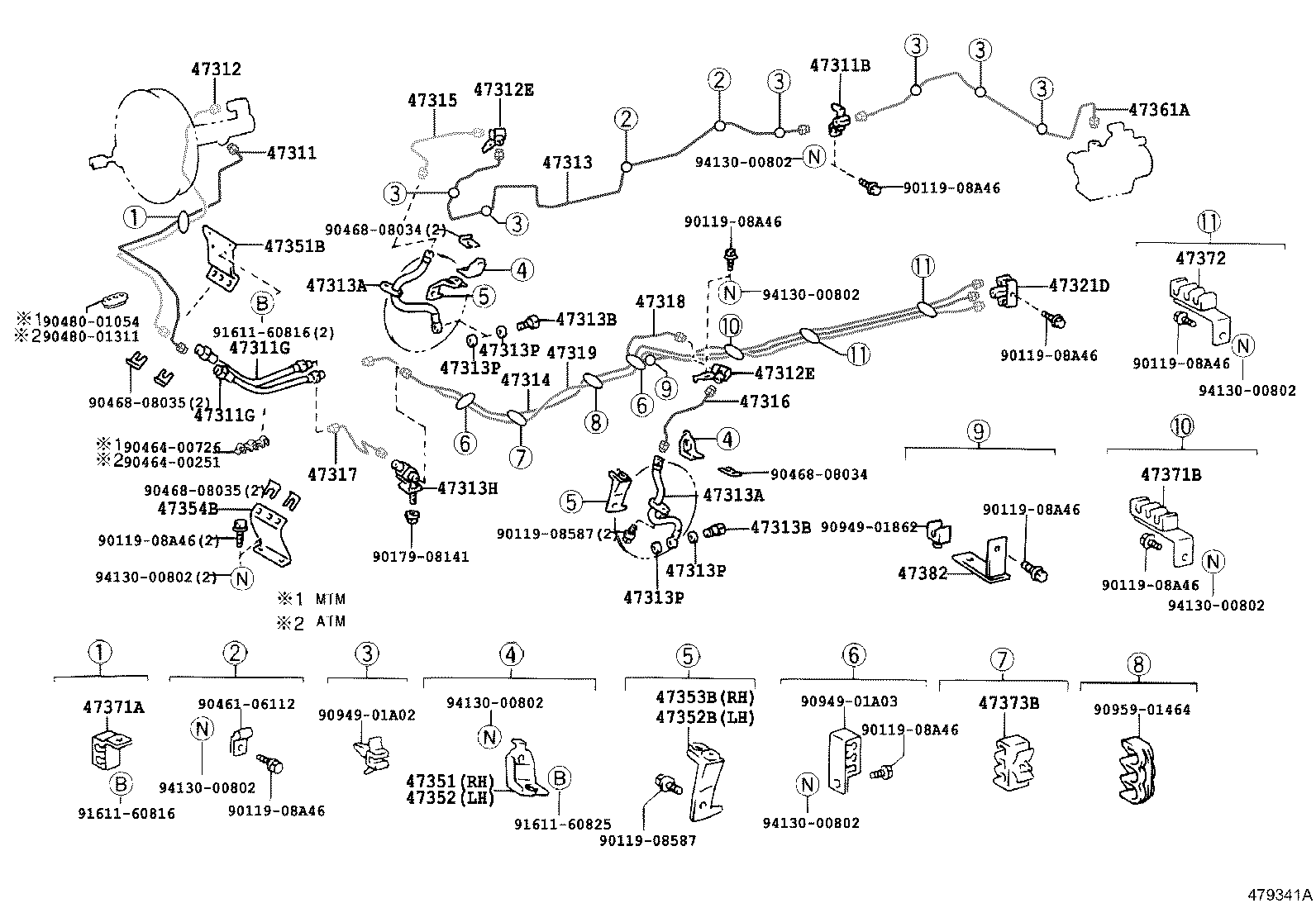

ILLUST NO. 1 OF 4(9708- )BU147..T3
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37130 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,172,RZU100..(TR,V)..(175T,20T)..(CBU,IV3) |
1 | ||
| 47311-37140 |
BU112,14#..T3..20T;BU100,RZU100..(T3,TW1)..WT..20T..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47311-37081 |
BU147..T3 ｱﾘ(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12017 |
BU147..T3 ｱﾘ(ABS) |
1 | ||
| 90413-12005 |
BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-33857 |
BU132..T3,T4;BU10#,112,120,137,14#,RZU100,140,XZU130,140 |
2 | ||
| 96932-33655 |
BU10#,112,12#,132,14#,RZU100,XZU130 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-33857 |
BU132..T3,T4;BU10#,112,120,137,14#,RZU100,140,XZU130,140 |
2 | ||
| 96932-33655 |
BU10#,112,12#,132,14#,RZU100,XZU130 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47321-37140 |
BU112,14#..T3..20T;BU100,RZU100..(T3,TW1)..WT..20T..CBU ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47321-37081 |
BU147..T3 ｱﾘ(ABS) |
1 | ||
| 47321-37130 |
BU102,162..(DM2,DM5,T2,T3,T4,TW4)..20T;BU100,112,12#,132,14#,172,RZU100..(TR,V)..(175T,20T)..(CBU,IV3) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12021 |
BU147..T3 ｱﾘ(ABS),右側 |
1 | ||
| 90904-12047 |
BU147..T3 ｱﾘ(ABS),左側 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12021 |
BU147..T3 ｱﾘ(ABS),右側 |
1 | ||
| 90904-12047 |
BU147..T3 ｱﾘ(ABS),左側 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37130 |
BU147..T3 ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A62 |
BU105,107,137,145,147 左側 |
1 | ||
| 90947-02A63 |
BU105,107,137,145,147 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A62 |
BU105,107,137,145,147 左側 |
1 | ||
| 90947-02A63 |
BU105,107,137,145,147 右側 |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12047 |
BU147..T3 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37150 |
BU147..T3 ｱﾘ(ABS) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47312-37040 |
BU147..T3 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37040 |
BU147..T3 ｱﾘ(ABS) |
1 | ||
| 47312-37040 |
BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-37040 |
BU147..T3 ｱﾘ(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12049 |
BU10#,112,12#,13#,14#,162,172,182,202,212,RZU100,140,XZU130,140 |
1 | ||
| 90904-12020 |
BU142,147..T3..20T;BU212..(T3,T4,TW1,TW4)..6F ｱﾘ(ABS) |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-37030 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37020 |
BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,297,RZU100,140,XZU130,140 |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-37050 |
BU147..T3 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01188 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-36070 |
BU142,147..T3..20T ｱﾘ(ABS) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-36070 |
BU142,147..T3..20T |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-37010 |
BU147..T3 ｱﾘ(ABS) |
1 | ||
| 47373-36050 |
BU142,147..T3..20T |
1 | ||
| 47382 - BRACKET, TUBE CLAMP, LH | ||||
| 47382-36010 |
BU142,147..T3..20T |
1 | ||
| Common parts | ||||
| 90119-08587 | ||||
| 90119-08A46 | ||||
| 90179-08141 | ||||
| 90461-06112 | ||||
| 90464-00251 | ||||
| 90464-00726 | ||||
| 90468-08034 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01311 | ||||
| 90949-01862 | ||||
| 90949-01A02 | ||||
| 90949-01A03 | ||||
| 90959-01464 | ||||
| 91611-60816 | ||||
| 91611-60825 | ||||
| 94130-00802 | ||||
