BU147-TGMMS3 (1996)

Toyota Dyna 200/Toyoace G25

Production Oct 1996 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )BU107,137,147

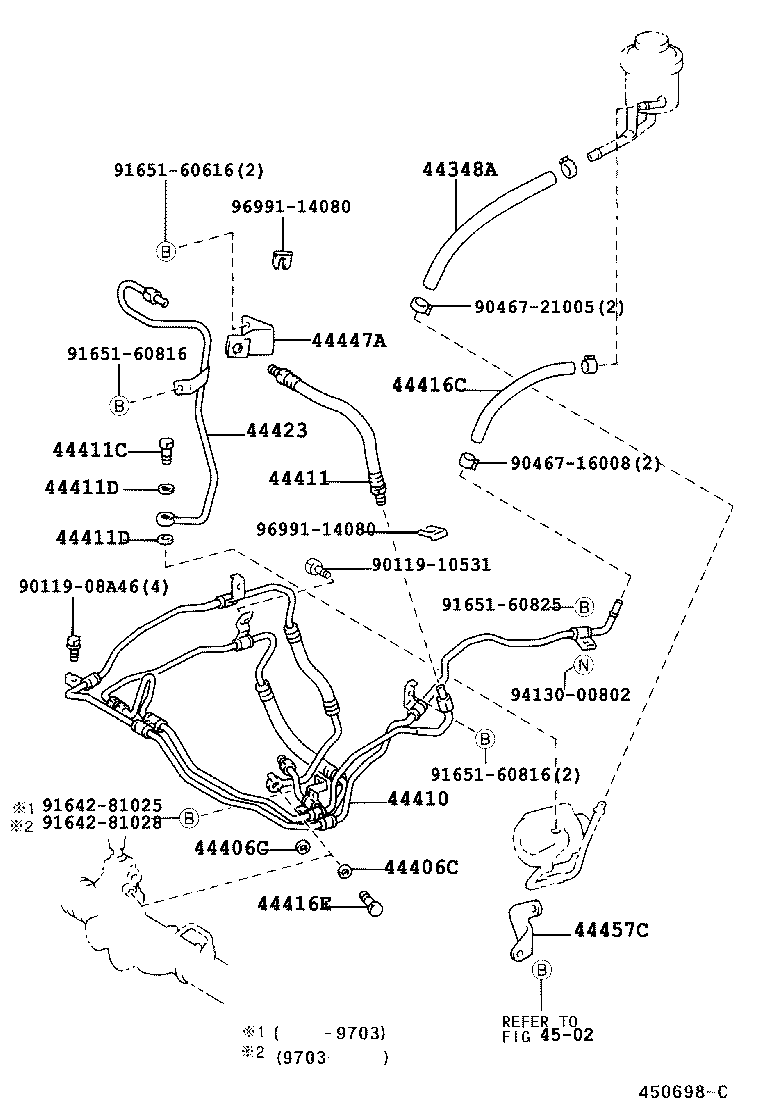

Click highlighted areas on diagram

diagram 44348A 44406C 44406C 44410 44411 44411C 44411D 44411D 44416C 44416E 44423 44447A 44457C 4502 9011908A46 9011910531 9046716008 9046721005 9164281025 9164281028 9165160616 9165160816 9165160816 9165160825 9413000802 9699114080 9699114080
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-37010

BU102,107,112,122,13#,142,147,202,212,222..DSL

 1
44406C - GASKET(FOR RETURN TUBE)
90430-17007

BU105,107,137,145,147

 2
44406C - GASKET(FOR RETURN TUBE)
90430-17007

BU105,107,137,145,147

 2
44410 - TUBE ASSY, PRESSURE FEED
44410-37011

BU107,137,147

 1
44411 - HOSE, PRESSURE FEED
44411-37030

BU10#,112,12#,13#,14#,RZU100..DSL,LPGB

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90404-16024

BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,140..DSL,EFI,LPGB,TD

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
90445-18144

BU10#,12#,13#,14#,162,172,182..DSL

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-17002

BU107,137,147

 1
96341-11703

BU105,107,137,145,147

 1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-37040

BU10#,112,12#,132,14#

 1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-37030

BU10#,112,12#,13#,14#,RZU100..DSL,LPGB

 1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-36040

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..DSL,LPGB,TD

 1
Common parts
90119-08A46
90119-10531
90467-16008
90467-21005
91642-81025
91642-81028
91651-60616
91651-60816
91651-60825
94130-00802
96991-14080
Linked diagrams
4502
