BU147-PQMMS3 (1996)

Toyota Dyna 200/Toyoace G25

Production Oct 1996 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )BU105,107,137,145,147

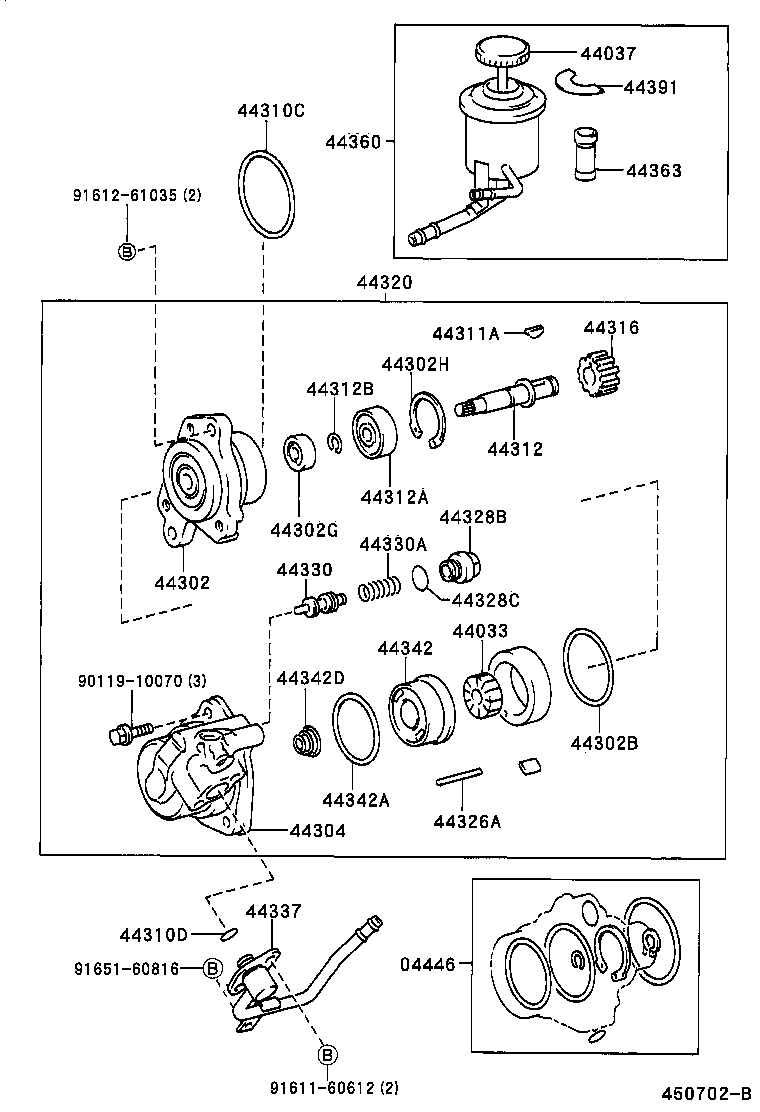

Click highlighted areas on diagram

diagram 04446 44033 44037 44302 44302B 44302G 44302H 44304 44310C 44310D 44311A 44312 44312A 44312B 44316 44320 44326A 44328B 44328C 44330 44330A 44337 44342 44342A 44342D 44360 44363 44391 9011910070 9161160612 9161261035 9165160816
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-36081

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..DSL,LPGB,TD

 1
44033 - ROTOR SUB-ASSY, W/CAM & VANE
44033-36060

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 1
44037 - COVER SUB-ASSY, OIL RESERVOIR
44037-36080

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-36230

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..DSL,LPGB,TD

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90029-20003

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90029-21018

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
96151-04000

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-36240

BU105,107,137,145,147

 1
44310C - RING, O(FOR VANE PUMP)
90301-60002

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130,140..DSL,LPGB,TD

 1
44310D - RING, O(FOR VANE PUMP UNION)
96711-19019

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..DSL,LPGB,TD

 1
44311A - KEY, VANE PUMP PULLEY
90029-18001

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140

 1
44312 - SHAFT, VANE PUMP
44312-36110

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..DSL,LPGB,TD

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90029-36003

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130,140..DSL,LPGB,TD

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90029-52402

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
44316 - GEAR, VANE PUMP
44316-36020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100..DSL,LPGB,TD

 1
44320 - PUMP ASSY, VANE
44310-37050

BU105,107,137,145,147

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
44347-89101

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

長さ=29.1

 1
44328B - END, VANE PUMP HOUSING
44328-89101

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
44328C - RING, O(FOR PUMP HOUSING END)
96711-19020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-36260

BU105,107,137,145,147

二本溝

 1
44330-36270

BU105,107,137,145,147

一本溝

 1
44330-36280

BU105,107,137,145,147

溝無し

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90029-60002

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-37010

BU10#,112,12#,13#,14#,202,212,222,RZU100..DSL,LPGB,TD

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-36060

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
96711-24060

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 1
44342D - SPRING, COMPRESSION(FOR PRESSURE PLATE)
90029-60003

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-37061

BU102,107,112,122,13#,142,147..DSL

 1
44363 - STRAINER, OIL(FOR VANE PUMP)
44363-36040

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION
44391-36020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 1
Common parts
90119-10070
91611-60612
91612-61035
91651-60816
