BU147-PQMMS3 (1996)
Toyota Dyna 200/Toyoace G25

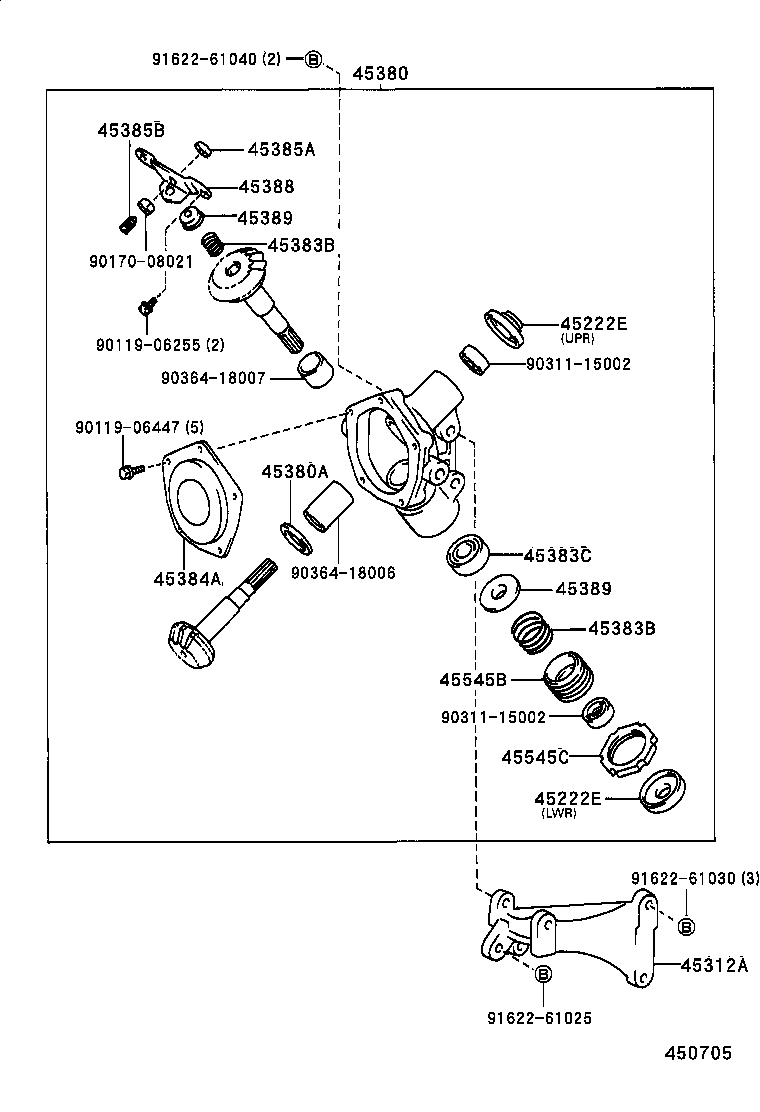

ILLUST NO. 2 OF 3(9610- )BU105,107,137,145,147
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) | ||||
| 45222-27030 |
BU132..TL4;BU105,107,137,145,147 上側 |
1 | ||
| 45222-27050 |
BU132..TL4;BU105,107,137,145,147 下側 |
1 | ||
| 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) | ||||
| 45222-27030 |
BU132..TL4;BU105,107,137,145,147 上側 |
1 | ||
| 45222-27050 |
BU132..TL4;BU105,107,137,145,147 下側 |
1 | ||
| 45312A - BRACKET, STEERING BEVEL GEAR HOUSING | ||||
| 45312-37010 |
BU105,107,137,145,147 |
1 | ||
| 45380 - GEAR ASSY, STEERING BEVEL | ||||
| 45380-37010 |
BU132..TL4;BU105,107,137,145,147 |
1 | ||
| 45380A - WASHER(FOR STEERING BEVEL GEAR) | ||||
| 90209-18005 |
BU132..TL4;BU105,107,137,145,147 厚さ=2.05,ﾏｰｸ 5 |
1 | ||
| 90209-18003 |
BU132..TL4;BU105,107,137,145,147 厚さ=1.95,ﾏｰｸ 3 |
1 | ||
| 90209-18002 |
BU132..TL4;BU105,107,137,145,147 厚さ=1.90,ﾏｰｸ 2 |
1 | ||
| 90209-18004 |
BU132..TL4;BU105,107,137,145,147 厚さ=2.00,ﾏｰｸ 4 |
1 | ||
| 90209-18008 |
BU132..TL4;BU105,107,137,145,147 厚さ=2.20,ﾏｰｸ 8 |
1 | ||
| 90209-18007 |
BU132..TL4;BU105,107,137,145,147 厚さ=2.15,ﾏｰｸ 7 |
1 | ||
| 90209-18006 |
BU132..TL4;BU105,107,137,145,147 厚さ=2.10,ﾏｰｸ 6 |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-18063 |
BU132..TL4;BU105,107,137,145,147 ﾘﾔ |
1 | ||
| 90501-20080 |
BU132..TL4;BU105,107,137,145,147 ﾌﾛﾝﾄ |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-18063 |
BU132..TL4;BU105,107,137,145,147 ﾘﾔ |
1 | ||
| 90501-20080 |
BU132..TL4;BU105,107,137,145,147 ﾌﾛﾝﾄ |
1 | ||
| 45383C - BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR) | ||||
| 90363-15010 |
BU132..TL4;BU105,107,137,145,147 |
1 | ||
| 45384A - COVER, STEERING BEVEL GEAR | ||||
| 45384-27010 |
BU132..TL4;BU105,107,137,145,147 |
1 | ||
| 45385A - SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR) | ||||
| 45385-27010 |
BU132..TL4;BU105,107,137,145,147 |
1 | ||
| 45385B - BOLT, SET(FOR LOCK BOLT SEAT) | ||||
| 90113-08006 |
BU132..TL4;BU105,107,137,145,147 |
1 | ||
| 45388 - PLATE, STEERING BEVEL GEAR | ||||
| 45388-27010 |
BU132..TL4;BU105,107,137,145,147 |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27010 |
BU132..TL4;BU105,107,137,145,147 ﾌﾛﾝﾄ |
1 | ||
| 45389-27021 |
BU132..TL4;BU105,107,137,145,147 ﾘﾔ |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27010 |
BU132..TL4;BU105,107,137,145,147 ﾌﾛﾝﾄ |
1 | ||
| 45389-27021 |
BU132..TL4;BU105,107,137,145,147 ﾘﾔ |
1 | ||
| 45545B - SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR | ||||
| 45545-10010 |
BU132..TL4;BU105,107,137,145,147 |
1 | ||
| 45545C - NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW | ||||
| 90179-38001 |
BU132..TL4;BU105,107,137,145,147 |
1 | ||
| Common parts | ||||
| 90119-06255 | ||||
| 90119-06447 | ||||
| 90170-08021 | ||||
| 90311-15002 | ||||
| 90364-18006 | ||||
| 90364-18007 | ||||
| 91622-61025 | ||||
| 91622-61030 | ||||
| 91622-61040 | ||||

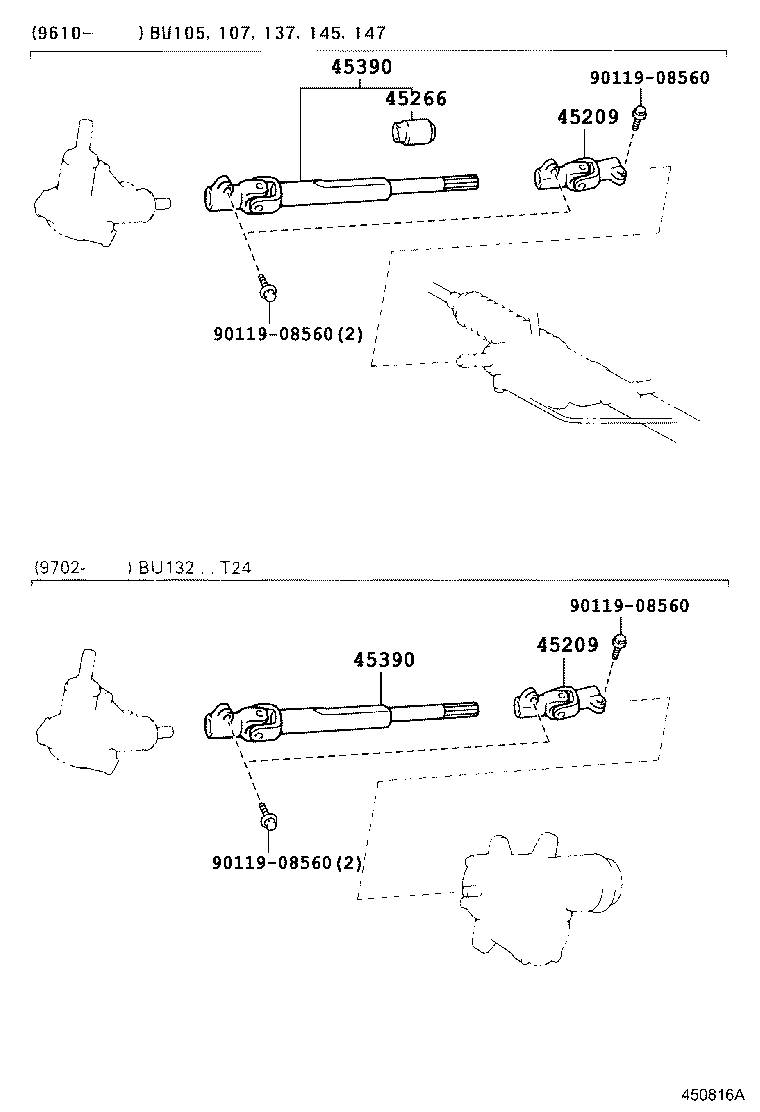

ILLUST NO. 3 OF 3(9610- )BU105,107,13#,145,147
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-14020 |
BU105,107,137,145,147 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-14020 |
BU105,107,137,145,147 |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
BU105,107,137,145,147 |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-37010 |
BU105,107,137,145,147 |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-37010 |
BU105,107,137,145,147 |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||

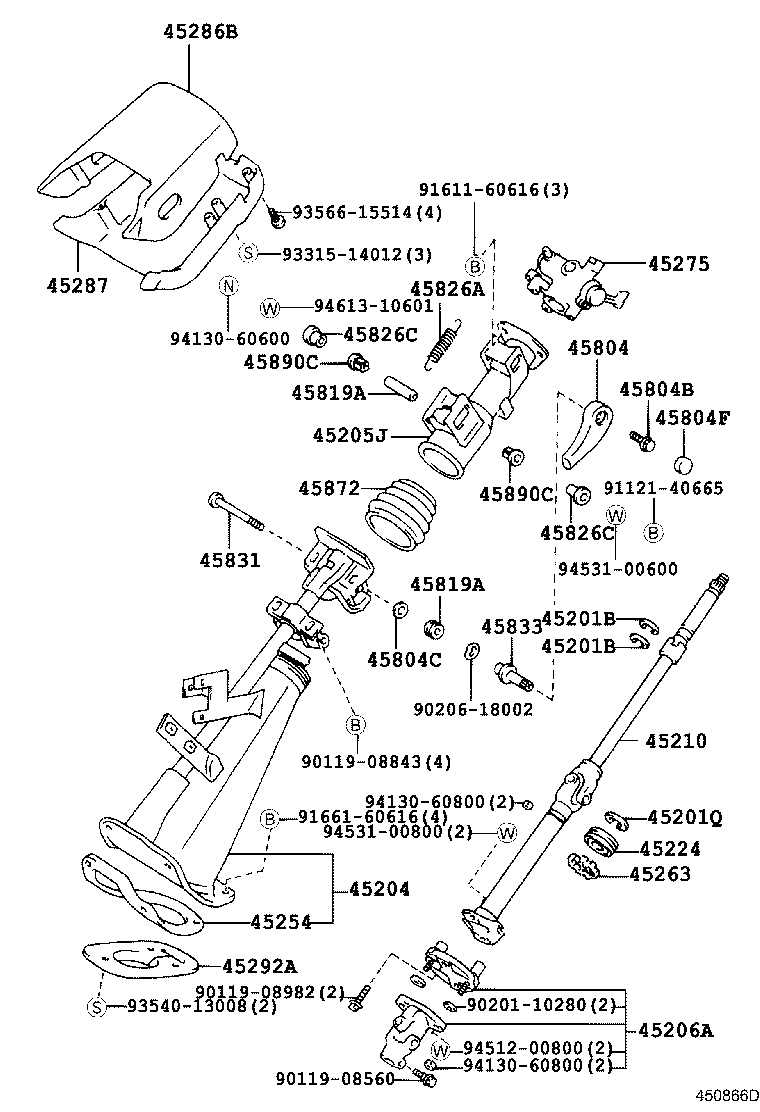

ILLUST NO. 1 OF 3(9610- )BU105,107,137,145,147
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 厚さ=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 厚さ=1.20 |
2 | ||
| 45201Q - RING(FOR STEERING COLUMN RING) | ||||
| 96152-00300 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-37060 |
BU102,132,142..DM2,DM3,DM5,DM6,T3,T5,TW1;BU100,107,112,12#,137,140,147,162,172,182,RZU100 ｱﾘ(*80) |
1 | ||
| 45204-37090 |
BU10#,112,12#,13#,14#,162,172,182,RZU100,XZU130 |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-37030 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 45206A - YOKE SUB-ASSY, STEERING SLIDING W/COUPLING | ||||
| 45206-37010 |
BU105,107,137,145,147 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-36060 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130 |
1 | ||
| 45210-37021 |
BU137..5F;BU107..T2,T4;BU107..06S..5F;BU147..T2,T4,TW4 ｱﾘ(*80) |
1 | ||
| 45210-37011 |
BU137..5F;BU107..T2,T4;BU107..06S..5F;BU147..T2,T4,TW4 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-26010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 長さ=16 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-36090 |
BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-37020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130..(DSL,LPG,LPGB,TD)..5F |
1 | ||
| 45307-36230 |
BU102,132,142..(DM2,DM3,DM5,DM6,T3,T5,TW1)..5F;BU100,107,112,12#,137,140,147,162,172,182,202,212,222,RZU100..5F ｱﾘ(*80) |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-37040B0 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 BLUISH GRAY,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-37030B0 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 BLUISH GRAY,TRIM1# |
1 | ||
| 45292A - COVER, MAIN SHAFT LOWER DUST | ||||
| 45292-36050 |
BU105,107,137,145,147,162,172,182 |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-36010B0 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 GRAY,TRIM1# |
1 | ||
| 45804B - BOLT(FOR STEERING TILT LEVER) | ||||
| 90105-10204 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-10489 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 45804F - PLUG(FOR STEERING TILT LEVER) | ||||
| 90339-28001B0 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 GRAY,TRIM1# |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-06037 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 L=47.5 |
1 | ||
| 90386-19004 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 長さ=14 |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-06037 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 L=47.5 |
1 | ||
| 90386-19004 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 長さ=14 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-18018 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-10024 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-10024 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
2 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-36010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-36010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-36020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 45890C - COLLAR(FOR TILT STEERING PAWL) | ||||
| 90389-12009 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 外径=20 |
2 | ||
| 45890C - COLLAR(FOR TILT STEERING PAWL) | ||||
| 90389-12009 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 外径=20 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08843 | ||||
| 90119-08982 | ||||
| 90201-10280 | ||||
| 90206-18002 | ||||
| 91121-40665 | ||||
| 91611-60616 | ||||
| 91661-60616 | ||||
| 93315-14012 | ||||
| 93540-13008 | ||||
| 93566-15514 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94512-00800 | ||||
| 94531-00600 | ||||
| 94531-00800 | ||||
| 94613-10601 | ||||
