BU147-PQMMS (1996)
Toyota Dyna 200/Toyoace G25
Production
Oct 1996
-
May 1999
Engine
15BF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

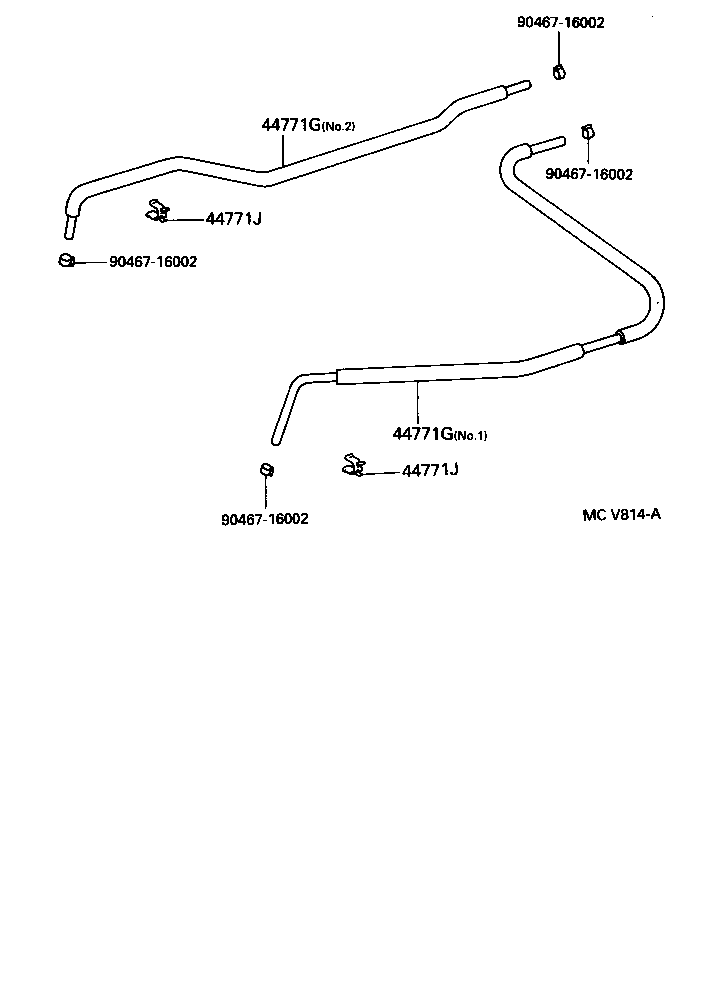

ILLUST NO. 2 OF 2(9610- )BU105,107,137,145,147..5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1 | ||||
| 44771-37130 |
BU105,107,137,145,147..5F NO.1 |
1 | ||
| 44771-37140 |
BU105,107,137,145,147..5F NO.2 |
1 | ||
| 44771-37070 |
BU102..DM5..IV3;BU10#,132,14#..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F |
1 | ||
| 44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1 | ||||
| 44771-37130 |
BU105,107,137,145,147..5F NO.1 |
1 | ||
| 44771-37140 |
BU105,107,137,145,147..5F NO.2 |
1 | ||
| 44771-37070 |
BU102..DM5..IV3;BU10#,132,14#..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F |
1 | ||
| 44771J - CLAMP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 82711-95411 |
BU105,107,137,145,147..5F |
2 | ||
| 44771J - CLAMP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 82711-95411 |
BU105,107,137,145,147..5F |
2 | ||
| Common parts | ||||
| 90467-16002 | ||||
