BU145-TGMMS (1997)

Toyota Dyna 200/Toyoace G25

Production Aug 1997 - May 1999
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9906)3B

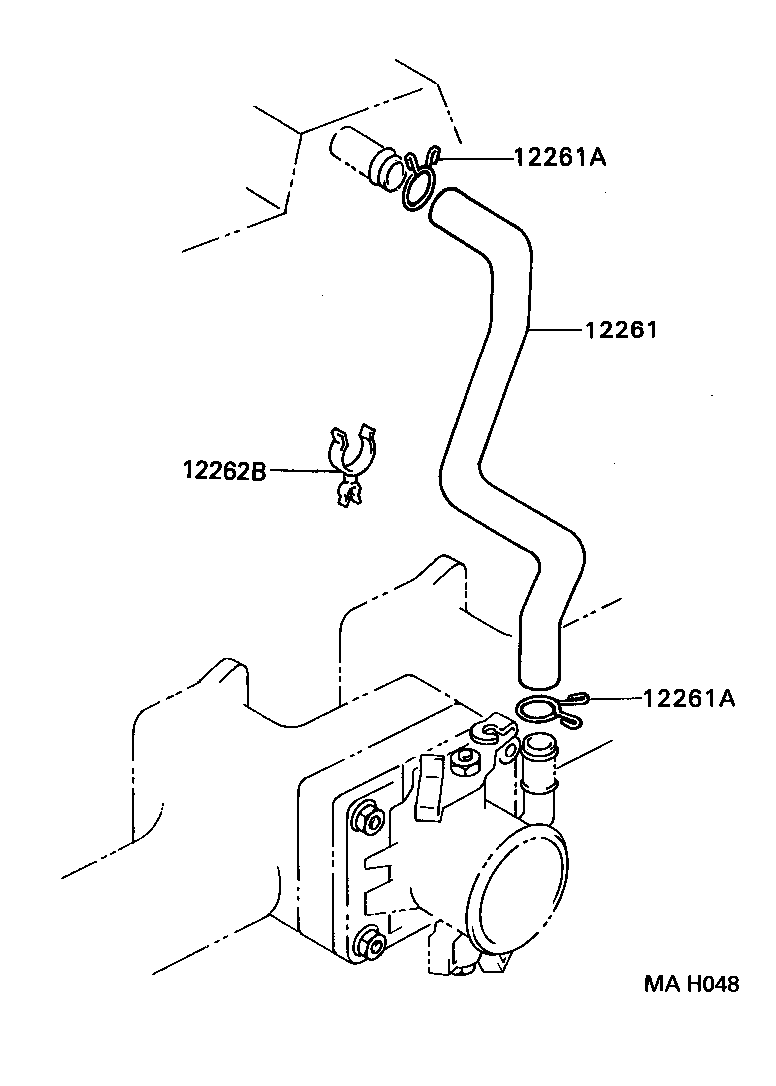

Click highlighted areas on diagram

diagram 12261 12261A 12261A 12262B
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-56020

3B..BU100,105,120,140,145

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23002

15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23002

15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222

 2
12262B - CLAMP(FOR VENTILATION HOSE)
90464-00521

3B..BU100,105,120,140,145

 1
