BU142-TQPMS (1995)
Toyota Dyna 200/Toyoace G25

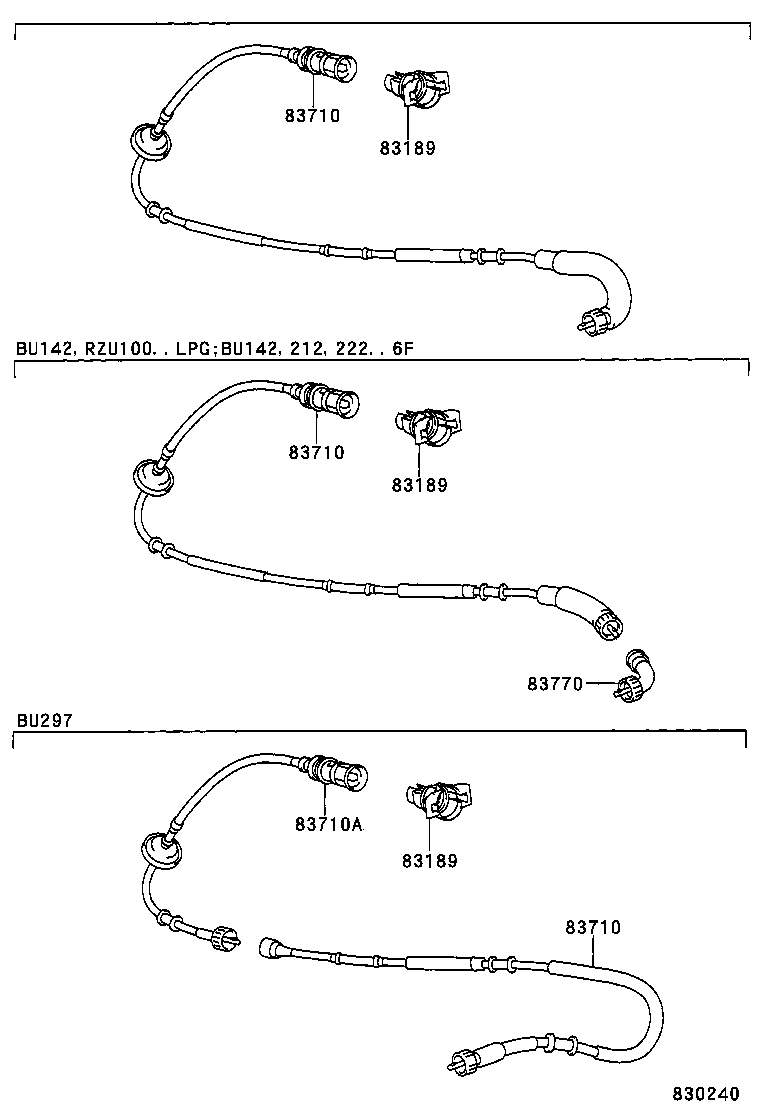

ILLUST NO. 3 OF 5(9505- )
ﾒｰﾀ ｹｰﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-37150 |
BU102,107,13#,142,147..(T2,T3,T4,TW4)..4FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-37150 |
BU102,107,13#,142,147..(T2,T3,T4,TW4)..4FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-37150 |
BU102,107,13#,142,147..(T2,T3,T4,TW4)..4FC |
1 | ||

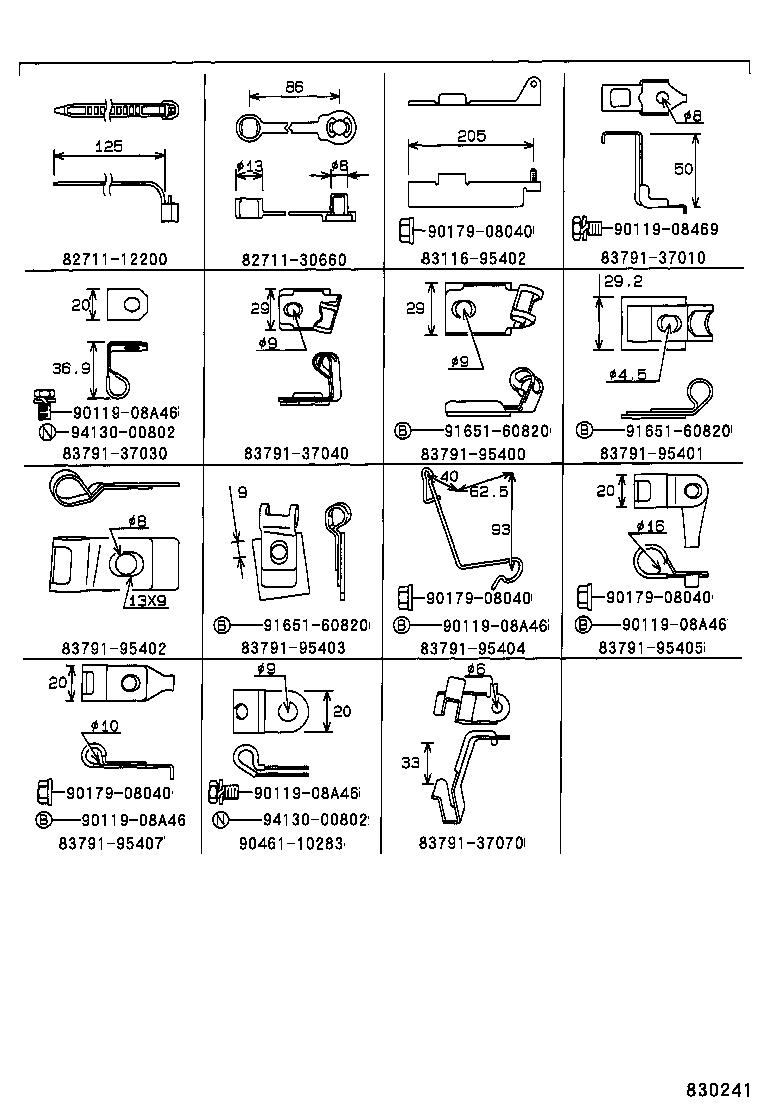

ILLUST NO. 5 OF 5(9505- )
ｸﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-30660 | ||||
| 83116-95402 | ||||
| 83791-37010 | ||||
| 83791-37030 | ||||
| 83791-37040 | ||||
| 83791-37070 | ||||
| 83791-95400 | ||||
| 83791-95401 | ||||
| 83791-95402 | ||||
| 83791-95403 | ||||
| 83791-95404 | ||||
| 83791-95405 | ||||
| 83791-95407 | ||||
| 90119-08469 | ||||
| 90119-08A46 | ||||
| 90179-08040 | ||||
| 90461-10283 | ||||
| 91651-60820 | ||||
| 94130-00802 | ||||

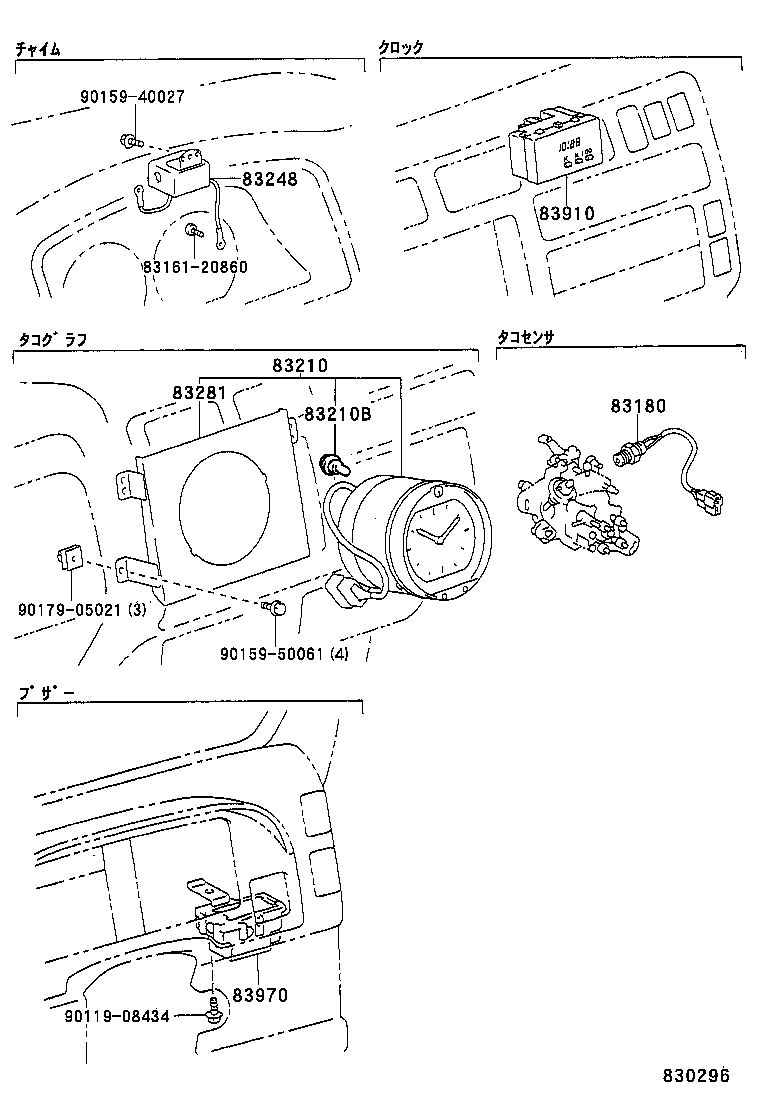

ILLUST NO. 4 OF 5(9505- )
ｸﾛﾂｸ,ｾﾝｻ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-60080 |
BU102,107,112,122,13#,142,147,162,172,182,202,212,222..DSL,TD |
1 | ||
| 83210 - TACHOGRAPH ASSY | ||||
| 83210-37050 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,XZU130..(DSL,TD)..(CBU,IV3) 1 ﾆﾁ |
1 | ||
| 83210-37040 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,XZU130..(DSL,TD)..(CBU,IV3) 1 ｼﾕｳｶﾝ |
1 | ||
| 83281 - BRACKET, TACHOGRAPH, NO.1 | ||||
| 83281-37020 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,XZU130..CBU,IV3 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-37060 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD |
1 | ||
| Common parts | ||||
| 83161-20860 | ||||
| 90119-08434 | ||||
| 90159-40027 | ||||
| 90159-50061 | ||||
| 90179-05021 | ||||

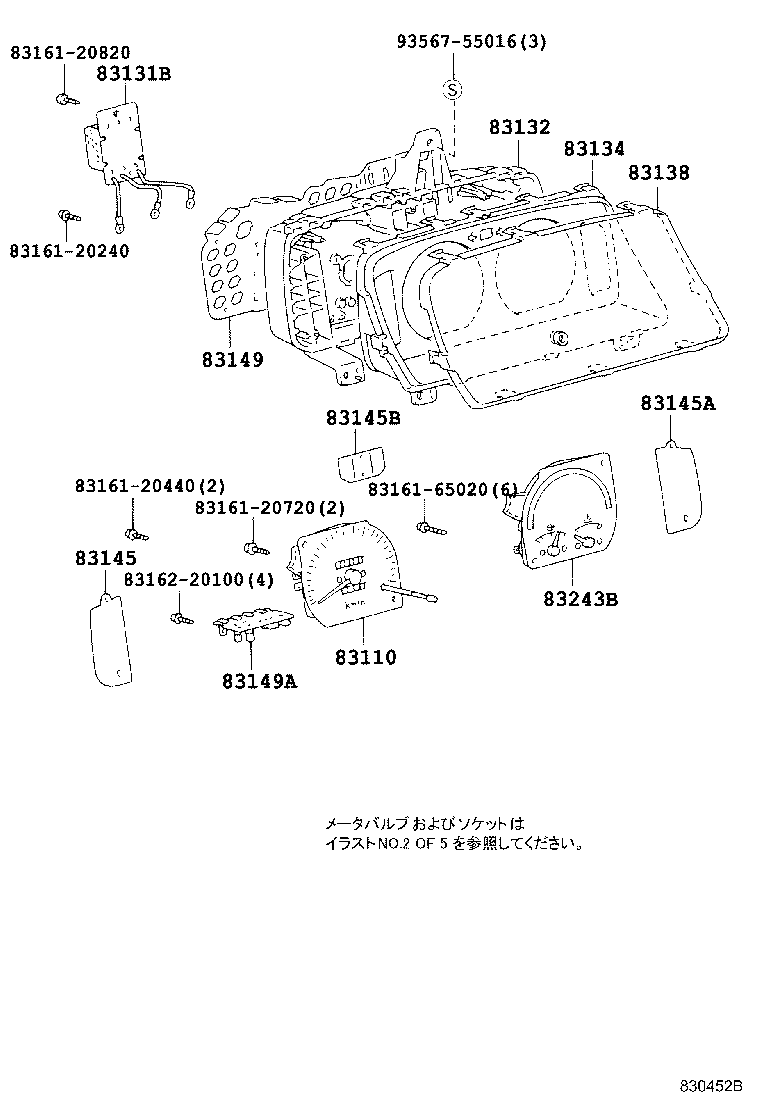

ILLUST NO. 1 OF 5(9505- )
ｺﾝﾋﾞﾈ-ｼﾖﾝﾒ-ﾀ,ﾅｼ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-37060 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 83131B - DROPER, METER | ||||
| 83131-37040 |
BU102,112,132,142,162,172,182,202,212,222,XZU130..DSL,TD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-37020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-37020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83137-37020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-37220 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130..DSL,EFI,LPG |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-37240 |
BU102,107,112,132,142,147,212..4FC |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83146-37140 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83149-37380 |
BU212,222..TD;BU102,107,112,132,142,147,212..4FC |
1 | ||
| 83149A - PLATE, METER CIRCUIT, NO.2 | ||||
| 83149-37360 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,XZU130,140..DSL,TD |
1 | ||
| Common parts | ||||
| 83161-20240 | ||||
| 83161-20440 | ||||
| 83161-20720 | ||||
| 83161-20820 | ||||
| 83161-65020 | ||||
| 83162-20100 | ||||
| 93567-55016 | ||||

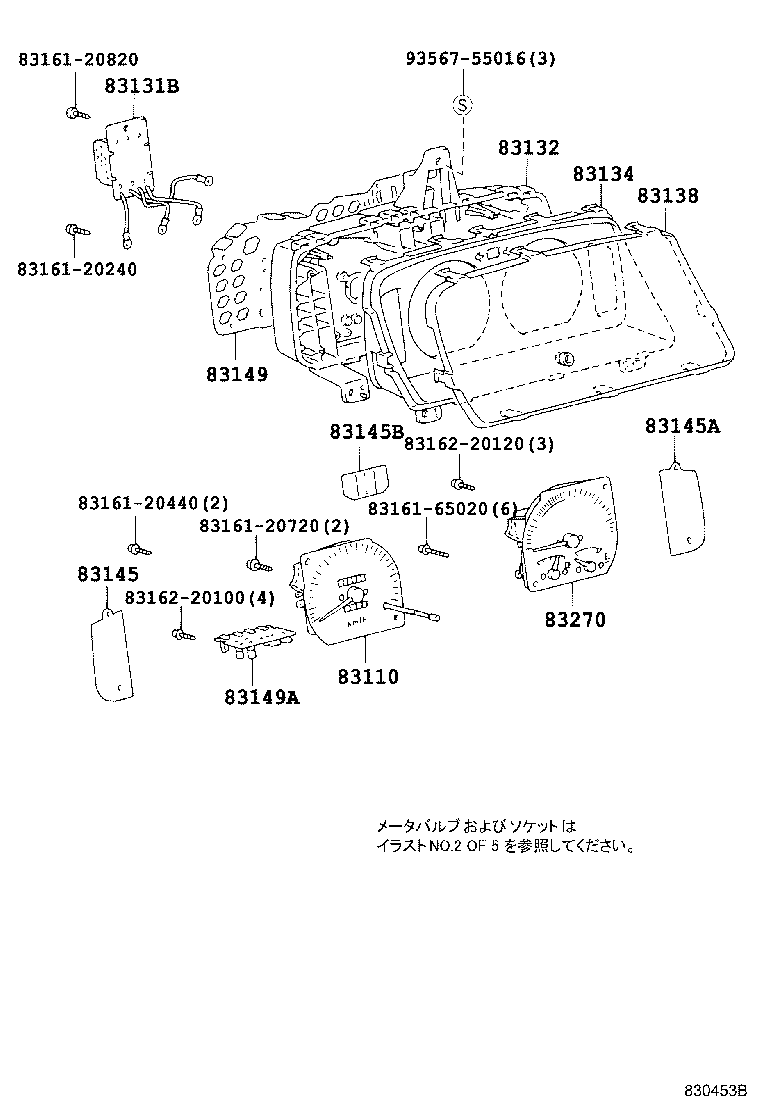

ILLUST NO. 1 OF 5(9505- )
ｺﾝﾋﾞﾈ-ｼﾖﾝﾒ-ﾀ,ｱﾘ(ﾀｺﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-37060 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 83131B - DROPER, METER | ||||
| 83131-37040 |
BU102,112,132,142,162,172,182,202,212,222,XZU130..DSL,TD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-37020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-37020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83137-37020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-37220 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130..DSL,EFI,LPG |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-37240 |
BU102,107,112,132,142,147,212..4FC |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83146-37140 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83149-37380 |
BU212,222..TD;BU102,107,112,132,142,147,212..4FC |
1 | ||
| 83149A - PLATE, METER CIRCUIT, NO.2 | ||||
| 83149-37360 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,XZU130,140..DSL,TD |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83243-37140 |
BU102,112,132,142,162,172,182,202,212,222..DSL..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 83161-20240 | ||||
| 83161-20440 | ||||
| 83161-20720 | ||||
| 83161-20820 | ||||
| 83161-65020 | ||||
| 83162-20100 | ||||
| 83162-20120 | ||||
| 93567-55016 | ||||

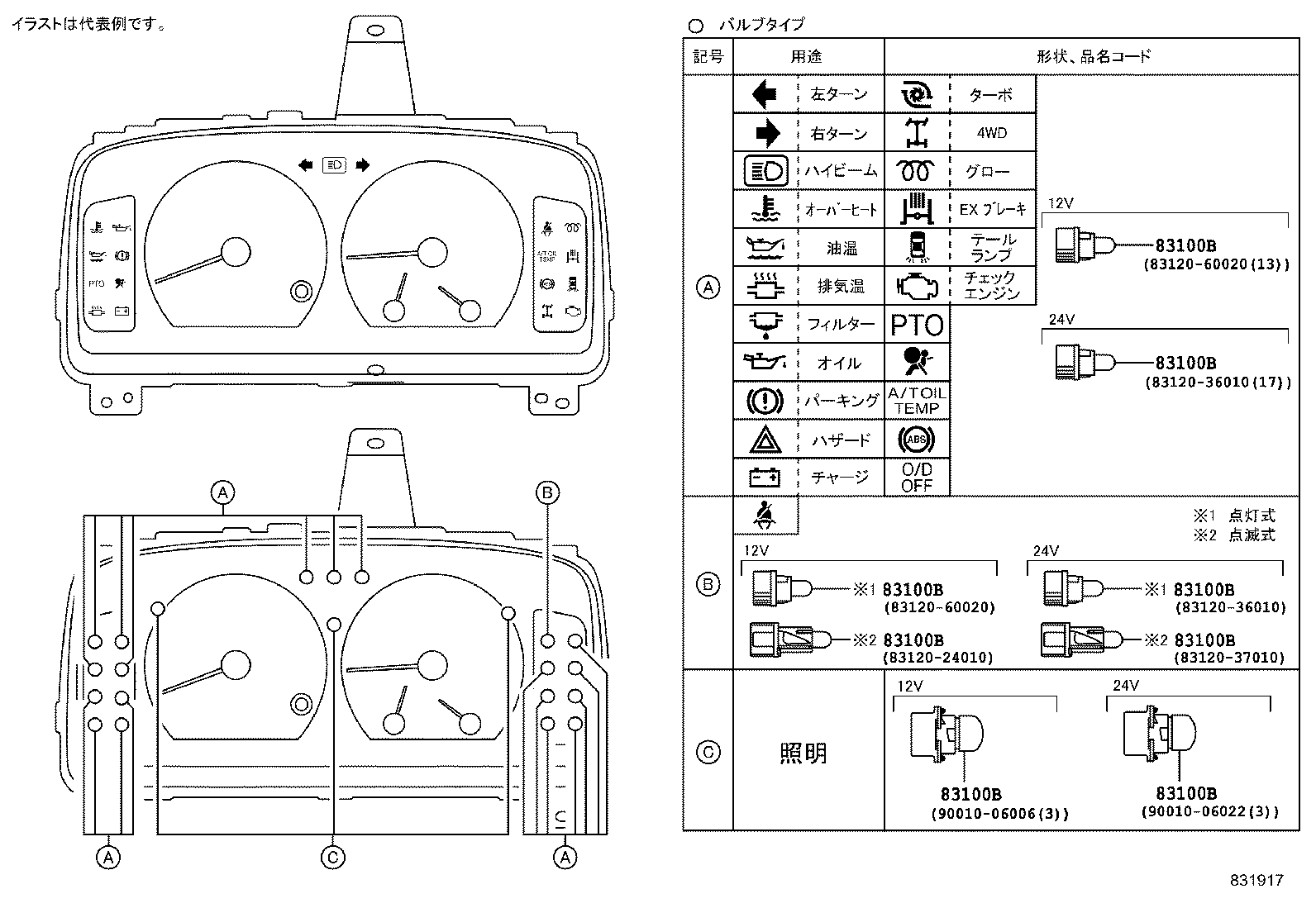

ILLUST NO. 2 OF 5(9505- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06022 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD 24V 3W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-36010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD 24V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06022 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD 24V 3W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-36010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD 24V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06022 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD 24V 3W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-36010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD 24V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06022 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD 24V 3W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-36010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD 24V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06022 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD 24V 3W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-36010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD 24V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06022 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD 24V 3W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-36010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD 24V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06022 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD 24V 3W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-36010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD 24V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06022 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD 24V 3W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-36010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130..DSL,TD 24V 1.4W,ｿｹｯﾄ付き |
1 | ||
