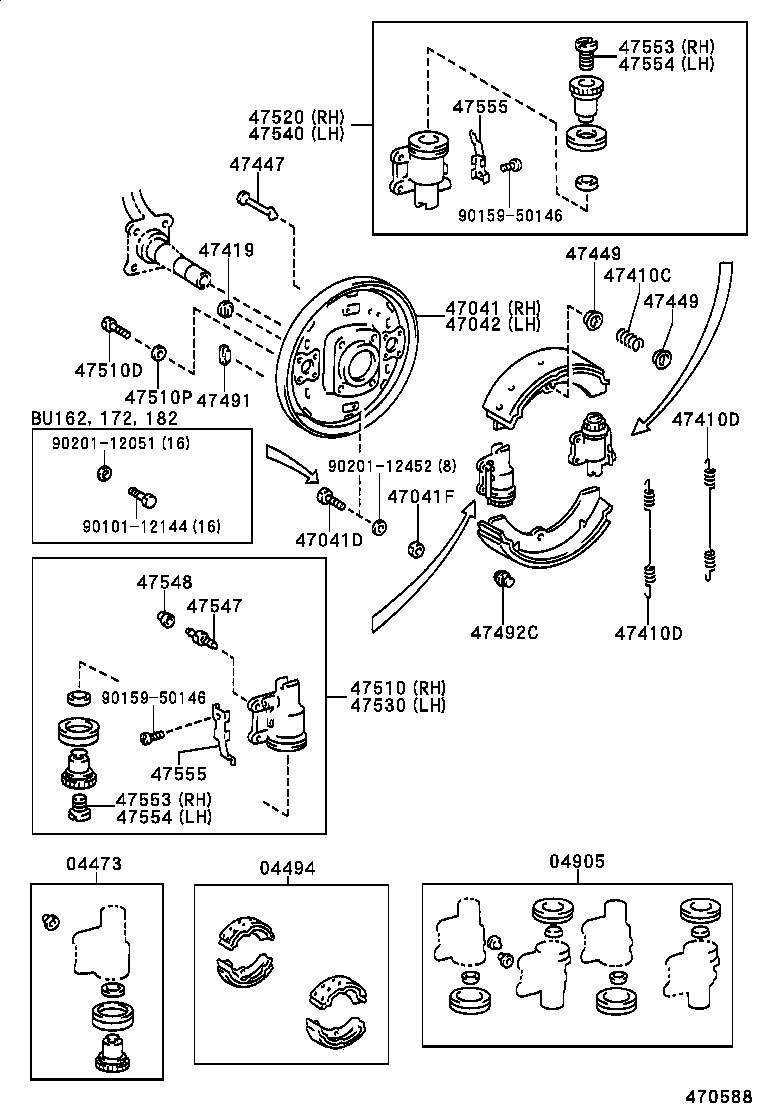

BU142-TQPMS (1995)
Toyota Dyna 200/Toyoace G25
(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-36090 |
BU212..T2..4FC;BU102,142..(T2,T4)..20T..4FC 右側 |
2 | ||
| 04473-36100 |
BU212..T2..4FC;BU102,142..(T2,T4)..20T..4FC 左側 |
2 | ||
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-36150 |
BU100,102,132,142,RZU100,140..(DM5,T4,TW4)..20T |
1 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-36130 |
BU212..T2..4FC;BU102,142..(T2,T4)..20T..4FC |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-37070 |
BU10#,132,142,RZU100..DM5,T4,TW4 |
1 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 90101-12113 |
BU100,102,112,12#,132,140,142,202,212,222,RZU100,140,XZU130,140..DSL,EFI,LPG,TD |
8 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94115-71200 |
BU100,102,112,12#,132,140,142,202,212,222,RZU100,140,XZU130,140..DSL,EFI,LPG,TD |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-37070 |
BU10#,132,142,RZU100..DM5,T4,TW4 |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
RZU100..(DM6,T3)..(EFI,LPG);BU105,107,145,147,RZU100..DM5,T2,T4,TW1,TW4;BU100,102,112,12#,13#,140,142,162,172,182,202,212,222,RZU140,XZU130,140..DSL,EFI,TD |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29005 |
BU100,102,132,142,RZU100,140..(T4,TW4)..20T 左側 |
2 | ||
| 90507-29004 |
BU100,102,132,142,RZU100,140..(T4,TW4)..20T 右側 |
2 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29005 |
BU100,102,132,142,RZU100,140..(T4,TW4)..20T 左側 |
2 | ||
| 90507-29004 |
BU100,102,132,142,RZU100,140..(T4,TW4)..20T 右側 |
2 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-20010 |
BU100,102,132,142,RZU100,140..(DM5,T4,TW4)..20T |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
RZU100..(DM6,T3)..(EFI,LPG);BU105,107,145,147,RZU100..DM5,T2,T4,TW1,TW4;BU100,102,112,12#,13#,140,142,162,172,182,202,212,222,RZU140,XZU130,140..DSL,EFI,TD |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
RZU100..(DM6,T3)..(EFI,LPG);BU105,107,145,147,RZU100..DM5,T2,T4,TW1,TW4;BU100,102,112,12#,13#,140,142,162,172,182,202,212,222,RZU140,XZU130,140..DSL,EFI,TD |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36010 |
BU100..T2..CBU;BU100..DM6,T1,T3,T4,TW2,TW4;BU102,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130..DSL,EFI,LPG,TD |
8 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-36111 |
BU212..T2..4FC;BU102,142..(T2,T4)..20T..4FC |
1 | ||
| 47510D - BOLT(FOR FRONT WHEEL CYLINDER) | ||||
| 90101-08081 |
BU212..T2;BU100,102..T3..ST;BU12#,13#,RZU140..20T;RZU100..DM5,T2,T4,TW4;BU10#,14#,162,172,182..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
16 | ||
| 47510P - WASHER(FOR FRONT WHEEL CYLINDER) | ||||
| 90201-08002 |
BU212..T2;BU100,102..T3..ST;BU12#,13#,RZU140..20T;RZU100..DM5,T2,T4,TW4;BU10#,14#,162,172,182..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
16 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-36172 |
BU102,142..T4..20T..4FC |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-36111 |
BU212..T2..4FC;BU102,142..(T2,T4)..20T..4FC |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-36172 |
BU102,142..T4..20T..4FC |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
BU162,172,182..DM7,T3,TW1;BU102,RZU100..(DM3,DM6,T2,T3,T4,T5,TW1,TW4)..(DSL,EFI,LPG);BU100,112,12#,132,140,142,202,212,222,RZU140,XZU130,140..DSL,EFI,TD |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..DSL,EFI,LPG,TD |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36070 |
BU102,112,132,142,212..4FC |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36070 |
BU102,112,132,142,212..4FC |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36070 |
BU102,112,132,142,212..4FC |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36070 |
BU102,112,132,142,212..4FC |
2 | ||
| Common parts | ||||
| 90101-12144 | ||||
| 90159-50146 | ||||
| 90201-12051 | ||||
| 90201-12452 | ||||

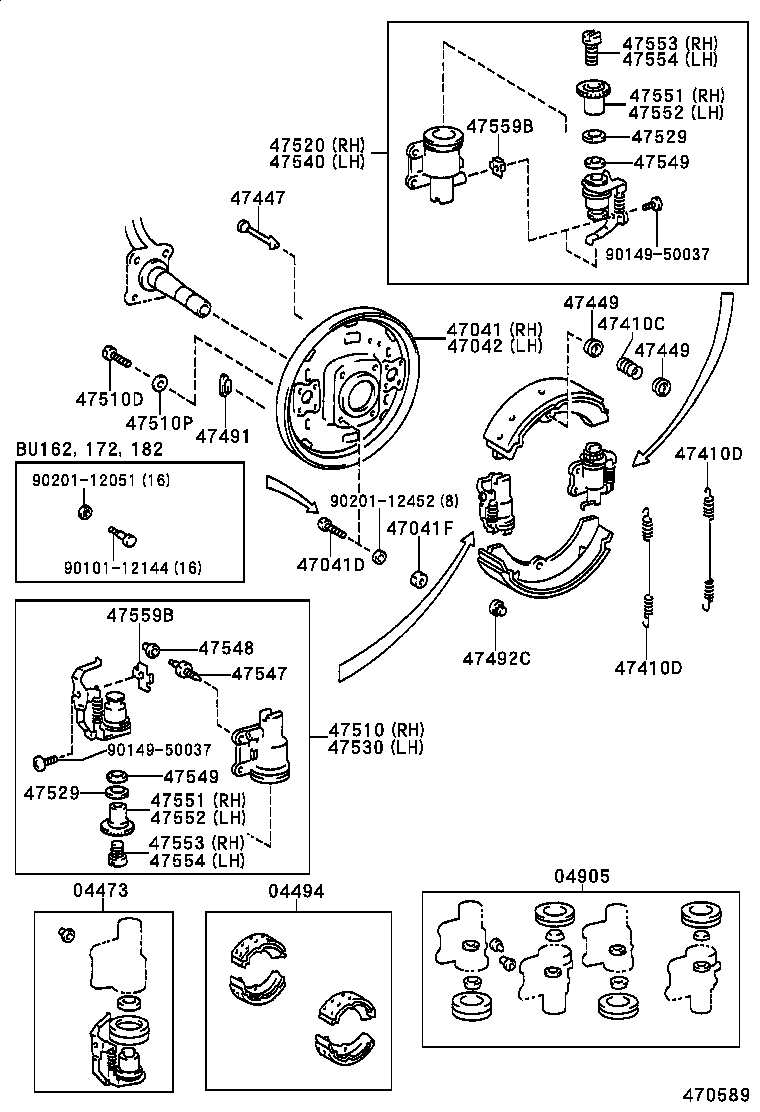

(9505- )
ｱﾘ(ｵ-ﾄｱｼﾞﾔｽﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-36090 |
BU212..T2..4FC;BU102,142..(T2,T4)..20T..4FC 右側 |
2 | ||
| 04473-36100 |
BU212..T2..4FC;BU102,142..(T2,T4)..20T..4FC 左側 |
2 | ||
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-36150 |
BU100,102,132,142,RZU100,140..(DM5,T4,TW4)..20T |
1 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-36130 |
BU212..T2..4FC;BU102,142..(T2,T4)..20T..4FC |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-37070 |
BU10#,132,142,RZU100..DM5,T4,TW4 |
1 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 90101-12113 |
BU100,102,112,12#,132,140,142,202,212,222,RZU100,140,XZU130,140..DSL,EFI,LPG,TD |
8 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94115-71200 |
BU100,102,112,12#,132,140,142,202,212,222,RZU100,140,XZU130,140..DSL,EFI,LPG,TD |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-37070 |
BU10#,132,142,RZU100..DM5,T4,TW4 |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
RZU100..(DM6,T3)..(EFI,LPG);BU105,107,145,147,RZU100..DM5,T2,T4,TW1,TW4;BU100,102,112,12#,13#,140,142,162,172,182,202,212,222,RZU140,XZU130,140..DSL,EFI,TD |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29005 |
BU100,102,132,142,RZU100,140..(T4,TW4)..20T 左側 |
2 | ||
| 90507-29004 |
BU100,102,132,142,RZU100,140..(T4,TW4)..20T 右側 |
2 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29005 |
BU100,102,132,142,RZU100,140..(T4,TW4)..20T 左側 |
2 | ||
| 90507-29004 |
BU100,102,132,142,RZU100,140..(T4,TW4)..20T 右側 |
2 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-20010 |
BU100,102,132,142,RZU100,140..(DM5,T4,TW4)..20T |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
RZU100..(DM6,T3)..(EFI,LPG);BU105,107,145,147,RZU100..DM5,T2,T4,TW1,TW4;BU100,102,112,12#,13#,140,142,162,172,182,202,212,222,RZU140,XZU130,140..DSL,EFI,TD |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
RZU100..(DM6,T3)..(EFI,LPG);BU105,107,145,147,RZU100..DM5,T2,T4,TW1,TW4;BU100,102,112,12#,13#,140,142,162,172,182,202,212,222,RZU140,XZU130,140..DSL,EFI,TD |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36010 |
BU100..T2..CBU;BU100..DM6,T1,T3,T4,TW2,TW4;BU102,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130..DSL,EFI,LPG,TD |
8 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-36111 |
BU212..T2..4FC;BU102,142..(T2,T4)..20T..4FC |
1 | ||
| 47510D - BOLT(FOR FRONT WHEEL CYLINDER) | ||||
| 90101-08081 |
BU212..T2;BU100,102..T3..ST;BU12#,13#,RZU140..20T;RZU100..DM5,T2,T4,TW4;BU10#,14#,162,172,182..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
16 | ||
| 47510P - WASHER(FOR FRONT WHEEL CYLINDER) | ||||
| 90201-08002 |
BU212..T2;BU100,102..T3..ST;BU12#,13#,RZU140..20T;RZU100..DM5,T2,T4,TW4;BU10#,14#,162,172,182..(DM2,DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
16 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-36172 |
BU102,142..T4..20T..4FC |
1 | ||
| 47529 - SEAL, FRONT WHEEL BRAKE CYLINDER ADJUST DUST | ||||
| 47529-36010 |
BU212..30T;BU102,112,132,142,212..4FC |
4 | ||
| 47529 - SEAL, FRONT WHEEL BRAKE CYLINDER ADJUST DUST | ||||
| 47529-36010 |
BU212..30T;BU102,112,132,142,212..4FC |
4 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-36111 |
BU212..T2..4FC;BU102,142..(T2,T4)..20T..4FC |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-36172 |
BU102,142..T4..20T..4FC |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
BU162,172,182..DM7,T3,TW1;BU102,RZU100..(DM3,DM6,T2,T3,T4,T5,TW1,TW4)..(DSL,EFI,LPG);BU100,112,12#,132,140,142,202,212,222,RZU140,XZU130,140..DSL,EFI,TD |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140..DSL,EFI,LPG,TD |
2 | ||
| 47549 - SEAT, FRONT BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
BU212..30T;BU102,112,132,142,212..4FC |
4 | ||
| 47549 - SEAT, FRONT BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
BU212..30T;BU102,112,132,142,212..4FC |
4 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47506-36010 |
BU212..T2..4FC;BU102,142..(T2,T4)..20T..4FC |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47506-36010 |
BU212..T2..4FC;BU102,142..(T2,T4)..20T..4FC |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47507-36010 |
BU212..T2..4FC;BU102,142..(T2,T4)..20T..4FC |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47507-36010 |
BU212..T2..4FC;BU102,142..(T2,T4)..20T..4FC |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36070 |
BU102,112,132,142,212..4FC |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36070 |
BU102,112,132,142,212..4FC |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36070 |
BU102,112,132,142,212..4FC |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36070 |
BU102,112,132,142,212..4FC |
2 | ||
| 47559B - SPING, FRONT AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
BU212..30T;BU102,112,132,142,212..4FC |
4 | ||
| 47559B - SPING, FRONT AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
BU212..30T;BU102,112,132,142,212..4FC |
4 | ||
| Common parts | ||||
| 90101-12144 | ||||
| 90149-50037 | ||||
| 90201-12051 | ||||
| 90201-12452 | ||||
