BU142-TQPMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Oct 1996
Engine 15BF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

Click highlighted areas on diagram

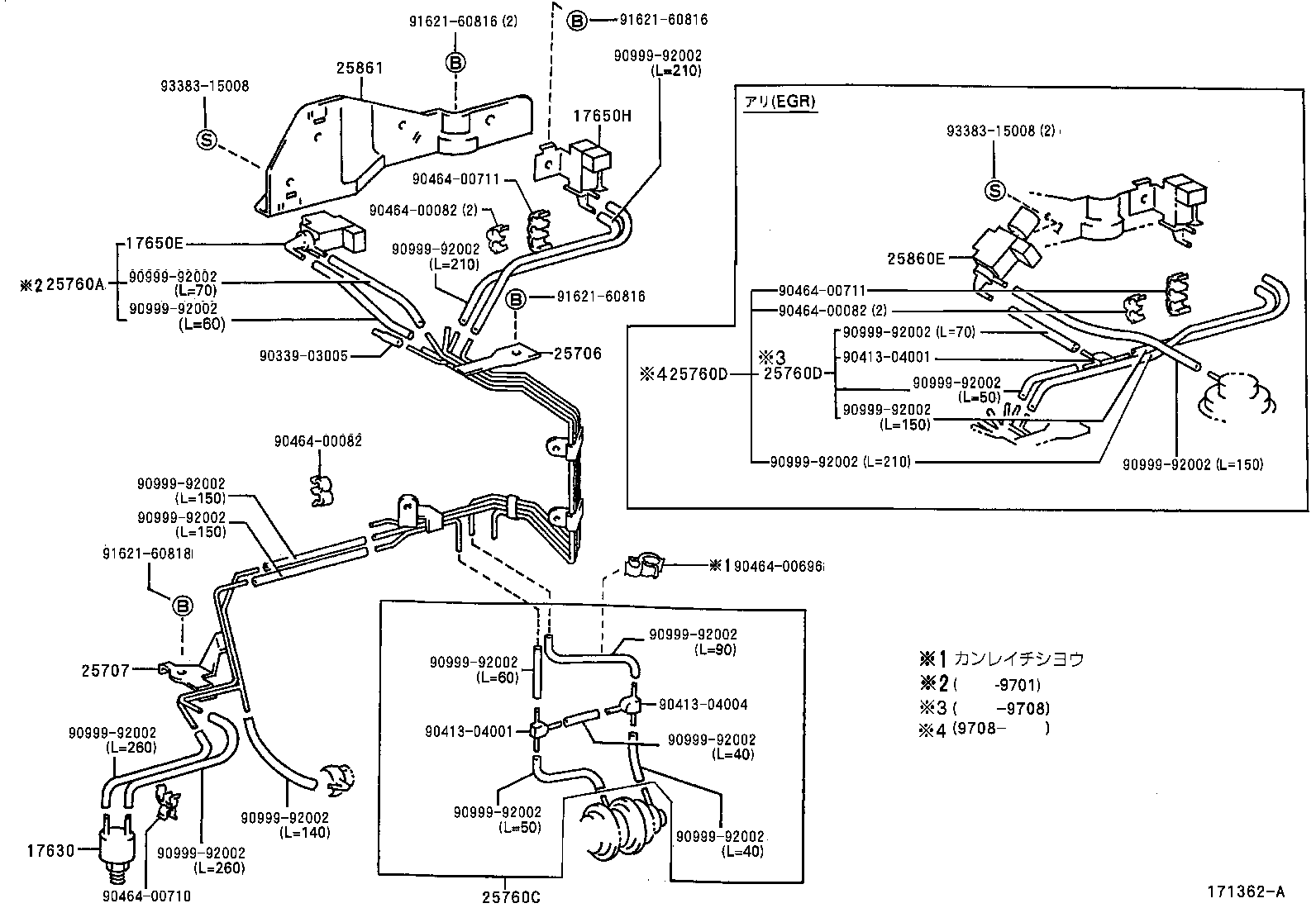

diagram
Part # Description Qty Price

ILLUST NO. 1 OF 2(9505-9906)15BF..BU102,107,112,13#,142,147,212..4FC

Click highlighted areas on diagram

diagram 17630 17650E 17650H 25706 25707 25760A 25760C 25760D 25760D 25860E 25861 9033903005 9041304001 9041304001 9041304004 9046400082 9046400082 9046400082 9046400696 9046400710 9046400711 9046400711 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9162160816 9162160816 9162160816 9162160818 9338315008 9338315008
Part # Description Qty Price
17630 - VALVE ASSY, AIR CONTROL
17630-15010

15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 1
17650E - VALVE, VACUUM SWITCHING
90910-12163

15BF..BU102,107,112,13#,142,147,212,222..4FC,6F

 1
17650H - VALVE, VACUUM SWITCHING
90910-12167

15BF..BU172..IV4;15BF..BU102..T4..30T;15BF..BU107,147..T3..5F;15BF..BU102..(T2,T3)..4FC;15BF..BU102..T4..20T..4FC;15BF..BU102,172,182..(T4,TW1)..(02S,06S);15BF..BU107,112,13#,142,147,212,222..4FC,6F

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-58060

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-58050

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 1
25760A - HOSE ASSY, VACUUM TRANSMITTING
25760-58220

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 1
25760C - HOSE ASSY, VACUUM TRANSMITTING, NO.3
25760-58130

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 1
25760D - HOSE ASSY, VACUUM TRANSMITTING, NO.4
25760-58230

15BF..BU102..DM2,DM3,DM5,T2,T3,T4,T5,TW1,TW4;15BF..BU107,112,122,13#,142,147,162,172,182,202,212,222

 1
25760D - HOSE ASSY, VACUUM TRANSMITTING, NO.4
25760-58230

15BF..BU102..DM2,DM3,DM5,T2,T3,T4,T5,TW1,TW4;15BF..BU107,112,122,13#,142,147,162,172,182,202,212,222

 1
25860E - VALVE, VACUUM SWITCHING, NO.2
90910-12165

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 1
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-58010

15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 1
Common parts
90339-03005
90413-04001
90413-04004
90464-00082
90464-00696
90464-00710
90464-00711
90999-92002
91621-60816
91621-60818
93383-15008
