BU142-TQMMS3 (1995)
Toyota Dyna 200/Toyoace G25

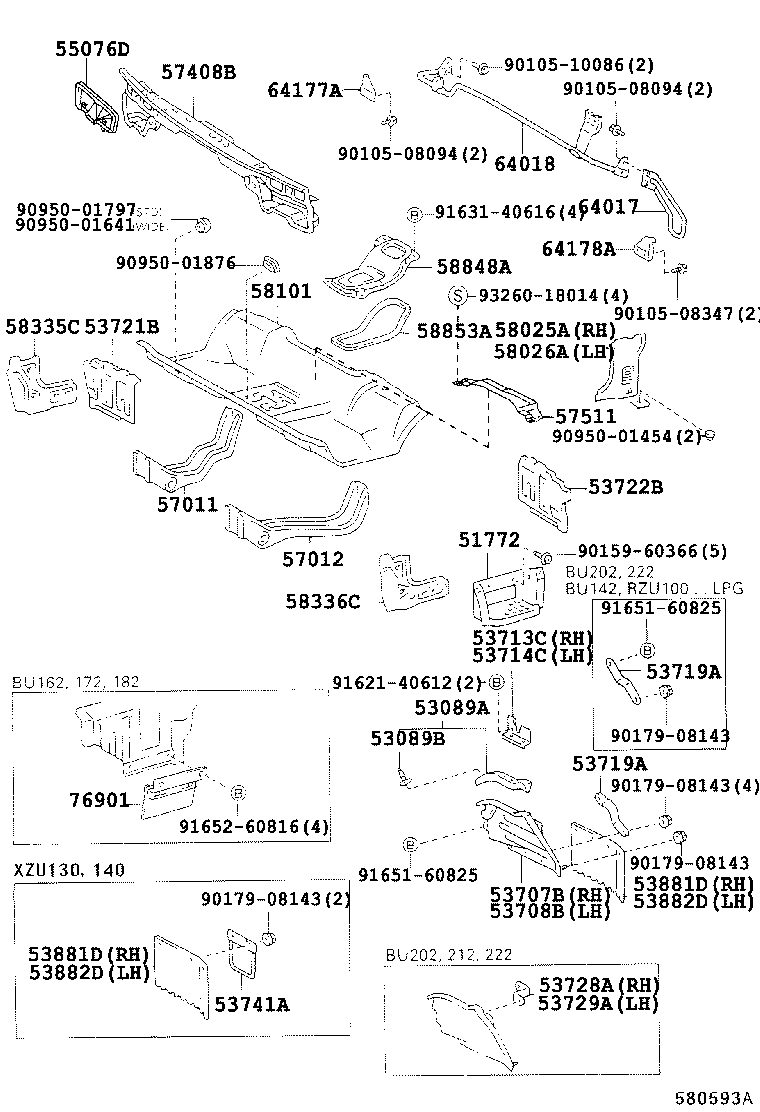

ILLUST NO. 1 OF 3(9505- )BU120 ; (9505- )BU132..T3,T4 ; (9505- )BU10#,112,122,137,14#,162,1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51772 - PLATE, STEP | ||||
| 51771-37020 |
BU162..DM5,T4;BU132,XZU130..DM7,T3,T4;BU10#,112,12#,137,14#,172,RZU100,140,XZU140..03S,05S,06S 右側 |
1 | ||
| 51772-37010 |
BU162..DM5,T4;BU132,XZU130..DM7,T3,T4;BU10#,112,12#,137,14#,172,RZU100,140,XZU140..03S,05S,06S 左側 |
1 | ||
| 51772-37010 |
BU162..DM5,T4;BU10#,112,12#,132,14#,RZU100,XZU130 左側 |
1 | ||
| 51771-37020 |
BU162..DM5,T4;BU10#,112,12#,132,14#,RZU100,XZU130 右側 |
1 | ||
| 53089A - MUDGUARD SUB-ASSY, FRONT | ||||
| 53089-37010 |
BU102..(DM2,DM3,DM5,DM6,T2,T3,T4,TW1)..DSL;BU100,105,107,112,13#,14#,162,172,182,202,212,222..(ALV,DM5,DM6,DM7,DM8,T1,T2,T3,T4,TW1)..(02S,03S,05S)..(DSL,TD) |
2 | ||
| 53089-37010 |
BU102..DM2,DM3,DM5,DM6,T2,T3,T4,T5,TW1;BU100,107,112,13#,14#,162,172,182,202,212,222,RZU100,XZU130..(DM5,DM6,DM7,DM8,T1,T2,T3,T4,TW1)..(02S,03S,05S) |
2 | ||
| 53089B - CLIP, FRONT MUDGUARD | ||||
| 67868-95401 |
BU100,102,105..DM2,DM3,DM5,DM6,T1,T2,T3,T4,T5,TW1;BU107,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..(ALV,DM5,DM6,DM7,DM8,T2,T3,T4,TW1)..(02S,03S,05S) |
10 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-37010 |
BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..02S,03S |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-37010 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..(02S,03S)..(DSL,EFI) |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-37010 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5 |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-37010 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5 |
1 | ||
| 53719A - BRACE, FENDER APRON | ||||
| 53719-37010 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..(02S,03S)..(DSL,EFI) |
1 | ||
| 53719A - BRACE, FENDER APRON | ||||
| 53719-37010 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..(02S,03S)..(DSL,EFI) |
1 | ||
| 53721B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53721-37010 |
BU132..T3,T4;BU10#,112,12#,137,14#,202,212,222,297,RZU100,140 |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-37020 |
BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,RZU100,140,XZU130,140 |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-37010 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..02S,03S |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-37010 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..02S,03S |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-37010 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..02S,03S |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-37010 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..02S,03S |
1 | ||
| 55076D - NET SUB-ASSY, AIR DUCT | ||||
| 55076-37050 |
BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 55076-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 57011 - MEMBER SUB-ASSY, FLOOR, RH | ||||
| 57011-37010 |
BU10#,112,132,14#,162,172,182,RZU100,XZU130..02S,03S,05S |
1 | ||
| 57011-37010 |
BU172,182;BU102..(T2,T4)..20T;BU132,142,162..(DM5,DM7,T2,T4)..20T ﾅｼ(*80) |
1 | ||
| 57011-37010 |
BU142..LPGB;BU132..T3..4FC;BU102,132,142..T2,T4;BU162,172,182,RZU100,XZU130..02S,03S,05S |
1 | ||
| 57011-37010 |
BU120,162;BU132..T4,TL4;BU102,142..(T2,T4,TW4)..20T;BU100,105,107,147,172,182,RZU100..02S,05S,06S ﾅｼ(*80) |
1 | ||
| 57011-37100 |
BU102,132,142..(T2,T4)..20T |
1 | ||
| 57011-37100 |
BU120,132,162..20T;BU102,142..(T2,T4,TW1,TW4)..20T;BU100,105,107,147,172,182,RZU100..02S,05S,06S |
1 | ||
| 57012 - MENBER SUB-ASSY | ||||
| 57012-37010 |
BU142..LPGB;BU132..T3..4FC;BU102,132,142..T2,T4;BU162,172,182,RZU100,XZU130..02S,03S,05S |
1 | ||
| 57012-37010 |
BU10#,112,132,14#,162,172,182,RZU100,XZU130..02S,03S,05S |
1 | ||
| 57012-37010 |
BU120,162;BU132..T4,TL4;BU102,142..(T2,T4,TW4)..20T;BU100,105,107,147,172,182,RZU100..02S,05S,06S ﾅｼ(*80) |
1 | ||
| 57012-37010 |
BU172,182;BU102..(T2,T4)..20T;BU132,142,162..(DM5,DM7,T2,T4)..20T ﾅｼ(*80) |
1 | ||
| 57012-37100 |
BU102,132,142..(T2,T4)..20T |
1 | ||
| 57012-37100 |
BU120,132,162..20T;BU102,142..(T2,T4,TW1,TW4)..20T;BU100,105,107,147,172,182,RZU100..02S,05S,06S |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-37021 |
BU10#,112,12#,132,14#,162,172,182,RZU100 |
1 | ||
| 57408-37201 |
BU10#,112,120,13#,14#,162,172,182,RZU100,140 |
1 | ||
| 57408-37200 |
BU10#,112,12#,13#,14#,162,172,182,RZU100,140 |
1 | ||
| 57511 - REINFORCEMENT, FRONT FLOOR, CENTER | ||||
| 57509-37010 |
BU132..T3,T4;BU10#,112,120,137,14#,RZU100,140,XZU130,140 |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58271-37011 |
BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..ALV,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5 |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58272-37010 |
BU212,222..TD;BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5 |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-37040 |
BU10#,112,12#,132,14#,RZU100 |
1 | ||
| 58101-37041 |
BU132..T3,T4;BU107,147..06S;BU100,102,112,12#,140,142,RZU100 |
1 | ||
| 58101-37044 |
BU132..T3,T4;BU107,147..06S;BU100,102,112,120,140,142,RZU100,140 |
1 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 58848A - COVER, SHIFT LEVER HOLE | ||||
| 58848-37020 |
BU10#,112,12#,13#,14#,162,172,182,RZU100,XZU130 |
1 | ||
| 58853A - PACKING, SHIFT LEVER HOLE | ||||
| 58853-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130 |
1 | ||
| 64017 - REINFORCE SUB-ASSY, REAR MOUNTING BRACKET | ||||
| 64017-95403 |
RZU100..DM5;RZU100..LPGB;BU142..03S..DSL;BU10#,112,13#,140,145,147,202,212,222,RZU140..ALV,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4 |
1 | ||
| 64017-95403 |
BU10#,112,13#,14#,202,212,222,RZU100..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5 |
1 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-37020 |
BU10#,112,12#,13#,14#,RZU100 |
1 | ||
| 64018-37020 |
BU142..DSL;RZU100..LPGB;RZU100..DM5,TW1,TW4;BU10#,112,120,13#,140,145,147,RZU140 |
1 | ||
| 64177A - STOPPER, REAR MOUNTING BRACKET, RH | ||||
| 64177-95402 |
BU10#,112,13#,14#..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4)..DSL |
1 | ||
| 64177-95402 |
BU10#,112,13#,14#,RZU100..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5 |
1 | ||
| 64178A - STOPPER, REAR MOUNTING BRACKET, LH | ||||
| 64178-95404 |
BU10#,112,13#,14#,RZU100..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5 |
1 | ||
| 64178-95404 |
BU10#,112,13#,14#..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4)..DSL |
1 | ||
| Common parts | ||||
| 90105-08094 | ||||
| 90105-08347 | ||||
| 90105-10086 | ||||
| 90159-60366 | ||||
| 90179-08143 | ||||
| 90950-01454 | ||||
| 90950-01641 | ||||
| 90950-01797 | ||||
| 90950-01876 | ||||
| 91621-40612 | ||||
| 91631-40616 | ||||
| 91651-60825 | ||||
| 91652-60816 | ||||
| 93260-18014 | ||||

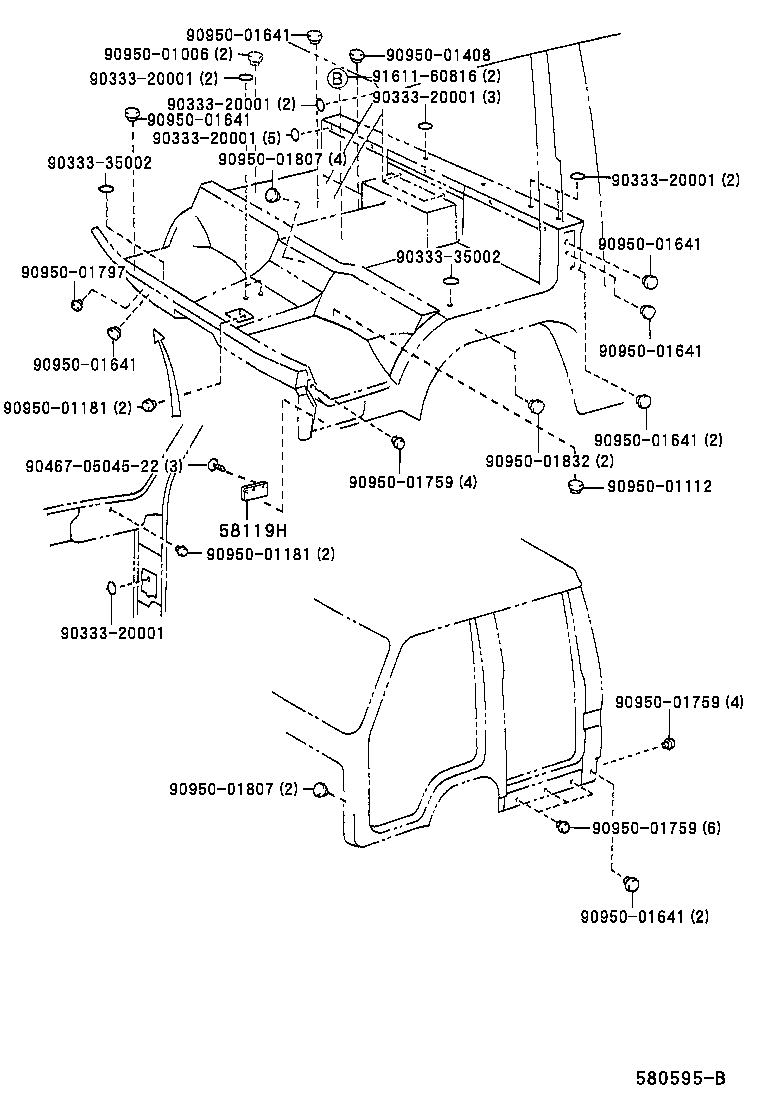

ILLUST NO. 3 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58119H - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-95400 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
2 | ||
| Common parts | ||||
| 90333-20001 | ||||
| 90333-35002 | ||||
| 90467-0504522 | ||||
| 90950-01006 | ||||
| 90950-01112 | ||||
| 90950-01181 | ||||
| 90950-01408 | ||||
| 90950-01641 | ||||
| 90950-01759 | ||||
| 90950-01797 | ||||
| 90950-01807 | ||||
| 90950-01832 | ||||
| 91611-60816 | ||||

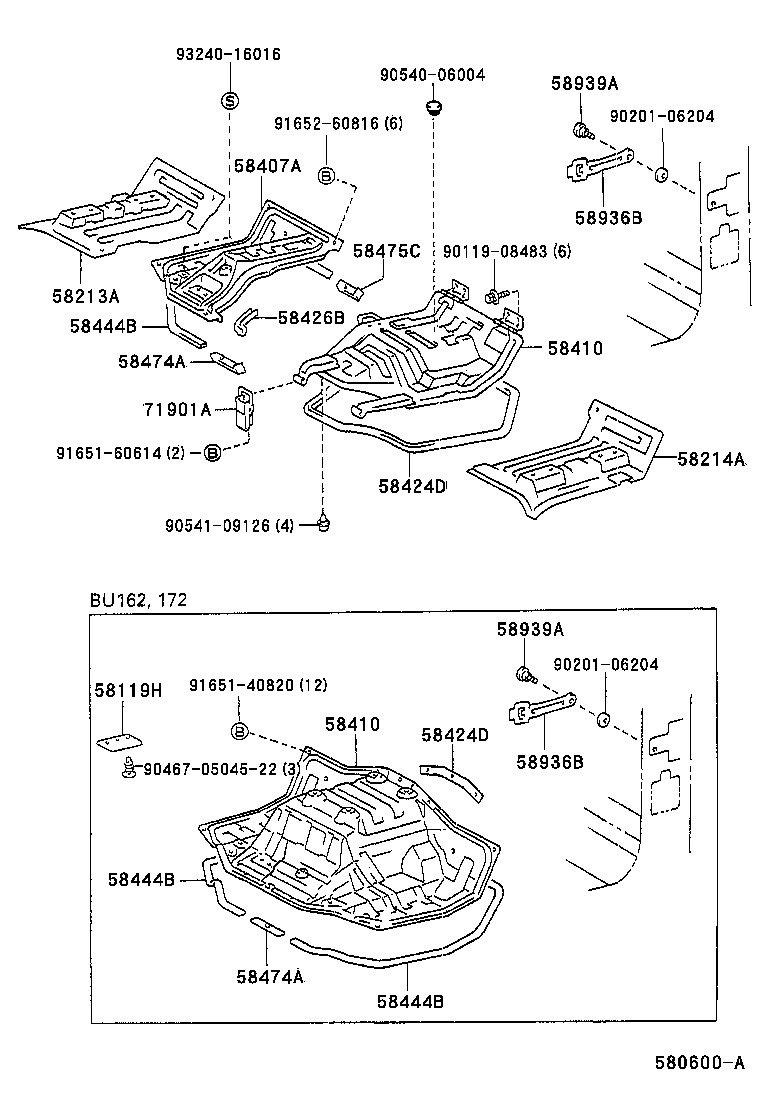

ILLUST NO. 2 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58119H - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-95400 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
2 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58201-37020 |
BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58202-37010 |
BU10#,112,12#,13#,14#,RZU100,140 |
1 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-37020 |
BU10#,112,12#,13#,14#,RZU100,140 |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-37070 |
BU10#,112,12#,13#,14#,RZU100,140 |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-37070 |
BU10#,112,12#,13#,14#,RZU100,140 |
1 | ||
| 58424D - PACKING, ENGINE COVER | ||||
| 58424-95405 |
BU10#,112,12#,13#,14#,202,212,222,297,RZU100,140 |
1 | ||
| 58424D - PACKING, ENGINE COVER | ||||
| 58424-95405 |
BU10#,112,12#,13#,14#,202,212,222,297,RZU100,140 |
1 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-95405 |
BU10#,112,12#,13#,14#,RZU100..DSL,LPGB |
1 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-37010 |
BU10#,112,12#,13#,14#,202,212,222,297,RZU100,140 |
1 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-37010 |
BU10#,112,12#,13#,14#,202,212,222,297,RZU100,140 |
1 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-37010 |
BU10#,112,12#,13#,14#,202,212,222,297,RZU100,140 |
1 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-95401 |
BU10#,112,12#,13#,14#,202,212,222,297,RZU100,140 |
1 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-95401 |
BU10#,112,12#,13#,14#,202,212,222,297,RZU100,140 |
1 | ||
| 58475C - PACKING, ENGIN SUB COVER, NO.3 | ||||
| 58475-95A01 |
BU10#,112,12#,13#,14#,202,212,222,297,RZU100,140 |
1 | ||
| 58936B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-95J02C0 |
BU10#,112,12#,13#,14#,202,212,222,297,RZU100,140 BLACK,TRIM1# |
1 | ||
| 58936B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-95J02C0 |
BU10#,112,12#,13#,14#,202,212,222,297,RZU100,140 BLACK,TRIM1# |
1 | ||
| 58939A - SCREW, ENGINE SERVICE HOLE COVER SUPPORT BAND | ||||
| 58939-95J00 |
BU10#,112,12#,13#,14#,202,212,222,297,RZU100,140 |
1 | ||
| 58939A - SCREW, ENGINE SERVICE HOLE COVER SUPPORT BAND | ||||
| 58939-95J00 |
BU10#,112,12#,13#,14#,202,212,222,297,RZU100,140 |
1 | ||
| 71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT | ||||
| 71901-9570401 |
BU212..03S;RZU100..EFI,LPG;BU10#,112,12#,13#,14#,202,222,RZU140 ｱﾘ(ﾌﾛﾝﾄ ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ=ﾄﾞﾗｲﾊﾞ & ｼﾞﾖｼﾕ ｾｷ),BLACK,TRIM1# |
2 | ||
| Common parts | ||||
| 90119-08483 | ||||
| 90201-06204 | ||||
| 90467-0504522 | ||||
| 90540-06004 | ||||
| 90541-09126 | ||||
| 91651-40820 | ||||
| 91651-60614 | ||||
| 91652-60816 | ||||
| 93240-16016 | ||||
