BU142-TQMMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Jun 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9906)15BF,15BFT

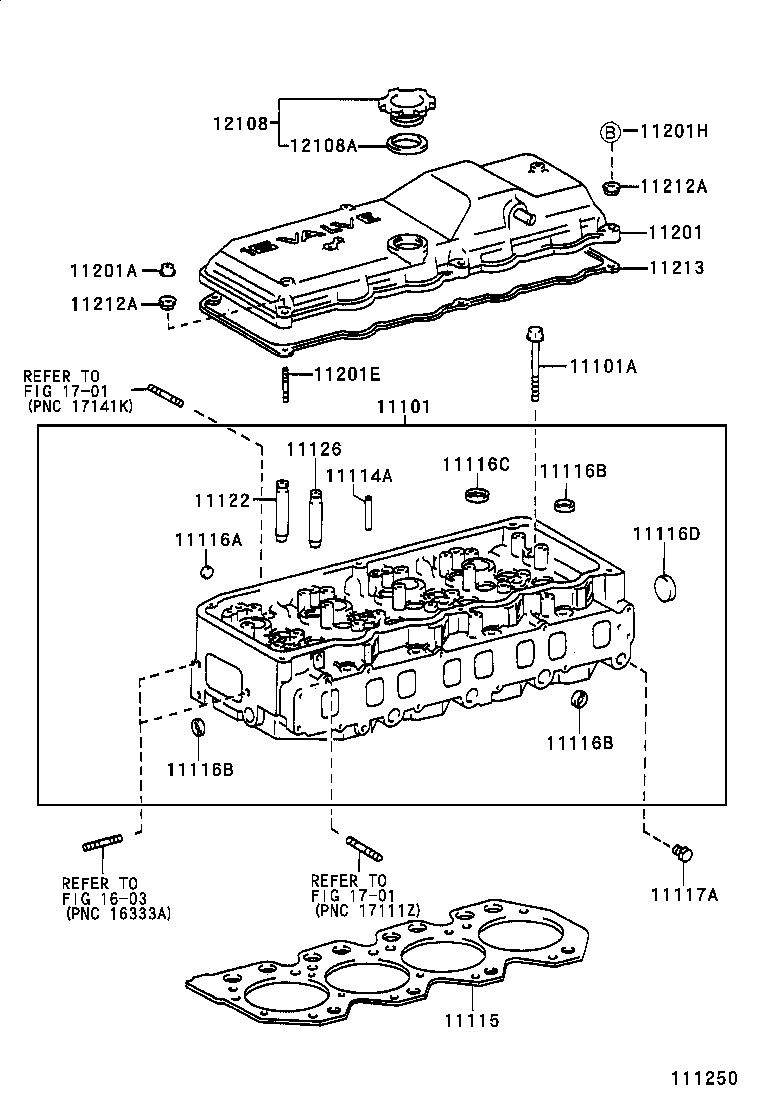

Click highlighted areas on diagram

diagram 11101 11101A 11114A 11115 11116A 11116B 11116B 11116B 11116C 11116D 11117A 11122 11126 11201 11201A 11201E 11201H 11212A 11212A 11213 12108 12108A 1603 1701 1701
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-58080

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 1
11101-58081

15BF..BU102,107,112,13#,142,147,162,172,182,202,212,222

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02084

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 18
11114A - PIN, STRAIGHT
90250-09007

15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

長さ=53.5,外径=9

 8
11115 - GASKET, CYLINDER HEAD
11115-58130

15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

厚さ=1.20

 1
11115-58140

15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

厚さ=1.30

 1
11115-58141

15BF..BU102,142,162,182,212

厚さ=1.30

 1
11115-58131

15BF..BU102,142,162,182,212

厚さ=1.20

 1
11115-58150

15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

厚さ=1.40

 1
11115-58151

15BF..BU102,142,162,182,212

厚さ=1.40

 1
11116A - PLUG, TIGHT, NO.1
90331-14006

15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 4
11116B - PLUG, TIGHT, NO.2
96411-62500

15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 8
11116B - PLUG, TIGHT, NO.2
96411-62500

15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 8
11116B - PLUG, TIGHT, NO.2
96411-62500

15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 8
11116C - PLUG, TIGHT, NO.3
96411-63000

15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 4
11116D - PLUG, TIGHT, NO.4
96411-64000

15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54005

15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-58020

15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297

STD

 8
11122-58010

15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-58010

15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

STD

 8
11122-58020

15BF,15BFT..BU102,107,112,13#,142,147,162,172,182,202,212,222,297

STD

 8
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-58040

15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90179-08025

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 2
90179-08040

15BF,3B..BU10#,142,162,182,212

 2
11201E - BOLT, STUD(FOR CYLINDER HEAD COVER SET)
92112-60835

15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 2
11201H - BOLT(FOR CYLINDER HEAD COVER)
91511-60835

15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 4
11212A - CUSHION, CYLINDER HEAD COVER
11228-56010

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 6
11212A - CUSHION, CYLINDER HEAD COVER
11228-56010

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 6
11213 - GASKET, CYLINDER HEAD COVER
11213-58020

15B#..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 1
11213-58021

15B#..BU102,107,112,13#,142,147,162,172,182,202,212,222,297

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
Linked diagrams
1603
1701
