BU142-TQMMS (1995)
Toyota Dyna 200/Toyoace G25

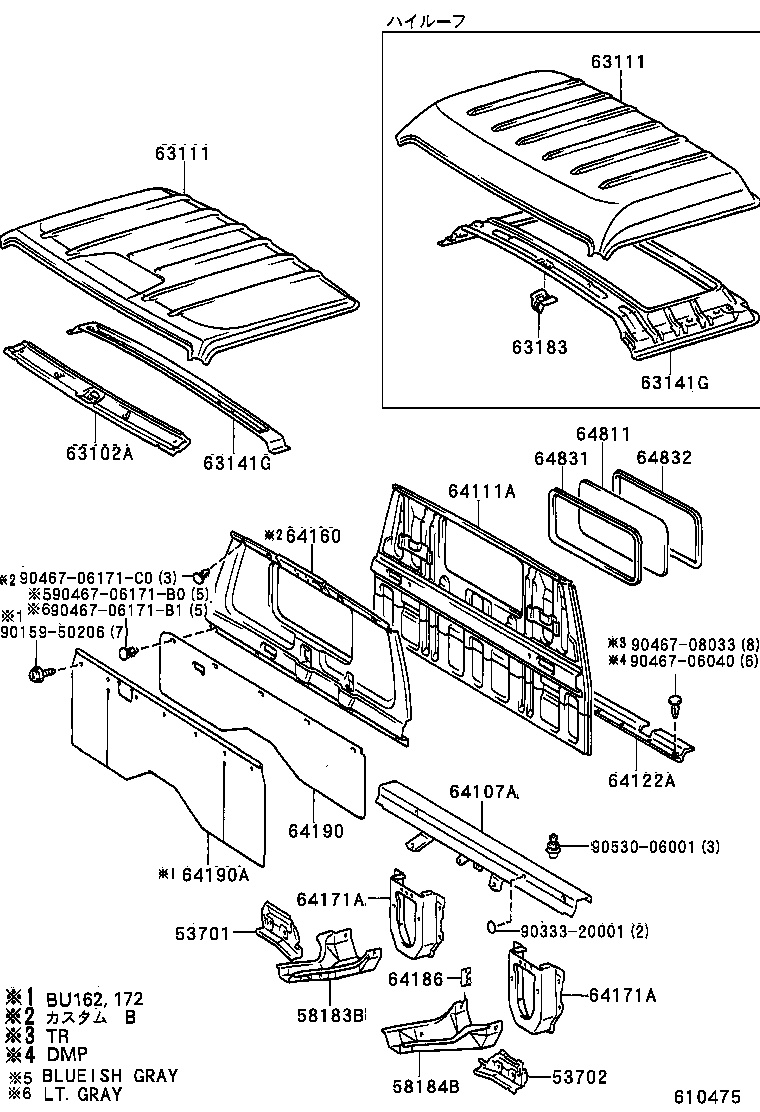

ILLUST NO. 1 OF 2(9505- )BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..02S,03S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53717-37010 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TW1)..(02S,03S,05S) |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53718-37010 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TW1)..(02S,03S,05S) |
1 | ||
| 58183B - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37010 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5 |
1 | ||
| 58184B - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-37010 |
BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-37010 |
BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130..(02S,03S,06S)..(CBU,IV3) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-37080 |
BU112..30T;RZU100..LPG..CBU;BU102..(T2,T4)..IV3;RZU100..(DM6,T4)..IV3;RZU100..30T..LPG..IV3;BU102..(DM6,T3,T5)..WT;BU100,107,162..03S..WT..IV3;BU13#,14#,172,182,XZU130..02S,03S ｱﾘ(ﾊｲﾙ-ﾌ ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-37080 |
BU112..30T;RZU100..LPG..CBU;BU102..(T2,T4)..IV3;RZU100..(DM6,T4)..IV3;RZU100..30T..LPG..IV3;BU102..(DM6,T3,T5)..WT;BU100,107,162..03S..WT..IV3;BU13#,14#,172,182,XZU130..02S,03S ｱﾘ(ﾊｲﾙ-ﾌ ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-37020 |
BU102,112..275T,30T;BU100,102,RZU100,XZU130..DM6,DM7;BU13#,14#,172,182,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB) ｱﾘ(ﾁﾙﾄ ﾊｲﾙ-ﾌ) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-37020 |
BU102,112..275T,30T;BU100,102,RZU100,XZU130..DM6,DM7;BU13#,14#,172,182,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB) ｱﾘ(ﾁﾙﾄ ﾊｲﾙ-ﾌ) |
1 | ||
| 63183 - BRACKET, ROOF CONSOLE, FRONT | ||||
| 63183-37010 |
BU102..275T,30T;BU10#,RZU100,XZU130..DM6,DM7;BU132,14#,172,182,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB) |
1 | ||
| 64107A - FRAME SUB-ASSY, BACK | ||||
| 64107-37101 |
BU10#,112,13#,14#,RZU100,140..03S |
1 | ||
| 64107-37211 |
RZU100..TR..03S..(EFI,LPG);BU10#,112,13#,14#,RZU140..TR..03S ｱﾘ(ﾌﾛﾝﾄ ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ=ﾄﾞﾗｲﾊﾞ ｼ-ﾄ ﾉﾐ) |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64100-37021 |
BU10#,112,132,14#,RZU100..03S ｶｽﾀﾑ B & ｱﾘ(ｼﾂﾅｲ ｹｲｺｳﾄｳ) |
1 | ||
| 64100-37260 |
BU10#,112,132,14#,RZU100..03S ｱﾘ(ｼﾂﾅｲ ｹｲｺｳ ﾄｳ) |
1 | ||
| 64100-37022 |
BU10#,112,132,14#,RZU100..03S ｶｽﾀﾑ B & ｱﾘ(ｼﾂﾅｲ ｹｲｺｳﾄｳ) |
1 | ||
| 64100-37202 |
BU10#,112,132,14#,RZU100..TR..03S ｱﾘ(ﾌﾛﾝﾄ ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ=ﾄﾞﾗｲﾊﾞ ｼ-ﾄ ﾉﾐ) |
1 | ||
| 64100-37250 |
BU10#,112,132,14#,RZU100..03S |
1 | ||
| 64100-37201 |
BU10#,112,132,14#,RZU100..TR..03S ｱﾘ(ﾌﾛﾝﾄ ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ=ﾄﾞﾗｲﾊﾞ ｼ-ﾄ ﾉﾐ) |
1 | ||
| 64100-37191 |
BU10#,112,132,14#,RZU100..TR..03S ｱﾘ(ﾌﾛﾝﾄ ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ=ﾄﾞﾗｲﾊﾞ & ｼﾂﾅｲ ｹｲｺｳﾄｳ) |
1 | ||
| 64100-37261 |
BU10#,112,132,14#,RZU100..03S ｱﾘ(ｼﾂﾅｲ ｹｲｺｳ ﾄｳ) |
1 | ||
| 64100-37192 |
BU10#,112,132,14#,RZU100..TR..03S ｱﾘ(ﾌﾛﾝﾄ ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ=ﾄﾞﾗｲﾊﾞ & ｼﾂﾅｲ ｹｲｺｳﾄｳ) |
1 | ||
| 64100-37251 |
BU10#,112,132,14#,RZU100..03S |
1 | ||
| 64122A - BAFFLE, DUST REAR BODY | ||||
| 64122-37041 |
BU112..T3..IV3;BU112,RZU140..CBU;BU102,RZU100..(DM2,DM5)..CBU;BU10#,13#,14#,RZU100..DM3,T2,T3,T4,T5 |
1 | ||
| 64160 - SILENCER ASSY, BACK PANEL, UPPER | ||||
| 64160-25020B0 |
BU10#,112,132,14#,RZU100..03S ｶｽﾀﾑ B,LT.GRAY,TRIM1# |
1 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-37010 |
BU10#,112,13#,14#,RZU100,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5 |
2 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-37010 |
BU10#,112,13#,14#,RZU100,140..DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5 |
2 | ||
| 64190 - SILENCER ASSY, BACK PANEL | ||||
| 64190-37090B0 |
BU10#,112,132,14#,RZU100..03S ｶｽﾀﾑ B,BLUISH GRAY,TRIM1# |
1 | ||
| 64190-37080 |
BU10#,112,13#,14#,RZU100,140..03S |
1 | ||
| 64190-37100 |
BU10#,112,13#,14#,RZU100,140..TR..03S ｱﾘ(ﾌﾛﾝﾄ ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ=ﾄﾞﾗｲﾊﾞ ｼ-ﾄ ﾉﾐ) |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95409 |
BU10#,112,132,14#,162,172,182,RZU100,XZU130..02S,03S *TEM,厚さ=3.5 |
1 | ||
| 64811-37020 |
BU10#,112,132,14#,162,172,182,RZU100,XZU130..02S,03S *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-37050 |
BU10#,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 64832 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64832-37040 |
BU10#,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| Common parts | ||||
| 90159-50206 | ||||
| 90333-20001 | ||||
| 90467-06040 | ||||
| 90467-06171B0 | ||||
| 90467-06171B1 | ||||
| 90467-06171C0 | ||||
| 90467-08033 | ||||
| 90530-06001 | ||||

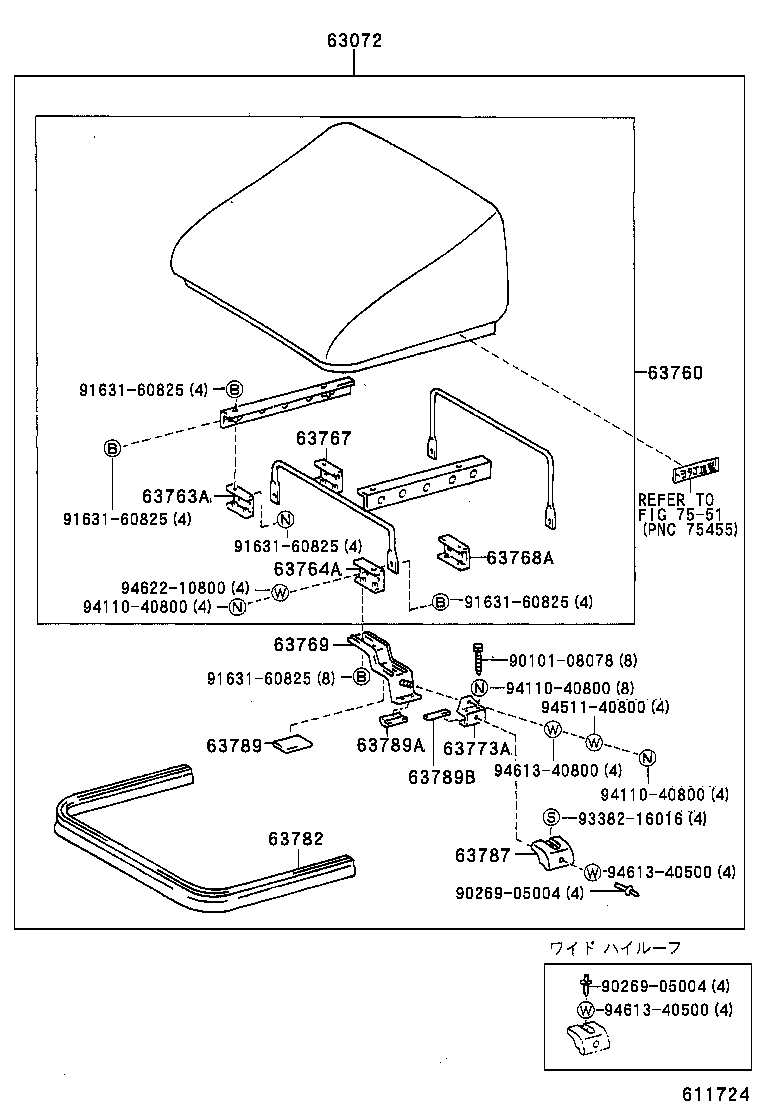

ILLUST NO. 2 OF 2(9505- )BU100,105,107,112,13#,14#,162,172,182,202,212,222,RZU140..ALV,DM6,T1,T2,
ﾄﾖﾀGｶﾞﾀ OR ﾄﾖﾀHｶﾞﾀ OR ﾄﾖﾀJｶﾞﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63072 - DEFLECTOR SET, ROOF AIR | ||||
| 63072-37100 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..02S,03S;BU100,107,162..TR..03S..WT..IV3 ***,K GATA |
1 | ||
| 63072-37100 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..02S,03S;BU100,107,162..TR..03S..WT..IV3 ***,K GATA |
1 | ||
| 63072-37050 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ***,H2 GATA(HI ROOF,H=625) |
1 | ||
| 63072-37050 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ***,H2 GATA(HI ROOF,H=625) |
1 | ||
| 63072-37040 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ***,H1 GATA(HI ROOF,H=475) |
1 | ||
| 63072-37040 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ***,H1 GATA(HI ROOF,H=475) |
1 | ||
| 63072-37060 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ***,H3 GATA(HI ROOF,H=775) |
1 | ||
| 63072-37060 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ***,H3 GATA(HI ROOF,H=775) |
1 | ||
| 63760 - PANEL ASSY, ROOF AIR DEFLECTOR | ||||
| 63760-37050 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 H2 GATA(HI ROOF,H=625) |
1 | ||
| 63760-37050 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 H2 GATA(HI ROOF,H=625) |
1 | ||
| 63760-37040 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 H1 GATA(HI ROOF,H=475) |
1 | ||
| 63760-37040 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 H1 GATA(HI ROOF,H=475) |
1 | ||
| 63760-37060 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 H3 GATA(HI ROOF,H=775) |
1 | ||
| 63760-37060 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 H3 GATA(HI ROOF,H=775) |
1 | ||
| 63760-37100 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 K GATA |
1 | ||
| 63760-37100 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 K GATA |
1 | ||
| 63763A - BRACKET, ROOF AIR DEFLECTOR, FRONT RH | ||||
| 63763-37010 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
1 | ||
| 63763-37010 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
1 | ||
| 63764A - BRACKET, ROOF AIR DEFLECTOR, FRONT LH | ||||
| 63764-37010 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
1 | ||
| 63764-37010 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
1 | ||
| 63767 - BRACKET, ROOF AIR DEFLECTOR, REAR RH | ||||
| 63767-37010 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
1 | ||
| 63767-37010 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
1 | ||
| 63768A - BRACKET, ROOF AIR DEFLECTOR, REAR LH | ||||
| 63768-37010 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
1 | ||
| 63768-37010 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
1 | ||
| 63769 - BRACKET, ROOF AIR DEFLECTOR CLAMP | ||||
| 63769-37020 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
4 | ||
| 63769-37020 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
4 | ||
| 63773A - HOLDER, ROOF AIR DEFLECTOR, REAR | ||||
| 63773-37020 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU100,107,162..TR..03S..WT..IV3;BU13#,14#,172,182,202,212,222..T2,T3,T4 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
4 | ||
| 63773-37020 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU100,107,162..TR..03S..WT..IV3;BU13#,14#,172,182,202,212,222..T2,T3,T4 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
4 | ||
| 63782 - SEAL, ROOF AIR DEFLECTOR | ||||
| 63782-37020 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU100,107,162..TR..03S..WT..IV3;BU13#,14#,172,182,202,212,222..T2,T3,T4 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 63782-37020 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU100,107,162..TR..03S..WT..IV3;BU13#,14#,172,182,202,212,222..T2,T3,T4 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
1 | ||
| 63787 - PAD, ROOF AIR DEFLECTOR, NO.1 | ||||
| 63787-37020 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
4 | ||
| 63787-37020 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
4 | ||
| 63787-95400 |
BU212,222..03S..20T..6F;RZU100..TR..03S..(EFI,LPG);BU10#,112,13#,14#,162,172,182,RZU140..T1,T2,T3,T4,T5 C GATA |
4 | ||
| 63787-95400 |
BU212,222..03S..20T..6F;RZU100..TR..03S..(EFI,LPG);BU10#,112,13#,14#,162,172,182,RZU140..T1,T2,T3,T4,T5 C GATA |
4 | ||
| 63789 - PAD, ROOF AIR DEFLECTOR, NO.3 | ||||
| 63789-37010 |
BU212,222..03S..6F;BU10#,112,13#,14#,162,172,182,RZU100,140..T1,T2,T3,T4,T5 G GATA OR H GATA |
4 | ||
| 63789-37010 |
BU212,222..03S..6F;BU10#,112,13#,14#,162,172,182,RZU100,140..T1,T2,T3,T4,T5 G GATA OR H GATA |
4 | ||
| 63789-95400 |
BU212,222..03S..20T..6F;RZU100..TR..03S..(EFI,LPG);BU10#,112,13#,14#,162,172,182,RZU140..T1,T2,T3,T4,T5 C GATA |
2 | ||
| 63789-95400 |
BU212,222..03S..20T..6F;RZU100..TR..03S..(EFI,LPG);BU10#,112,13#,14#,162,172,182,RZU140..T1,T2,T3,T4,T5 C GATA |
2 | ||
| 63789A - PAD, ROOF AIR DEFLECTOR, NO.3 | ||||
| 63789-37020 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
4 | ||
| 63789-37020 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
4 | ||
| 63789B - PAD, ROOF AIR DEFLECTOR, NO.3 | ||||
| 63789-37030 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
4 | ||
| 63789-37030 |
BU102,RZU100..TR..03S;BU100,112,132,14#,162,172,182,202,212,222..DM6,T1,T2,T3,T4 |
4 | ||
| Common parts | ||||
| 90101-08078 | ||||
| 90269-05004 | ||||
| 91631-60825 | ||||
| 93382-16016 | ||||
| 94110-40800 | ||||
| 94511-40800 | ||||
| 94613-40500 | ||||
| 94613-40800 | ||||
| 94622-10800 | ||||
| Linked diagrams | ||||
| 7551 | ||||

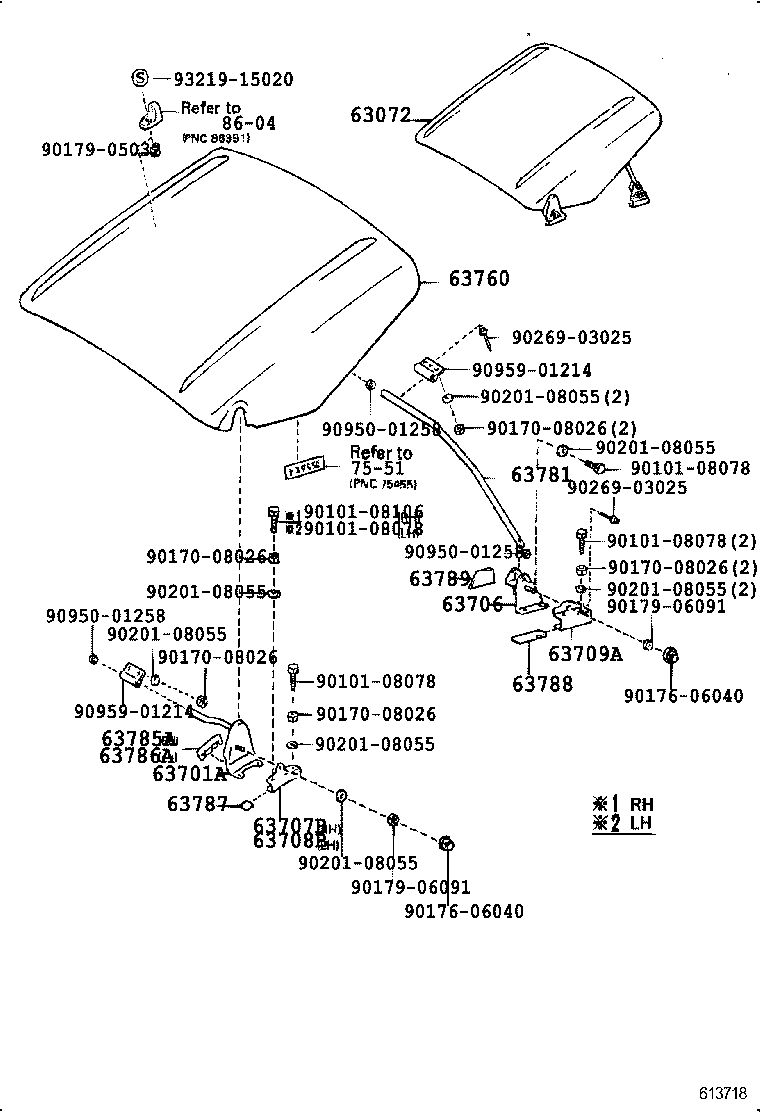

ILLUST NO. 2 OF 2(9505- )BU100,105,107,112,13#,14#,162,172,182,202,212,222,RZU140..ALV,DM6,T1,T2,
ﾄﾖﾀCｶﾞﾀ OR ﾄﾖﾀDｶﾞﾀ OR ﾄﾖﾀLｶﾞﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63072 - DEFLECTOR SET, ROOF AIR | ||||
| 63072-37100 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..02S,03S;BU100,107,162..TR..03S..WT..IV3 ***,K GATA |
1 | ||
| 63072-37100 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..02S,03S;BU100,107,162..TR..03S..WT..IV3 ***,K GATA |
1 | ||
| 63072-37050 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ***,H2 GATA(HI ROOF,H=625) |
1 | ||
| 63072-37050 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ***,H2 GATA(HI ROOF,H=625) |
1 | ||
| 63072-37040 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ***,H1 GATA(HI ROOF,H=475) |
1 | ||
| 63072-37040 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ***,H1 GATA(HI ROOF,H=475) |
1 | ||
| 63072-37060 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ***,H3 GATA(HI ROOF,H=775) |
1 | ||
| 63072-37060 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ***,H3 GATA(HI ROOF,H=775) |
1 | ||
| 63701A - BRACKET SUB-ASSY, ROOF AIR DEFLECTOR, FRONT | ||||
| 63702-37030 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU100,107,162..TR..03S..WT..IV3;BU13#,14#,172,182,202,212,222..02S,03S ｱﾘ(ﾊｲ ﾙ-ﾌ),左側 |
1 | ||
| 63702-37030 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU100,107,162..TR..03S..WT..IV3;BU13#,14#,172,182,202,212,222..02S,03S ｱﾘ(ﾊｲ ﾙ-ﾌ),左側 |
1 | ||
| 63701-37030 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU100,107,162..TR..03S..WT..IV3;BU13#,14#,172,182,202,212,222..02S,03S ｱﾘ(ﾊｲ ﾙ-ﾌ),右側 |
1 | ||
| 63701-37030 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU100,107,162..TR..03S..WT..IV3;BU13#,14#,172,182,202,212,222..02S,03S ｱﾘ(ﾊｲ ﾙ-ﾌ),右側 |
1 | ||
| 63706 - BRACKET SUB-ASSY, ROOF AIR DEFLECTOR, REAR | ||||
| 63706-37010 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
2 | ||
| 63706-37010 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
2 | ||
| 63707B - HOLDER SUB-ASSY, ROOF AIR DEFLECTOR, FRONT RH | ||||
| 63707-37010 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
1 | ||
| 63707-37010 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
1 | ||
| 63708B - HOLDER SUB-ASSY, ROOF AIR DEFLECTOR, FRONT LH | ||||
| 63708-37010 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
1 | ||
| 63708-37010 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
1 | ||
| 63709A - HOLDER SUB-ASSY, ROOF DEFLECTOR, REAR | ||||
| 63709-37010 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
2 | ||
| 63709-37010 |
BU102..275T,30T;BU13#,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) |
2 | ||
| 63760 - PANEL ASSY, ROOF AIR DEFLECTOR | ||||
| 63760-37050 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 H2 GATA(HI ROOF,H=625) |
1 | ||
| 63760-37050 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 H2 GATA(HI ROOF,H=625) |
1 | ||
| 63760-37040 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 H1 GATA(HI ROOF,H=475) |
1 | ||
| 63760-37040 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 H1 GATA(HI ROOF,H=475) |
1 | ||
| 63760-37060 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 H3 GATA(HI ROOF,H=775) |
1 | ||
| 63760-37060 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 H3 GATA(HI ROOF,H=775) |
1 | ||
| 63760-37100 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 K GATA |
1 | ||
| 63760-37100 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 K GATA |
1 | ||
| 63781 - STAY, ROOF AIR DEFLECTOR | ||||
| 63781-37020 |
BU102..275T,30T;BU132,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) ｱﾘ(ﾊｲ ﾙ-ﾌ) |
2 | ||
| 63781-37020 |
BU102..275T,30T;BU132,14#,172,182,202,212,222,RZU100..TR..(02S,03S)..(DSL,LPG,LPGB,TD) ｱﾘ(ﾊｲ ﾙ-ﾌ) |
2 | ||
| 63785A - PAD, ROOF AIR DEFLECTOR, FRONT RH | ||||
| 63785-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140..TR..(02S,03S) |
1 | ||
| 63785-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140..TR..(02S,03S) |
1 | ||
| 63786A - PAD, ROOF AIR DEFLECTOR, FRONT LH | ||||
| 63786-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140..TR..(02S,03S) |
1 | ||
| 63786-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140..TR..(02S,03S) |
1 | ||
| 63787 - PAD, ROOF AIR DEFLECTOR, NO.1 | ||||
| 63787-37020 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
4 | ||
| 63787-37020 |
RZU100..T4..IV3;RZU100..LPG..CBU;BU102..(T3,T5)..WT;BU102..(T2,T4)..IV3;RZU100..30T..LPG..IV3;BU13#,14#,172,182..T2,T3,T4;BU100,107,162..TR..03S..WT..IV3 ｱﾘ(ﾊｲ ﾙ-ﾌ) |
4 | ||
| 63787-95400 |
BU212,222..03S..20T..6F;RZU100..TR..03S..(EFI,LPG);BU10#,112,13#,14#,162,172,182,RZU140..T1,T2,T3,T4,T5 C GATA |
4 | ||
| 63787-95400 |
BU212,222..03S..20T..6F;RZU100..TR..03S..(EFI,LPG);BU10#,112,13#,14#,162,172,182,RZU140..T1,T2,T3,T4,T5 C GATA |
4 | ||
| 63788 - PAD, ROOF AIR DEFLECTOR, NO.2 | ||||
| 63788-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140..TR..(02S,03S) |
2 | ||
| 63788-95400 |
BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140..TR..(02S,03S) |
2 | ||
| 63789 - PAD, ROOF AIR DEFLECTOR, NO.3 | ||||
| 63789-37010 |
BU212,222..03S..6F;BU10#,112,13#,14#,162,172,182,RZU100,140..T1,T2,T3,T4,T5 G GATA OR H GATA |
4 | ||
| 63789-37010 |
BU212,222..03S..6F;BU10#,112,13#,14#,162,172,182,RZU100,140..T1,T2,T3,T4,T5 G GATA OR H GATA |
4 | ||
| 63789-95400 |
BU212,222..03S..20T..6F;RZU100..TR..03S..(EFI,LPG);BU10#,112,13#,14#,162,172,182,RZU140..T1,T2,T3,T4,T5 C GATA |
2 | ||
| 63789-95400 |
BU212,222..03S..20T..6F;RZU100..TR..03S..(EFI,LPG);BU10#,112,13#,14#,162,172,182,RZU140..T1,T2,T3,T4,T5 C GATA |
2 | ||
| Common parts | ||||
| 90101-08078 | ||||
| 90101-08106 | ||||
| 90170-08026 | ||||
| 90176-06040 | ||||
| 90179-05032 | ||||
| 90179-06091 | ||||
| 90201-08055 | ||||
| 90269-03025 | ||||
| 90950-01258 | ||||
| 90959-01214 | ||||
| 93219-15020 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8604 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
