BU142-TKPQS3 (1995)
Toyota Dyna 200/Toyoace G25

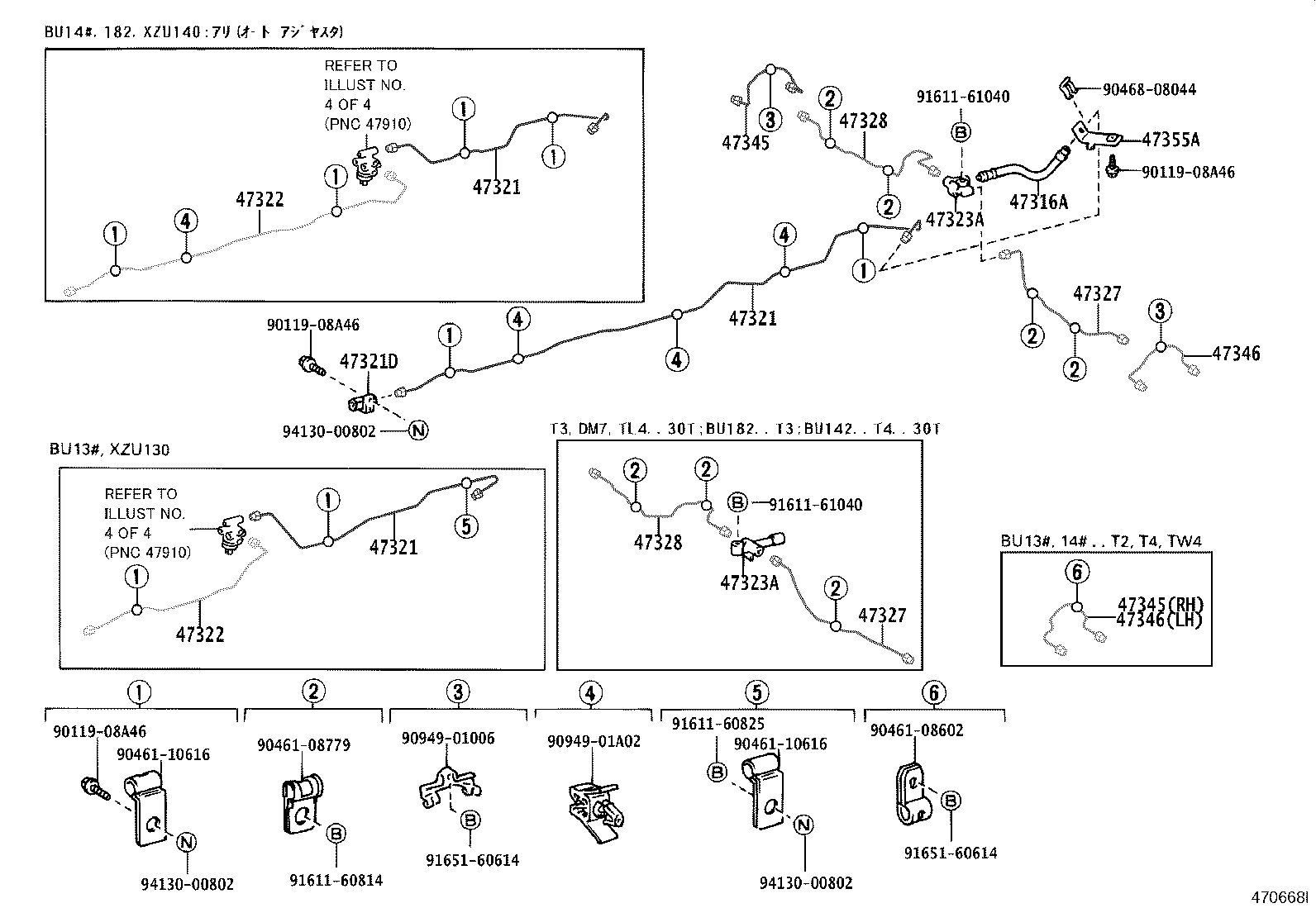

ILLUST NO. 2 OF 4(9505- )BU13#,14#,182,XZU130,140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-34005 |
BU12#,14#,162,RZU140,XZU140;BU10#,RZU100..DM3,DM6,T1,T3,T4,T5,TW1,TW2,TW4 |
1 | ||
| 96912-34007 |
BU120,14#,162,RZU140,XZU140;BU10#,RZU100..DM3,DM6,T1,T3,T4,TW1,TW2,TW4 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47325-36171 |
BU142..30T;BU102..30T..LPGB;BU140,142..(T2,T4,TW4)..20T;BU10#,145,147,182,RZU100,140,XZU140..(DM3,DM6,T2,T3,T4,T5,TW1,TW4)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47325-36171 |
BU142..30T;BU102..30T..LPGB;BU140,142..(T2,T4,TW4)..20T;BU10#,145,147,182,RZU100,140,XZU140..(DM3,DM6,T2,T3,T4,T5,TW1,TW4)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47325-36171 |
BU142..30T;BU102..30T..LPGB;BU140,142..(T2,T4,TW4)..20T;BU10#,145,147,182,RZU100,140,XZU140..(DM3,DM6,T2,T3,T4,T5,TW1,TW4)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12049 |
BU10#,112,12#,13#,14#,162,172,182,202,212,RZU100,140,XZU130,140 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47324-37060 |
BU14#,182,RZU140 ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47324-37060 |
BU14#,182,RZU140 ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10100 |
BU172,182..T3,TW1;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU212,222,RZU100..LPGB,TD;BU100,102,XZU130..DM3,DM6,DM7,TW1;BU102,132,142,212,XZU140..275T,30T |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10100 |
BU172,182..T3,TW1;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU212,222,RZU100..LPGB,TD;BU100,102,XZU130..DM3,DM6,DM7,TW1;BU102,132,142,212,XZU140..275T,30T |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37080 |
BU172,182..T3,TW1;BU102,XZU130..DM7,TW1;BU102..T3..(275T,30T);BU132,142,XZU140..30T |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37080 |
BU172,182..T3,TW1;BU102,XZU130..DM7,TW1;BU102..T3..(275T,30T);BU132,142,XZU140..30T |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47326-37060 |
BU172,182..T3,TW1;BU102,XZU130..DM7,TW1;BU102..T3..(275T,30T);BU132,142,XZU140..30T |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47326-37060 |
BU172,182..T3,TW1;BU102,XZU130..DM7,TW1;BU102..T3..(275T,30T);BU132,142,XZU140..30T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-36171 |
BU102,RZU100..DM3,DM6,T2,T3,T4,T5,TW1,TW4;BU100,105,107,12#,13#,14#,172,182,RZU140,XZU130,140 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-08602 | ||||
| 90461-08779 | ||||
| 90461-10616 | ||||
| 90468-08044 | ||||
| 90949-01006 | ||||
| 90949-01A02 | ||||
| 91611-60814 | ||||
| 91611-60825 | ||||
| 91611-61040 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
ILLUST NO. 4 OF 4(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
BU10#,RZU100..(T2,T4,TW4)..20T;BU14#,162,182,202,212,222,RZU140,XZU140..TR |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-37010 |
BU14#,202,212,222 |
1 | ||
| 47910-37050 |
BU14#,162,182,202,212,222,RZU140,XZU140..TR |
1 | ||
| 47910-36050 |
BU112,12#,14#,202,212,222;BU10#,RZU100..DM2,DM3,DM5,DM6,T1,T3,T5,TW1,TW2 |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-36050 |
BU10#,RZU100..(T2,T4,TW4)..20T;BU14#,202,212,222,RZU140,XZU140 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3 |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3 |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3 |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3 |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3 |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-36061 |
BU10#,14#,182,202,212,222,RZU100,140,XZU140..(ALV,DM3,DM6,T2,T3,T4,T5,TW1,TW4)..WT..(CBU,IV3) |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-36050 |
BU100,105,107,12#,14#,182,202,212,222,RZU140,XZU140;BU102,RZU100..(DM3,DM6,T2,T3,T4,T5,TW1,TW4)..(CBU,IV3) |
1 | ||
| 47933-36051 |
BU100,105,107,120,14#,182,202,212,222,RZU140,XZU140;BU102,RZU100..(DM3,DM6,T2,T3,T4,TW1,TW4)..(CBU,IV3) |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3 |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3 |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3 |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3 |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90201-08062 |
BU10#,112,120,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3 |
1 | ||
| 90948-02033 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3 |
1 | ||
| Common parts | ||||
| 90119-08703 | ||||
| 90179-08204 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60816 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||

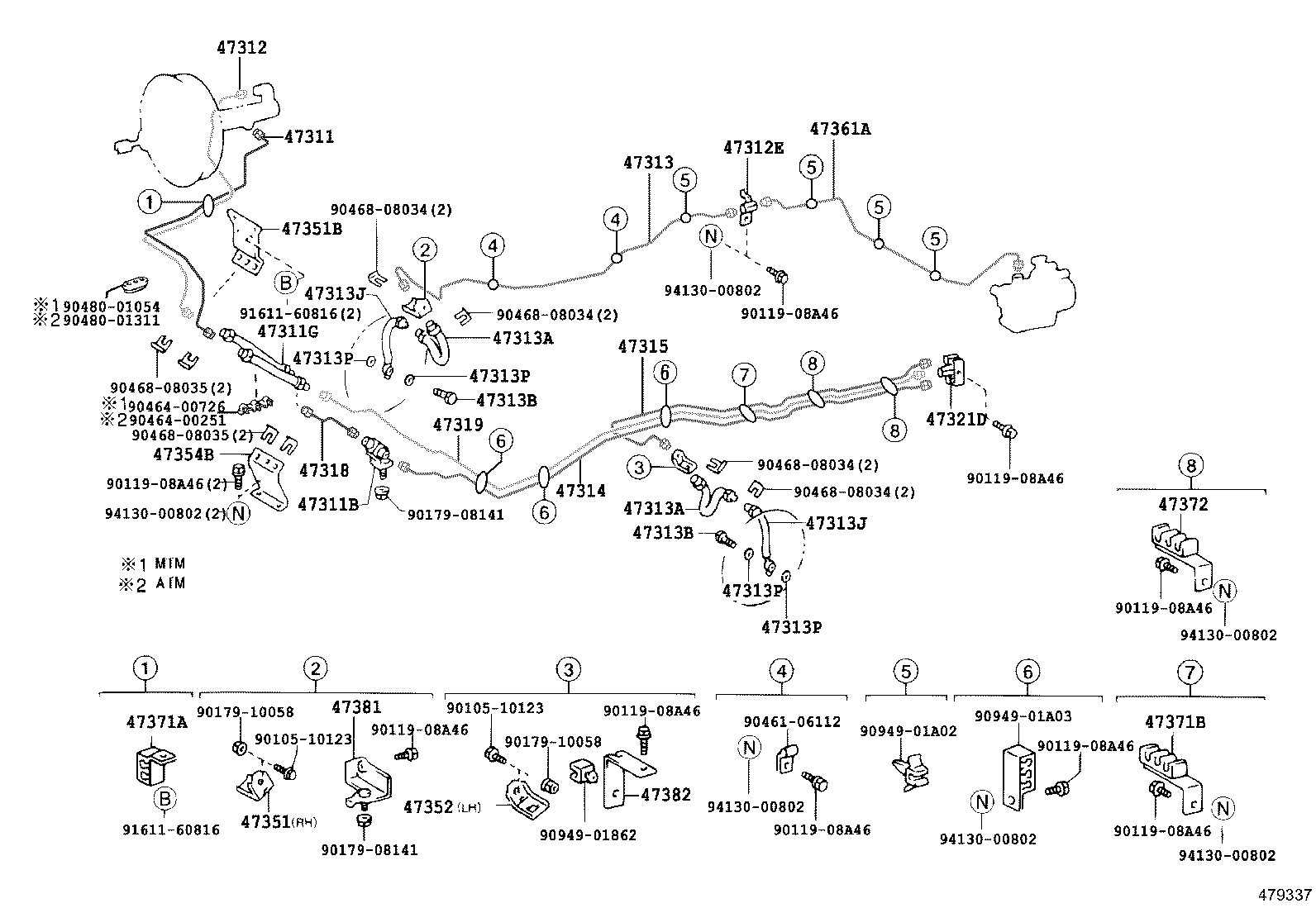

ILLUST NO. 1 OF 4(9505- )BU132..T3,T4 ; (9505- )BU100,102,12#,140,142,RZU100,140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37140 |
BU182;BU172..IV4;RZU100..DM6;BU102,132,142,172,RZU100..275T,30T;BU10#,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
1 | ||
| 47311-37141 |
BU172..IV4;RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU105,107,145,147,182..T3;BU102,132,142,172,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-12005 |
BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-33857 |
BU132..T3,T4;BU10#,112,120,137,14#,RZU100,140,XZU130,140 |
2 | ||
| 96932-33655 |
BU10#,112,12#,132,14#,RZU100,XZU130 |
2 | ||
| 96932-33855 |
BU132..T3,T4;BU10#,112,12#,137,14#,RZU100,140,XZU130,140 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47321-37140 |
BU182;BU172..IV4;RZU100..DM6;BU102,132,142,172,RZU100..275T,30T;BU10#,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
1 | ||
| 47321-37141 |
BU172..IV4;RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU105,107,145,147,182..T3;BU102,132,142,172,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37080 |
BU132..T3,T4;BU100,102,12#,140,142,RZU100,140,XZU130,140 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02492 |
RZU100..DM6,T3,TW1;BU102,132,142..(T3,T4,T5)..(275T,30T);BU100,102,112,140,142..(DM6,T3)..WT..20T ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ- ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 90947-02A60 |
RZU100..DM6,T3,TW1;BU102,132,142..(T3,T4)..(275T,30T);BU100,102,112,140..(DM6,T3)..WT..20T ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ- ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 90947-02857 |
BU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU100,102,132,140,RZU100,XZU130,140..(DM3,DM6,DM7,T3,T5,TW1)..WT..(DSL,EFI,LPG) |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02492 |
RZU100..DM6,T3,TW1;BU102,132,142..(T3,T4,T5)..(275T,30T);BU100,102,112,140,142..(DM6,T3)..WT..20T ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ- ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 90947-02A60 |
RZU100..DM6,T3,TW1;BU102,132,142..(T3,T4)..(275T,30T);BU100,102,112,140..(DM6,T3)..WT..20T ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ- ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 90947-02857 |
BU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU100,102,132,140,RZU100,XZU130,140..(DM3,DM6,DM7,T3,T5,TW1)..WT..(DSL,EFI,LPG) |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02492 |
RZU100..DM6,T3,TW1;BU102,132,142..(T3,T4,T5)..(275T,30T);BU100,102,112,140,142..(DM6,T3)..WT..20T ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ- ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 90947-02A60 |
RZU100..DM6,T3,TW1;BU102,132,142..(T3,T4)..(275T,30T);BU100,102,112,140..(DM6,T3)..WT..20T ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ- ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 90947-02857 |
BU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU100,102,132,140,RZU100,XZU130,140..(DM3,DM6,DM7,T3,T5,TW1)..WT..(DSL,EFI,LPG) |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02492 |
RZU100..DM6,T3,TW1;BU102,132,142..(T3,T4,T5)..(275T,30T);BU100,102,112,140,142..(DM6,T3)..WT..20T ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ- ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 90947-02A60 |
RZU100..DM6,T3,TW1;BU102,132,142..(T3,T4)..(275T,30T);BU100,102,112,140..(DM6,T3)..WT..20T ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ- ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 90947-02857 |
BU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU100,102,132,140,RZU100,XZU130,140..(DM3,DM6,DM7,T3,T5,TW1)..WT..(DSL,EFI,LPG) |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02492 |
RZU100..DM6,T3,TW1;BU102,132,142..(T3,T4,T5)..(275T,30T);BU100,102,112,140,142..(DM6,T3)..WT..20T ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ- ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 90947-02A60 |
RZU100..DM6,T3,TW1;BU102,132,142..(T3,T4)..(275T,30T);BU100,102,112,140..(DM6,T3)..WT..20T ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ- ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 90947-02857 |
BU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU100,102,132,140,RZU100,XZU130,140..(DM3,DM6,DM7,T3,T5,TW1)..WT..(DSL,EFI,LPG) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU112,140,202,212,222..T3,T4,TW1,TW4;BU102,132,142..(T3,T4,T5)..(275T,30T) ﾔﾏﾄ ｼﾖｳ & ｱﾘ(*66);ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU112,140,202,212,222..T3,T4,TW1,TW4;BU102,132,142..(T3,T4,T5)..(275T,30T) ﾔﾏﾄ ｼﾖｳ & ｱﾘ(*66);ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02521 |
RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU102,132,142..(T3,T4,T5)..(275T,30T);BU112,140,202,212,222,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD) |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02521 |
RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU102,132,142..(T3,T4,T5)..(275T,30T);BU112,140,202,212,222,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD) |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU112,140,202,212,222..T3,T4,TW1,TW4;BU102,132,142..(T3,T4,T5)..(275T,30T) ﾔﾏﾄ ｼﾖｳ & ｱﾘ(*66);ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU112,140,202,212,222..T3,T4,TW1,TW4;BU102,132,142..(T3,T4,T5)..(275T,30T) ﾔﾏﾄ ｼﾖｳ & ｱﾘ(*66);ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU112,140,202,212,222..T3,T4,TW1,TW4;BU102,132,142..(T3,T4,T5)..(275T,30T) ﾔﾏﾄ ｼﾖｳ & ｱﾘ(*66);ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU112,140,202,212,222..T3,T4,TW1,TW4;BU102,132,142..(T3,T4,T5)..(275T,30T) ﾔﾏﾄ ｼﾖｳ & ｱﾘ(*66);ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37090 |
BU132..T3,T4;BU100,102,12#,140,142,RZU100,140,XZU130,140 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47312-37040 |
BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47322-37100 |
BU100,12#,132,140,142,RZU140,XZU130,140;BU102,RZU100..DM3,DM6,T2,T3,T4,T5,TW1,TW4 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12049 |
BU10#,112,12#,13#,14#,162,172,182,202,212,RZU100,140,XZU130,140 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-37020 |
BU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU202,212,222..ALV,T3,T4,TW1,TW4;BU100,102,112,132,140,RZU100,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT..(DSL,EFI,LPG) |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37030 |
BU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU202,212,222..ALV,T3,T4,TW1,TW4;BU100,102,112,132,140,RZU100,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT..(DSL,EFI,LPG) |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37030 |
BU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU202,212,222..ALV,T3,T4,TW1,TW4;BU100,102,112,132,140,RZU100,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT..(DSL,EFI,LPG) |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-37030 |
BU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU202,212,222..ALV,T3,T4,TW1,TW4;BU100,102,112,132,140,RZU100,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT..(DSL,EFI,LPG) |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-37030 |
BU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU202,212,222..ALV,T3,T4,TW1,TW4;BU100,102,112,132,140,RZU100,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT..(DSL,EFI,LPG) |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-37030 |
BU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU202,212,222..ALV,T3,T4,TW1,TW4;BU100,102,112,132,140,RZU100,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT..(DSL,EFI,LPG) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37050 |
BU132..T3,T4;BU100,102,12#,140,142,RZU100,140,XZU130,140 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-37030 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130 |
1 | ||
| 47351-37120 |
BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37020 |
BU132..T3,T4;BU100,102,12#,140,142,RZU100,140,XZU130,140 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37020 |
BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,297,RZU100,140,XZU130,140 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01188 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37020 |
BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 左側 |
1 | ||
| 47381-37030 |
BU10#,12#,13#,14#,RZU100,140,XZU130,140 右側 |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37020 |
BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 左側 |
1 | ||
| 47381-37030 |
BU10#,12#,13#,14#,RZU100,140,XZU130,140 右側 |
1 | ||
| Common parts | ||||
| 90105-10123 | ||||
| 90119-08587 | ||||
| 90119-08A46 | ||||
| 90179-08141 | ||||
| 90179-10058 | ||||
| 90461-08602 | ||||
| 90461-10616 | ||||
| 90464-00251 | ||||
| 90464-00726 | ||||
| 90468-08034 | ||||
| 90468-08035 | ||||
| 90468-08044 | ||||
| 90480-01054 | ||||
| 90480-01311 | ||||
| 90949-01034 | ||||
| 90949-01035 | ||||
| 90949-01A02 | ||||
| 90949-01A03 | ||||
| 91611-60816 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
ILLUST NO. 1 OF 4(9505- )BU142..T3
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37140 |
BU182;BU172..IV4;RZU100..DM6;BU102,132,142,172,RZU100..275T,30T;BU10#,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
1 | ||
| 47311-37141 |
BU172..IV4;RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU105,107,145,147,182..T3;BU102,132,142,172,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-12005 |
BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-33857 |
BU132..T3,T4;BU10#,112,120,137,14#,RZU100,140,XZU130,140 |
2 | ||
| 96932-33655 |
BU10#,112,12#,132,14#,RZU100,XZU130 |
2 | ||
| 96932-33855 |
BU132..T3,T4;BU10#,112,12#,137,14#,RZU100,140,XZU130,140 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47321-37140 |
BU182;BU172..IV4;RZU100..DM6;BU102,132,142,172,RZU100..275T,30T;BU10#,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
1 | ||
| 47321-37141 |
BU172..IV4;RZU100..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU105,107,145,147,182..T3;BU102,132,142,172,XZU140..275T,30T;BU100,102,112,162,XZU130..DM3,DM6,DM7,DM8,TW1 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37080 |
BU132..T3,T4;BU100,102,12#,140,142,RZU100,140,XZU130,140 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02492 |
RZU100..DM6,T3,TW1;BU102,132,142..(T3,T4,T5)..(275T,30T);BU100,102,112,140,142..(DM6,T3)..WT..20T ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ- ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 90947-02A60 |
RZU100..DM6,T3,TW1;BU102,132,142..(T3,T4)..(275T,30T);BU100,102,112,140..(DM6,T3)..WT..20T ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ- ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 90947-02857 |
BU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU100,102,132,140,RZU100,XZU130,140..(DM3,DM6,DM7,T3,T5,TW1)..WT..(DSL,EFI,LPG) |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02492 |
RZU100..DM6,T3,TW1;BU102,132,142..(T3,T4,T5)..(275T,30T);BU100,102,112,140,142..(DM6,T3)..WT..20T ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ- ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 90947-02A60 |
RZU100..DM6,T3,TW1;BU102,132,142..(T3,T4)..(275T,30T);BU100,102,112,140..(DM6,T3)..WT..20T ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ- ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 90947-02857 |
BU142..T3..20T;BU142..30T..DSL;BU102..T4..30T..DSL;BU100,102,132,140,RZU100,XZU130,140..(DM3,DM6,DM7,T3,T5,TW1)..WT..(DSL,EFI,LPG) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU112,140,202,212,222..T3,T4,TW1,TW4;BU102,132,142..(T3,T4,T5)..(275T,30T) ﾔﾏﾄ ｼﾖｳ & ｱﾘ(*66);ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU112,140,202,212,222..T3,T4,TW1,TW4;BU102,132,142..(T3,T4,T5)..(275T,30T) ﾔﾏﾄ ｼﾖｳ & ｱﾘ(*66);ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02521 |
RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU102,132,142..(T3,T4,T5)..(275T,30T);BU112,140,202,212,222,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD) |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02521 |
RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU102,132,142..(T3,T4,T5)..(275T,30T);BU112,140,202,212,222,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD) |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU112,140,202,212,222..T3,T4,TW1,TW4;BU102,132,142..(T3,T4,T5)..(275T,30T) ﾔﾏﾄ ｼﾖｳ & ｱﾘ(*66);ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU112,140,202,212,222..T3,T4,TW1,TW4;BU102,132,142..(T3,T4,T5)..(275T,30T) ﾔﾏﾄ ｼﾖｳ & ｱﾘ(*66);ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU112,140,202,212,222..T3,T4,TW1,TW4;BU102,132,142..(T3,T4,T5)..(275T,30T) ﾔﾏﾄ ｼﾖｳ & ｱﾘ(*66);ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
RZU100..(DM6,T3,TW1)..(EFI,LPG);BU100,102,142..(DM6,T3)..WT..20T;BU112,140,202,212,222..T3,T4,TW1,TW4;BU102,132,142..(T3,T4,T5)..(275T,30T) ﾔﾏﾄ ｼﾖｳ & ｱﾘ(*66);ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ:ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37090 |
BU132..T3,T4;BU100,102,12#,140,142,RZU100,140,XZU130,140 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47312-37040 |
BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47322-37100 |
BU100,12#,132,140,142,RZU140,XZU130,140;BU102,RZU100..DM3,DM6,T2,T3,T4,T5,TW1,TW4 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12049 |
BU10#,112,12#,13#,14#,162,172,182,202,212,RZU100,140,XZU130,140 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37050 |
BU132..T3,T4;BU100,102,12#,140,142,RZU100,140,XZU130,140 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-37030 |
BU10#,112,12#,132,14#,162,172,182,202,212,222,RZU100,XZU130 |
1 | ||
| 47351-37120 |
BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37020 |
BU132..T3,T4;BU100,102,12#,140,142,RZU100,140,XZU130,140 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37020 |
BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,297,RZU100,140,XZU130,140 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01188 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37020 |
BU10#,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 左側 |
1 | ||
| 47381-37030 |
BU10#,12#,13#,14#,RZU100,140,XZU130,140 右側 |
1 | ||
| Common parts | ||||
| 90105-10123 | ||||
| 90119-08A46 | ||||
| 90179-08141 | ||||
| 90179-10058 | ||||
| 90461-06112 | ||||
| 90464-00251 | ||||
| 90464-00726 | ||||
| 90468-08034 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01311 | ||||
| 90949-01862 | ||||
| 90949-01A02 | ||||
| 90949-01A03 | ||||
| 91611-60816 | ||||
| 94130-00802 | ||||
ILLUST NO. 2 OF 4(9505- )BU142,147..T3
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-34005 |
BU12#,14#,162,RZU140,XZU140;BU10#,RZU100..DM3,DM6,T1,T3,T4,T5,TW1,TW2,TW4 |
1 | ||
| 96912-34007 |
BU120,14#,162,RZU140,XZU140;BU10#,RZU100..DM3,DM6,T1,T3,T4,TW1,TW2,TW4 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-34005 |
BU12#,14#,162,RZU140,XZU140;BU10#,RZU100..DM3,DM6,T1,T3,T4,T5,TW1,TW2,TW4 |
1 | ||
| 96912-34007 |
BU120,14#,162,RZU140,XZU140;BU10#,RZU100..DM3,DM6,T1,T3,T4,TW1,TW2,TW4 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47325-36171 |
BU142..30T;BU102..30T..LPGB;BU140,142..(T2,T4,TW4)..20T;BU10#,145,147,182,RZU100,140,XZU140..(DM3,DM6,T2,T3,T4,T5,TW1,TW4)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12049 |
BU10#,112,12#,13#,14#,162,172,182,202,212,RZU100,140,XZU130,140 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47324-37060 |
BU14#,182,RZU140 ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10100 |
BU172,182..T3,TW1;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU212,222,RZU100..LPGB,TD;BU100,102,XZU130..DM3,DM6,DM7,TW1;BU102,132,142,212,XZU140..275T,30T |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37080 |
BU172,182..T3,TW1;BU102,XZU130..DM7,TW1;BU102..T3..(275T,30T);BU132,142,XZU140..30T |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47326-37060 |
BU172,182..T3,TW1;BU102,XZU130..DM7,TW1;BU102..T3..(275T,30T);BU132,142,XZU140..30T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
BU142..30T;BU102..T4..30T;BU142..T3..20T;RZU100..(DM6,T3,TW1)..(EFI,LPG);BU202,212,222,RZU100..(ALV,DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD);BU10#,112,132,140,145,147,162,172,182,XZU130,140..(DM3,DM6,DM7,DM8,T3,T5,TL4,TW1)..WT |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-36171 |
BU102,RZU100..DM3,DM6,T2,T3,T4,T5,TW1,TW4;BU100,105,107,12#,13#,14#,172,182,RZU140,XZU130,140 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-08779 | ||||
| 90468-08034 | ||||
| 90949-01006 | ||||
| 90949-01165 | ||||
| 90949-01943 | ||||
| 90949-01945 | ||||
| 90949-01A02 | ||||
| 91611-60814 | ||||
| 91611-61025 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||

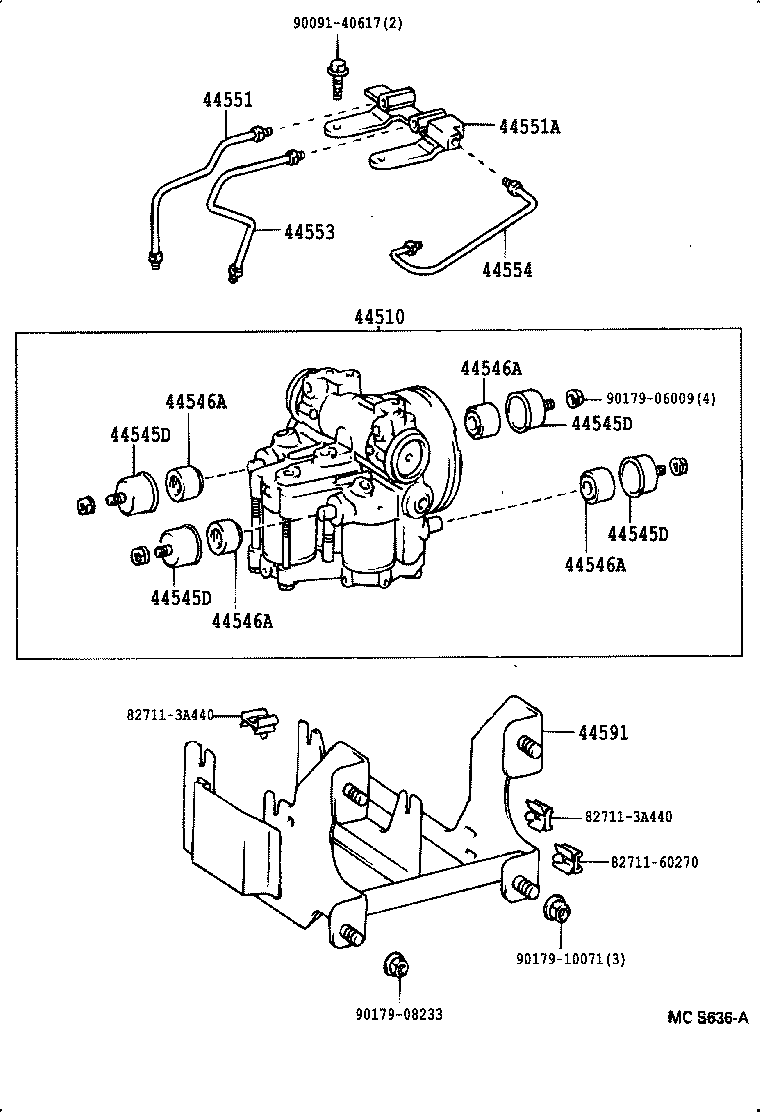

ILLUST NO. 3 OF 4(9505- )BU212..20T ; (9505- )BU142,147..T3
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-3A440 | ||||
| 82711-60270 | ||||
| 90091-40617 | ||||
| 90179-06009 | ||||
| 90179-08233 | ||||
| 90179-10071 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
