BU142-TKPMS3 (1995)
Toyota Dyna 200/Toyoace G25
ILLUST NO. 1 OF 2(9505- )BU10#,12#,13#,14#..DSL
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-30200 |
BU10#,112,12#,13#,14#,202,212,222..DSL,TD |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-37030 |
BU132..T3,T4;BU100,102,12#,140,142..DSL |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 99556-30100 |
BU297;BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..02S,03S,06S,07S |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 99556-30300 |
BU10#,12#,13#,14#..DSL *H,L=230 |
1 | ||
| 87245-37600 |
BU102,132,142..(DM2,DM3,DM5,DM6,T2,T3,T4,TW1)..DSL |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-37060 |
BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140..DSL,EFI |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-37070 |
BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140..DSL,EFI |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-37080 |
BU10#,112,12#,13#,14#..DSL |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-30200 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 87251-30200 |
BU10#,112,120,13#,14#,202,212,222,297,RZU100..DSL,LPGB,TD |
1 | ||
| Common parts | ||||
| 87124-37010 | ||||
| 87124-37020 | ||||
| 87241-37010 | ||||
| 90119-08653 | ||||
| 90179-08065 | ||||
| 90460-24039 | ||||
| 90467-22004 | ||||
| 91611-61016 | ||||
| 91651-40816 | ||||
| 96112-10250 | ||||
| 96134-42100 | ||||

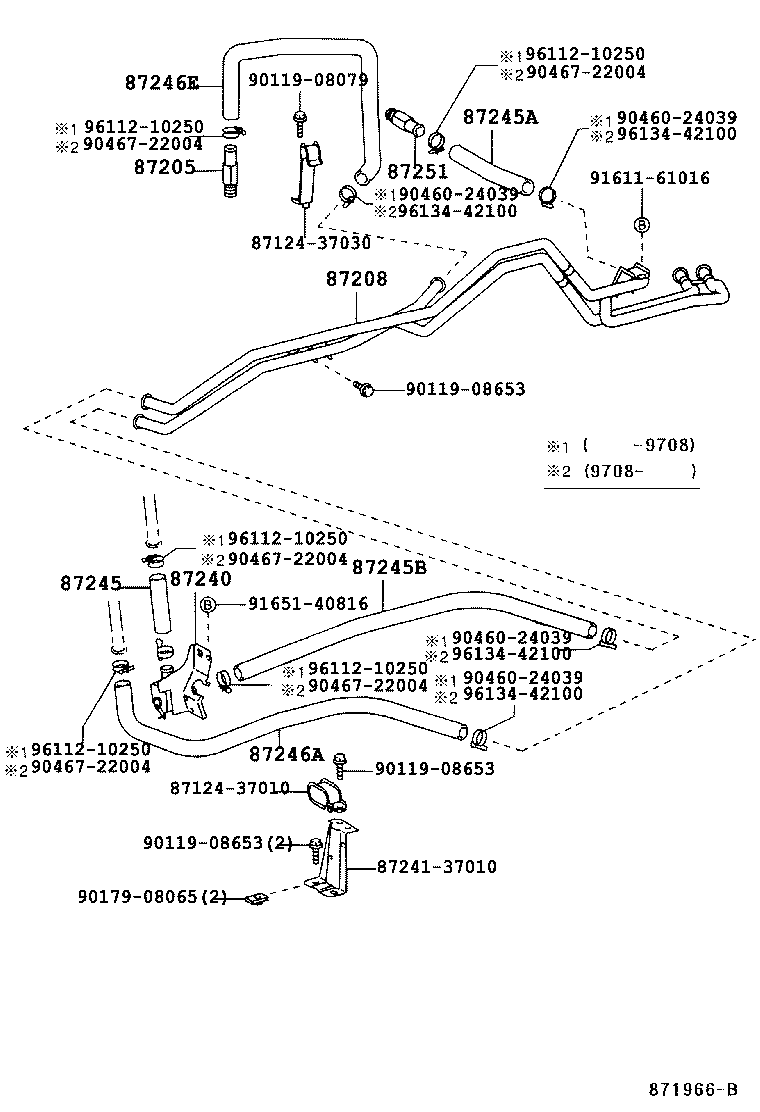

ILLUST NO. 1 OF 2(9505- )BU10#,142
ﾌﾛﾝﾄ(ﾘﾔ ﾋ-ﾀ ﾂｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-30200 |
BU10#,112,12#,13#,14#,202,212,222..DSL,TD |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-37030 |
BU132..T3,T4;BU100,102,12#,140,142..DSL |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-37010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
1 | ||
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 99556-30100 |
BU297;BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..02S,03S,06S,07S |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 99556-30300 |
BU10#,12#,13#,14#..DSL *H,L=230 |
1 | ||
| 87245-37600 |
BU102,132,142..(DM2,DM3,DM5,DM6,T2,T3,T4,TW1)..DSL |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-37060 |
BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140..DSL,EFI |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-37070 |
BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140..DSL,EFI |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-37080 |
BU10#,112,12#,13#,14#..DSL |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-30200 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 87251-30200 |
BU10#,112,120,13#,14#,202,212,222,297,RZU100..DSL,LPGB,TD |
1 | ||
| Common parts | ||||
| 87124-37010 | ||||
| 87124-37030 | ||||
| 87241-37010 | ||||
| 90119-08079 | ||||
| 90119-08653 | ||||
| 90179-08065 | ||||
| 90460-24039 | ||||
| 90467-22004 | ||||
| 91611-61016 | ||||
| 91651-40816 | ||||
| 96112-10250 | ||||
| 96134-42100 | ||||

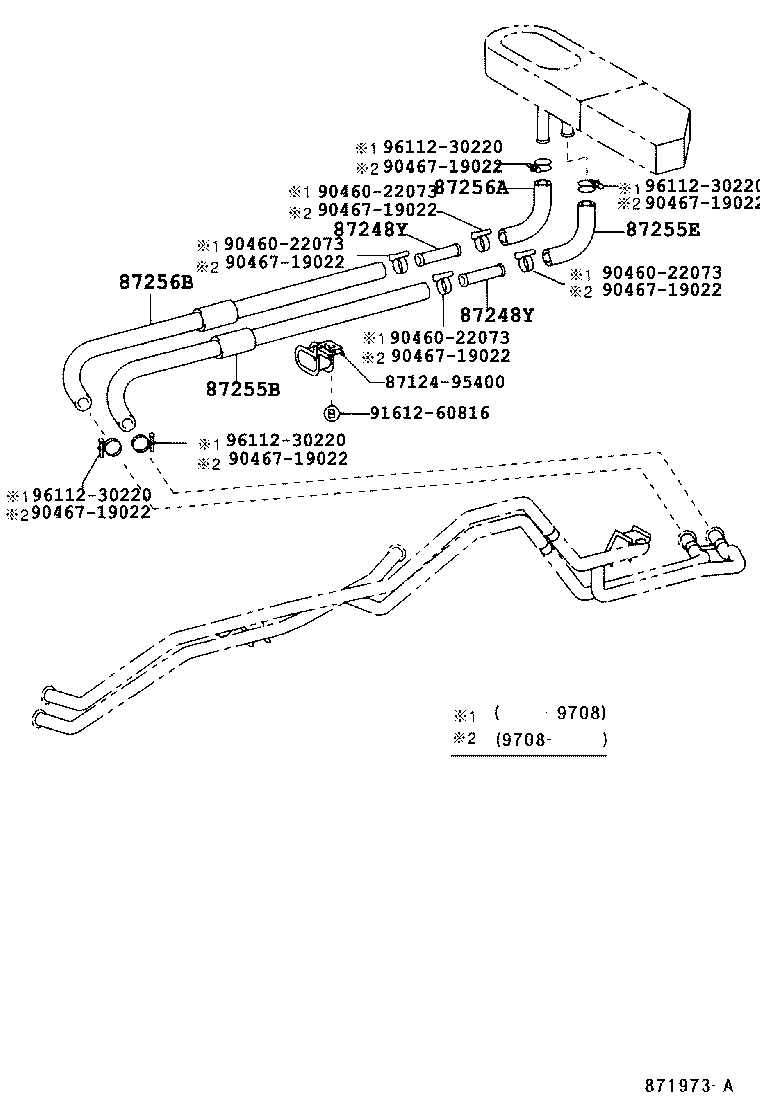

ILLUST NO. 2 OF 2(9505- )BU10#,142,147,RZU100
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87124-95400 | ||||
| 90460-22073 | ||||
| 90467-19022 | ||||
| 91612-60816 | ||||
| 96112-30220 | ||||
