Toyota Dyna 200/toyoace g25 BU142 RADIATOR GRILLE

BU142-TKPMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999

Engine 15BF

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9505- )

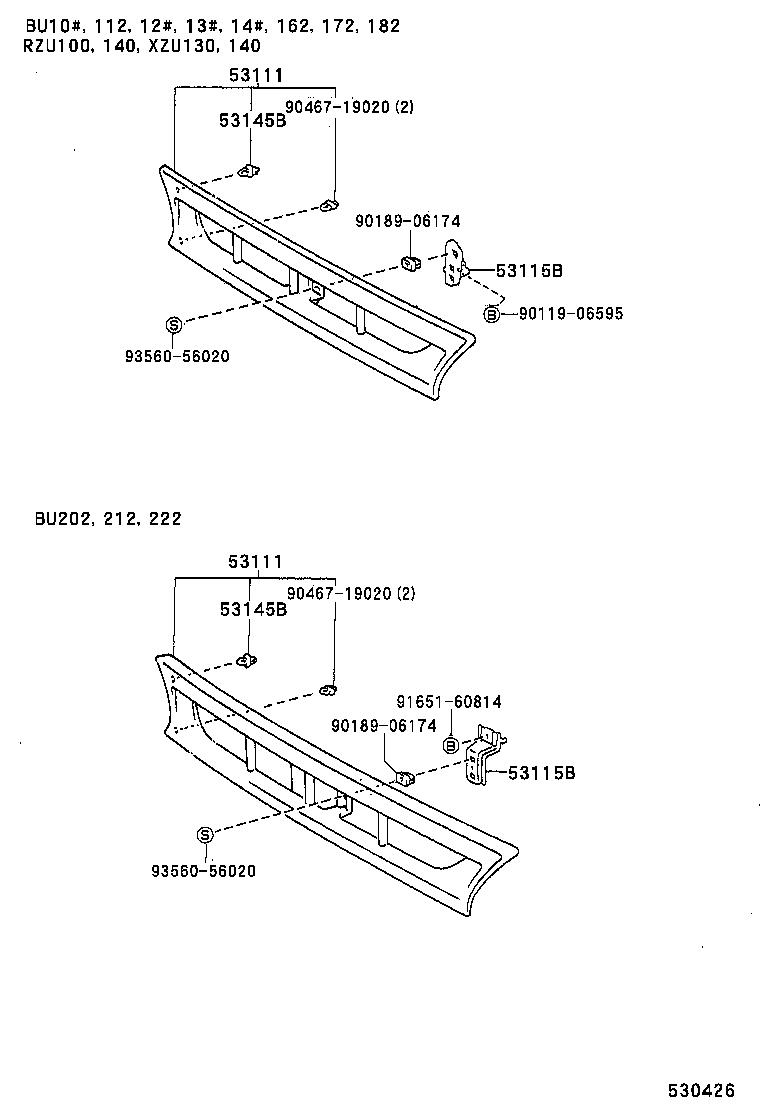

Click highlighted areas on diagram

ﾀﾞｲﾅ

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53101-37040B0	BU10#,112,132,14#,162,172,182,RZU100,XZU130..CBU,IV3 ﾄﾖｴ-ｽ,SILVER,048 ,705 ,8E5	05/1995 - 10/1996	1
53101-37040B0	BU10#,112,13#,14#,162,172,182,RZU100,XZU130..CBU,IV3 ﾄﾖｴ-ｽ,SILVER,048 ,705 ,8E5 ,8L0	10/1996 - 02/1997	1
53101-37040B0	BU10#,112,13#,14#,162,172,182,RZU100,140..(02S,03S,06S)..(CBU,IV3) ﾄﾖｴ-ｽ,SILVER,048 ,705 ,8E5 ,8L0 ,9E0	02/1997 - 05/1999	1
53101-37010B0	BU10#,112,13#,14#,162,172,182,RZU100,XZU130..CBU,IV3 SILVER,048 ,705 ,8E5 ,8L0	10/1996 - 02/1997	1
53101-37010B0	BU10#,112,132,14#,162,172,182,RZU100,XZU130..CBU,IV3 SILVER,048 ,705 ,8E5	05/1995 - 10/1996	1
53101-37010B0	BU10#,112,13#,14#,162,172,182,RZU100,140..(02S,03S,06S)..(CBU,IV3) ﾀﾞｲﾅ,SILVER,048 ,705 ,8E5 ,8L0 ,9E0	02/1997 - 05/1999	1
53101-37060	BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..CBU,IV3 ﾄﾖｴ-ｽ,ﾒﾂｷｸﾞﾘﾙ	05/1995 - 12/2999	1
53101-37030	BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 ﾀﾞｲﾅ,ﾒﾂｷｸﾞﾘﾙ	05/1995 - 12/2999	1
53111 - GRILLE, RADIATOR
53101-37040B0	BU10#,112,132,14#,162,172,182,RZU100,XZU130..CBU,IV3 ﾄﾖｴ-ｽ,SILVER,048 ,705 ,8E5	05/1995 - 10/1996	1
53101-37040B0	BU10#,112,13#,14#,162,172,182,RZU100,XZU130..CBU,IV3 ﾄﾖｴ-ｽ,SILVER,048 ,705 ,8E5 ,8L0	10/1996 - 02/1997	1
53101-37040B0	BU10#,112,13#,14#,162,172,182,RZU100,140..(02S,03S,06S)..(CBU,IV3) ﾄﾖｴ-ｽ,SILVER,048 ,705 ,8E5 ,8L0 ,9E0	02/1997 - 05/1999	1
53101-37010B0	BU10#,112,13#,14#,162,172,182,RZU100,XZU130..CBU,IV3 SILVER,048 ,705 ,8E5 ,8L0	10/1996 - 02/1997	1
53101-37010B0	BU10#,112,132,14#,162,172,182,RZU100,XZU130..CBU,IV3 SILVER,048 ,705 ,8E5	05/1995 - 10/1996	1
53101-37010B0	BU10#,112,13#,14#,162,172,182,RZU100,140..(02S,03S,06S)..(CBU,IV3) ﾀﾞｲﾅ,SILVER,048 ,705 ,8E5 ,8L0 ,9E0	02/1997 - 05/1999	1
53101-37060	BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..CBU,IV3 ﾄﾖｴ-ｽ,ﾒﾂｷｸﾞﾘﾙ	05/1995 - 12/2999	1
53101-37030	BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 ﾀﾞｲﾅ,ﾒﾂｷｸﾞﾘﾙ	05/1995 - 12/2999	1
53115B - BRACKET, RADIATOR GRILLE
53115-37020	BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140	05/1995 - 12/2999	1
53115B - BRACKET, RADIATOR GRILLE
53115-37020	BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140	05/1995 - 12/2999	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-26010	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	2
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-26010	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	2
Common parts
90119-06595
90189-06174
90467-19020
91651-60814
93560-56020

(9505- )

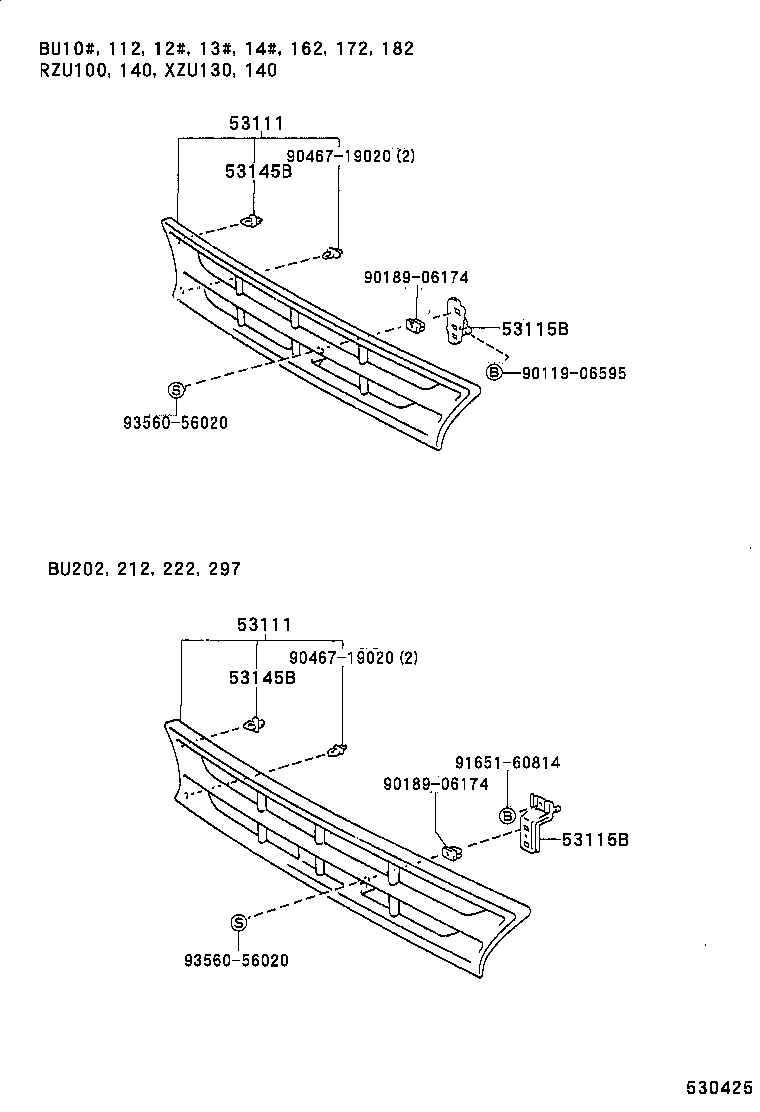

Click highlighted areas on diagram

ﾄﾖｴ-ｽ

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53101-37040B0	BU10#,112,132,14#,162,172,182,RZU100,XZU130..CBU,IV3 ﾄﾖｴ-ｽ,SILVER,048 ,705 ,8E5	05/1995 - 10/1996	1
53101-37040B0	BU10#,112,13#,14#,162,172,182,RZU100,XZU130..CBU,IV3 ﾄﾖｴ-ｽ,SILVER,048 ,705 ,8E5 ,8L0	10/1996 - 02/1997	1
53101-37040B0	BU10#,112,13#,14#,162,172,182,RZU100,140..(02S,03S,06S)..(CBU,IV3) ﾄﾖｴ-ｽ,SILVER,048 ,705 ,8E5 ,8L0 ,9E0	02/1997 - 05/1999	1
53101-37010B0	BU10#,112,13#,14#,162,172,182,RZU100,XZU130..CBU,IV3 SILVER,048 ,705 ,8E5 ,8L0	10/1996 - 02/1997	1
53101-37010B0	BU10#,112,132,14#,162,172,182,RZU100,XZU130..CBU,IV3 SILVER,048 ,705 ,8E5	05/1995 - 10/1996	1
53101-37010B0	BU10#,112,13#,14#,162,172,182,RZU100,140..(02S,03S,06S)..(CBU,IV3) ﾀﾞｲﾅ,SILVER,048 ,705 ,8E5 ,8L0 ,9E0	02/1997 - 05/1999	1
53101-37060	BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..CBU,IV3 ﾄﾖｴ-ｽ,ﾒﾂｷｸﾞﾘﾙ	05/1995 - 12/2999	1
53101-37030	BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 ﾀﾞｲﾅ,ﾒﾂｷｸﾞﾘﾙ	05/1995 - 12/2999	1
53111 - GRILLE, RADIATOR
53101-37040B0	BU10#,112,132,14#,162,172,182,RZU100,XZU130..CBU,IV3 ﾄﾖｴ-ｽ,SILVER,048 ,705 ,8E5	05/1995 - 10/1996	1
53101-37040B0	BU10#,112,13#,14#,162,172,182,RZU100,XZU130..CBU,IV3 ﾄﾖｴ-ｽ,SILVER,048 ,705 ,8E5 ,8L0	10/1996 - 02/1997	1
53101-37040B0	BU10#,112,13#,14#,162,172,182,RZU100,140..(02S,03S,06S)..(CBU,IV3) ﾄﾖｴ-ｽ,SILVER,048 ,705 ,8E5 ,8L0 ,9E0	02/1997 - 05/1999	1
53101-37010B0	BU10#,112,13#,14#,162,172,182,RZU100,XZU130..CBU,IV3 SILVER,048 ,705 ,8E5 ,8L0	10/1996 - 02/1997	1
53101-37010B0	BU10#,112,132,14#,162,172,182,RZU100,XZU130..CBU,IV3 SILVER,048 ,705 ,8E5	05/1995 - 10/1996	1
53101-37010B0	BU10#,112,13#,14#,162,172,182,RZU100,140..(02S,03S,06S)..(CBU,IV3) ﾀﾞｲﾅ,SILVER,048 ,705 ,8E5 ,8L0 ,9E0	02/1997 - 05/1999	1
53101-37060	BU10#,112,13#,14#,162,172,182,RZU100,140,XZU130,140..CBU,IV3 ﾄﾖｴ-ｽ,ﾒﾂｷｸﾞﾘﾙ	05/1995 - 12/2999	1
53101-37030	BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140 ﾀﾞｲﾅ,ﾒﾂｷｸﾞﾘﾙ	05/1995 - 12/2999	1
53115B - BRACKET, RADIATOR GRILLE
53115-37020	BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140	05/1995 - 12/2999	1
53115B - BRACKET, RADIATOR GRILLE
53115-37020	BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140	05/1995 - 12/2999	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-26010	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	2
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-26010	BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140	05/1995 - 12/2999	2
Common parts
90119-06595
90189-06174
90467-19020
91651-60814
93560-56020
