BU142-TKPMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )RZU100..EFI,LPG ; (9505- )BU10#,112,12#,13#,14#,162,172,182,202,212,2

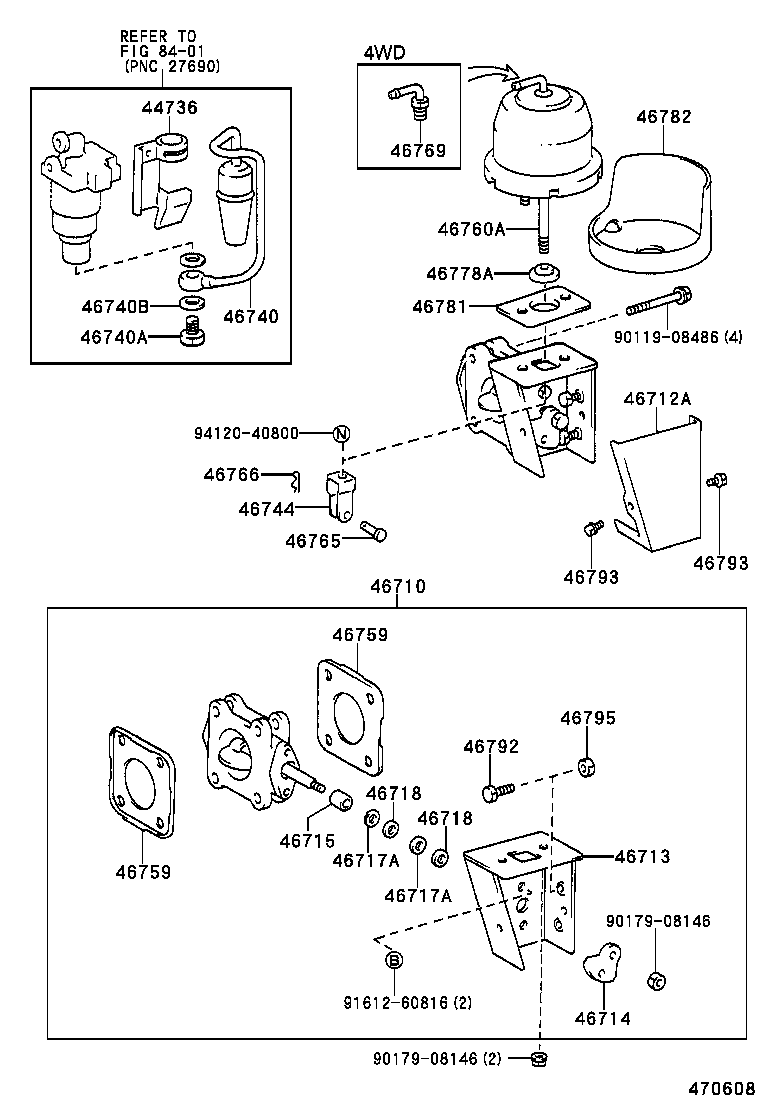

Click highlighted areas on diagram

diagram 44736 46710 46712A 46713 46714 46715 46717A 46717A 46718 46718 46740 46740A 46740B 46744 46759 46759 46760A 46765 46766 46769 46778A 46781 46782 46792 46793 46793 46795 8401 9011908486 9017908146 9017908146 9161260816 9412040800
Part # Description Qty Price
44736 - BRACKET, AIR CLEANER
44736-36070

BU10#,12#,13#,14#,202,212,222,XZU130,140..DSL,TD

 1
44736-37030

BU10#,120,13#,14#,202,212,222,XZU130,140..DSL,TD

 1
46710 - VALVE ASSY, EXHAUST BRAKE
46710-36170

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
46712A - COVER, EXHAUST BRAKE BRACKET
46712-36060

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
46713 - BRACKET, EXHAUST VALVE
46713-36060

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
46714 - LEVER, EXHAUST VALVE
46714-36010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
46715 - BUSH, EXHAUST VALVE, NO.1
46715-36060

BU100,102,112,12#,132,140,142,162,172,182,202,212,222,XZU130,140..DSL,TD

長さ=20.5

 1
46715-36010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

長さ=16.0

 1
46717A - RING, EXHAUST VALVE SEAL, NO.1
46717-36010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 2
46717A - RING, EXHAUST VALVE SEAL, NO.1
46717-36010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 2
46718 - RING, EXHAUST VALVE SEAL, NO.2
46718-36010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 2
46718 - RING, EXHAUST VALVE SEAL, NO.2
46718-36010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 2
46740 - CLEANER ASSY, EXHAUST RETARDER
46740-36080

BU10#,12#,13#,14#,202,212,222,XZU130,140..DSL,TD

 1
46740A - BOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY)
90401-12097

BU10#,112,12#,13#,14#,162,172,182,202,212,222,XZU130,140..DSL,TD

 1
46740B - GASKET(FOR EXHAUST BRAKE CLEANER ASSY)
90430-12247

BU10#,112,12#,13#,14#,162,172,182,202,212,222,XZU130,140..DSL,TD

 2
46744 - CLEVIS, EXHAUST BRAKE ROD CLEVIS
46744-25010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
46759 - GASKET, EXHAUST RETARDER
46759-36040

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 2
46759 - GASKET, EXHAUST RETARDER
46759-36040

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 2
46760A - CHAMBER ASSY, EXHAUST BRAKE
46760-36093

BU100,102,112,12#,132,140,142,202,212,222,XZU130,140..DSL,TD

 1
46765 - PIN, VACUUM CYLINDER CLEVIS
46765-36010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
46766 - PIN, VACUUM CYLINDER CLEVIS SNAP
46766-36010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
46778A - BEARING, EXHAUST BRAKE CHAMBER ROD
46778-36060

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
46781 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.1
46781-36060

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 1
46782 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.2
46782-36130

BU10#,112,12#,13#,14#,162,172,182,202,212,222,XZU130,140..DSL,TD

 1
46792 - BOLT, EXHAUST VALVE STOPPER
46792-36010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 2
46793 - BOLT, EXHAUST VALVE LINK COVER
46793-36010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 2
46793 - BOLT, EXHAUST VALVE LINK COVER
46793-36010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 2
46795 - NUT, EXHAUST VALVE BRACKET
46795-36010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140..DSL,TD

 2
Common parts
90119-08486
90179-08146
91612-60816
94120-40800
Linked diagrams
8401
