BU142-TKPMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )15BF,3B..BU10#,12#,13#,14#,162,172,182

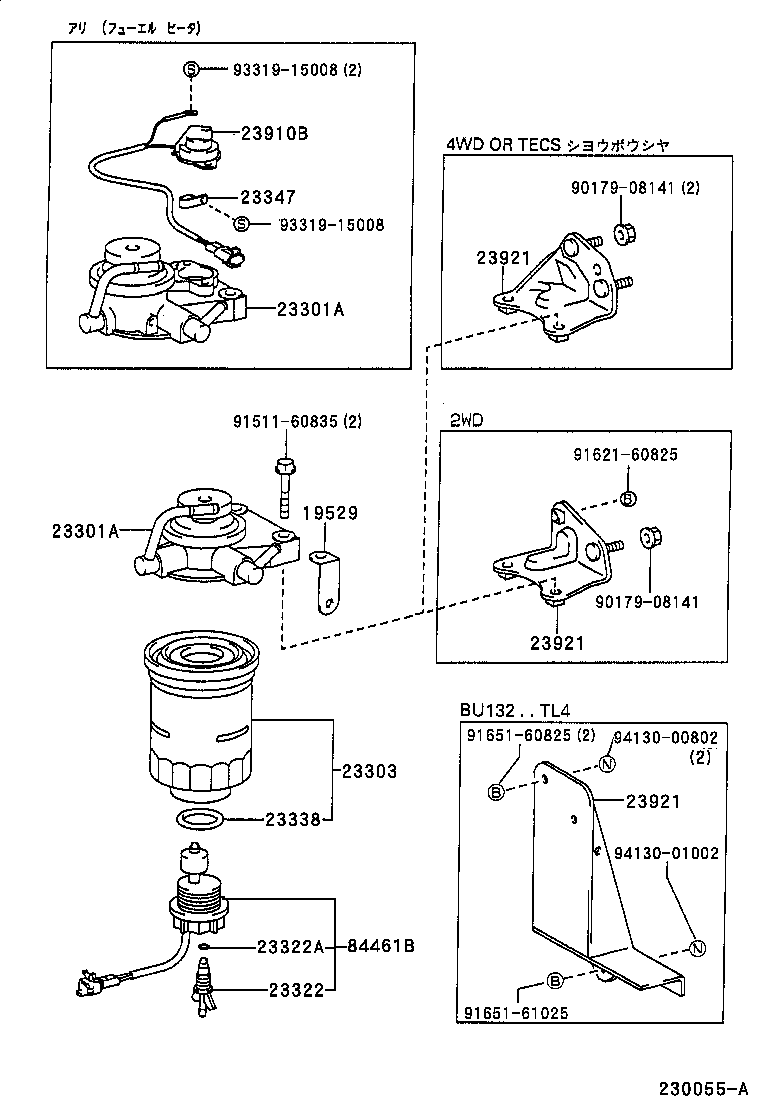

Click highlighted areas on diagram

diagram 19529 23301A 23301A 23303 23322 23322A 23338 23347 23910B 23921 23921 23921 84461B 9017908141 9017908141 9151160835 9162160825 9165160825 9165161025 9331915008 9331915008 9413000802 9413001002
Part # Description Qty Price
19529 - CLAMP
19529-56010

15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
23301A - CAP ASSY, FUEL FILTER
23380-58220

15BF,3B..BU10#,12#,13#,14#..CBU,IV3

 1
23380-58230

15BF,3B..BU10#,12#,13#,14#..CBU,IV3

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23301A - CAP ASSY, FUEL FILTER
23380-58220

15BF,3B..BU10#,12#,13#,14#..CBU,IV3

 1
23380-58230

15BF,3B..BU10#,12#,13#,14#..CBU,IV3

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

15BF..BU132..T3,T4;15BF,15BFT,3B..BU10#,112,12#,137,14#,162,172,182,202,212,222,297

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

15BF..BU132..T3,T4;15BF,15BFT,3B..BU10#,112,12#,137,14#,162,172,182,202,212,222,297

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

15BF..BU132..T3,T4;15BF,15BFT,3B..BU10#,112,12#,137,14#,162,172,182,202,212,222,297

 1
23347 - CLIP, CORD
23347-54010

15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
23910B - HEATER ASSY, FUEL
23910-17030

15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
23921 - SUPPORT, FUEL FILTER
23921-56011

15BF..BU132..T3,T4;15BF,3B..BU10#,12#,137,14#..CBU,IV3

 1
23921 - SUPPORT, FUEL FILTER
23921-56011

15BF..BU132..T3,T4;15BF,3B..BU10#,12#,137,14#..CBU,IV3

 1
23921 - SUPPORT, FUEL FILTER
23921-56011

15BF..BU132..T3,T4;15BF,3B..BU10#,12#,137,14#..CBU,IV3

 1
84461B - SWITCH, LEVEL WARNING
84461-60040

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297..DSL,TD

 1
Common parts
90179-08141
91511-60835
91621-60825
91651-60825
91651-61025
93319-15008
94130-00802
94130-01002
