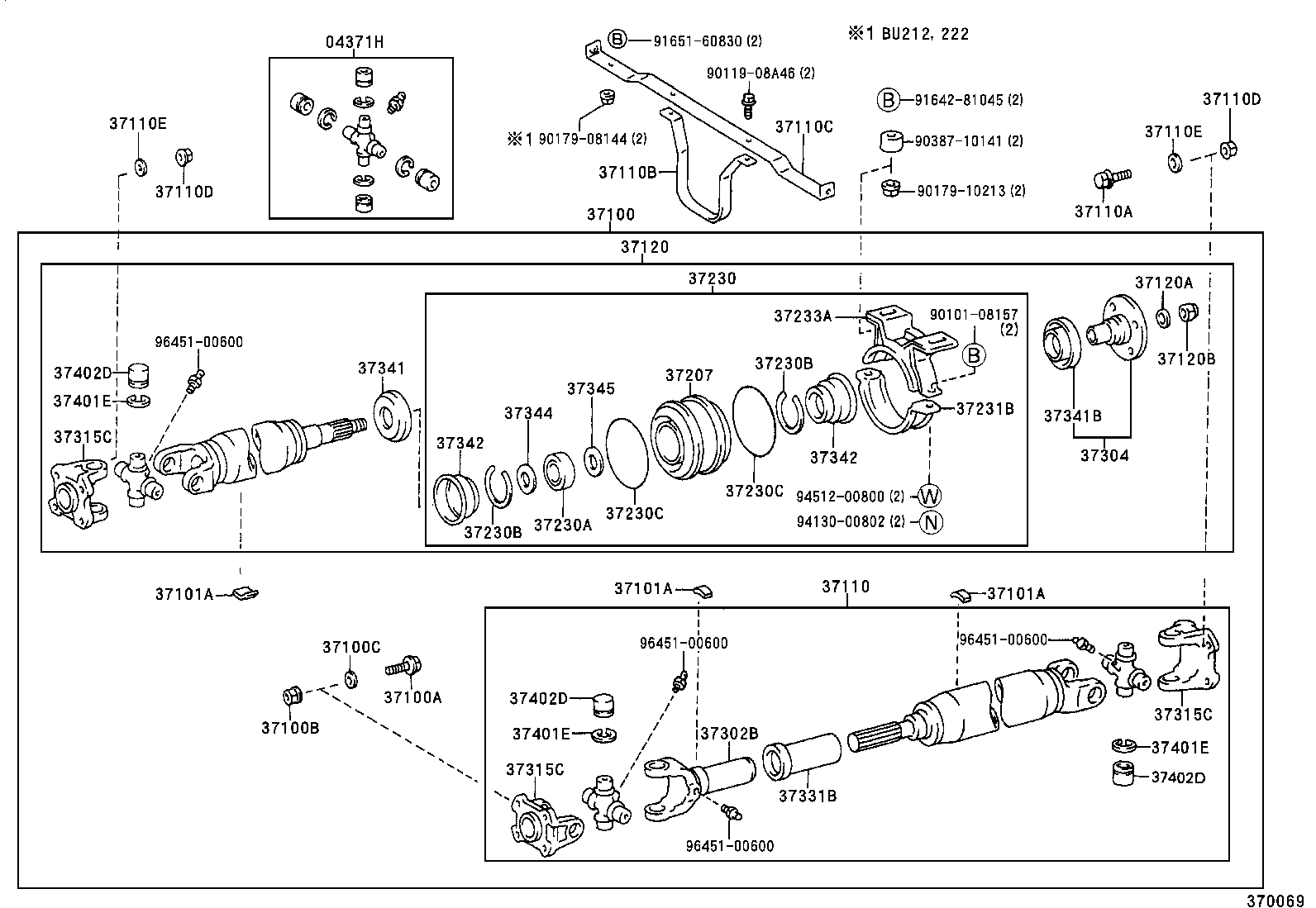

BU142-TGMMS3 (1995)
Toyota Dyna 200/Toyoace G25
(9505- )BU14#,212,222,RZU140,XZU140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-36030 |
BU14#,212,222,RZU140,XZU140 |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-36650 |
BU142..5F |
1 | ||
| 37100-37070 |
BU142,147..5F |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-11013 |
BU14#,212,222,RZU140,XZU140 |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-11005 |
BU14#,212,222,RZU140,XZU140 |
4 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-11013 |
BU14#,212,222,RZU140,XZU140 |
4 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 20G,長さ=41.4 |
1 | ||
| 90937-01140 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 30G,長さ=62.2 |
1 | ||
| 90937-01149 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 6G,長さ=12.4 |
1 | ||
| 90937-01153 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 16G,長さ=33.2 |
1 | ||
| 90937-01154 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 18G,長さ=37.3 |
1 | ||
| 90937-01151 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 12G,長さ=24.9 |
1 | ||
| 90937-01156 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 24G,長さ=49.7 |
1 | ||
| 90937-01158 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 28G,長さ=58.1 |
1 | ||
| 90937-01157 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 26G,長さ=53.9 |
1 | ||
| 90937-01147 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 2G,厚さ=2.0 |
1 | ||
| 90937-01132 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 10G,長さ=20.7 |
1 | ||
| 90937-01150 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 8G,長さ=16.6 |
1 | ||
| 90937-01152 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 14G,長さ=29.0 |
1 | ||
| 90937-01155 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 22G,長さ=45.6 |
1 | ||
| 90937-01148 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 4G,厚さ=2.0 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 20G,長さ=41.4 |
1 | ||
| 90937-01140 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 30G,長さ=62.2 |
1 | ||
| 90937-01149 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 6G,長さ=12.4 |
1 | ||
| 90937-01153 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 16G,長さ=33.2 |
1 | ||
| 90937-01154 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 18G,長さ=37.3 |
1 | ||
| 90937-01151 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 12G,長さ=24.9 |
1 | ||
| 90937-01156 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 24G,長さ=49.7 |
1 | ||
| 90937-01158 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 28G,長さ=58.1 |
1 | ||
| 90937-01157 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 26G,長さ=53.9 |
1 | ||
| 90937-01147 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 2G,厚さ=2.0 |
1 | ||
| 90937-01132 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 10G,長さ=20.7 |
1 | ||
| 90937-01150 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 8G,長さ=16.6 |
1 | ||
| 90937-01152 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 14G,長さ=29.0 |
1 | ||
| 90937-01155 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 22G,長さ=45.6 |
1 | ||
| 90937-01148 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 4G,厚さ=2.0 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 20G,長さ=41.4 |
1 | ||
| 90937-01140 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 30G,長さ=62.2 |
1 | ||
| 90937-01149 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 6G,長さ=12.4 |
1 | ||
| 90937-01153 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 16G,長さ=33.2 |
1 | ||
| 90937-01154 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 18G,長さ=37.3 |
1 | ||
| 90937-01151 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 12G,長さ=24.9 |
1 | ||
| 90937-01156 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 24G,長さ=49.7 |
1 | ||
| 90937-01158 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 28G,長さ=58.1 |
1 | ||
| 90937-01157 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 26G,長さ=53.9 |
1 | ||
| 90937-01147 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 2G,厚さ=2.0 |
1 | ||
| 90937-01132 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 10G,長さ=20.7 |
1 | ||
| 90937-01150 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 8G,長さ=16.6 |
1 | ||
| 90937-01152 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 14G,長さ=29.0 |
1 | ||
| 90937-01155 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 22G,長さ=45.6 |
1 | ||
| 90937-01148 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 4G,厚さ=2.0 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-36680 |
BU142..5F |
1 | ||
| 37110-37130 |
BU142,147,XZU140..MTM |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-11013 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 *11−1.00PX28−16 |
4 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 51569-37110 |
BU14#,RZU100..DM6,T2,T3,T4,TW4 |
1 | ||
| 51569-37110 |
BU14#,RZU140,XZU140;RZU100..(DM6,T2,T3,T4,TW1,TW4)..(EFI,LPG) |
1 | ||
| 37110C - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37080 |
BU14#,XZU140 |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-11005 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-11005 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140 |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-36430 |
BU142,147..5F |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-20005 |
BU14#,212,222,RZU140,XZU140 外径=33.5,厚さ=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-20006 |
BU14#,212,222,RZU140,XZU140 |
1 | ||
| 37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 | ||||
| 37207-35011 |
BU14#,212,222,RZU140,XZU140 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-36062 |
BU212..T4..MTM..DSL;BU14#,222,RZU140,XZU140;BU212..ALV,T2,T3,TW1,TW4 |
1 | ||
| 37230A - BEARING, NO.1 (FOR CENTER SUPPORT) | ||||
| 90363-30029 |
BU14#,212,222,RZU140,XZU140 |
1 | ||
| 37230B - RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90521-66077 |
BU14#,212,222,RZU140,XZU140 |
2 | ||
| 37230B - RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90521-66077 |
BU14#,212,222,RZU140,XZU140 |
2 | ||
| 37230C - RING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION) | ||||
| 90522-97001 |
BU14#,212,222,RZU140,XZU140 |
2 | ||
| 37230C - RING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION) | ||||
| 90522-97001 |
BU14#,212,222,RZU140,XZU140 |
2 | ||
| 37231B - HOUSING, CENTER SUPPORT BEARING, NO.1 | ||||
| 37231-36020 |
BU212..T4..MTM..DSL;BU14#,222,RZU140,XZU140;BU212..ALV,T2,T3,TW1,TW4 |
1 | ||
| 37233A - HOUSING, CENTER SUPPORT BEARING, NO.2 | ||||
| 37233-36050 |
BU212..T4..MTM..DSL;BU14#,222,RZU140,XZU140;BU212..ALV,T2,T3,TW1,TW4 |
1 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-36020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-36030 |
BU14#,212,222,RZU140,XZU140 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BU14#,212,222,RZU140,XZU140 |
3 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BU14#,212,222,RZU140,XZU140 |
3 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BU14#,212,222,RZU140,XZU140 |
3 | ||
| 37331B - COVER SUB-ASSY, REAR PROPELLER SHAFT SLIDING SHAFT DUST | ||||
| 37305-36020 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-36010 |
BU14#,212,222,RZU140,XZU140 |
1 | ||
| 37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5 | ||||
| 37341-36010 |
BU14#,212,222,RZU140,XZU140 |
1 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-36010 |
BU14#,212,222,RZU140,XZU140 |
2 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-36010 |
BU14#,212,222,RZU140,XZU140 |
2 | ||
| 37344 - DEFLECTOR, PROPELLER SHAFT DUST, NO.3 | ||||
| 37344-36010 |
BU14#,212,222,RZU140,XZU140 |
1 | ||
| 37345 - DEFLECTOR, PROPELLER SHAFT DUST, NO.4 | ||||
| 37345-36010 |
BU14#,212,222,RZU140,XZU140 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29024 |
BU14#,212,222,RZU140,XZU140 厚さ=2.00,ﾉｰﾏｰｸ |
12 | ||
| 90520-29025 |
BU14#,212,222,RZU140,XZU140 厚さ=2.03,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-29027 |
BU14#,212,222,RZU140,XZU140 厚さ=2.09,ﾉｰﾏｰｸ |
12 | ||
| 90520-29026 |
BU14#,212,222,RZU140,XZU140 厚さ=2.06,ﾌﾞﾙｰ |
12 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29024 |
BU14#,212,222,RZU140,XZU140 厚さ=2.00,ﾉｰﾏｰｸ |
12 | ||
| 90520-29025 |
BU14#,212,222,RZU140,XZU140 厚さ=2.03,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-29027 |
BU14#,212,222,RZU140,XZU140 厚さ=2.09,ﾉｰﾏｰｸ |
12 | ||
| 90520-29026 |
BU14#,212,222,RZU140,XZU140 厚さ=2.06,ﾌﾞﾙｰ |
12 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29024 |
BU14#,212,222,RZU140,XZU140 厚さ=2.00,ﾉｰﾏｰｸ |
12 | ||
| 90520-29025 |
BU14#,212,222,RZU140,XZU140 厚さ=2.03,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-29027 |
BU14#,212,222,RZU140,XZU140 厚さ=2.09,ﾉｰﾏｰｸ |
12 | ||
| 90520-29026 |
BU14#,212,222,RZU140,XZU140 厚さ=2.06,ﾌﾞﾙｰ |
12 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-36070 |
BU14#,212,222,RZU140,XZU140 |
12 | ||
| 37402-36080 |
BU14#,212,222,RZU140,XZU140 ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
12 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-36070 |
BU14#,212,222,RZU140,XZU140 |
12 | ||
| 37402-36080 |
BU14#,212,222,RZU140,XZU140 ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
12 | ||
| Common parts | ||||
| 90101-08157 | ||||
| 90119-08A46 | ||||
| 90179-08144 | ||||
| 90179-10213 | ||||
| 90387-10141 | ||||
| 91642-81045 | ||||
| 91651-60830 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 96451-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
