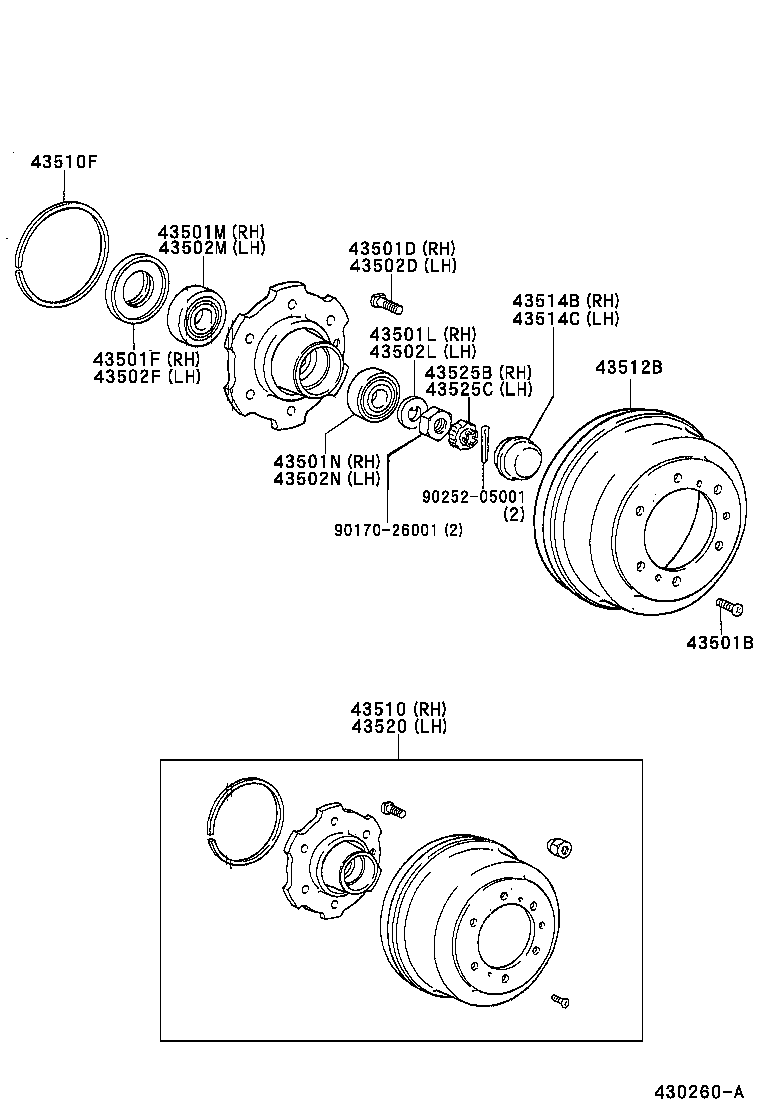

BU142-TGMMS (1995)
Toyota Dyna 200/Toyoace G25
(9505- )DM2,T2 ; (9505- )BU100,102,12#..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501B - BOLT, SET (FOR FRONT BRAKE DRUM SETTING) | ||||
| 90113-10035 |
BU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2 |
2 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02024 |
BU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2 |
6 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-68001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-27001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90368-42045 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90368-28001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02025 |
BU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2 |
6 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-68001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-27001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90368-42045 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90368-28001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-36110 |
BU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2 |
1 | ||
| 43510F - RING, SHAFT SNAP (FOR FRONT AXLE HUB) | ||||
| 90520-99065 |
BU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2 厚さ=1.60 |
2 | ||
| 43512B - DRUM, BRAKE | ||||
| 43512-36060 |
BU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2 |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-36030 |
BU100,102,112,12#,132,140,142,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-36030 |
BU100,102,112,12#,132,140,142,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43520-36110 |
BU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2 |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-36010 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-36010 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| Common parts | ||||
| 90170-26001 | ||||
| 90252-05001 | ||||
(9505- )DM6,T3,TW1..EFI,LPG ; (9505- )BU100,102,142..DM6,T3..WT..20T ; (9505-

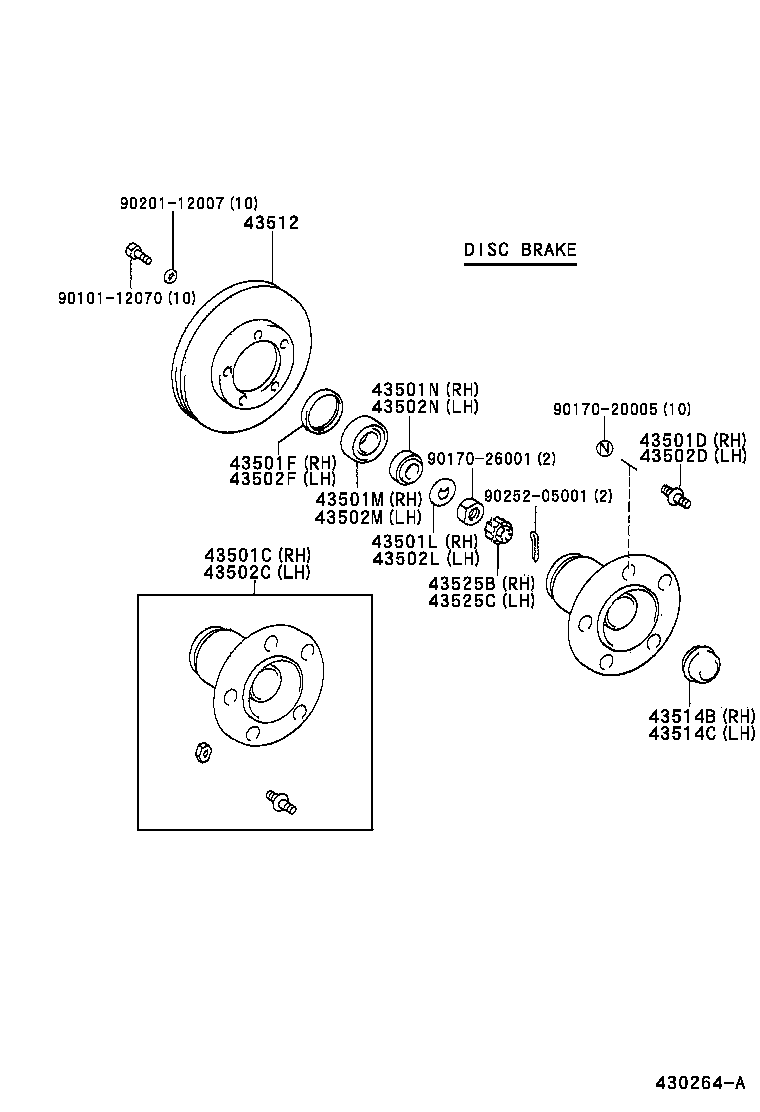

ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｨｽｸﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02024 |
BU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2 |
6 | ||
| 90942-02024 |
BU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2 |
6 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-68001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 90311-68001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-27001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 90214-27001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90368-42045 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 90368-42045 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90368-28001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 90368-28001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02025 |
BU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2 |
6 | ||
| 90942-02025 |
BU100,102,12#..ST;BU100,102,140,142,212,RZU100..DM2,T2 |
6 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-68001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 90311-68001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-27001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 90214-27001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90368-42045 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 90368-42045 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90368-28001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 90368-28001 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-36030 |
BU100,102,112,12#,132,140,142,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43514-36030 |
BU100,102,112,12#,132,140,142,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-36030 |
BU100,102,112,12#,132,140,142,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43514-36030 |
BU100,102,112,12#,132,140,142,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-36010 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43525-36010 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-36010 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 43525-36010 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| Common parts | ||||
| 90101-12070 | ||||
| 90170-20005 | ||||
| 90170-26001 | ||||
| 90201-12007 | ||||
| 90252-05001 | ||||
