BU142-TGMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Oct 1996
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )15BF

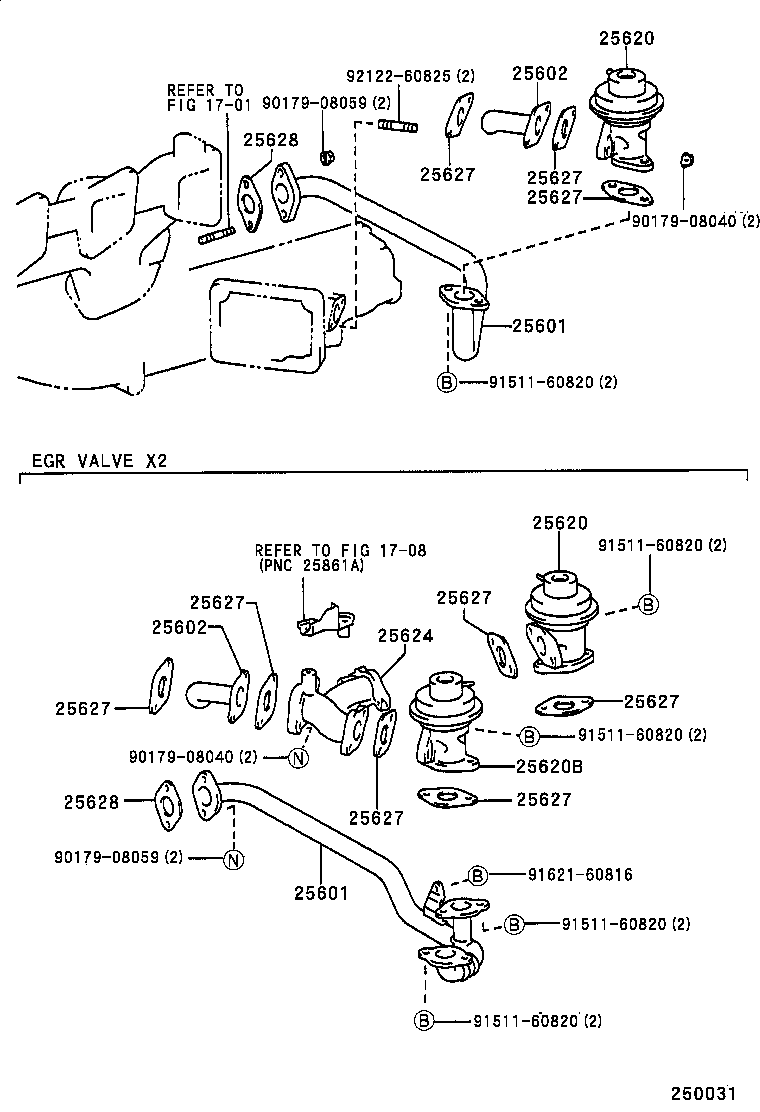

Click highlighted areas on diagram

diagram 1701 1708 25601 25601 25602 25602 25620 25620 25620B 25624 25627 25627 25627 25627 25627 25627 25627 25627 25627 25628 25628 9017908040 9017908040 9017908059 9017908059 9151160820 9151160820 9151160820 9151160820 9151160820 9162160816 9212260825
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-58010

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 1
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-58010

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 1
25602 - PIPE SUB-ASSY, EGR, NO.2
25602-58010

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 1
25602 - PIPE SUB-ASSY, EGR, NO.2
25602-58010

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 1
25620 - VALVE ASSY, EGR
25620-58010

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 1
25620 - VALVE ASSY, EGR
25620-58010

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 1
25627 - GASKET, EGR VALVE
25627-67010

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 3
25627 - GASKET, EGR VALVE
25627-67010

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 3
25627 - GASKET, EGR VALVE
25627-67010

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 3
25627 - GASKET, EGR VALVE
25627-67010

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 3
25627 - GASKET, EGR VALVE
25627-67010

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 3
25627 - GASKET, EGR VALVE
25627-67010

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 3
25627 - GASKET, EGR VALVE
25627-67010

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 3
25627 - GASKET, EGR VALVE
25627-67010

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 3
25627 - GASKET, EGR VALVE
25627-67010

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 3
25628 - GASKET, EGR INLET
25628-67010

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 1
25628 - GASKET, EGR INLET
25628-67010

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 1
Common parts
90179-08040
90179-08059
91511-60820
91621-60816
92122-60825
Linked diagrams
1701
1708
