BU142-PQMMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9505- )BU100,105,107,112,13#,14#,162,172,182,202,212,222,RZU140..ALV,DM6,T1,T2,

Click highlighted areas on diagram

ﾄﾖﾀGｶﾞﾀ OR ﾄﾖﾀHｶﾞﾀ OR ﾄﾖﾀJｶﾞﾀ

diagram 63072 63760 63763A 63764A 63767 63768A 63769 63773A 63782 63787 63789 63789A 63789B 7551 9010108078 9026905004 9026905004 9163160825 9163160825 9163160825 9163160825 9163160825 9338216016 9411040800 9411040800 9411040800 9451140800 9461340500 9461340500 9461340800 9462210800
Part # Description Qty Price
Common parts
90101-08078
90269-05004
91631-60825
93382-16016
94110-40800
94511-40800
94613-40500
94613-40800
94622-10800
Linked diagrams
7551

ILLUST NO. 2 OF 2(9505- )BU100,105,107,112,13#,14#,162,172,182,202,212,222,RZU140..ALV,DM6,T1,T2,

Click highlighted areas on diagram

ﾄﾖﾀCｶﾞﾀ OR ﾄﾖﾀDｶﾞﾀ OR ﾄﾖﾀLｶﾞﾀ

diagram 63072 63701A 63706 63707B 63708B 63709A 63760 63781 63785A 63786A 63787 63788 63789 7551 8604 9010108078 9010108078 9010108078 9010108078 9010108106 9017008026 9017008026 9017008026 9017008026 9017008026 9017606040 9017606040 9017905032 9017906091 9017906091 9020108055 9020108055 9020108055 9020108055 9020108055 9020108055 9020108055 9026903025 9026903025 9095001258 9095001258 9095001258 9095901214 9095901214 9321915020
Part # Description Qty Price
Common parts
90101-08078
90101-08106
90170-08026
90176-06040
90179-05032
90179-06091
90201-08055
90269-03025
90950-01258
90959-01214
93219-15020
Linked diagrams
7551
8604

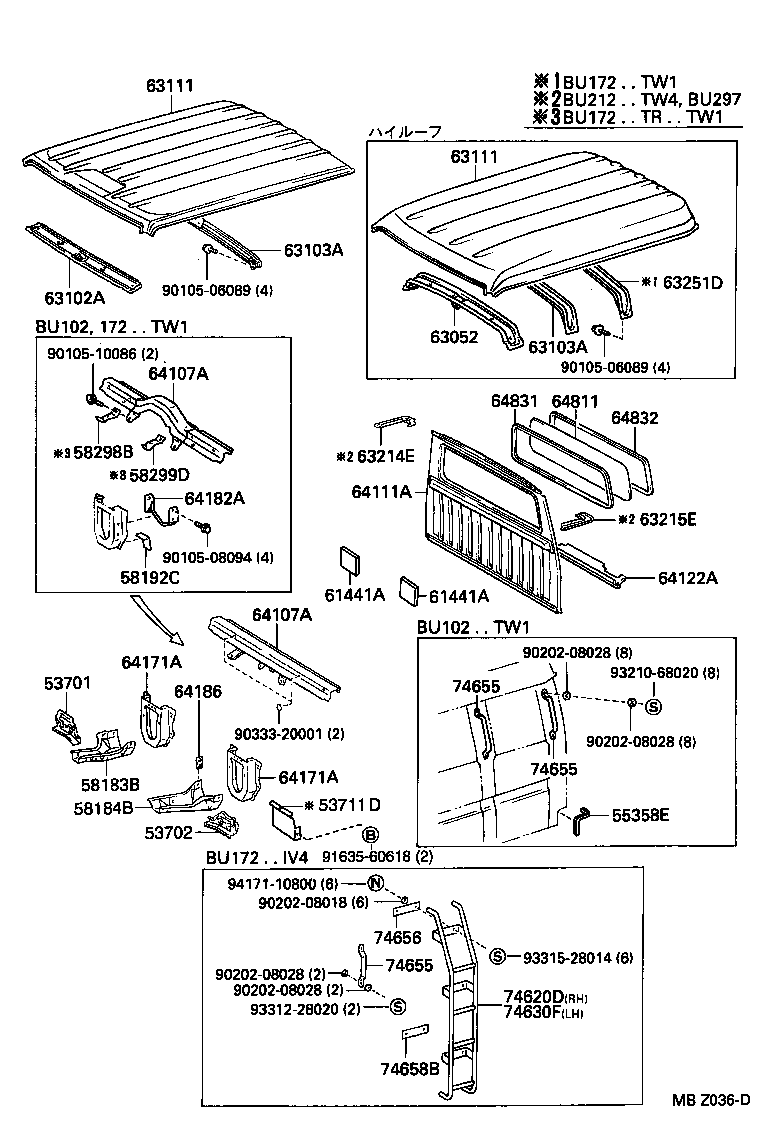

ILLUST NO. 1 OF 2(9505- )RZU100..LPGB ; (9505- )BU10#,142,147,172,212,297,RZU100..05S,06S,07S

Click highlighted areas on diagram

diagram 53701 53702 53711D 55358E 58183B 58184B 58192C 58298B 58299D 61441A 61441A 63052 63102A 63103A 63103A 63111 63111 63214E 63215E 63251D 64107A 64107A 64111A 64122A 64171A 64171A 64182A 64186 64811 64831 64832 74620D 74630F 74655 74655 74655 74656 74658B 9010506089 9010506089 9010508094 9010510086 9020208018 9020208028 9020208028 9020208028 9020208028 9033320001 9163560618 9321068020 9331228020 9331528014 9417110800
Part # Description Qty Price
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53717-37020

BU10#,142,147,RZU100..06S

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53718-37020

BU10#,142,147,RZU100..06S

 1
58183B - REINFORCEMENT, REAR MOUNTING, RH
58183-37020

BU12#;BU10#,132,142,147,RZU100..TL4,TW1,TW2,TW4

 1
58184B - REINFORCEMENT, REAR MOUNTING, LH
58184-37020

BU12#;BU10#,132,142,147,RZU100..TL4,TW1,TW2,TW4

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63132-37010

BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130..(02S,03S,06S)..(CBU,IV3)

 1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-95412

BU10#,142,147,RZU100..06S..(CBU,IV3)

 1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-95412

BU10#,142,147,RZU100..06S..(CBU,IV3)

 1
63111 - PANEL, ROOF
63111-95417

BU10#,142,147,RZU100..06S..(CBU,IV3)

 1
63111 - PANEL, ROOF
63111-95417

BU10#,142,147,RZU100..06S..(CBU,IV3)

 1
64107A - FRAME SUB-ASSY, BACK
64107-37032

BU10#,142,147,RZU100..06S..(CBU,IV3)

 1
64107-37032

BU10#,142,147..06S..(CBU,IV3)

 1
64107A - FRAME SUB-ASSY, BACK
64107-37032

BU10#,142,147,RZU100..06S..(CBU,IV3)

 1
64107-37032

BU10#,142,147..06S..(CBU,IV3)

 1
64111A - PANEL, BACK
64100-95450

BU10#,142,147,RZU100..06S..(CBU,IV3)

 1
64122A - BAFFLE, DUST REAR BODY
64122-37061

BU10#,142,147,172,RZU100..05S,06S

 1
64171A - BRACKET SUB-ASSY, REAR MOUNTING
64171-95410

BU12#;BU10#,142,212,RZU100..06S,07S

 2
64171A - BRACKET SUB-ASSY, REAR MOUNTING
64171-95410

BU12#;BU10#,142,212,RZU100..06S,07S

 2
64186 - RETAINER, REAR MOUNTING BRACKET
64186-95A00

BU10#,132,142,147,297,RZU100..(TL4,TW1,TW2,TW4)..(CBU,IV3)

 2
64811 - GLASS, BACK WINDOW
64811-95410

BU202,212,222;BU10#,142,172,RZU100..05S,06S

*TEM,厚さ=3.5

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-37050

BU10#,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
64832 - KEY, BACK WINDOW WEATHERSTRIP
64832-37040

BU10#,112,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
Common parts
90105-06089
90105-08094
90105-10086
90202-08018
90202-08028
90333-20001
91635-60618
93210-68020
93312-28020
93315-28014
94171-10800
