BU142-PQMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Oct 1996
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

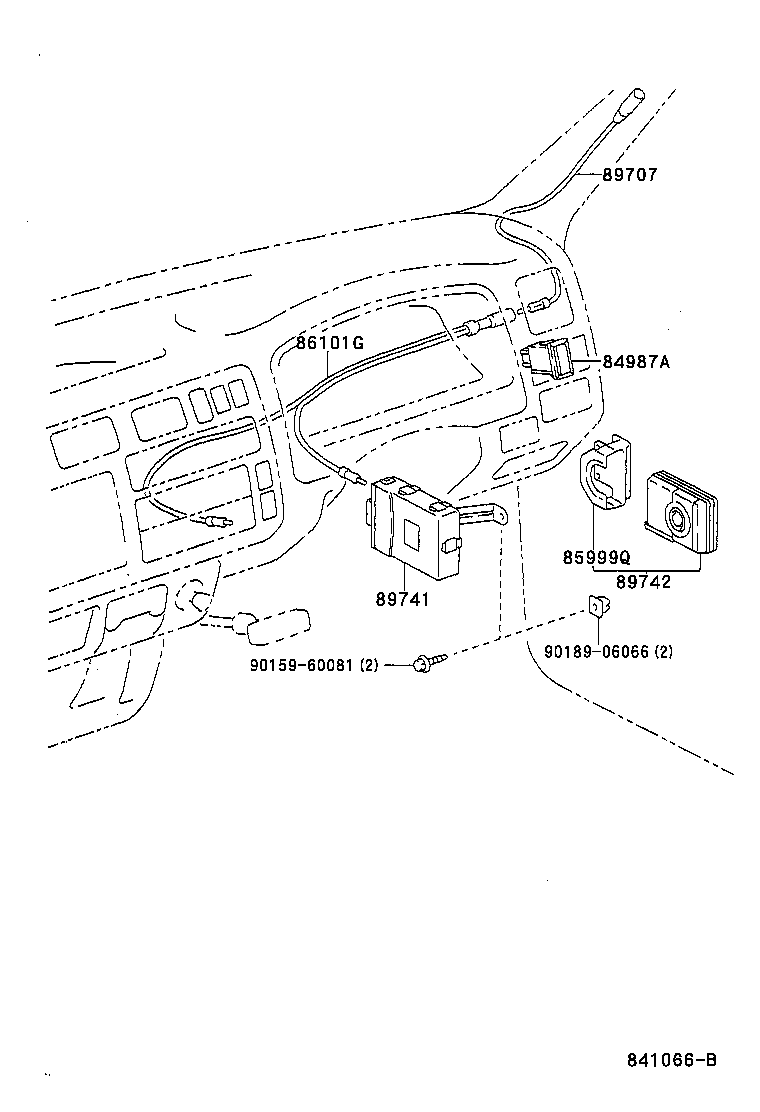

Click highlighted areas on diagram

diagram 84987A 85999Q 86101G 89707 89741 89742 9015960081 9018906066
Part # Description Qty Price
84987A - SWITCH, KEYLESS ENTRY CANCEL
84987-20030

BU12#;BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(CBU,IV3)

 1
85999Q - BRACKET, DOOR CONTROL TRANSMITTER
85999-36040

BU12#;BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(CBU,IV3)

 1
86101G - CORD SUB-ASSY, ANTENNA
86101-37020

BU12#;BU10#,112,132,14#,162,172,182,202,212,222,RZU100..(DM6,T1,T2,T3,T4,T5,TW1,TW2,TW4)..(CBU,IV3)

 1
89741 - RECEIVER, DOOR CONTROL
89741-37020

BU12#;BU10#,112,13#,14#,162,172,182,202,212,222,XZU140..(ALV,DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(DSL,TD)..(CBU,IV3)

 1
89742 - TRANSMITTER, DOOR CONTROL
89742-37010

BU12#;BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM6,T1,T2,T3,T4,T5,TL4,TW1,TW2,TW4)..(CBU,IV3)

 1
Common parts
90159-60081
90189-06066
