BU142-PQMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Oct 1996
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )RZU100..EFI,LPG ; (9505- )BU10#,112,12#,13#,14#,162,172,182,202,212,2

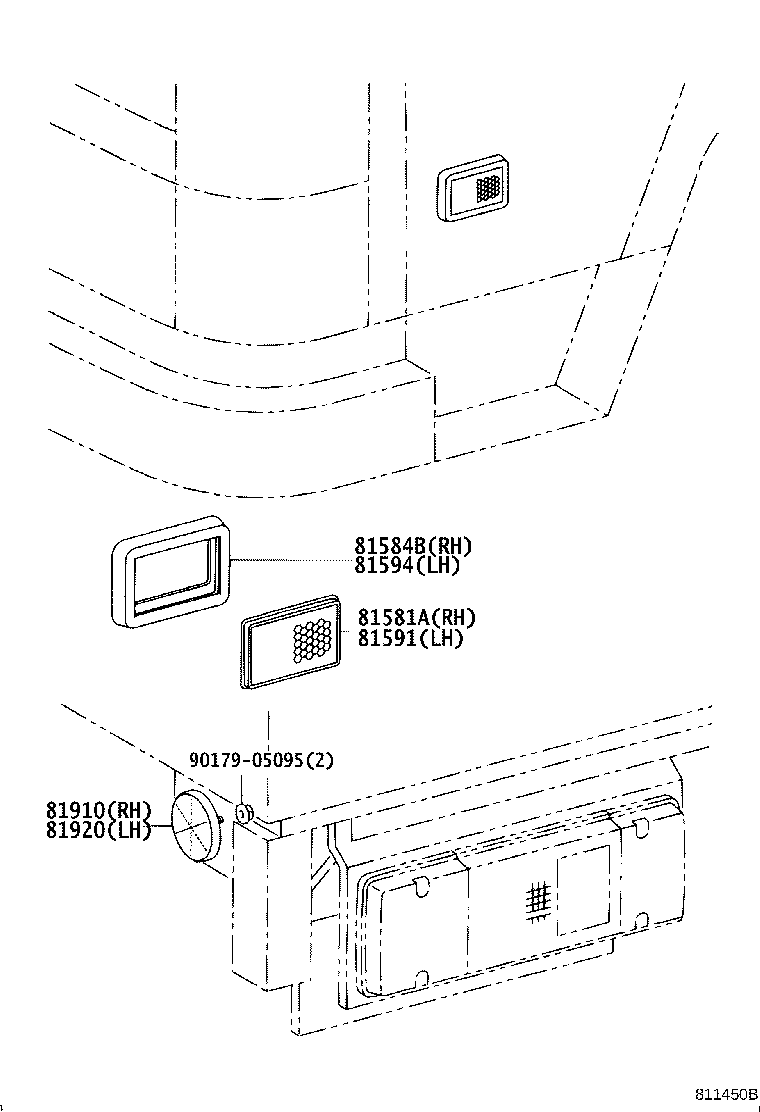

Click highlighted areas on diagram

diagram 81581A 81584B 81591 81594 81910 81920 9017905095
Part # Description Qty Price
81581A - LENS AND BODY, REFLEX SIDE REFLECTOR, RH
81581-37020

BU222;BU132..TL4;BU14#,182,212,RZU140,XZU140..IV3;BU142,147..(T3,TW4)..20T..CBU..5F;BU212..(T3,T4,TW4)..MTM..DSL..CBU

 1
81584B - GASKET,REFLEX REFLEC
81584-37020

BU222;BU132..TL4;BU14#,182,212,RZU140,XZU140..IV3;BU142,147..(T3,TW4)..20T..CBU..5F;BU212..(T3,T4,TW4)..MTM..DSL..CBU

 1
81591 - LENS AND BODY, REFLEX SIDE REFLECTOR, LH
81591-37020

BU222;BU132..TL4;BU14#,182,212,RZU140,XZU140..IV3;BU142,147..(T3,TW4)..20T..CBU..5F;BU212..(T3,T4,TW4)..MTM..DSL..CBU

 1
81594 - GASKET, REFLEX REFLECTOR BODY, LH
81594-37020

BU222;BU132..TL4;BU14#,182,212,RZU140,XZU140..IV3;BU142,147..(T3,TW4)..20T..CBU..5F;BU212..(T3,T4,TW4)..MTM..DSL..CBU

 1
81910 - REFLECTOR ASSY, REFLEX, RH
81910-95401

BU222;BU14#,182,212..(DSL,TD)..IV3;BU142..(T3,TW4)..20T..CBU..5F;BU212..(T3,T4,TW4)..DSL..CBU..5F

 1
81920 - REFLECTOR ASSY, REFLEX, LH
81910-95401

BU222;BU14#,182,212..(DSL,TD)..IV3;BU142..(T3,TW4)..20T..CBU..5F;BU212..(T3,T4,TW4)..DSL..CBU..5F

 1
Common parts
90179-05095
