BU142-PQMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Oct 1996
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

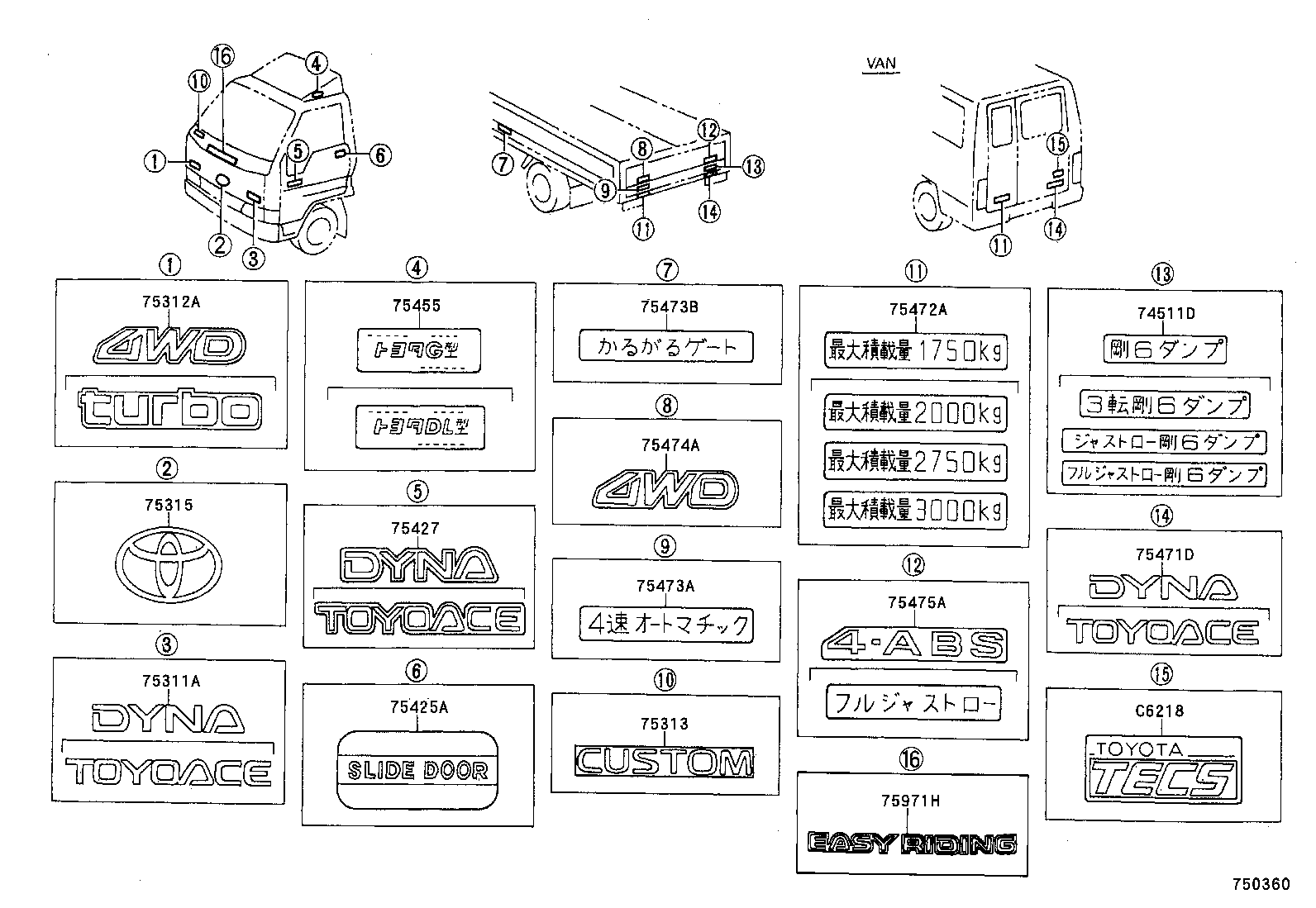

Click highlighted areas on diagram

diagram 74511D 75311A 75312A 75313 75315 75425A 75427 75455 75471D 75472A 75473A 75473B 75474A 75475A 75971H C6218
Part # Description Qty Price
75311A - PLATE, FRONT NAME, NO.1
75311-37020

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3

TOYOACE

 1
75311-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

DYNA

 1
75315 - ORNAMENT, RADIATOR GRILLE
75315-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
75427 - PLATE, FRONT DOOR NAME
75427-37050

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

DYNA

 2
75427-37060

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3

TOYOACE

 2
75471D - PLATE, REAR NAME
75471-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

DYNA

 1
75471-37020

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..CBU,IV3

TOYOACE

 1
75472A - PLATE, REAR BODY NAME, NO.2
75472-95404

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130..20T

2000KG

 1
75475A - PLATE, REAR BODY NAME, NO.5
75475-95400

BU10#,142,162,202,212,222,RZU100..(T4,TW4)..CBU

 1
