BU142-PQMMS (1995)
Toyota Dyna 200/Toyoace G25
(9505- )BU102,132,142..20T..CBU,IV3..5F ; (9505- )BU100,105,107,112,12#,137,1
M150,M153,M155

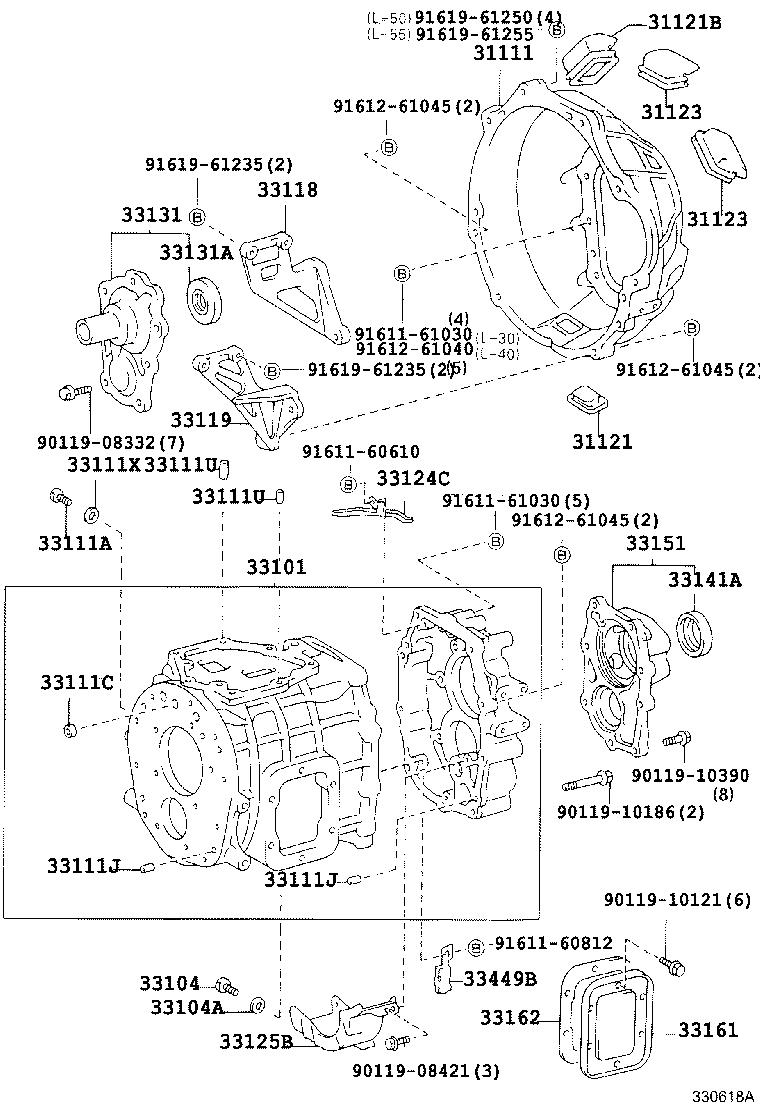

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36310 |
BU10#,112,12#,13#,14#..(175T,20T)..DSL..5F |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-36040 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140..MTM |
1 | ||
| 31121B - COVER, CLUTCH HOUSING, NO.3 | ||||
| 31121-28030 |
BU10#,112,12#,13#,14#..(175T,20T)..DSL..5F |
1 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| 31121-28041 |
RZU100,XZU130,140..DSL,EFI,LPG;BU10#,112,12#,13#,14#,RZU140..(175T,20T)..(DSL,EFI)..5F |
2 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| 31121-28041 |
RZU100,XZU130,140..DSL,EFI,LPG;BU10#,112,12#,13#,14#,RZU140..(175T,20T)..(DSL,EFI)..5F |
2 | ||
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-36082 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
RZU100..EFI,LPG;BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU140,XZU130,140..MTM |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-11600 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..5F 長さ=16,外径=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..5F 長さ=16,外径=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-13017 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F 長さ=12,外径=13 |
2 | ||
| 90253-11001 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F 長さ=11,外径=11 |
1 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-13017 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F 長さ=12,外径=13 |
2 | ||
| 90253-11001 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F 長さ=11,外径=11 |
1 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-36021 |
BU10#,112,12#,13#,14#,202,212,222..(175T,20T)..DSL..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-36042 |
BU172,182;BU10#,112,12#,13#,14#,162,202,212,222..(175T,20T)..DSL..(CBU,IV3)..5F |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36030 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..5F |
1 | ||
| 33125B - RECEIVER, MANUAL TRANSMISSION CASE | ||||
| 33125-36020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-36060 |
BU172,182,RZU100..DSL,EFI,LPG;BU10#,112,12#,13#,14#,162,202,212,222,RZU140..(175T,20T)..(DSL,EFI)..5F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
BU172,182,RZU100..DSL,EFI,LPG;BU10#,112,12#,13#,14#,162,202,212,222,RZU140..(175T,20T)..(DSL,EFI)..5F |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-48011 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33017-36031 |
BU10#,112,12#,13#,14#,202,212,222,RZU100,140,XZU130,140..5F |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
BU212,RZU100..(DM5,DM6,T2,T3,T4,TW1,TW4)..MTM..(DSL,EFI,LPG,TD);BU10#,112,12#,13#,14#,162,172,182,202,222,RZU140,XZU130,140..MTM..(02S,03S,06S) ｱﾘ(ﾌﾞﾝﾘｼｷ ﾊﾞｷﾕ-ﾑ P.T.O) |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..MTM |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-36010 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..5F |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-08421 | ||||
| 90119-10121 | ||||
| 90119-10186 | ||||
| 90119-10390 | ||||
| 91611-60610 | ||||
| 91611-60812 | ||||
| 91611-61030 | ||||
| 91612-61040 | ||||
| 91612-61045 | ||||
| 91619-61235 | ||||
| 91619-61250 | ||||
| 91619-61255 | ||||
