BU142-PQMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Oct 1996
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

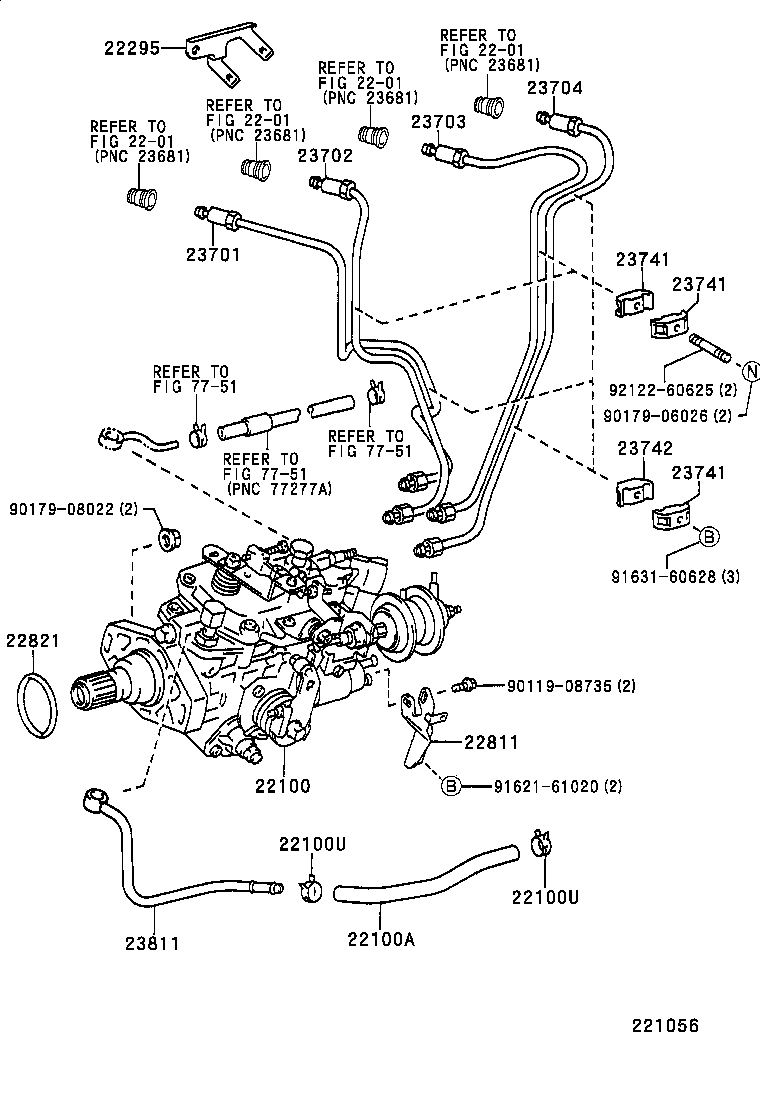

Click highlighted areas on diagram

diagram 2201 2201 2201 2201 22100 22100A 22100U 22100U 22295 22811 22821 23701 23702 23703 23704 23741 23741 23741 23742 23811 7751 7751 7751 9011908735 9017906026 9017908022 9162161020 9163160628 9212260625
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-5C090

15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222..(CBU,IV3)..5F

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-58030

15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222

 1
22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP)
96132-41500

15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222

 2
22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP)
96132-41500

15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222

 2
22295 - BRACKET, INJECTION PUMP CONNECTOR
22295-58010

15BFT..BU297;15BF..BU102,107,112,122,13#,142,147,162,172,182,202,212,222

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-58030

15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
22821 - GASKET, INJECTION PUMP
90301-49003

15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-58030

15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-58030

15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-58030

15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-58030

15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-58010

15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 7
23741 - CLAMP, INJECTION PIPE, NO.1
23741-58010

15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 7
23741 - CLAMP, INJECTION PIPE, NO.1
23741-58010

15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 7
23742 - CLAMP, INJECTION PIPE, NO.2
23742-58010

15BF,15BFT..BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297

 3
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-58010

15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222

 1
Common parts
90119-08735
90179-06026
90179-08022
91621-61020
91631-60628
92122-60625
Linked diagrams
2201
7751
