BU142-PQMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Oct 1996
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )15B#,3B

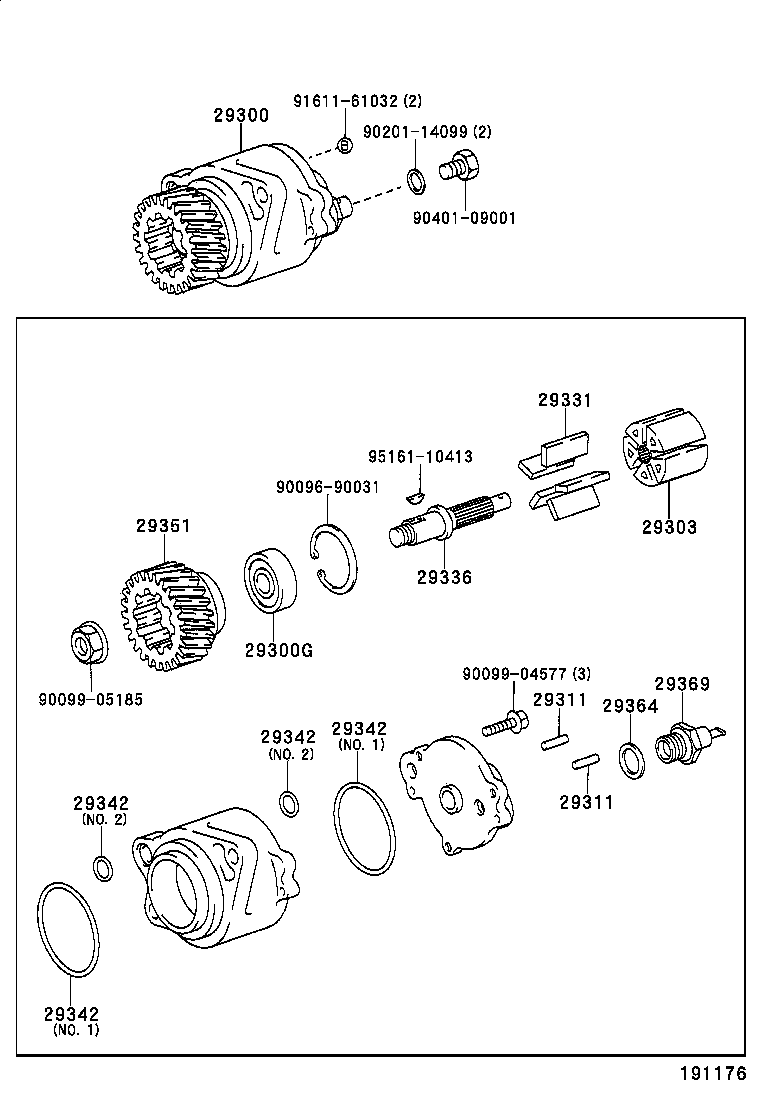

Click highlighted areas on diagram

diagram 29300 29300G 29303 29311 29311 29331 29336 29342 29342 29342 29342 29351 29364 29369 9009690031 9009904577 9009905185 9020114099 9040109001 9161161032 9516110413
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-58050

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297

 1
29300G - BEARING, BALL
90099-10185

J05C,15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130,140

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

J05C,15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130,140

 2
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

J05C,15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130,140

 2
29331 - BLADE, VACUUM PUMP, A
29331-67020

15B#,3B..BU10#,112,12#,132,14#,162,172,182,202,212,222

 5
29336 - SHAFT, VACUUM PUMP
29336-58050

J05C,15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,XZU130,140

 1
29342 - PACKING, VACUUM PUMP
29342-58010

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100

NO.1

 2
29342-64010

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100

NO.2

 2
29342 - PACKING, VACUUM PUMP
29342-58010

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100

NO.1

 2
29342-64010

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100

NO.2

 2
29342 - PACKING, VACUUM PUMP
29342-58010

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100

NO.1

 2
29342-64010

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100

NO.2

 2
29342 - PACKING, VACUUM PUMP
29342-58010

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100

NO.1

 2
29342-64010

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100

NO.2

 2
29351 - GEAR, VACUUM PUMP
29351-58050

15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100

 1
29364 - WASHER, VACUUM PUMP
29364-66010

J05C,15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130,140

 1
29369 - VALVE SUB-ASSY, CHECK
29369-64030

J05C,15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130,140

 1
Common parts
90096-90031
90099-04577
90099-05185
90201-14099
90401-09001
91611-61032
95161-10413
