BU140-TKMMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU132,RZU140..T3,T4 ; (9505- )BU10#,112,12#,137,14#,RZU100..DSL,LPGB

Click highlighted areas on diagram

diagram 44773D 44773D 44779F 44779F 44911E 44911E 44912 44912 44912 44912 44912B 44912B 44912C 44912C 44912D 44912D 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011910523 9011910737 9046110573 9046110708 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9413000802 9413000802 9413001002
Part # Description Qty Price
44773D - HOSE, SOLENOIDO TO RETARDER
44773-37020

BU10#,12#,13#,14#..DSL..(4FC,5F)

 1
44773-37030

XZU130,140

 1
44773D - HOSE, SOLENOIDO TO RETARDER
44773-37020

BU10#,12#,13#,14#..DSL..(4FC,5F)

 1
44773-37030

XZU130,140

 1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
95446-09180

BU10#,112,12#,13#,14#,XZU130,140..DSL

 1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
95446-09180

BU10#,112,12#,13#,14#,XZU130,140..DSL

 1
44911E - ELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
90407-51002

BU10#,112,12#,13#,14#,162,172,182,297..DSL,TD

 1
44911E - ELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)
90407-51002

BU10#,112,12#,13#,14#,162,172,182,297..DSL,TD

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37090

BU102..DM5..IV3;BU10#,132,14#..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F

ｱﾘ(P.T.O ｵｲﾙ ﾎﾟﾝﾌﾟ ﾌﾞﾝﾘｼｷ)

 1
44765-37010

BU10#,12#,132,14#

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37090

BU102..DM5..IV3;BU10#,132,14#..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F

ｱﾘ(P.T.O ｵｲﾙ ﾎﾟﾝﾌﾟ ﾌﾞﾝﾘｼｷ)

 1
44765-37010

BU10#,12#,132,14#

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37090

BU102..DM5..IV3;BU10#,132,14#..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F

ｱﾘ(P.T.O ｵｲﾙ ﾎﾟﾝﾌﾟ ﾌﾞﾝﾘｼｷ)

 1
44765-37010

BU10#,12#,132,14#

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37090

BU102..DM5..IV3;BU10#,132,14#..(DM6,T1,T2,T3,T4,T5,TW2,TW4)..5F

ｱﾘ(P.T.O ｵｲﾙ ﾎﾟﾝﾌﾟ ﾌﾞﾝﾘｼｷ)

 1
44765-37010

BU10#,12#,132,14#

 1
44912B - HOSE(FOR 3 WAY TO MAGNETIC VALVE TUBE)
95446-09110

BU132,142..(T2,T3,T4,TW4)..DSL;BU10#,112,12#,137,140,145,147,202,212,222,RZU100..DSL,LPGB,TD

 1
95446-09110

BU10#,112,12#,132,14#,202,212,222

 1
44912B - HOSE(FOR 3 WAY TO MAGNETIC VALVE TUBE)
95446-09110

BU132,142..(T2,T3,T4,TW4)..DSL;BU10#,112,12#,137,140,145,147,202,212,222,RZU100..DSL,LPGB,TD

 1
95446-09110

BU10#,112,12#,132,14#,202,212,222

 1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319

BU202,212,222,XZU130,140

 2
90404-51319

BU10#,112,12#,13#,14#,162,172,182..DSL

 1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319

BU202,212,222,XZU130,140

 2
90404-51319

BU10#,112,12#,13#,14#,162,172,182..DSL

 1
44912D - TUBE, VACUUM(FOR MAGNETIC VALVE TO RESERVOIR)
44912-37050

BU132..T3,T4;BU100,102,112,12#,140,142..DSL

 1
44912-37180

BU120..03S;BU142..DSL;BU107,137,147..5F;BU100,102,105,112,132,140,145,RZU100..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,TW1,TW2,TW4)..(DSL,LPGB)

ｱﾘ(P.T.O ｵｲﾙﾎﾟﾝﾌﾟ ﾌﾞﾝﾘｼｷ)

 1
44912-37180

BU132..T3,T4;BU107,147..5F;BU100,102,112,12#,137,140,142

ｱﾘ(P.T.O ｵｲﾙﾎﾟﾝﾌﾟ ﾌﾞﾝﾘｼｷ)

 1
44764-37100

XZU130,140

 1
44912D - TUBE, VACUUM(FOR MAGNETIC VALVE TO RESERVOIR)
44912-37050

BU132..T3,T4;BU100,102,112,12#,140,142..DSL

 1
44912-37180

BU120..03S;BU142..DSL;BU107,137,147..5F;BU100,102,105,112,132,140,145,RZU100..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,TW1,TW2,TW4)..(DSL,LPGB)

ｱﾘ(P.T.O ｵｲﾙﾎﾟﾝﾌﾟ ﾌﾞﾝﾘｼｷ)

 1
44912-37180

BU132..T3,T4;BU107,147..5F;BU100,102,112,12#,137,140,142

ｱﾘ(P.T.O ｵｲﾙﾎﾟﾝﾌﾟ ﾌﾞﾝﾘｼｷ)

 1
44764-37100

XZU130,140

 1
Common parts
90119-08A46
90119-10523
90119-10737
90461-10573
90461-10708
90467-16002
94130-00802
94130-01002

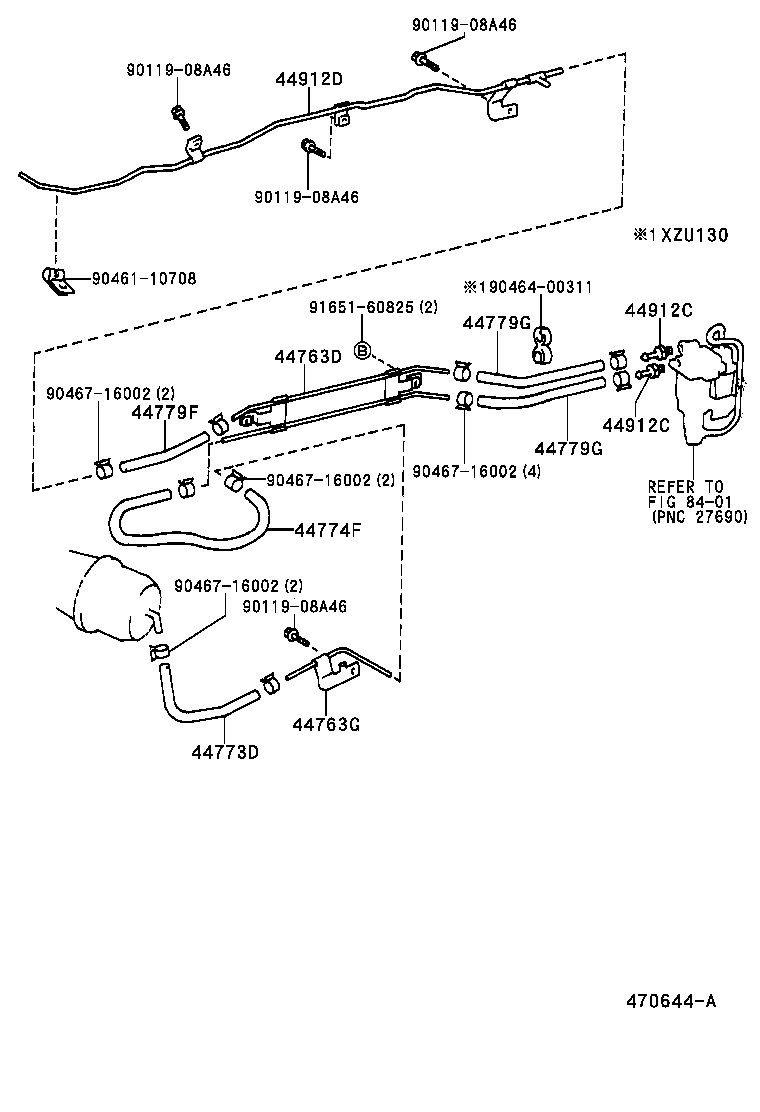

(9510- )XZU130,140

Click highlighted areas on diagram

diagram 44763D 44763G 44773D 44774F 44779F 44779G 44779G 44912C 44912C 44912D 8401 9011908A46 9011908A46 9011908A46 9011908A46 9046110708 9046400311 9046716002 9046716002 9046716002 9046716002 9165160825
Part # Description Qty Price
44763D - TUBE, HOSE TO HOSE, NO.1
44763-37090

XZU130,140

 1
44763G - TUBE, HOSE TO HOSE, NO.2
44763-37110

XZU130,140

 1
44773D - HOSE, SOLENOIDO TO RETARDER
44773-37020

BU10#,12#,13#,14#..DSL..(4FC,5F)

 1
44773-37030

XZU130,140

 1
44774F - HOSE, UNION TO CONNECTOR TUBE
44774-37040

XZU130,140

 1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
95446-09180

BU10#,112,12#,13#,14#,XZU130,140..DSL

 1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319

BU202,212,222,XZU130,140

 2
90404-51319

BU10#,112,12#,13#,14#,162,172,182..DSL

 1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319

BU202,212,222,XZU130,140

 2
90404-51319

BU10#,112,12#,13#,14#,162,172,182..DSL

 1
44912D - TUBE, VACUUM(FOR MAGNETIC VALVE TO RESERVOIR)
44912-37050

BU132..T3,T4;BU100,102,112,12#,140,142..DSL

 1
44912-37180

BU120..03S;BU142..DSL;BU107,137,147..5F;BU100,102,105,112,132,140,145,RZU100..(DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,TW1,TW2,TW4)..(DSL,LPGB)

ｱﾘ(P.T.O ｵｲﾙﾎﾟﾝﾌﾟ ﾌﾞﾝﾘｼｷ)

 1
44912-37180

BU132..T3,T4;BU107,147..5F;BU100,102,112,12#,137,140,142

ｱﾘ(P.T.O ｵｲﾙﾎﾟﾝﾌﾟ ﾌﾞﾝﾘｼｷ)

 1
44764-37100

XZU130,140

 1
Common parts
90119-08A46
90461-10708
90464-00311
90467-16002
91651-60825
Linked diagrams
8401
