Toyota Dyna 200/toyoace g25 BU140 CLUTCH & RELEASE FORK

BU140-TKMMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999

Engine 3B

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9505- )RZU100,XZU130,140..DSL,LPGB ; (9505-)BU102,112,132,142..275T,30T..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
31126 - BOOT, CLUTCH RELEASE FORK
31126-36070	BU212,222..6F;RZU100,XZU130,140..DSL,LPGB;BU102,212,222..20T..(LPGB,TD)..5F;BU102,112,132,142..MTM..(275T,30T)	05/1995 - 12/2999	1
31126-36080	RZU100..EFI,LPG;BU10#,112,12#,13#,14#,RZU140..(175T,20T)..(DSL,EFI)..5F	05/1995 - 12/2999	1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-35031	BU10#,112,12#,13#,14#..(175T,20T)..DSL..5F	05/1995 - 06/1999	1
31204-37010	XZU130,140	10/1995 - 05/1999	1
31210 - COVER ASSY, CLUTCH
31210-36160	BU100,105,120,140,145	05/1995 - 12/2999	1
31210-36240	XZU130,140;BU142,212,222..6F	10/1995 - 12/2999	1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-36150	BU172,182;BU10#,112,12#,13#,14#,162,202,212,222..(175T,20T)..DSL..5F	05/1995 - 06/1999	1
31230-36200	XZU130,140	10/1995 - 05/1999	1
31232A - CLIP, RELEASE BEARING HUB
31232-36010	BU172,182;BU10#,112,12#,13#,14#,162,202,212,222..(175T,20T)..DSL..5F	05/1995 - 06/1999	1
31236B - SUPPORT, RELEASE FORK
31236-35030	BU10#,112,12#,13#,14#..(175T,20T)..DSL..5F	05/1995 - 06/1999	1
31236-36060	BU212,222..6F;RZU100,XZU130,140..DSL,LPGB;BU102,212,222..20T..(LPGB,TD)..5F;BU102,112,132,142..MTM..(275T,30T)	05/1995 - 12/2999	1
31250 - DISC ASSY, CLUTCH
31250-37050	BU10#,112,12#,13#,14#,202,212,222..(175T,20T)..DSL..5F	05/1995 - 11/1996	1
31250-60311	XZU130,140	10/1995 - 05/1999	1
31250-37070	BU172,182;BU10#,112,12#,13#,14#,162,202,212,222..(175T,20T)..DSL..5F	11/1996 - 12/2999	1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002	RZU100..EFI,LPG;BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU140..MTM	05/1995 - 12/2999	1
90033-63028	XZU130,140	10/1995 - 05/1999	1
Common parts
90119-10205

(9505- )BU172,182 ; (9505- )BU10#,112,12#,13#,14#,162,202,212,222..175T,20T..

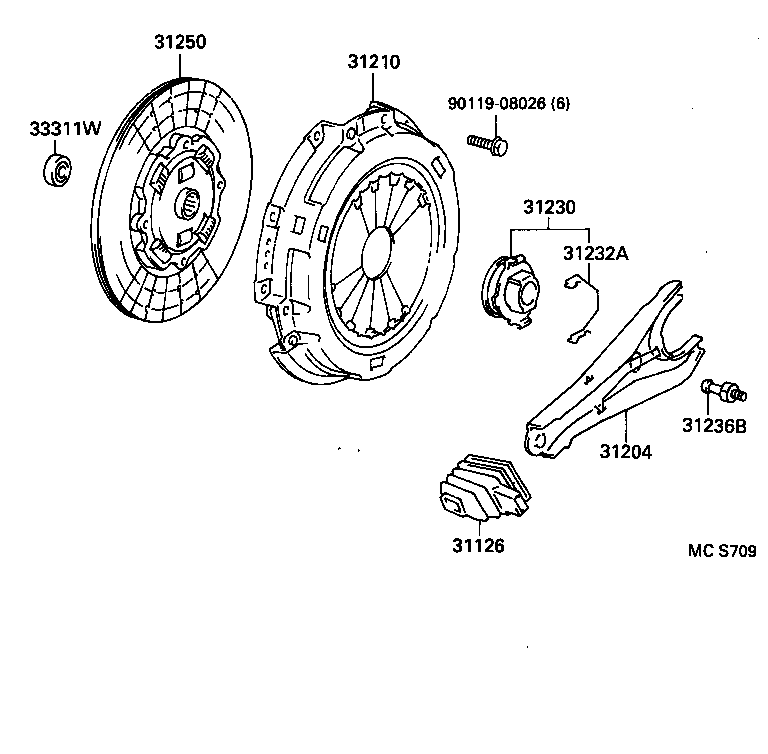

Click highlighted areas on diagram

Part #	Description	Period	Qty
31126 - BOOT, CLUTCH RELEASE FORK
31126-36070	BU212,222..6F;RZU100,XZU130,140..DSL,LPGB;BU102,212,222..20T..(LPGB,TD)..5F;BU102,112,132,142..MTM..(275T,30T)	05/1995 - 12/2999	1
31126-36080	RZU100..EFI,LPG;BU10#,112,12#,13#,14#,RZU140..(175T,20T)..(DSL,EFI)..5F	05/1995 - 12/2999	1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-35031	BU10#,112,12#,13#,14#..(175T,20T)..DSL..5F	05/1995 - 06/1999	1
31204-37010	XZU130,140	10/1995 - 05/1999	1
31210 - COVER ASSY, CLUTCH
31210-36160	BU100,105,120,140,145	05/1995 - 12/2999	1
31210-36240	XZU130,140;BU142,212,222..6F	10/1995 - 12/2999	1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-36150	BU172,182;BU10#,112,12#,13#,14#,162,202,212,222..(175T,20T)..DSL..5F	05/1995 - 06/1999	1
31230-36200	XZU130,140	10/1995 - 05/1999	1
31232A - CLIP, RELEASE BEARING HUB
31232-36010	BU172,182;BU10#,112,12#,13#,14#,162,202,212,222..(175T,20T)..DSL..5F	05/1995 - 06/1999	1
31236B - SUPPORT, RELEASE FORK
31236-35030	BU10#,112,12#,13#,14#..(175T,20T)..DSL..5F	05/1995 - 06/1999	1
31236-36060	BU212,222..6F;RZU100,XZU130,140..DSL,LPGB;BU102,212,222..20T..(LPGB,TD)..5F;BU102,112,132,142..MTM..(275T,30T)	05/1995 - 12/2999	1
31250 - DISC ASSY, CLUTCH
31250-37050	BU10#,112,12#,13#,14#,202,212,222..(175T,20T)..DSL..5F	05/1995 - 11/1996	1
31250-60311	XZU130,140	10/1995 - 05/1999	1
31250-37070	BU172,182;BU10#,112,12#,13#,14#,162,202,212,222..(175T,20T)..DSL..5F	11/1996 - 12/2999	1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002	RZU100..EFI,LPG;BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU140..MTM	05/1995 - 12/2999	1
90033-63028	XZU130,140	10/1995 - 05/1999	1
Common parts
90119-08026

BU140-TKMMS3 (1995)

(9505- )RZU100,XZU130,140..DSL,LPGB ; (9505-)BU102,112,132,142..275T,30T..5F

(9505- )BU172,182 ; (9505- )BU10#,112,12#,13#,14#,162,202,212,222..175T,20T..
