BU140-TKMMS (1995)
Toyota Dyna 200/Toyoace G25

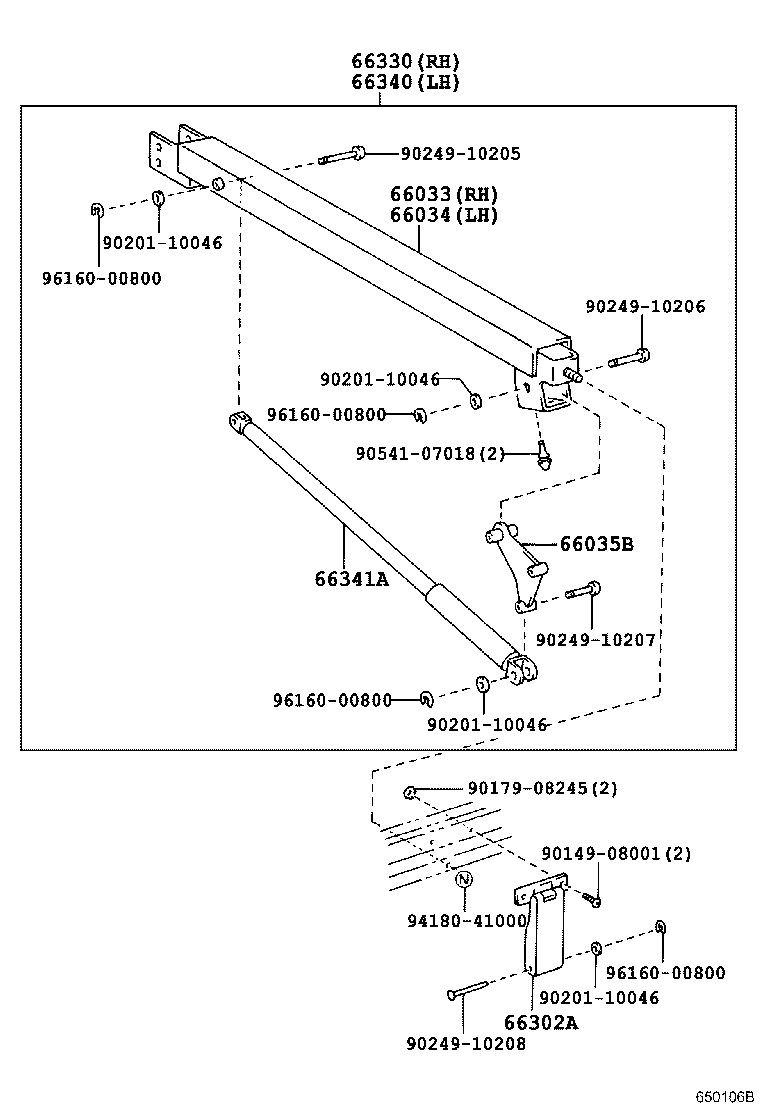

ILLUST NO. 2 OF 2(9610- )BU102..T4,T5..CBU ; (9610- )RZU100..TR..03S..CBU ; (9610- )BU10#,1
ｱﾘ(ｶﾙｶﾞﾙｹﾞ-ﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66033 - BRACKET SUB-ASSY, GATE HELPER, NO.3 | ||||
| 66033-37090 |
BU14#,182,202,212,222..(02S,03S)..CBU |
1 | ||
| 66033-37090 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
1 | ||
| 66034 - BRACKET SUB-ASSY, GATE HELPER, NO.3 LH | ||||
| 66034-37020 |
BU14#,182,202,212,222..(02S,03S)..CBU |
1 | ||
| 66034-37020 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
1 | ||
| 66035B - BELLCRANK SUB-ASSY, GATE HELPER | ||||
| 66035-37020 |
BU14#,182,202,212,222..(02S,03S)..CBU |
2 | ||
| 66035-37020 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 66302A - LINK SUB-ASSY, GATE HELPER | ||||
| 66302-37010 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 66302-37010 |
BU14#,182,202,212,222..(02S,03S)..CBU |
2 | ||
| 66330 - HELPER ASSY, GATE, RH | ||||
| 66330-37040 |
BU14#,182,212,222,RZU140,XZU140..(02S,03S)..CBU *** |
1 | ||
| 66340 - HELPER ASSY, GATE, LH | ||||
| 66340-37050 |
BU14#,182,212,222,RZU140,XZU140..(02S,03S)..CBU *** |
1 | ||
| 66341A - STAY, GATE HELPER | ||||
| 66341-37060 |
BU14#,182,212,222,RZU140,XZU140..(02S,03S)..CBU |
4 | ||
| Common parts | ||||
| 90149-08001 | ||||
| 90179-08245 | ||||
| 90201-10046 | ||||
| 90249-10205 | ||||
| 90249-10206 | ||||
| 90249-10207 | ||||
| 90249-10208 | ||||
| 90541-07018 | ||||
| 94180-41000 | ||||
| 96160-00800 | ||||

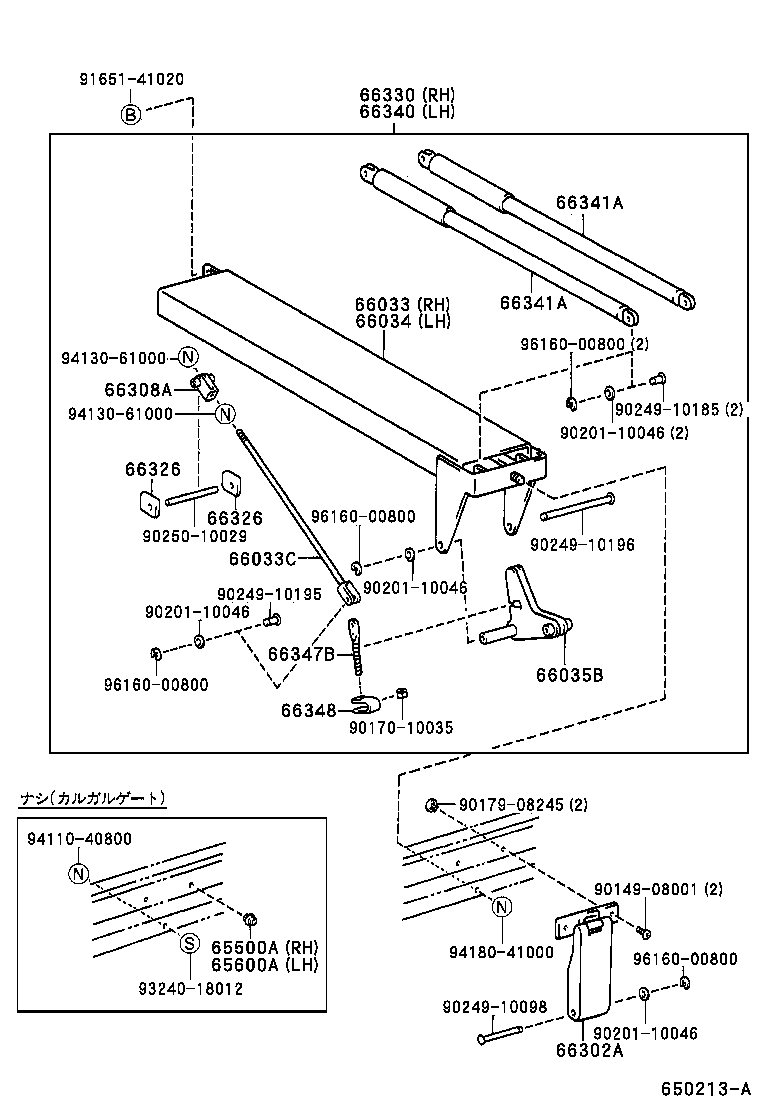

ILLUST NO. 2 OF 2(9505-9610)BU202..CBU ; (9505- )BU14#,182,212,222,RZU140,XZU140..02S,03S..CBU ;
ｱﾘ(ｶﾙｶﾞﾙｹﾞ-ﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500A - PLUG, HOLE(FOR REAR BODY SIDE PANEL) | ||||
| 90950-01753 |
BU212..T2..CBU..5F;BU212..TD..CBU..5F;BU142..30T..CBU..5F;BU142,212..03S..CBU..(4FC,6F);BU140,145,147,182,202,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 90950-01753 |
BU212..T2..CBU..5F;BU212..TD..CBU..5F;BU142..30T..CBU..5F;BU142,212..03S..CBU..(4FC,6F);BU140,145,147,182,202,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 90950-01753 |
BU212..TD..CBU;BU142..30T..CBU;BU142..CBU..4FC;BU212..T2..CBU..5F;BU140,182,202,222..CBU;BU142..(T2,T4)..CBU..5F;BU212..(T2,T3)..CBU..4FC |
2 | ||
| 90950-01753 |
BU212..TD..CBU;BU142..30T..CBU;BU142..CBU..4FC;BU212..T2..CBU..5F;BU140,182,202,222..CBU;BU142..(T2,T4)..CBU..5F;BU212..(T2,T3)..CBU..4FC |
2 | ||
| 65600A - PLUG, HOLE(FOR SIDE GATE, LH) | ||||
| 90950-01753 |
BU212..T4..CBU..5F;BU212..(T2,T3)..CBU;BU14#,182,202,222..(02S,03S)..CBU |
2 | ||
| 90950-01753 |
BU212..T4..CBU..5F;BU212..(T2,T3)..CBU;BU14#,182,202,222..(02S,03S)..CBU |
2 | ||
| 90950-01753 |
BU14#,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 90950-01753 |
BU14#,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 66033 - BRACKET SUB-ASSY, GATE HELPER, NO.3 | ||||
| 66033-37090 |
BU14#,182,202,212,222..(02S,03S)..CBU |
1 | ||
| 66033-37090 |
BU14#,182,202,212,222..(02S,03S)..CBU |
1 | ||
| 66033-37090 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
1 | ||
| 66033-37090 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
1 | ||
| 66033C - ROD SUB-ASSY, GATE HELPER TENSION | ||||
| 66033-37100 |
BU14#,182,202,212,222..(02S,03S)..CBU |
2 | ||
| 66033-37100 |
BU14#,182,202,212,222..(02S,03S)..CBU |
2 | ||
| 66033-37100 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 66033-37100 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 66034 - BRACKET SUB-ASSY, GATE HELPER, NO.3 LH | ||||
| 66034-37020 |
BU14#,182,202,212,222..(02S,03S)..CBU |
1 | ||
| 66034-37020 |
BU14#,182,202,212,222..(02S,03S)..CBU |
1 | ||
| 66034-37020 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
1 | ||
| 66034-37020 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
1 | ||
| 66035B - BELLCRANK SUB-ASSY, GATE HELPER | ||||
| 66035-37020 |
BU14#,182,202,212,222..(02S,03S)..CBU |
2 | ||
| 66035-37020 |
BU14#,182,202,212,222..(02S,03S)..CBU |
2 | ||
| 66035-37020 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 66035-37020 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 66302A - LINK SUB-ASSY, GATE HELPER | ||||
| 66302-37010 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 66302-37010 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 66302-37010 |
BU14#,182,202,212,222..(02S,03S)..CBU |
2 | ||
| 66302-37010 |
BU14#,182,202,212,222..(02S,03S)..CBU |
2 | ||
| 66308A - END SUB-ASSY, GATE HELPER ROD, NO.2 | ||||
| 66308-37010 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 66308-37010 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 66308-37010 |
BU14#,182,202,212,222..(02S,03S)..CBU |
2 | ||
| 66308-37010 |
BU14#,182,202,212,222..(02S,03S)..CBU |
2 | ||
| 66326 - SLIDER, ROD CONTROL | ||||
| 66326-37010 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
4 | ||
| 66326-37010 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
4 | ||
| 66326-37010 |
BU14#,182,202,212,222..(02S,03S)..CBU |
4 | ||
| 66326-37010 |
BU14#,182,202,212,222..(02S,03S)..CBU |
4 | ||
| 66326 - SLIDER, ROD CONTROL | ||||
| 66326-37010 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
4 | ||
| 66326-37010 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
4 | ||
| 66326-37010 |
BU14#,182,202,212,222..(02S,03S)..CBU |
4 | ||
| 66326-37010 |
BU14#,182,202,212,222..(02S,03S)..CBU |
4 | ||
| 66330 - HELPER ASSY, GATE, RH | ||||
| 66330-37040 |
BU14#,182,212,222,RZU140,XZU140..(02S,03S)..CBU *** |
1 | ||
| 66330-37040 |
BU14#,182,212,222,RZU140,XZU140..(02S,03S)..CBU *** |
1 | ||
| 66340 - HELPER ASSY, GATE, LH | ||||
| 66340-37050 |
BU14#,182,212,222,RZU140,XZU140..(02S,03S)..CBU *** |
1 | ||
| 66340-37050 |
BU14#,182,212,222,RZU140,XZU140..(02S,03S)..CBU *** |
1 | ||
| 66341A - STAY, GATE HELPER | ||||
| 66341-37060 |
BU14#,182,212,222,RZU140,XZU140..(02S,03S)..CBU |
4 | ||
| 66341-37060 |
BU14#,182,212,222,RZU140,XZU140..(02S,03S)..CBU |
4 | ||
| 66341A - STAY, GATE HELPER | ||||
| 66341-37060 |
BU14#,182,212,222,RZU140,XZU140..(02S,03S)..CBU |
4 | ||
| 66341-37060 |
BU14#,182,212,222,RZU140,XZU140..(02S,03S)..CBU |
4 | ||
| 66347B - BOLT, GATE HELPER BELLCRANK ADJUST | ||||
| 66347-37020 |
BU14#,182,202,212,222..(02S,03S)..CBU |
2 | ||
| 66347-37020 |
BU14#,182,202,212,222..(02S,03S)..CBU |
2 | ||
| 66347-37020 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 66347-37020 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 66348 - RETAINER, GATE HELPER BELLCRANK ADJUST BOLT | ||||
| 66348-37010 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 66348-37010 |
BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..(02S,03S)..CBU |
2 | ||
| 66348-37010 |
BU14#,182,202,212,222..(02S,03S)..CBU |
2 | ||
| 66348-37010 |
BU14#,182,202,212,222..(02S,03S)..CBU |
2 | ||
| Common parts | ||||
| 90149-08001 | ||||
| 90170-10035 | ||||
| 90179-08245 | ||||
| 90201-10046 | ||||
| 90249-10098 | ||||
| 90249-10185 | ||||
| 90249-10195 | ||||
| 90249-10196 | ||||
| 90250-10029 | ||||
| 91651-41020 | ||||
| 93240-18012 | ||||
| 94110-40800 | ||||
| 94130-61000 | ||||
| 94180-41000 | ||||
| 96160-00800 | ||||

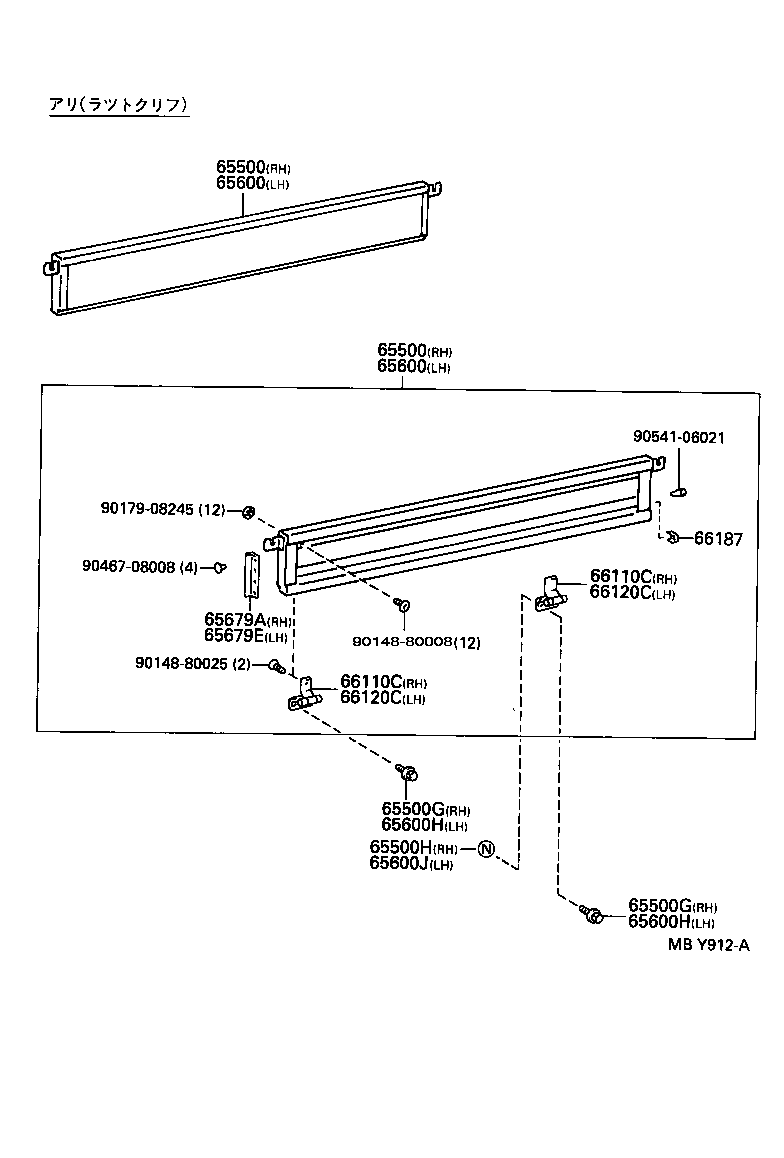

ILLUST NO. 1 OF 2(9505- )RZU100..TR..EFI,LPG ; (9505- )BU10#,112,13#,14#,162,172,182,202,212,2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-37300 |
BU14#,RZU140..03S..CBU |
1 | ||
| 65500-37290 |
BU14#,RZU140..03S..CBU ﾅｼ(ｶﾙｶﾞﾙ ｹﾞ-ﾄ) |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-37300 |
BU14#,RZU140..03S..CBU |
1 | ||
| 65500-37290 |
BU14#,RZU140..03S..CBU ﾅｼ(ｶﾙｶﾞﾙ ｹﾞ-ﾄ) |
1 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 90119-08464 |
BU14#,182,212,RZU140,XZU140..(02S,03S)..CBU |
14 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 90119-08464 |
BU14#,182,212,RZU140,XZU140..(02S,03S)..CBU |
14 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-37290 |
BU14#,RZU140..03S..CBU ﾅｼ(ｶﾙｶﾞﾙ ｹﾞ-ﾄ) |
1 | ||
| 65600-37300 |
BU14#,RZU140..03S..CBU |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-37290 |
BU14#,RZU140..03S..CBU ﾅｼ(ｶﾙｶﾞﾙ ｹﾞ-ﾄ) |
1 | ||
| 65600-37300 |
BU14#,RZU140..03S..CBU |
1 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 90119-08464 |
BU14#,182,212,RZU140,XZU140..(02S,03S)..CBU |
14 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 90119-08464 |
BU14#,182,212,RZU140,XZU140..(02S,03S)..CBU |
14 | ||
| 65679A - SEAL, SIDE GATE | ||||
| 65679-37010 |
BU142..06S..IV3;RZU100..TR..LPG..IV3;BU10#,112,14#,162,172,182,202,212,222,RZU100..(T2,T3,T4,T5,TW1,TW4)..CBU |
1 | ||
| 65679-37010 |
BU147..06S..IV3;RZU100..TR..LPG..IV3;BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU |
1 | ||
| 65679E - SEAL, SIDE GATE | ||||
| 65679-37010 |
BU142..06S..IV3;RZU100..TR..LPG..IV3;BU10#,112,14#,162,172,182,202,212,222,RZU100..(T2,T3,T4,T5,TW1,TW4)..CBU |
1 | ||
| 65679-37010 |
BU147..06S..IV3;RZU100..TR..LPG..IV3;BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65050-37080 |
BU212..T4..CBU;BU14#,182,RZU140,XZU140..(02S,03S)..CBU 1ST,7TH |
2 | ||
| 65010-37040 |
BU212..T4..CBU;BU14#,182,RZU140,XZU140..(02S,03S)..CBU 2ND,3RD,4TH,5TH,6TH |
5 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65050-37080 |
BU212..T4..CBU;BU14#,182,RZU140,XZU140..(02S,03S)..CBU 1ST,7TH |
2 | ||
| 65010-37040 |
BU212..T4..CBU;BU14#,182,RZU140,XZU140..(02S,03S)..CBU 2ND,3RD,4TH,5TH,6TH |
5 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65050-37080 |
BU212..T4..CBU;BU14#,182,RZU140,XZU140..(02S,03S)..CBU 1ST,7TH |
2 | ||
| 65010-37040 |
BU212..T4..CBU;BU14#,182,RZU140,XZU140..(02S,03S)..CBU 2ND,3RD,4TH,5TH,6TH |
5 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65050-37080 |
BU212..T4..CBU;BU14#,182,RZU140,XZU140..(02S,03S)..CBU 1ST,7TH |
2 | ||
| 65010-37040 |
BU212..T4..CBU;BU14#,182,RZU140,XZU140..(02S,03S)..CBU 2ND,3RD,4TH,5TH,6TH |
5 | ||
| 66187 - HANDLE, SIDE GATE LATCH, CENTER NO.2 | ||||
| 66187-37010 |
BU142..06S..IV3;BU10#,112,14#,162,172,182,202,212,222,RZU100..(T2,T3,T4,T5,TW1,TW4)..CBU |
1 | ||
| 66187-37010 |
BU147..06S..IV3;BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU |
1 | ||
| Common parts | ||||
| 90148-80008 | ||||
| 90148-80025 | ||||
| 90179-08245 | ||||
| 90467-08008 | ||||
| 90541-06021 | ||||
