Toyota Dyna 200/toyoace g25 BU140 REAR BODY GUARD FRAME & TAIL GATE

Manufacturers Home
Toyota
JP
DYNA 200/TOYOACE G25
BU140-TGMMS (1995)
6553 - REAR BODY GUARD FRAME & TAIL GATE

BU140-TGMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Aug 1997

Engine 3B

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

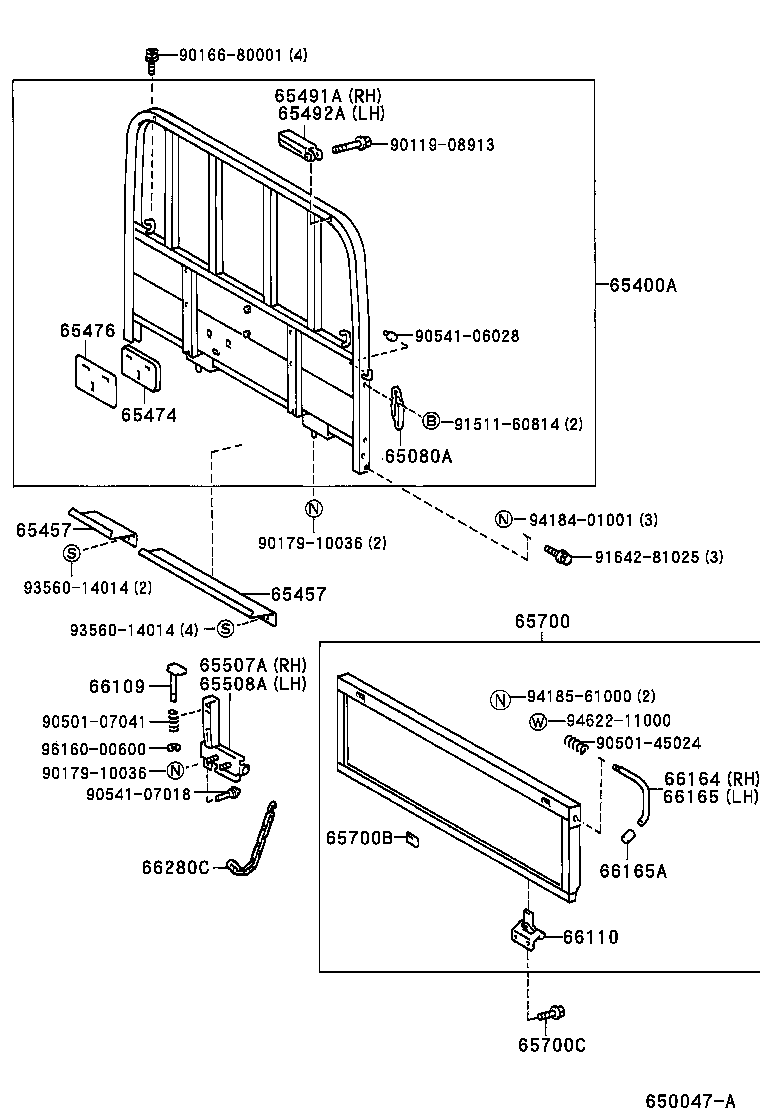

(9505- )BU102..ST..CBU ; (9505- )BU102..T2,T4,T5,TW4..CBU ; (9505- )BU100,

Click highlighted areas on diagram

Part #	Description	Period	Qty
65080A - HANDLE ASSY, SIDE GATE LATCH
65080-92701	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	2
65080-92701	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	2
65400A - GUARD ASSY, REAR BODY
65400-37520	BU14#..T2..CBU	05/1995 - 05/1999	1
65400-37520	BU14#..T2..CBU	05/1995 - 05/1999	1
65457 - PLATE, BAFFLE DUST REAR BODY
65457-92703	BU102..T3..WT..CBU;BU13#,14#,172,RZU140..(03S,05S,06S)..CBU	05/1995 - 12/2999	2
65457-92703	BU102..T3..WT..CBU;BU13#,14#,172,RZU140..(03S,05S,06S)..CBU	05/1995 - 12/2999	2
65457 - PLATE, BAFFLE DUST REAR BODY
65457-92703	BU102..T3..WT..CBU;BU13#,14#,172,RZU140..(03S,05S,06S)..CBU	05/1995 - 12/2999	2
65457-92703	BU102..T3..WT..CBU;BU13#,14#,172,RZU140..(03S,05S,06S)..CBU	05/1995 - 12/2999	2
65507A - SUPPORT SUB-ASSY, CORNER, RH
65507-37040	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	1
65507-37040	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	1
65508A - SUPPORT SUB-ASSY, CORNER, LH
65508-37040	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	1
65508-37040	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	1
65700 - GATE ASSY, REAR BODY TAIL
65700-37070	BU102..T3..WT..CBU;BU13#,14#,172,182,RZU140,XZU140..CBU	05/1995 - 12/2999	1
65700-37070	BU102..T3..WT..CBU;BU13#,14#,172,182,RZU140,XZU140..CBU	05/1995 - 12/2999	1
65700B - PLUG, HOLE(FOR TAIL GATE)
90950-01430	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	2
90950-01430	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	2
65700C - BOLT, W/WASHER(FOR TAIL GATE)
90119-08464	BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..CBU	05/1995 - 12/2999	8
90119-08464	BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..CBU	05/1995 - 12/2999	8
66109 - HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER
66193-37010	BU162..03S..CBU;BU10#,112,13#,14#,172,182,202,212,222,RZU100,140,XZU140..(DM2,DM5,T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	2
66193-37010	BU162..03S..CBU;BU10#,112,13#,14#,172,182,202,212,222,RZU100,140,XZU140..(DM2,DM5,T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	2
66110 - HINGE ASSY, TAIL GATE
66110-37010	BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..CBU	05/1995 - 12/2999	4
66110-37010	BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..CBU	05/1995 - 12/2999	4
66164 - HANDLE, TAIL GATE LATCH, RH
66264-37010	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	1
66264-37010	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	1
66165 - HANDLE, TAIL GATE LATCH, LH
66265-37010	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	1
66265-37010	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	1
66165A - CAP, GATE LATCH HANDLE
66165-92701	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	2
66165-92701	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	2
66280C - CHAIN ASSY, TAIL GATE
66280-37020	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	2
66280-37020	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	2
Common parts
90119-08913
90166-80001
90179-10036
90501-07041
90501-45024
90541-06028
90541-07018
91511-60814
91642-81025
93560-14014
94184-01001
94185-61000
94622-11000
96160-00600

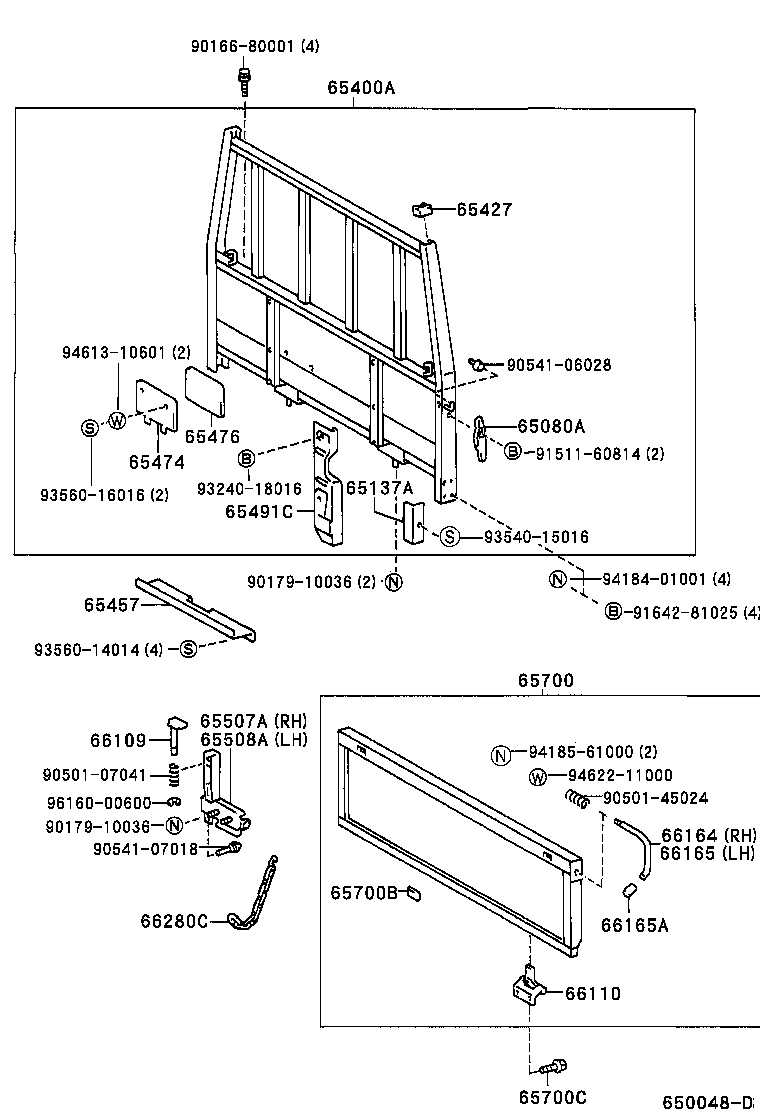

(9505- )BU102..T3..WT..CBU ; (9505- )BU13#,14#,172,182,RZU140,XZU140 ; (9610-

Click highlighted areas on diagram

Part #	Description	Period	Qty
65080A - HANDLE ASSY, SIDE GATE LATCH
65080-92701	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	2
65400A - GUARD ASSY, REAR BODY
65400-37520	BU14#..T2..CBU	05/1995 - 05/1999	1
65427 - COVER, GUARD FRAME
65427-92800	BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..CBU	05/1995 - 12/2999	2
65457 - PLATE, BAFFLE DUST REAR BODY
65457-92703	BU102..T3..WT..CBU;BU13#,14#,172,RZU140..(03S,05S,06S)..CBU	05/1995 - 12/2999	2
65491C - PROTECTOR, GUARD FLAME, LOWER
65482-37010	BU102..T3..WT..CBU;BU13#,14#,172,182,222,RZU140,XZU140..CBU 左側	05/1995 - 12/2999	1
65481-37010	BU102..T3..WT..CBU;BU13#,14#,172,182,222,RZU140,XZU140..CBU 右側	05/1995 - 12/2999	1
65507A - SUPPORT SUB-ASSY, CORNER, RH
65507-37040	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	1
65508A - SUPPORT SUB-ASSY, CORNER, LH
65508-37040	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	1
65700 - GATE ASSY, REAR BODY TAIL
65700-37070	BU102..T3..WT..CBU;BU13#,14#,172,182,RZU140,XZU140..CBU	05/1995 - 12/2999	1
65700B - PLUG, HOLE(FOR TAIL GATE)
90950-01430	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	2
65700C - BOLT, W/WASHER(FOR TAIL GATE)
90119-08464	BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..CBU	05/1995 - 12/2999	8
66109 - HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER
66193-37010	BU162..03S..CBU;BU10#,112,13#,14#,172,182,202,212,222,RZU100,140,XZU140..(DM2,DM5,T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	2
66110 - HINGE ASSY, TAIL GATE
66110-37010	BU102..T3..WT..CBU;BU13#,14#,172,182,202,212,222,RZU140,XZU140..CBU	05/1995 - 12/2999	4
66164 - HANDLE, TAIL GATE LATCH, RH
66264-37010	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	1
66165 - HANDLE, TAIL GATE LATCH, LH
66265-37010	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	1
66165A - CAP, GATE LATCH HANDLE
66165-92701	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	2
66280C - CHAIN ASSY, TAIL GATE
66280-37020	BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(T2,T3,T4,T5,TW1,TW4)..CBU	05/1995 - 12/2999	2
Common parts
90166-80001
90179-10036
90501-07041
90501-45024
90541-06028
90541-07018
91511-60814
91642-81025
93240-18016
93540-15016
93560-14014
93560-16016
94184-01001
94185-61000
94613-10601
94622-11000
96160-00600

BU140-TGMMS (1995)

(9505- )BU102..ST..CBU ; (9505- )BU102..T2,T4,T5,TW4..CBU ; (9505- )BU100,

(9505- )BU102..T3..WT..CBU ; (9505- )BU13#,14#,172,182,RZU140,XZU140 ; (9610-
