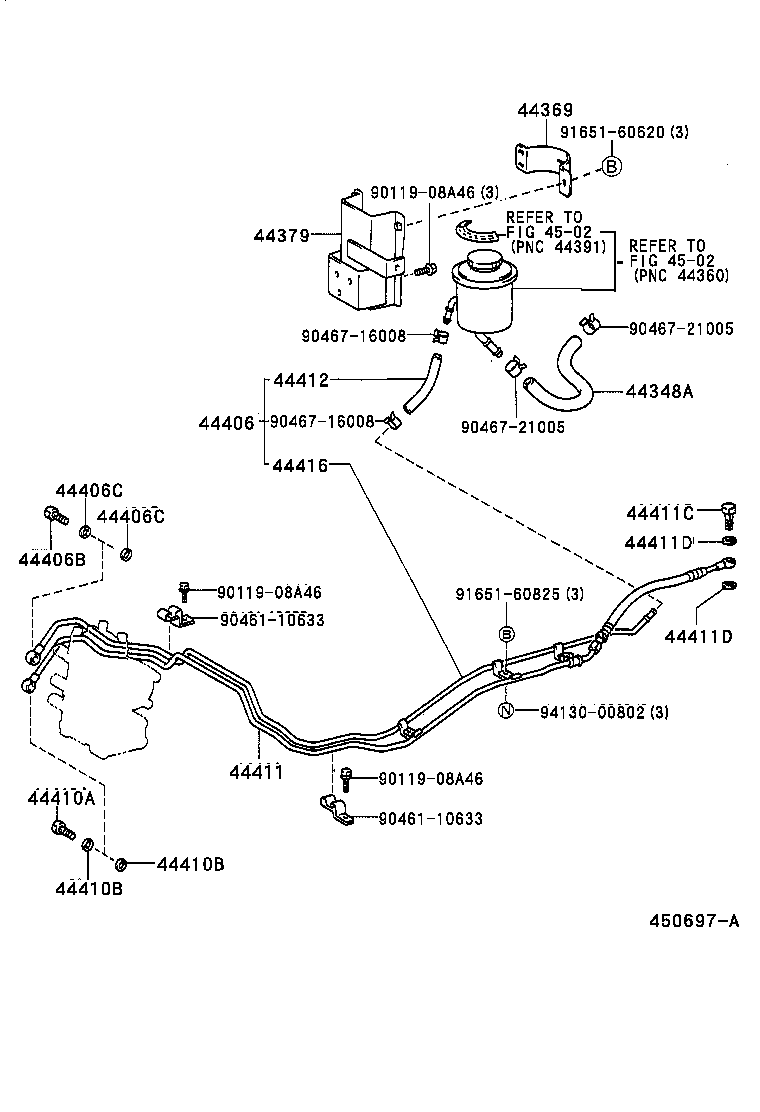

BU140-TGMMS (1995)
Toyota Dyna 200/Toyoace G25
(9510- )XZU130,140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-36210 |
BU100,105,120,140,145 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36020 |
BU100,120,140 |
2 | ||
| 44379 - BRACKET, OIL RESERVOIR, NO.2 | ||||
| 44379-37020 |
BU100,105,120,140,145 |
1 | ||
| 44406B - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-14003 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-14003 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37030 |
BU10#,112,12#,13#,14#,RZU100..DSL,LPGB |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
BU100,105,120,140,145,RZU100,XZU130,140..DSL,LPG |
1 | ||
| 90404-16024 |
BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,140..DSL,EFI,LPGB,TD |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37070 |
BU120;BU100..T3..ST;BU100,140..T1,T2,T4,TW2,TW4 |
1 | ||
| 44416-37100 |
RZU100,140..(DM5,T2,T3,T4,TW1,TW4)..20T |
1 | ||
| 44416-37071 |
BU120;BU100..T3..ST;BU100,140..T1,T2,T4,TW2,TW4 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-10633 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91651-60620 | ||||
| 91651-60825 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 4502 | ||||

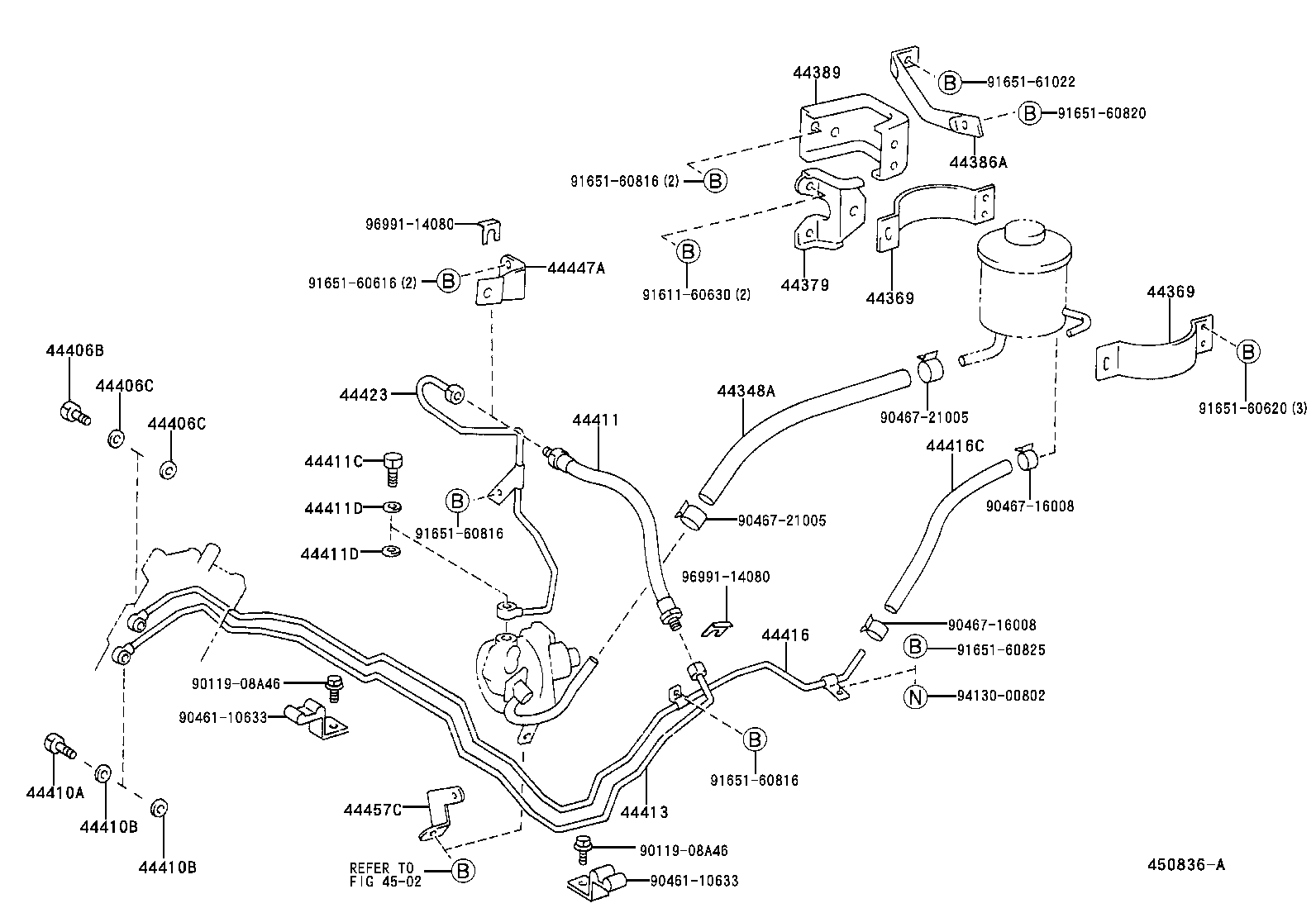

(9505- )BU100,120,140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-36210 |
BU100,105,120,140,145 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36020 |
BU100,120,140 |
2 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36020 |
BU100,120,140 |
2 | ||
| 44379 - BRACKET, OIL RESERVOIR, NO.2 | ||||
| 44379-37020 |
BU100,105,120,140,145 |
1 | ||
| 44386A - SUPPORT, OIL RESERVOIR | ||||
| 44386-36100 |
BU100,105,120,140,145 |
1 | ||
| 44389 - BRACKET, OIL RESERVOIR, NO.3 | ||||
| 44389-36060 |
BU100,105,120,140,145 |
1 | ||
| 44406B - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-14003 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-14003 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37030 |
BU10#,112,12#,13#,14#,RZU100..DSL,LPGB |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
BU100,105,120,140,145,RZU100,XZU130,140..DSL,LPG |
1 | ||
| 90404-16024 |
BU102,107,112,122,13#,142,147,162,172,182,202,212,222,RZU100,140..DSL,EFI,LPGB,TD |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140 |
2 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-37020 |
BU100,102..T3..ST;BU112,12#,132,RZU140..(TR,V)..20T;RZU100..(DM5,T2,T3,T4,TW1,TW4)..20T;BU100,102,140,142..(DM5,T1,T2,T4,TW2,TW4)..(175T,20T) |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37070 |
BU120;BU100..T3..ST;BU100,140..T1,T2,T4,TW2,TW4 |
1 | ||
| 44416-37100 |
RZU100,140..(DM5,T2,T3,T4,TW1,TW4)..20T |
1 | ||
| 44416-37071 |
BU120;BU100..T3..ST;BU100,140..T1,T2,T4,TW2,TW4 |
1 | ||
| 44416C - HOSE(FOR RETURN TUBE TO RESERVIOR) | ||||
| 90445-18144 |
BU10#,12#,13#,14#,162,172,182..DSL |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-37040 |
BU10#,112,12#,132,14# |
1 | ||
| 44423-37041 |
BU10#,112,12#,13#,14#,RZU100..DSL,LPGB |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37030 |
BU10#,112,12#,13#,14#,RZU100..DSL,LPGB |
1 | ||
| 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 | ||||
| 44457-36040 |
BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100..DSL,LPGB,TD |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-10633 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91611-60630 | ||||
| 91651-60616 | ||||
| 91651-60620 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 91651-60825 | ||||
| 91651-61022 | ||||
| 94130-00802 | ||||
| 96991-14080 | ||||
| Linked diagrams | ||||
| 4502 | ||||
