Toyota Dyna 200/toyoace g25 BU140 RADIATOR & WATER OUTLET

BU140-TGMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Aug 1997

Engine 3B

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

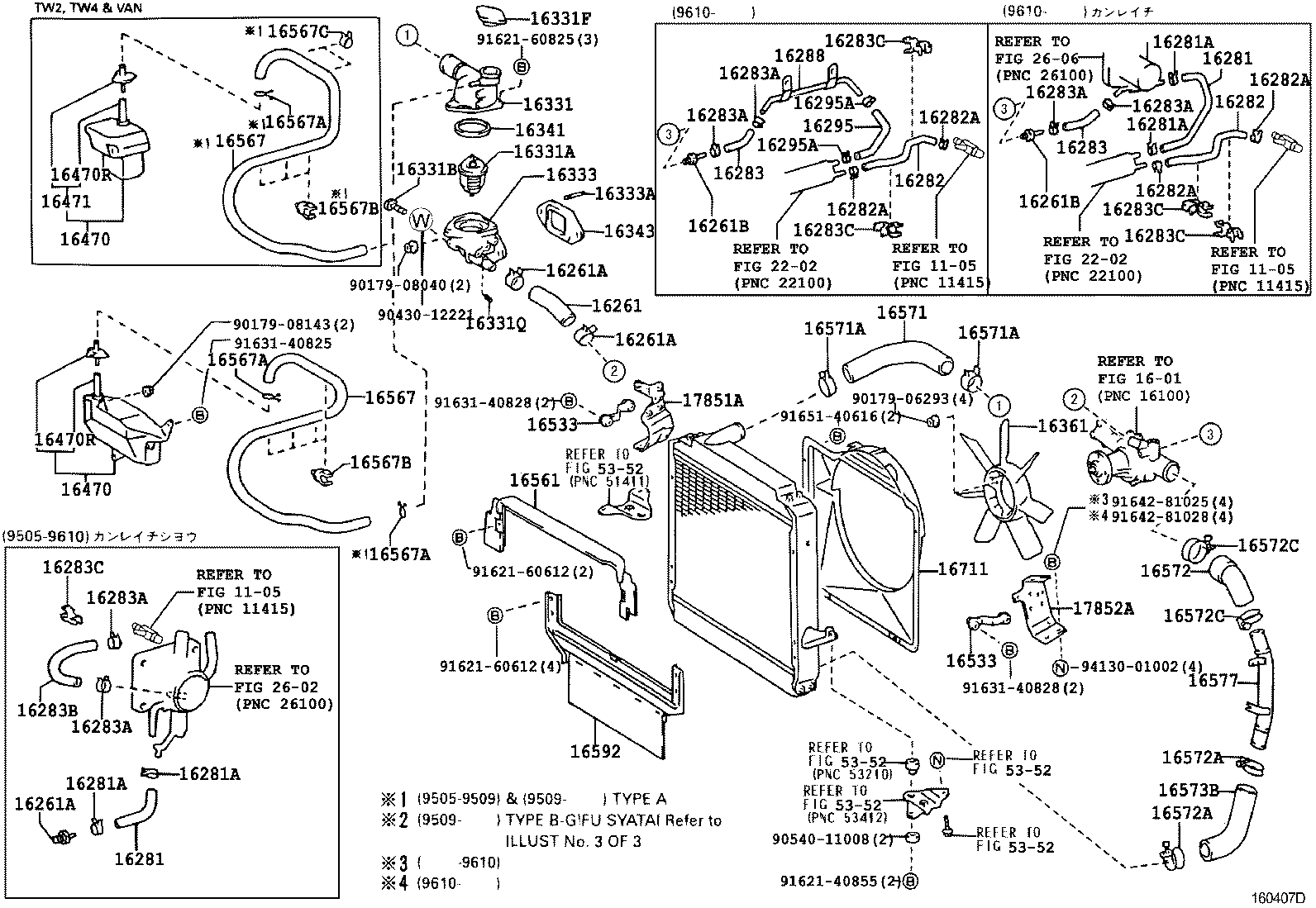

ILLUST NO. 1 OF 3(9505-9906)3B..BU100,120,140

Click highlighted areas on diagram

Part #	Description	Period	Qty
16261 - HOSE, WATER BY-PASS
16261-56012	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	05/1995 - 12/2999	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-28004	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	05/1995 - 05/1997	2
90467-28004	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	05/1997 - 08/1997	2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-28004	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	05/1995 - 05/1997	2
90467-28004	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	05/1997 - 08/1997	2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-28004	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	05/1995 - 05/1997	2
90467-28004	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	05/1997 - 08/1997	2
16261B - UNION(FOR WATER BY-PASS HOSE)
90404-52028	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	10/1996 - 12/2999	1
90404-52028	3B..BU100,120,140 ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 10/1996	1
16261B - UNION(FOR WATER BY-PASS HOSE)
90404-52028	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	10/1996 - 12/2999	1
90404-52028	3B..BU100,120,140 ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 10/1996	1
16281 - HOSE, WATER BY-PASS, NO.4
90445-16052	3B..BU100,120,140	05/1995 - 10/1996	1
16281-58060	3B..BU100,105,120,140,145	10/1996 - 12/2999	1
16281 - HOSE, WATER BY-PASS, NO.4
90445-16052	3B..BU100,120,140	05/1995 - 10/1996	1
16281-58060	3B..BU100,105,120,140,145	10/1996 - 12/2999	1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-15022	15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	05/1995 - 12/2999	2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-15022	15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	05/1995 - 12/2999	2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-15022	15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	05/1995 - 12/2999	2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-15022	15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	05/1995 - 12/2999	2
16282 - HOSE, WATER BY-PASS, NO.5
16282-58010	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	10/1996 - 12/2999	1
16282 - HOSE, WATER BY-PASS, NO.5
16282-58010	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	10/1996 - 12/2999	1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
90467-15022	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	10/1996 - 12/2999	2
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
90467-15022	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	10/1996 - 12/2999	2
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
90467-15022	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	10/1996 - 12/2999	2
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
90467-15022	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	10/1996 - 12/2999	2
16283 - HOSE, WATER BY-PASS, NO.6
16283-56010	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297..CBU,IV3	10/1996 - 12/2999	1
90445-16052	3B..BU100,105,120,140,145 長さ=210,ｶﾝﾚｲﾁｼﾖｳ	10/1996 - 12/2999	1
16283 - HOSE, WATER BY-PASS, NO.6
16283-56010	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297..CBU,IV3	10/1996 - 12/2999	1
90445-16052	3B..BU100,105,120,140,145 長さ=210,ｶﾝﾚｲﾁｼﾖｳ	10/1996 - 12/2999	1
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
90467-15022	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	05/1995 - 12/2999	2
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
90467-15022	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	05/1995 - 12/2999	2
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
90467-15022	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	05/1995 - 12/2999	2
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
90467-15022	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	05/1995 - 12/2999	2
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
90467-15022	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	05/1995 - 12/2999	2
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
90467-15022	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	05/1995 - 12/2999	2
16283B - HOSE, WATER BY-PASS
90445-16051	3B..BU100,120,140 ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 10/1996	1
16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
90464-00518	3B..BU100,120,140 ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 10/1996	1
90464-00769	3B..BU100,105,120,140,145 INJECTION PIPE SIDE	10/1996 - 12/2999	1
90464-00518	3B..BU100,105,120,140,145 OIL LEVEL GAGE SIDE	10/1996 - 12/2999	1
16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
90464-00518	3B..BU100,120,140 ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 10/1996	1
90464-00769	3B..BU100,105,120,140,145 INJECTION PIPE SIDE	10/1996 - 12/2999	1
90464-00518	3B..BU100,105,120,140,145 OIL LEVEL GAGE SIDE	10/1996 - 12/2999	1
16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
90464-00518	3B..BU100,120,140 ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 10/1996	1
90464-00769	3B..BU100,105,120,140,145 INJECTION PIPE SIDE	10/1996 - 12/2999	1
90464-00518	3B..BU100,105,120,140,145 OIL LEVEL GAGE SIDE	10/1996 - 12/2999	1
16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
90464-00518	3B..BU100,120,140 ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 10/1996	1
90464-00769	3B..BU100,105,120,140,145 INJECTION PIPE SIDE	10/1996 - 12/2999	1
90464-00518	3B..BU100,105,120,140,145 OIL LEVEL GAGE SIDE	10/1996 - 12/2999	1
16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
90464-00518	3B..BU100,120,140 ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 10/1996	1
90464-00769	3B..BU100,105,120,140,145 INJECTION PIPE SIDE	10/1996 - 12/2999	1
90464-00518	3B..BU100,105,120,140,145 OIL LEVEL GAGE SIDE	10/1996 - 12/2999	1
16288 - PIPE, WATER BY-PASS, NO.4
16288-58030	3B..BU100,105,120,140,145	10/1996 - 12/2999	1
16295 - HOSE, WATER BY-PASS, NO.7
16295-58010	3B..BU100,105,120,140,145	10/1996 - 12/2999	1
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
90467-15022	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297..CBU,IV3	10/1996 - 12/2999	2
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
90467-15022	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297..CBU,IV3	10/1996 - 12/2999	2
16331 - OUTLET, WATER
16331-58090	15B#,3B..BU10#,112,12#,13#,14#,202,212,222	05/1995 - 12/2999	1
16331A - THERMOSTAT
90916-03102	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	05/1995 - 12/2999	1
16331B - PLUG(FOR WATER OUTLET)
90341-12006	15BF..BU102..WT;15BF,15BFT,3B..BU100,107,112,12#,13#,14#,162,172,182,202,212,222,297	03/1997 - 04/1997	1
90341-12006	15BF..BU102..WT;15B#,3B..BU100,107,112,12#,13#,14#,162,172,182,202,212,222,297	04/1997 - 08/1997	1
16331F - CAP SUB-ASSY(FOR WATER OUTLET)
16401-71010	15B#,3B..BU10#,112,12#,132,14#,162,172,182,202,212,222	05/1995 - 09/1996	1
16401-54750	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	09/1996 - 08/1997	1
16331Q - PLUG(FOR WATER OUTLET)
90345-54005	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	05/1995 - 12/2999	1
16333 - HOUSING, WATER OUTLET
16333-58080	15BF,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	03/1997 - 04/1997	1
16333-58050	15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	05/1995 - 03/1997	1
16333-58080	15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	04/1997 - 12/2999	1
16333A - BOLT, STUD(FOR WATER OUTLET HOUSING)
92112-60832	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	05/1995 - 12/2999	2
16341 - GASKET, WATER OUTLET
16341-56030	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	05/1995 - 12/2999	1
16343 - GASKET, WATER OUTLET HOUSING
16343-56023	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	05/1995 - 12/2999	1
16361 - FAN
16361-56070	15B#,3B..BU10#,112,12#,13#,14#,202,212,222	05/1995 - 06/1999	1
16470 - TANK ASSY, RADIATOR RESERVE
16470-58070	15B#,3B..BU10#,112,13#,14#,162,172,182,202,212,222..02S,03S,05S	05/1995 - 12/2999	1
16470 - TANK ASSY, RADIATOR RESERVE
16470-58070	15B#,3B..BU10#,112,13#,14#,162,172,182,202,212,222..02S,03S,05S	05/1995 - 12/2999	1
16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK)
90445-12078	15B#,3B..BU10#,112,132,14#,162,172,182,202,212,222..02S,03S,05S	05/1995 - 11/1995	1
90445-12078	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	11/1995 - 12/2999	1
16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK)
90445-12078	15B#,3B..BU10#,112,132,14#,162,172,182,202,212,222..02S,03S,05S	05/1995 - 11/1995	1
90445-12078	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	11/1995 - 12/2999	1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-58050	15B#,3B..BU10#,112,132,14#,162,172,182,202,212,222..02S,03S,05S	05/1995 - 11/1995	1
16405-58050	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	11/1995 - 12/2999	1
16533 - SUPPORT, RADIATOR, UPPER
16505-58010	15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182	05/1995 - 12/2999	2
16533 - SUPPORT, RADIATOR, UPPER
16505-58010	15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182	05/1995 - 12/2999	2
16561 - SEAL, RADIATOR TO SUPPORT, NO.1
16561-58010	15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182	05/1995 - 12/2999	1
16567 - HOSE(FOR RADIATOR RESERVE TANK)
16567-58020	15BF,15BFP,3B..BU10#,112,13#,14#..03S	05/1995 - 12/2999	1
16567 - HOSE(FOR RADIATOR RESERVE TANK)
16567-58020	15BF,15BFP,3B..BU10#,112,13#,14#..03S	05/1995 - 12/2999	1
16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	15B#,3B..BU10#,112,12#,132,14#,162,172,182,202,212,222	05/1995 - 09/1995	2
90467-11085	15BF,15BFT..BU212..03S;15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,222	09/1995 - 12/2999	2
16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	15B#,3B..BU10#,112,12#,132,14#,162,172,182,202,212,222	05/1995 - 09/1995	2
90467-11085	15BF,15BFT..BU212..03S;15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,222	09/1995 - 12/2999	2
16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	15B#,3B..BU10#,112,12#,132,14#,162,172,182,202,212,222	05/1995 - 09/1995	2
90467-11085	15BF,15BFT..BU212..03S;15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,222	09/1995 - 12/2999	2
16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2)
90469-12009	15B#,3B..BU10#,112,132,14#,162,172,182,202,212,222..02S,03S,05S	05/1995 - 09/1995	4
90469-12009	15BFT..BU212;15BF..BU212..07S..5F;15B#,3B..BU10#,112,13#,14#,162,172,182,202,212,222..(ALV,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TW1)..(02S,03S,05S)	09/1995 - 12/2999	4
16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2)
90469-12009	15B#,3B..BU10#,112,132,14#,162,172,182,202,212,222..02S,03S,05S	05/1995 - 09/1995	4
90469-12009	15BFT..BU212;15BF..BU212..07S..5F;15B#,3B..BU10#,112,13#,14#,162,172,182,202,212,222..(ALV,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5,TW1)..(02S,03S,05S)	09/1995 - 12/2999	4
16571 - HOSE, RADIATOR, INLET
16571-58080	15BF,15BFP,3B..BU10#,112,12#,13#,14#	05/1995 - 12/2999	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-42001	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	05/1995 - 12/2999	2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-42001	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	05/1995 - 12/2999	2
16572 - HOSE, RADIATOR, OUTLET
16572-56091	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 WATER PUMP SIDE	05/1995 - 12/2999	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510	15BF..BU172;15B#,3B..BU100,102,112,12#,132,140,142,162,182,202,212,222..CBU,IV3	05/1995 - 08/1997	2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510	15BF..BU172;15B#,3B..BU100,102,112,12#,132,140,142,162,182,202,212,222..CBU,IV3	05/1995 - 08/1997	2
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
96111-10490	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 RADIATOR PIPE SIDE	05/1995 - 05/1997	1
96111-10570	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 WATER PUMP SIDE	05/1995 - 05/1997	1
96111-10490	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 RADIATOR PIPE SIDE	05/1997 - 08/1997	1
96111-10570	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 WATER PUMP SIDE	05/1997 - 08/1997	1
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
96111-10490	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 RADIATOR PIPE SIDE	05/1995 - 05/1997	1
96111-10570	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 WATER PUMP SIDE	05/1995 - 05/1997	1
96111-10490	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222 RADIATOR PIPE SIDE	05/1997 - 08/1997	1
96111-10570	15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 WATER PUMP SIDE	05/1997 - 08/1997	1
16573B - HOSE, RADIATOR, NO.3
16573-58040	15BF,15BFP,3B..BU100,102,112,12#,132,140,142..CBU,IV3	05/1995 - 12/2999	1
16577 - PIPE, RADIATOR, NO.7
16577-58040	15BF,15BFT,3B..BU10#,112,12#,13#,14#,202,212,222	05/1995 - 12/2999	1
16592 - GUIDE, RADIATOR AIR, NO.3
16592-58030	3B..BU100,120,140;15BF..BU102,112,132,142..4FC	05/1995 - 12/2999	1
16711 - SHROUD, FAN
16711-58120	15BF,15BFP,3B..BU100,102,112,12#,132,140,142	05/1995 - 12/2999	1
17851A - BRACKET, RADIATOR SUPPORT, NO.1
17851-58011	15BF,15BFP,3B..BU100,102,112,12#,132,140,142,162,172,182	05/1995 - 06/1999	1
17852A - BRACKET, RADIATOR SUPPORT, NO.2
17852-58011	15BF,15BFP,3B..BU100,102,112,12#,132,140,142,162,172,182	05/1995 - 06/1999	1
Common parts
90179-06293
90179-08040
90179-08143
90430-12221
90540-11008
91621-40855
91621-60612
91621-60825
91631-40825
91631-40828
91642-81025
91642-81028
91651-40616
94130-01002
Linked diagrams
1105
1601
2202
2602
2606
5352

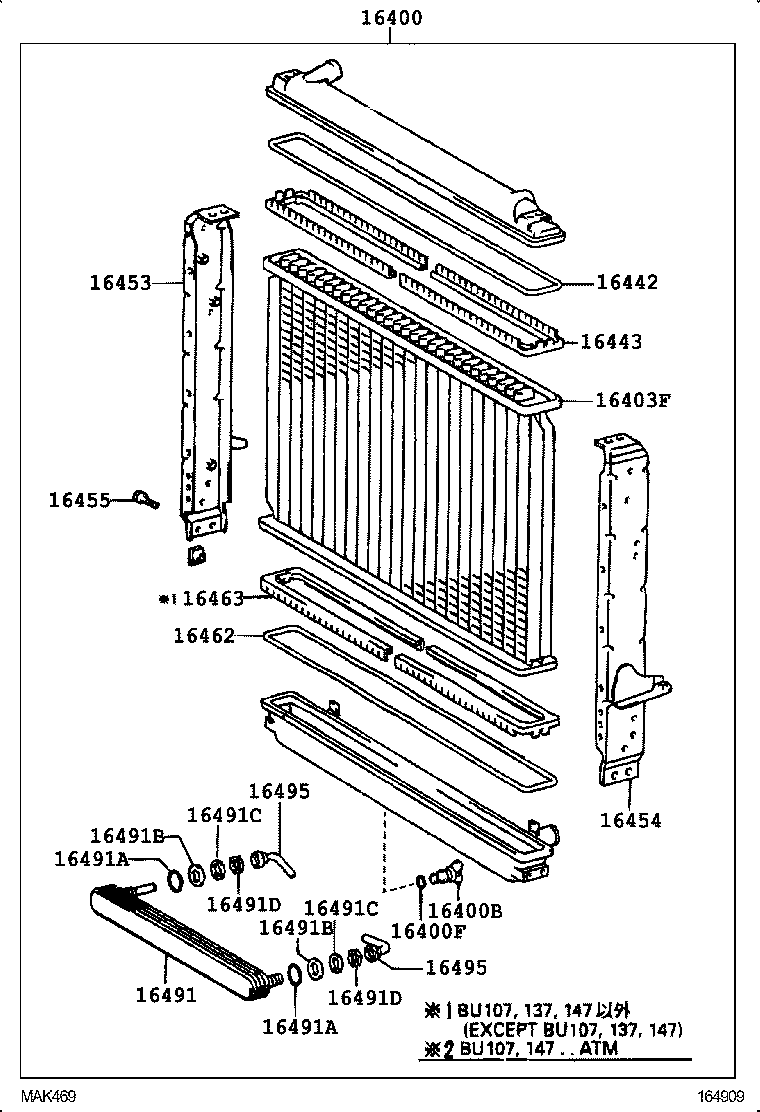

ILLUST NO. 3 OF 4(9505-9905)15B#,3B ; (9905-9906)15BF,3B

Click highlighted areas on diagram

Part #	Description	Period	Qty
16400 - RADIATOR ASSY
16400-58400	3B..BU100,120,140	05/1995 - 06/1996	1
16400-58400	15BFP,3B..BU100,120,140,142	06/1996 - 08/1997	1
16400B - PLUG, RADIATOR DRAIN COCK
16417-15210	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	05/1995 - 12/2999	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-15520	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	05/1995 - 12/2999	1
16403F - CORE SUB-ASSY, RADIATOR
16403-58400	15BFP,3B..BU100,120,140,142	06/1996 - 08/1997	1
16403-58400	3B..BU100,120,140	05/1995 - 06/1996	1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-58420	15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182	05/1995 - 12/2999	1
16453 - PLATE, RADIATOR SIDE
16453-58420	15BF,15BFP,3B..BU100,102,112,12#,132,140,142	05/1995 - 12/2999	1
16454 - PLATE, RADIATOR SIDE
16454-58420	15BF,15BFP,3B..BU100,102,112,12#,132,140,142	05/1995 - 12/2999	1
16455 - BOLT, RADIATOR SIDE SUPPORT PLATE
16455-67020	15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222	05/1995 - 12/2999	8
16462 - RING, O(FOR RADIATOR LOWER TANK)
16442-58420	15BF,15BFP,3B..BU10#,112,12#,13#,14#,162,172,182	05/1995 - 12/2999	1

BU140-TGMMS (1995)

ILLUST NO. 1 OF 3(9505-9906)3B..BU100,120,140

ILLUST NO. 3 OF 4(9505-9905)15B#,3B ; (9905-9906)15BF,3B

Part Price Details
