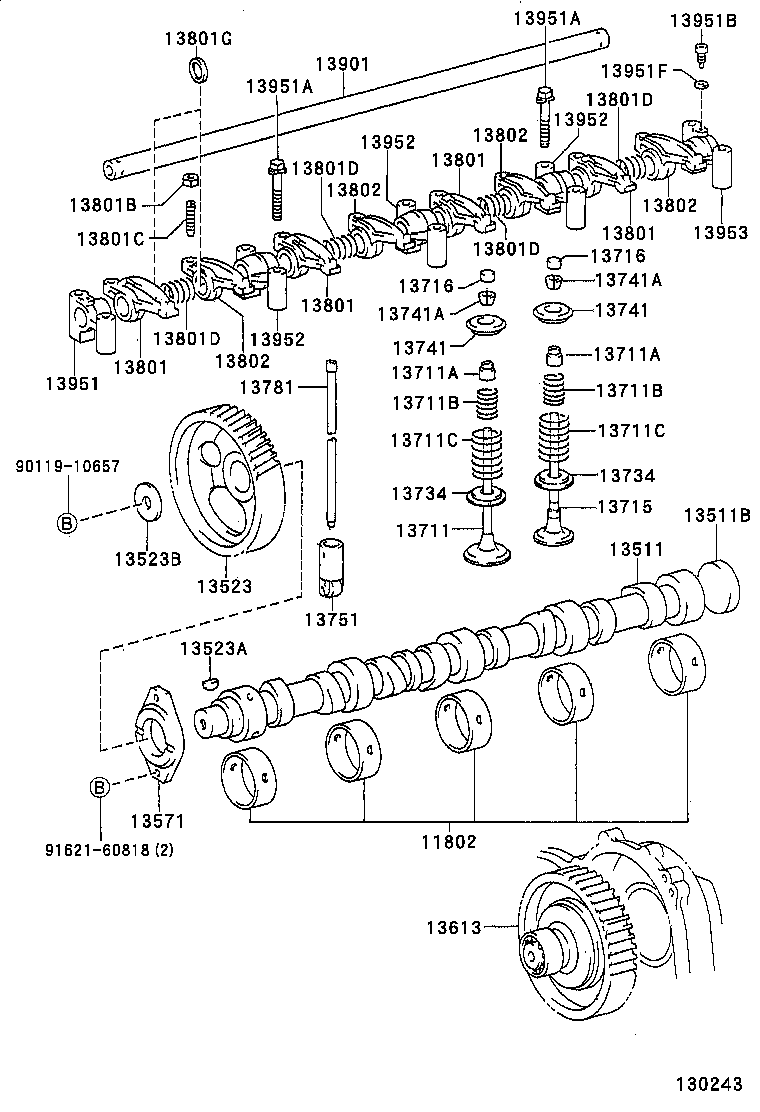

BU140-TGMMS (1995)
Toyota Dyna 200/Toyoace G25
(9505-9906)3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11802-56030 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 STD |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-56060 |
3B..BU100,105,120,140,145 |
1 | ||
| 13511B - PLUG, EXPANSION(FOR CAMSHAFT) | ||||
| 90331-58001 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-58010 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 95161-30519 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 13523B - WASHER, PLATE(FOR TIMING GEAR) | ||||
| 90201-10227 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 13571 - PLATE, CAMSHAFT THRUST | ||||
| 13571-56030 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 13613 - GEAR, INJECTION PUMP DRIVE | ||||
| 22407-58010 |
15BF,15BFT,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-58021 |
3B..BU100,105,120,140,145 |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02076 |
3B..BU100,105,120,140,145 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02076 |
3B..BU100,105,120,140,145 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-33012 |
3B..BU100,105,120,140,145 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-33012 |
3B..BU100,105,120,140,145 |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-45032 |
3B..BU100,105,120,140,145 |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-45032 |
3B..BU100,105,120,140,145 |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-58051 |
3B..BU100,105,120,140,145 |
4 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-56010 |
3B..BU100,105,120,140,145 |
8 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-56010 |
3B..BU100,105,120,140,145 |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-56010 |
3B..BU100,105,120,140,145 |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-56010 |
3B..BU100,105,120,140,145 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-56040 |
3B..BU100,105,120,140,145 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-56040 |
3B..BU100,105,120,140,145 |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03024 |
3B..BU100,105,120,140,145 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03024 |
3B..BU100,105,120,140,145 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13750-58010 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
8 | ||
| 13781 - ROD, VALVE PUSH | ||||
| 13781-56020 |
3B..BU100,105,120,140,145 |
8 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-58020 |
3B..BU100,105,120,140,145 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-58020 |
3B..BU100,105,120,140,145 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-58020 |
3B..BU100,105,120,140,145 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-58020 |
3B..BU100,105,120,140,145 |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90179-08248 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05025 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16114 |
15BFP,3B..BU100,102,105,120,140,142,145 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16114 |
15BFP,3B..BU100,102,105,120,140,142,145 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16114 |
15BFP,3B..BU100,102,105,120,140,142,145 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16114 |
15BFP,3B..BU100,102,105,120,140,142,145 |
4 | ||
| 13801G - WASHER, PLATE(FOR VALVE ROCKER ARM) | ||||
| 90201-19009 |
3B..BU100,105,120,140,145 |
8 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-58020 |
3B..BU100,105,120,140,145 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-58020 |
3B..BU100,105,120,140,145 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-58020 |
3B..BU100,105,120,140,145 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-58020 |
3B..BU100,105,120,140,145 |
4 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-56030 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-56030 |
3B..BU100,105,120,140,145 |
1 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90105-08177 |
3B..BU100,105,120,140,145 *8−1.25PX63−30 |
5 | ||
| 90105-08165 |
3B..BU100,105,120,140,145 *8−1.25PX53−30 |
5 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90105-08177 |
3B..BU100,105,120,140,145 *8−1.25PX63−30 |
5 | ||
| 90105-08165 |
3B..BU100,105,120,140,145 *8−1.25PX53−30 |
5 | ||
| 13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) | ||||
| 13958-56010 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 13951F - WASHER, PLATE(FOR VALVE ROCKER SUPPORT) | ||||
| 90201-06350 |
15B#,3B..BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 |
2 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-56030 |
3B..BU100,105,120,140,145 |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-56030 |
3B..BU100,105,120,140,145 |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-56030 |
3B..BU100,105,120,140,145 |
3 | ||
| 13953 - SUPPORT, VALVE ROCKER, NO.3 | ||||
| 13953-56030 |
3B..BU100,105,120,140,145 |
1 | ||
| Common parts | ||||
| 90119-10657 | ||||
| 91621-60818 | ||||
