Toyota Dyna 200/toyoace g25 BU137 OIL COOLER & TUBE (ATM)

Part #	Description	Period	Qty
32913 - BRACKET, OIL COOLER
32913-37010	BU102,107,112,13#,142,147..4FC	05/1995 - 12/2999	1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20006	BU102,107,112,13#,142,147,212,297..4FC ｲﾝﾚｯﾄ	05/1995 - 06/1999	1
90407-20004	BU102,107,112,13#,142,147,212,297..4FC ｱｳﾄﾚｯﾄ	05/1995 - 06/1999	1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20006	BU102,107,112,13#,142,147,212,297..4FC ｲﾝﾚｯﾄ	05/1995 - 06/1999	1
90407-20004	BU102,107,112,13#,142,147,212,297..4FC ｱｳﾄﾚｯﾄ	05/1995 - 06/1999	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006	BU102,107,112,13#,142,147,212,297..4FC	05/1995 - 06/1999	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006	BU102,107,112,13#,142,147,212,297..4FC	05/1995 - 06/1999	2
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90462-12076	BU102,107,112,13#,142,147,212..4FC	05/1995 - 12/2999	1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
90462-12076	BU102,107,112,13#,142,147,212..4FC	05/1995 - 12/2999	1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32925-37010	BU102,107,112,13#,142,147,212..4FC	05/1995 - 12/2999	1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076	BU102,107,112,13#,142,147,212..4FC	05/1995 - 12/2999	1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010	BU102,107,112,13#,142,147,212,297..4FC 長さ=45,内径=12	05/1995 - 12/2999	8
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010	BU102,107,112,13#,142,147,212,297..4FC 長さ=45,内径=12	05/1995 - 12/2999	8
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-37010	BU102,107,112,13#,142,147,212,297..4FC	05/1995 - 12/2999	1
32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
90462-12076	BU102,107,112,13#,142,147,212..4FC	05/1995 - 12/2999	1
Common parts
90119-06477
90179-08066
90467-16013
91611-60814
91611-60816
91619-61216

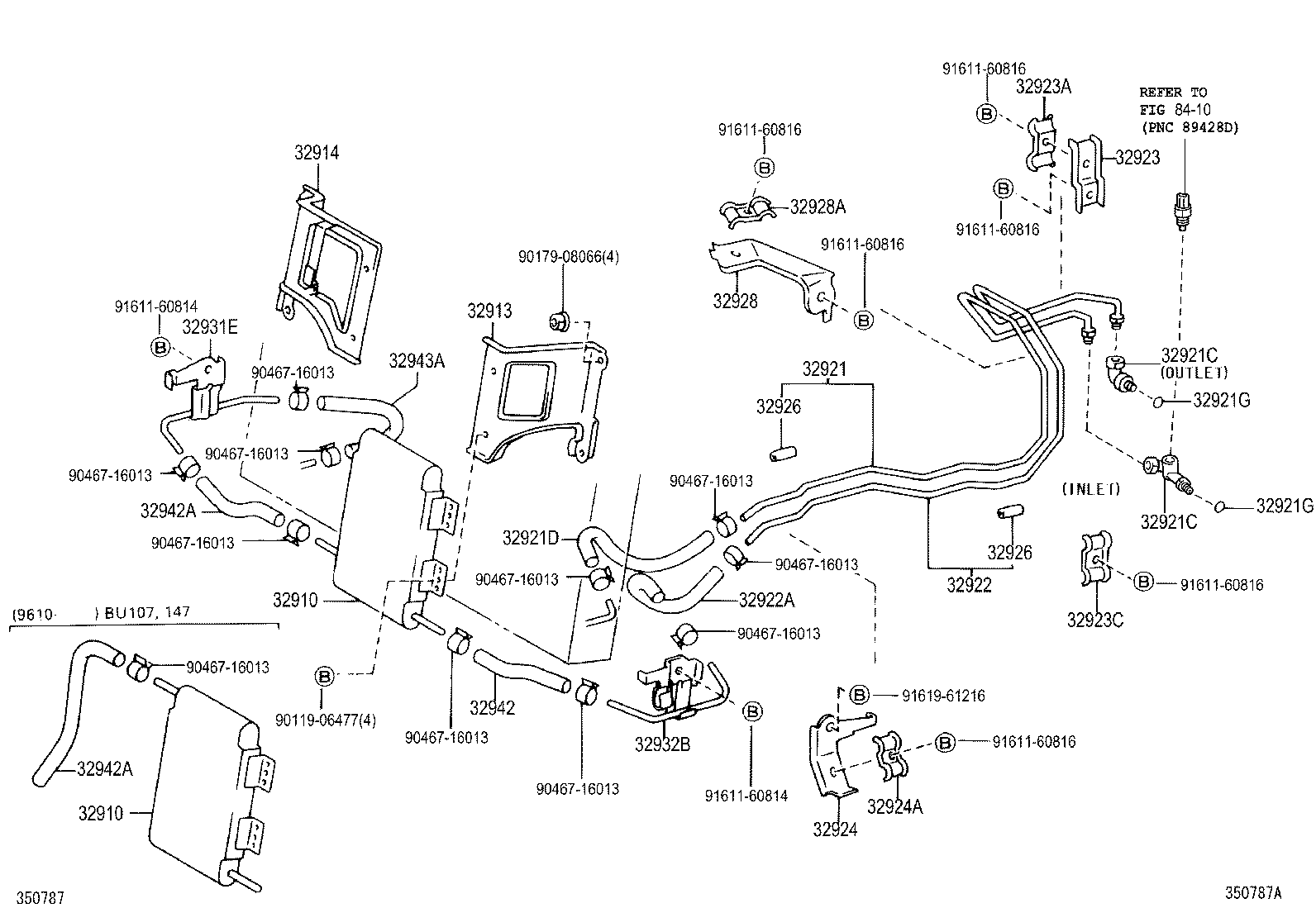

Linked diagrams
8410

BU137-TQPMS (1997)

(9505-9906)BU102,107,112,13#,142,147,212..4FC
