BU137-TQMMS3 (1996)

Toyota Dyna 200/Toyoace G25

Production Oct 1996 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610-9905)BU105,107,137,145,147

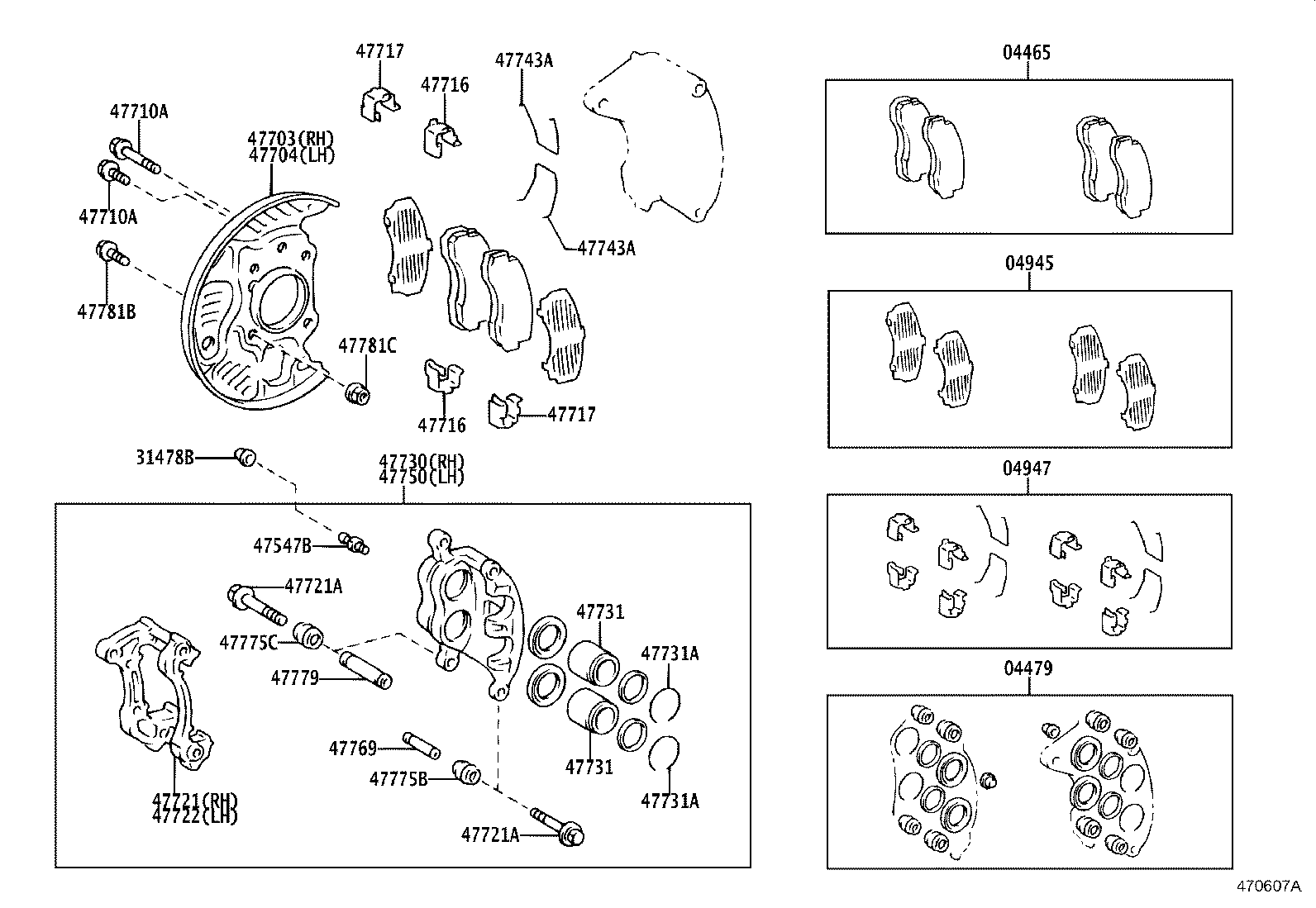

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47703 47704 47710A 47710A 47716 47716 47717 47717 47721 47721A 47721A 47722 47730 47731 47731 47731A 47731A 47743A 47743A 47750 47769 47775B 47775C 47779 47781B 47781C
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-37010

BU105,107,137,145,147..T2,T4,TW4

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-36020

BU105,107,137,145,147

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-37010

BU105,107,137,145,147..T2,T4,TW4

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-36020

BU105,107,137,145,147

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

BU212..T3..TD..IV3..5F;BU212..(T4,TW1,TW4)..IV3..5F;BU212..(T3,T4,TW1,TW4)..CBU..5F;BU212..(T3,T4,TW1,TW4)..(4FC,6F);BU105,107,112,13#,145,147,202,222,297,RZU140..T2,T3,T4,TW1,TW4;BU100,102,140,142,RZU100..(DM6,T3,T4,T5,TW1,TW4)..WT..(CBU,IV3)

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

BU142..30T..5F;BU142..(T4,TW4)..5F;BU212..T3..TD..IV3..5F;BU142..T3..20T..CBU..5F;BU212..(T4,TW1,TW4)..IV3..5F;BU212..(T3,T4,TW1,TW4)..CBU..5F;BU142,212..(T3,T4,TW1,TW4)..(4FC,6F);BU100,102,140,RZU100..(DM6,T3,T4,T5,TW1,TW4)..WT..(CBU,IV3);BU105,107,112,13#,145,147,202,222,297,RZU140..T2,T3,T4,TW1,TW4

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-37020

BU105,107,137,145,147

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-37020

BU105,107,137,145,147

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-16044

BU105,107,137,145,147

*16−1.5PX60−26.5

 4
90105-16045

BU105,107,137,145,147

*16−1.5PX35.5−26.5

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-16044

BU105,107,137,145,147

*16−1.5PX60−26.5

 4
90105-16045

BU105,107,137,145,147

*16−1.5PX35.5−26.5

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-36020

BU105,107,137,145,147

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-36020

BU105,107,137,145,147

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-36020

BU105,107,137,145,147

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-36020

BU105,107,137,145,147

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-36030

BU105,107,137,145,147..T2,T4,TW4

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-08992

BU105,107,137,145,147

*8−1.25PX62−30

 4
90119-12256

BU105,107,137,145,147

*12−1.25PX75−30

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-08992

BU105,107,137,145,147

*8−1.25PX62−30

 4
90119-12256

BU105,107,137,145,147

*12−1.25PX75−30

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-36030

BU105,107,137,145,147..T2,T4,TW4

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-36030

BU105,107,137,145,147..T2,T4,TW4

 1
47731 - PISTON, FRONT DISC BRAKE
47731-36020

BU105,107,137,145,147

 4
47731 - PISTON, FRONT DISC BRAKE
47731-36020

BU105,107,137,145,147

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-61001

BU105,107,137,145,147

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-61001

BU105,107,137,145,147

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-36020

BU105,107,137,145,147

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-36020

BU105,107,137,145,147

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-36030

BU105,107,137,145,147..T2,T4,TW4

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-36030

BU105,107,137,145,147

 4
47775B - BOOT, BUSH DUST, NO.1
47775-36040

BU105,107,137,145,147

 8
47775C - BOOT, BUSH DUST, NO.2
47775-36050

BU105,107,137,145,147

 8
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-36010

BU105,107,137,145,147

 4
47781B - BOLT(FOR DUST COVER SETTING)
90105-16045

BU105,107,137,145,147

*16−1.5PX35.5−26.5

 2
47781C - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
94130-01602

BU105,107,137,145,147

 2
