BU132-TQMMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

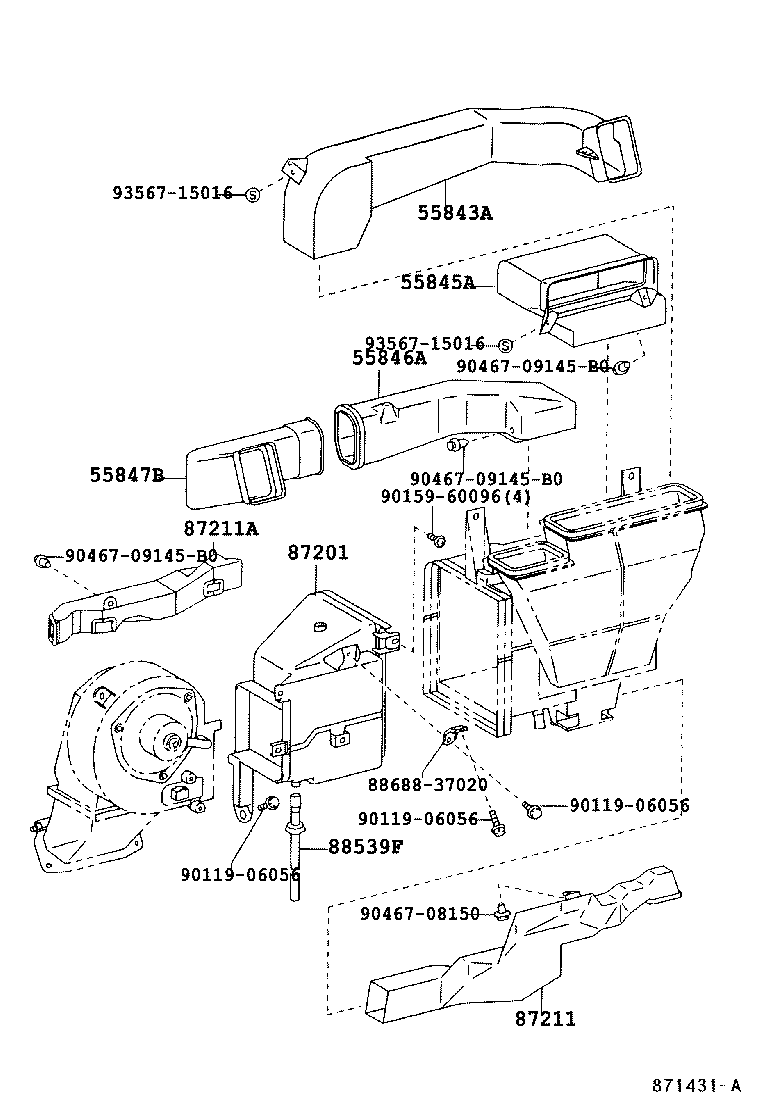

ILLUST NO. 2 OF 2(9505- )BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

Click highlighted areas on diagram

DUCT

diagram 55843A 55845A 55846A 55847B 87201 87211 87211A 88539F 8868837020 9011906056 9011906056 9011906056 9015960096 9046708150 9046709145B0 9046709145B0 9046709145B0 9356715016 9356715016
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-37010

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-37010

BU10#..CBU,IV3;BU112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(ALV,DM5,DM6,DM7,DM8,T2,T3,T4,TW1,TW4)..(02S,03S,06S,07S)

 1
87201-37010

BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,RZU100,XZU130

 1
87211 - DUCT, AIR, NO.1
87211-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130

 1
87211-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130

 1
87211A - DUCT, AIR, NO.2
87211-37070

BU10#,112,12#,13#,14#,162,172,182,RZU100,XZU130

ｱﾘ(*80)

 1
87211-37070

BU107..T2,T4;BU107..06S..5F;BU132..CBU..5F;BU102..20T..4FC;BU147..T2,T4,TW4;BU132..(T3,T4)..IV3;BU102,137..T4..20T..5F;BU100,112,120,140,142,162,XZU130..4FC,5F;RZU100..(DM6,T2,T3,T4,TW1,TW4)..(EFI,LPG);BU102,172,182..(DM2,DM3,DM5,DM6,T2,T3,TW1,TW4)..DSL..5F

ｱﾘ(*80)

 1
88539F - HOSE, DRAIN
88539-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,XZU130

 1
88539-37020

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU140..(02S,03S,06S,07S)..(CBU,IV3)

 1
Common parts
88688-37020
90119-06056
90159-60096
90467-08150
90467-09145B0
93567-15016

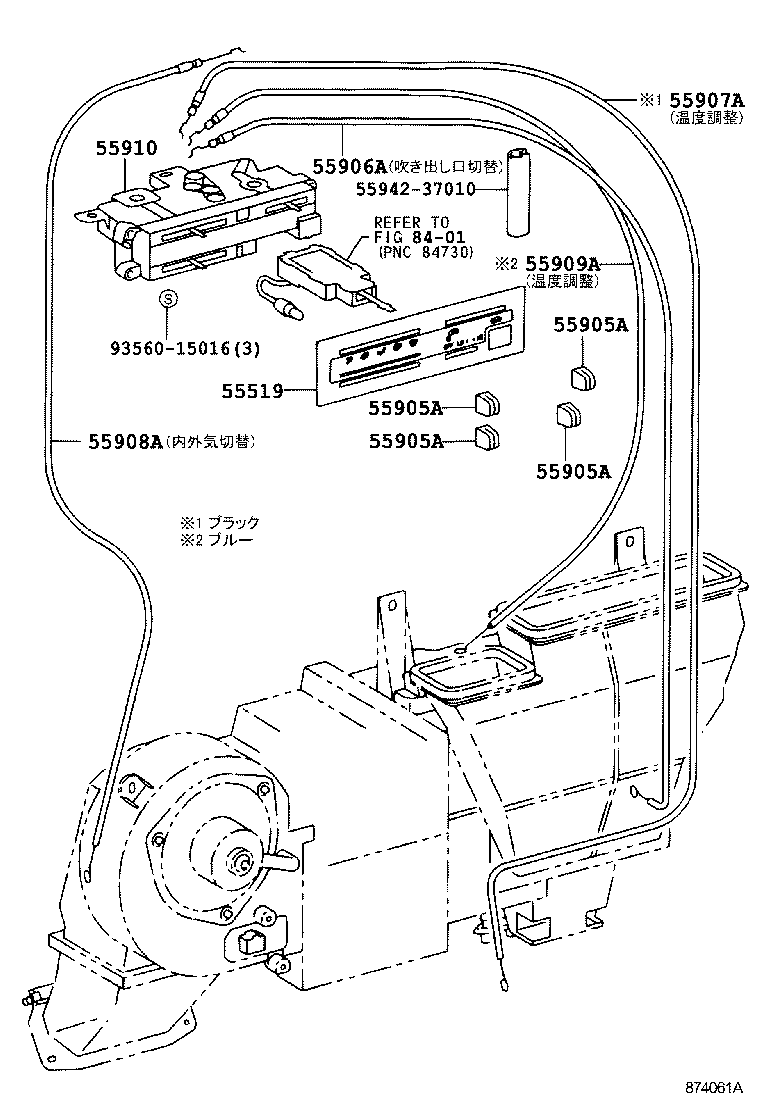

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

HEATER CONTROL

diagram 55519 55905A 55905A 55905A 55905A 55906A 55907A 55908A 55909A 55910 5594237010 8401 9356015016
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-37010

BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 1
55905A - KNOB, HEATER CONTROL
55905-89115

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 4
55905A - KNOB, HEATER CONTROL
55905-89115

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 4
55905A - KNOB, HEATER CONTROL
55905-89115

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 4
55905A - KNOB, HEATER CONTROL
55905-89115

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

ﾌﾞﾗﾂｸ

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-37010

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-37010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

ﾌﾞﾙ-

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-37020

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
Common parts
55942-37010
93560-15016
Linked diagrams
8401
