Toyota Dyna 200/toyoace g25 BU132 FRONT SPRING & SHOCK ABSORBER

Manufacturers Home
Toyota
JP
DYNA 200/TOYOACE G25
BU132-TQMMS3 (1995)
4803 - FRONT SPRING & SHOCK ABSORBER

BU132-TQMMS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999

Engine 15BF

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

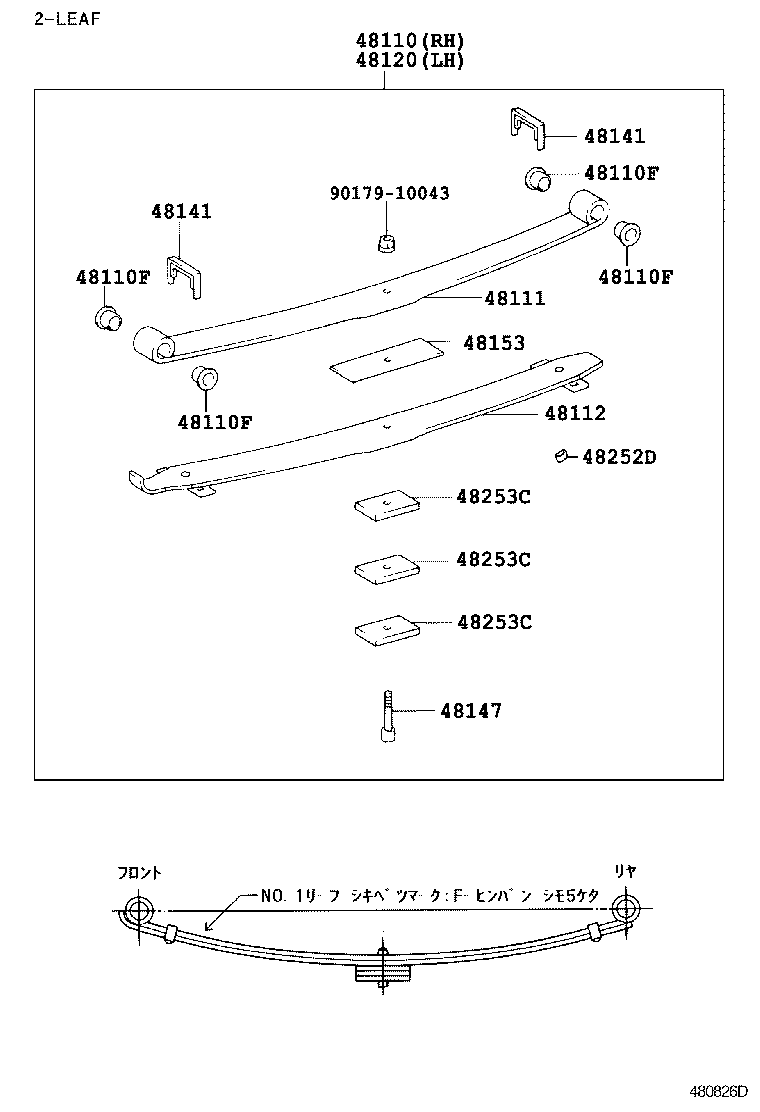

ILLUST NO. 2 OF 2(9505-9508)BU10#..TW4 ; (9505-9609)BU162..03S..IV3 ; (9505-9710)RZU100..T4,TW4 ; (9

Click highlighted areas on diagram

Part #	Description	Period	Qty
48110 - SPRING ASSY, FRONT, RH
48110-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48110-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48110-3B320	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110-3B320	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48111 - LEAF, FRONT SPRING, NO.1
48101-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48101-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48101-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48101-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48101-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48101-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48101-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48101-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48112 - LEAF, FRONT SPRING, NO.2
48112-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48112-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48112-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48112-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48112-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48112-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48112-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48112-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48120 - SPRING ASSY, FRONT, LH
48110-3B330	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110-3B330	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48110-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48147 - BOLT, FRONT SPRING, CENTER
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;RZU100..(T2,T3,TW1)..20T;BU10#..(DM2,DM3,DM5,T1,T2,T3,T4,TW2)..(175T,20T) L=56	05/1995 - 08/1995	2
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;RZU100..(T2,T3,TW1)..20T;BU10#..(DM2,DM3,DM5,T1,T2,T3,T4,TW2)..(175T,20T) L=56	05/1995 - 08/1995	2
48147-3B250	BU132,140,142..(T2,T4,TW4)..20T..IV3 L=58	05/1995 - 06/1999	2
48147-3B250	BU132,140,142..(T2,T4,TW4)..20T..IV3 L=58	05/1995 - 06/1999	2
48147-3B130	BU100..T4..IV3;BU112..DMP..20T;BU12#,132,140,142,RZU140..20T;BU102..(DM2,DM3,DM5,T2,T3,T4)..20T;BU100,RZU100..(DM5,T1,T2,T3,TW1,TW2)..(175T,20T) L=56	10/1996 - 12/2999	2
48147-3B130	BU100..T4..IV3;BU112..DMP..20T;BU12#,132,140,142,RZU140..20T;BU102..(DM2,DM3,DM5,T2,T3,T4)..20T;BU100,RZU100..(DM5,T1,T2,T3,TW1,TW2)..(175T,20T) L=56	10/1996 - 12/2999	2
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;BU10#,RZU100..(DM2,DM3,DM5,T1,T2,T3,TW1,TW2)..(175T,20T)..(CBU,IV3) L=56	08/1995 - 10/1996	2
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;BU10#,RZU100..(DM2,DM3,DM5,T1,T2,T3,TW1,TW2)..(175T,20T)..(CBU,IV3) L=56	08/1995 - 10/1996	2
Common parts
90179-10043

ILLUST NO. 2 OF 2(9505- )BU132,140,142..20T ; (9708- )RZU140

Click highlighted areas on diagram

Part #	Description	Period	Qty
48110 - SPRING ASSY, FRONT, RH
48110-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48110-3B320	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48111 - LEAF, FRONT SPRING, NO.1
48101-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48101-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48101-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48101-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48112 - LEAF, FRONT SPRING, NO.2
48112-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48112-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48112-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48112-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48113 - LEAF, FRONT SPRING, NO.3
48102-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48102-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48102-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48102-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48114 - LEAF, FRONT SPRING, NO.4
48114-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48114-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48114-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48114-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48115 - LEAF, FRONT SPRING, NO.5
48115-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,5-LEAF ﾖｳ,助手席側	05/1995 - 06/1999	1
48115-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,5-LEAF ﾖｳ,運転席側	05/1995 - 06/1999	1
48115-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48115-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48120 - SPRING ASSY, FRONT, LH
48110-3B330	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48147 - BOLT, FRONT SPRING, CENTER
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;RZU100..(T2,T3,TW1)..20T;BU10#..(DM2,DM3,DM5,T1,T2,T3,T4,TW2)..(175T,20T) L=56	05/1995 - 08/1995	2
48147-3B250	BU132,140,142..(T2,T4,TW4)..20T..IV3 L=58	05/1995 - 06/1999	2
48147-3B130	BU100..T4..IV3;BU112..DMP..20T;BU12#,132,140,142,RZU140..20T;BU102..(DM2,DM3,DM5,T2,T3,T4)..20T;BU100,RZU100..(DM5,T1,T2,T3,TW1,TW2)..(175T,20T) L=56	10/1996 - 12/2999	2
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;BU10#,RZU100..(DM2,DM3,DM5,T1,T2,T3,TW1,TW2)..(175T,20T)..(CBU,IV3) L=56	08/1995 - 10/1996	2
Common parts
48284-37130

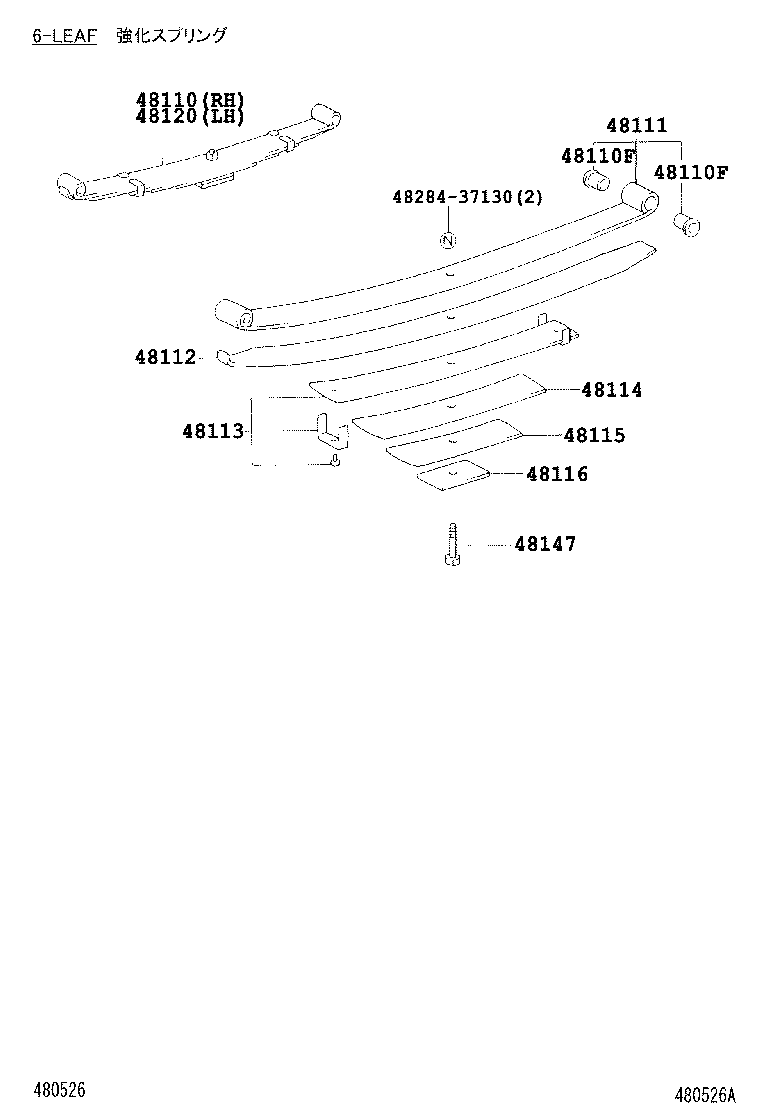

ILLUST NO. 2 OF 2(9510- )BU100,102,XZU130..DM6,DM7 ; (9510-)BU102,112,132,142,XZU140..DM7,T3,

Click highlighted areas on diagram

Part #	Description	Period	Qty
48110 - SPRING ASSY, FRONT, RH
48110-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48110-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48110-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48110-3B320	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110-3B320	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110-3B320	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48111 - LEAF, FRONT SPRING, NO.1
48101-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48101-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48101-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48101-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48101-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48101-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48101-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48101-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48101-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48101-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48101-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48101-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48112 - LEAF, FRONT SPRING, NO.2
48112-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48112-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48112-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48112-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48112-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48112-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48112-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48112-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48112-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48112-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48112-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48112-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48113 - LEAF, FRONT SPRING, NO.3
48102-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48102-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48102-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48102-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48102-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48102-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48102-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48102-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48102-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48102-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48102-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48102-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48114 - LEAF, FRONT SPRING, NO.4
48114-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48114-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48114-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48114-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48114-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48114-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48114-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48114-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48114-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48114-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48114-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48114-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48115 - LEAF, FRONT SPRING, NO.5
48115-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,5-LEAF ﾖｳ,助手席側	05/1995 - 06/1999	1
48115-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,5-LEAF ﾖｳ,助手席側	05/1995 - 06/1999	1
48115-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,5-LEAF ﾖｳ,助手席側	05/1995 - 06/1999	1
48115-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,5-LEAF ﾖｳ,運転席側	05/1995 - 06/1999	1
48115-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,5-LEAF ﾖｳ,運転席側	05/1995 - 06/1999	1
48115-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,5-LEAF ﾖｳ,運転席側	05/1995 - 06/1999	1
48115-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48115-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48115-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48115-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48115-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48115-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48120 - SPRING ASSY, FRONT, LH
48110-3B330	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110-3B330	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110-3B330	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48110-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48110-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48147 - BOLT, FRONT SPRING, CENTER
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;RZU100..(T2,T3,TW1)..20T;BU10#..(DM2,DM3,DM5,T1,T2,T3,T4,TW2)..(175T,20T) L=56	05/1995 - 08/1995	2
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;RZU100..(T2,T3,TW1)..20T;BU10#..(DM2,DM3,DM5,T1,T2,T3,T4,TW2)..(175T,20T) L=56	05/1995 - 08/1995	2
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;RZU100..(T2,T3,TW1)..20T;BU10#..(DM2,DM3,DM5,T1,T2,T3,T4,TW2)..(175T,20T) L=56	05/1995 - 08/1995	2
48147-3B250	BU132,140,142..(T2,T4,TW4)..20T..IV3 L=58	05/1995 - 06/1999	2
48147-3B250	BU132,140,142..(T2,T4,TW4)..20T..IV3 L=58	05/1995 - 06/1999	2
48147-3B250	BU132,140,142..(T2,T4,TW4)..20T..IV3 L=58	05/1995 - 06/1999	2
48147-3B130	BU100..T4..IV3;BU112..DMP..20T;BU12#,132,140,142,RZU140..20T;BU102..(DM2,DM3,DM5,T2,T3,T4)..20T;BU100,RZU100..(DM5,T1,T2,T3,TW1,TW2)..(175T,20T) L=56	10/1996 - 12/2999	2
48147-3B130	BU100..T4..IV3;BU112..DMP..20T;BU12#,132,140,142,RZU140..20T;BU102..(DM2,DM3,DM5,T2,T3,T4)..20T;BU100,RZU100..(DM5,T1,T2,T3,TW1,TW2)..(175T,20T) L=56	10/1996 - 12/2999	2
48147-3B130	BU100..T4..IV3;BU112..DMP..20T;BU12#,132,140,142,RZU140..20T;BU102..(DM2,DM3,DM5,T2,T3,T4)..20T;BU100,RZU100..(DM5,T1,T2,T3,TW1,TW2)..(175T,20T) L=56	10/1996 - 12/2999	2
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;BU10#,RZU100..(DM2,DM3,DM5,T1,T2,T3,TW1,TW2)..(175T,20T)..(CBU,IV3) L=56	08/1995 - 10/1996	2
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;BU10#,RZU100..(DM2,DM3,DM5,T1,T2,T3,TW1,TW2)..(175T,20T)..(CBU,IV3) L=56	08/1995 - 10/1996	2
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;BU10#,RZU100..(DM2,DM3,DM5,T1,T2,T3,TW1,TW2)..(175T,20T)..(CBU,IV3) L=56	08/1995 - 10/1996	2
Common parts
48284-37130

ILLUST NO. 2 OF 2(9710- )BU100,102,RZU100..T4,TW4..20T ; (9805- )T4..LPG..IV3 ; (9805- )BU1

Click highlighted areas on diagram

Part #	Description	Period	Qty
48110 - SPRING ASSY, FRONT, RH
48110-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48110-3B320	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48111 - LEAF, FRONT SPRING, NO.1
48101-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48101-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48101-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48101-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48112 - LEAF, FRONT SPRING, NO.2
48112-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48112-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48112-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48112-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48120 - SPRING ASSY, FRONT, LH
48110-3B330	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48147 - BOLT, FRONT SPRING, CENTER
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;RZU100..(T2,T3,TW1)..20T;BU10#..(DM2,DM3,DM5,T1,T2,T3,T4,TW2)..(175T,20T) L=56	05/1995 - 08/1995	2
48147-3B250	BU132,140,142..(T2,T4,TW4)..20T..IV3 L=58	05/1995 - 06/1999	2
48147-3B130	BU100..T4..IV3;BU112..DMP..20T;BU12#,132,140,142,RZU140..20T;BU102..(DM2,DM3,DM5,T2,T3,T4)..20T;BU100,RZU100..(DM5,T1,T2,T3,TW1,TW2)..(175T,20T) L=56	10/1996 - 12/2999	2
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;BU10#,RZU100..(DM2,DM3,DM5,T1,T2,T3,TW1,TW2)..(175T,20T)..(CBU,IV3) L=56	08/1995 - 10/1996	2
Common parts
90179-10043

ILLUST NO. 2 OF 2(9505- )BU202,212,222..IV3..4FC,5F ; (9708-)BU212,222..IV3..6F ; (9712- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
48110 - SPRING ASSY, FRONT, RH
48110-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48110-3B320	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48111 - LEAF, FRONT SPRING, NO.1
48101-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48101-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48101-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48101-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48112 - LEAF, FRONT SPRING, NO.2
48112-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48112-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48112-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48112-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48113 - LEAF, FRONT SPRING, NO.3
48102-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48102-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48102-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48102-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48114 - LEAF, FRONT SPRING, NO.4
48114-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48114-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48114-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48114-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48115 - LEAF, FRONT SPRING, NO.5
48115-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,5-LEAF ﾖｳ,助手席側	05/1995 - 06/1999	1
48115-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,5-LEAF ﾖｳ,運転席側	05/1995 - 06/1999	1
48115-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48115-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48120 - SPRING ASSY, FRONT, LH
48110-3B330	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48147 - BOLT, FRONT SPRING, CENTER
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;RZU100..(T2,T3,TW1)..20T;BU10#..(DM2,DM3,DM5,T1,T2,T3,T4,TW2)..(175T,20T) L=56	05/1995 - 08/1995	2
48147-3B250	BU132,140,142..(T2,T4,TW4)..20T..IV3 L=58	05/1995 - 06/1999	2
48147-3B130	BU100..T4..IV3;BU112..DMP..20T;BU12#,132,140,142,RZU140..20T;BU102..(DM2,DM3,DM5,T2,T3,T4)..20T;BU100,RZU100..(DM5,T1,T2,T3,TW1,TW2)..(175T,20T) L=56	10/1996 - 12/2999	2
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;BU10#,RZU100..(DM2,DM3,DM5,T1,T2,T3,TW1,TW2)..(175T,20T)..(CBU,IV3) L=56	08/1995 - 10/1996	2
Common parts
48284-37130

ILLUST NO. 2 OF 2(9505- )BU10#,112,132,140,142,RZU100,XZU130,140

Click highlighted areas on diagram

Part #	Description	Period	Qty
48110 - SPRING ASSY, FRONT, RH
48110-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48110-3B320	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
48299-36010	BU10#,112,12#,132,14#,162,172,182,RZU100,XZU130	05/1995 - 09/1996	8
48299-36010	BU162..DM5,T4;BU100,102,112,12#,132,140,142,172,182,RZU100,140,XZU130,140	09/1996 - 12/2999	8
48111 - LEAF, FRONT SPRING, NO.1
48101-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48101-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48101-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48101-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48112 - LEAF, FRONT SPRING, NO.2
48112-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48112-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48112-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48112-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48113 - LEAF, FRONT SPRING, NO.3
48102-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48102-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48102-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48102-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48114 - LEAF, FRONT SPRING, NO.4
48114-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,助手席側	05/1995 - 06/1999	1
48114-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,運転席側	05/1995 - 06/1999	1
48114-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48114-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48115 - LEAF, FRONT SPRING, NO.5
48115-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,5-LEAF ﾖｳ,助手席側	05/1995 - 06/1999	1
48115-3B340	BU132,140,142..(T2,T4,TW4)..20T..IV3 ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,5-LEAF ﾖｳ,運転席側	05/1995 - 06/1999	1
48115-3B330	BU132,140,142,RZU140..20T 助手席側	05/1995 - 05/2000	1
48115-3B320	BU132,140,142,RZU140..20T 運転席側	05/1995 - 05/2000	1
48120 - SPRING ASSY, FRONT, LH
48110-3B330	BU132,140,142,RZU140..20T 5枚ﾘｰﾌ,T=44	05/1995 - 05/2000	1
48110-3B350	BU132,140,142..(T2,T4,TW4)..20T..IV3 5枚ﾘｰﾌ,ｷﾖｳｶｽﾌﾟﾘﾝｸﾞ,T=47	05/1995 - 06/1999	1
48147 - BOLT, FRONT SPRING, CENTER
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;RZU100..(T2,T3,TW1)..20T;BU10#..(DM2,DM3,DM5,T1,T2,T3,T4,TW2)..(175T,20T) L=56	05/1995 - 08/1995	2
48147-3B250	BU132,140,142..(T2,T4,TW4)..20T..IV3 L=58	05/1995 - 06/1999	2
48147-3B130	BU100..T4..IV3;BU112..DMP..20T;BU12#,132,140,142,RZU140..20T;BU102..(DM2,DM3,DM5,T2,T3,T4)..20T;BU100,RZU100..(DM5,T1,T2,T3,TW1,TW2)..(175T,20T) L=56	10/1996 - 12/2999	2
48147-3B130	BU132,14#..20T;BU112,12#..DMP,V;BU10#,RZU100..(DM2,DM3,DM5,T1,T2,T3,TW1,TW2)..(175T,20T)..(CBU,IV3) L=56	08/1995 - 10/1996	2
Common parts
48284-37130

ILLUST NO. 1 OF 2(9505- )BU10#,112,12#,13#,14#,RZU100,140,XZU130,140

Click highlighted areas on diagram

Part #	Description	Period	Qty
04481 - SHACKLE KIT, FRONT SPRING
04481-36090	BU100,102,112,12#,132,140,142,162,172,182,RZU100,140,XZU130,140	05/1995 - 12/2999	2
04482 - PIN KIT, FRONT SPRING
04482-36030	BU100,102,112,12#,132,140,142,162,172,182,RZU100,140,XZU130,140	05/1995 - 05/2000	2
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90385-23037	RZU100..LPGB;BU102..T4..30T;RZU100..(DM5,DM6,T2,T3,TW1)..(EFI,LPG);BU112,12#,132,140,142,RZU140,XZU130,140;BU100,102..DM2,DM3,DM5,DM6,T1,T2,T3,T5,TW1,TW2 識別色 = ﾎﾜｲﾄ	08/1995 - 12/2999	8
90385-23037	BU112,12#,132,14#;RZU100..DM6,T2,T3,TW1;BU10#..DM2,DM3,DM5,DM6,T1,T2,T3,T4,T5,TW1,TW2 識別色 = ﾎﾜｲﾄ	05/1995 - 08/1995	8
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90385-23037	RZU100..LPGB;BU102..T4..30T;RZU100..(DM5,DM6,T2,T3,TW1)..(EFI,LPG);BU112,12#,132,140,142,RZU140,XZU130,140;BU100,102..DM2,DM3,DM5,DM6,T1,T2,T3,T5,TW1,TW2 識別色 = ﾎﾜｲﾄ	08/1995 - 12/2999	8
90385-23037	BU112,12#,132,14#;RZU100..DM6,T2,T3,TW1;BU10#..DM2,DM3,DM5,DM6,T1,T2,T3,T4,T5,TW1,TW2 識別色 = ﾎﾜｲﾄ	05/1995 - 08/1995	8
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90385-23037	RZU100..LPGB;BU102..T4..30T;RZU100..(DM5,DM6,T2,T3,TW1)..(EFI,LPG);BU112,12#,132,140,142,RZU140,XZU130,140;BU100,102..DM2,DM3,DM5,DM6,T1,T2,T3,T5,TW1,TW2 識別色 = ﾎﾜｲﾄ	08/1995 - 12/2999	8
90385-23037	BU112,12#,132,14#;RZU100..DM6,T2,T3,TW1;BU10#..DM2,DM3,DM5,DM6,T1,T2,T3,T4,T5,TW1,TW2 識別色 = ﾎﾜｲﾄ	05/1995 - 08/1995	8
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90385-23037	RZU100..LPGB;BU102..T4..30T;RZU100..(DM5,DM6,T2,T3,TW1)..(EFI,LPG);BU112,12#,132,140,142,RZU140,XZU130,140;BU100,102..DM2,DM3,DM5,DM6,T1,T2,T3,T5,TW1,TW2 識別色 = ﾎﾜｲﾄ	08/1995 - 12/2999	8
90385-23037	BU112,12#,132,14#;RZU100..DM6,T2,T3,TW1;BU10#..DM2,DM3,DM5,DM6,T1,T2,T3,T4,T5,TW1,TW2 識別色 = ﾎﾜｲﾄ	05/1995 - 08/1995	8
48110B - BUSH(FOR FRONT SPRING PIN)
90385-23037	BU100,102,112,12#,132,140,142,162,172,182,RZU100,140,XZU130,140	05/1995 - 12/2999	4
48110B - BUSH(FOR FRONT SPRING PIN)
90385-23037	BU100,102,112,12#,132,140,142,162,172,182,RZU100,140,XZU130,140	05/1995 - 12/2999	4
48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING)
48191-36110	BU142,XZU140;BU132,140,RZU140..20T	05/1995 - 12/2999	2
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48304-36150	BU112,12#,132,14#;RZU100..DM6,T2,T3,TW1;BU10#..DM2,DM3,DM5,DM6,T1,T2,T3,T4,T5,TW1,TW2	05/1995 - 08/1995	2
48304-36150	BU112,12#,132,14#,XZU130;BU10#,RZU100..DM2,DM3,DM5,DM6,T1,T2,T3,T5,TW1,TW2	08/1995 - 10/1996	2
48304-36150	BU102..T4..30T;RZU100..(DM5,DM6,T2,T3,TW1)..(EFI,LPG);BU112,12#,140,142,202,222,RZU140,XZU130,140;BU100,102..DM2,DM3,DM5,DM6,T1,T2,T3,T5,TW1,TW2;BU132,212,RZU100..(DM6,T3,T4,TW1,TW4)..(DSL,LPGB,TD)	10/1996 - 12/2999	2
48346 - STOPPER, BUMPER, FRONT
48346-36040	BU102..T4..30T;BU12#,140,142,RZU140,XZU140;BU132,RZU100..(DM6,T3,T4)..(DSL,LPGB);RZU100..(DM5,DM6,T2,T3,TW1)..(EFI,LPG);BU100,102..DM2,DM3,DM5,DM6,T1,T2,T3,T5,TW1,TW2	05/1995 - 12/2999	2
48401A - BRACKET SUB-ASSY, SPRING, NO.1
48412-36120	BU132..T3,T4;BU100,102,12#,140,142,RZU100,140,XZU130,140 左側	05/1995 - 12/2999	1
48411-36120	BU132..T3,T4;BU100,102,12#,140,142,RZU100,140,XZU130,140 右側	05/1995 - 12/2999	1
48412B - BRACKET, SPRING, NO.2 RH
48413-36050	BU132..T3,T4;BU100,102,12#,140,142,RZU100,140,XZU130,140	05/1995 - 12/2999	1
48413B - BRACKET, SPRING, NO.2 LH
48413-36050	BU132..T3,T4;BU100,102,12#,140,142,RZU100,140,XZU130,140	05/1995 - 12/2999	1
48475 - PLATE, DISTANCE(FOR FRONT)
48475-36070	BU132..20T ｱﾘ(ﾘﾔｷﾖｳｶｽﾌﾟﾘﾝｸﾞ)	05/1995 - 05/1999	2
48475-36070	BU100,102,112,12#,132,140,142,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	2
48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)
90117-16020	BU132,14#..20T;BU102..03S..20T;BU112,12#..DMP,V;BU100..T1,T2,T3,T4,TW2;RZU100..(T2,T3,TW1)..20T 長さ=95	05/1995 - 08/1995	4
90117-16093	BU132,14#..20T;BU102..03S..20T;BU112,12#..DMP,V;BU100..T1,T2,T3,T4,TW2;RZU100..(T2,T3,TW1)..20T 長さ=105	05/1995 - 08/1995	2
90117-16093	BU132,14#..20T;BU112,12#..DMP,V;BU102..(DM2,DM3,DM5,DM6,T2,T3)..20T;BU100,RZU100..(T1,T2,T3,TW1,TW2)..(175T,20T) 長さ=105	08/1995 - 10/1996	2
90117-16093	BU100..T4..IV3;BU102..03S..20T;BU112..DMP..20T;BU12#,132,140,142..20T;BU100,RZU100..(T1,T2,T3,TW1,TW2)..(175T,20T) 長さ=105	10/1996 - 08/1997	2
90117-16020	BU132,14#..20T;BU112,12#..DMP,V;BU102..(DM2,DM3,DM5,DM6,T2,T3)..20T;BU100,RZU100..(T1,T2,T3,TW1,TW2)..(175T,20T) 長さ=95	08/1995 - 10/1996	4
90117-16093	BU142..T3..20T..IV3;BU132,140..(T3,T4)..20T..IV3 長さ=105,ｱﾘ(ﾘﾔｷﾖｳｶｽﾌﾟﾘﾝｸﾞ)	05/1995 - 06/1999	4
90117-16020	BU100..T4..IV3;BU112..DMP..20T;BU102..03S..20T..DSL;BU12#,132,140,142,RZU140..20T;BU100,RZU100..(DM5,T1,T2,T3,TW1,TW2)..(175T,20T) 長さ=95	10/1996 - 12/2999	4
90117-16093	BU112..DMP..20T;BU120,132,140,142..20T;BU102..(DM2,DM3,DM5,DM6,T2,T3)..20T..DSL;BU100,RZU100..(T1,T2,T3,TW1,TW2)..(175T,20T) 長さ=105	08/1997 - 12/2999	2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-80032	BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140..CBU,IV3	03/1997 - 12/2999	1
48511-80015	BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,XZU130..CBU,IV3	05/1995 - 03/1997	1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003	BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003	BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02007	BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002	BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002	BU100,102,112,12#,132,140,142,162,172,182,202,212,222,RZU100,140,XZU130,140	05/1995 - 12/2999	4
48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
90948-03004	BU202,212,222..20T..IV3;BU100,102,112,12#,140,142,162,172,182,RZU140,XZU130,140;BU132,RZU100..(DM5,DM6,T2,T3,T4,TW1,TW4)..(DSL,EFI,LPG) ｱﾘ(ﾘﾔｷﾖｳｶｽﾌﾟﾘﾝｸﾞ)	05/1995 - 12/2999	2
48510F - CUSHION, SHOCK ABSORBER
90385-16011	BU202,212,222..20T..IV3;BU100,102,112,12#,140,142,RZU140,XZU130,140;BU132,RZU100..(DM5,DM6,T2,T3,T4,TW1,TW4)..(DSL,EFI,LPG) ｱﾘ(ﾘﾔｷﾖｳｶｽﾌﾟﾘﾝｸﾞ)	05/1995 - 12/2999	2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-80015	BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,XZU130..CBU,IV3	05/1995 - 03/1997	1
48511-80032	BU132..T3,T4;BU100,102,112,12#,140,142,RZU100,140,XZU130,140..CBU,IV3	03/1997 - 12/2999	1
48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT
48522-25020	BU202,212,222..20T..IV3;BU100,102,112,12#,140,142,RZU140,XZU130,140;BU132,RZU100..(DM5,DM6,T2,T3,T4,TW1,TW4)..(DSL,EFI,LPG) ｱﾘ(ﾘﾔｷﾖｳｶｽﾌﾟﾘﾝｸﾞ)	05/1995 - 12/2999	2
48802F - LINK SUB-ASSY, FRONT STABILIZER
48802-36031	BU142..03S..IV3;BU12#,132,222,XZU130;BU100,RZU100..T2..IV3;BU102,140,202,212,RZU140..WT..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,RZU100..(DM5,DM6,T3,T4,TW1,TW4)..WT	05/1995 - 11/1998	2
48802-36032	BU120;BU142..03S..IV3;RZU100..T2..IV3;BU100,132,140,222,XZU130..WT;BU102..(DM2,DM3,DM5,T4)..CBU;RZU100..DM5,DM6,T3,T4,TW1,TW4;BU102,202,212,RZU140..WT..IV3	11/1998 - 12/2999	2
48809 - BRACKET SUB-ASSY, STABILIZER
48809-36011	BU120;BU142..03S..IV3;RZU100..T2..IV3;BU100,132,140,222,XZU130..WT;BU102..(DM2,DM3,DM5,T4)..CBU;RZU100..DM5,DM6,T3,T4,TW1,TW4;BU102,202,212,RZU140..WT..IV3	11/1998 - 12/2999	2
48809-36010	BU142..03S..IV3;BU12#,132,222,XZU130;BU100,RZU100..T2..IV3;BU102,140,202,212,RZU140..WT..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,RZU100..(DM5,DM6,T3,T4,TW1,TW4)..WT	05/1995 - 11/1998	2
48811 - BAR, STABILIZER, FRONT
48811-37010	BU12#,XZU130;BU142..03S..IV3;BU100,RZU100..T2..IV3;BU102,140,RZU140..WT..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,132,RZU100..(DM5,DM6,T3,T4,TW1,TW4)..WT	05/1995 - 12/2999	1
48811A - BUSH(FOR FRONT STABILIZER BAR)
90385-13004	BU142..03S..IV3;BU12#,132,222,XZU130;BU100,RZU100..T2..IV3;BU102,140,202,212,RZU140..WT..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,RZU100..(DM5,DM6,T3,T4,TW1,TW4)..WT	05/1995 - 12/2999	2
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37010	BU12#,XZU130;BU142..03S..IV3;BU100,RZU100..T2..IV3;BU102,140,RZU140..WT..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,132,RZU100..(DM5,DM6,T3,T4,TW1,TW4)..WT	05/1995 - 12/2999	2
48817 - CUSHION, FRONT STABILIZER
48817-36011	BU142..03S..IV3;BU12#,132,222,XZU130;BU100,RZU100..T2..IV3;BU102,140,202,212,RZU140..WT..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,RZU100..(DM5,DM6,T3,T4,TW1,TW4)..WT	05/1995 - 12/2999	4
48817 - CUSHION, FRONT STABILIZER
48817-36011	BU142..03S..IV3;BU12#,132,222,XZU130;BU100,RZU100..T2..IV3;BU102,140,202,212,RZU140..WT..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,RZU100..(DM5,DM6,T3,T4,TW1,TW4)..WT	05/1995 - 12/2999	4
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02015	BU142..03S..IV3;BU12#,132,222,XZU130;BU100,RZU100..T2..IV3;BU102,140,202,212,RZU140..WT..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,RZU100..(DM5,DM6,T3,T4,TW1,TW4)..WT	05/1995 - 12/2999	4
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02015	BU142..03S..IV3;BU12#,132,222,XZU130;BU100,RZU100..T2..IV3;BU102,140,202,212,RZU140..WT..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,RZU100..(DM5,DM6,T3,T4,TW1,TW4)..WT	05/1995 - 12/2999	4
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02032	BU142..03S..IV3;BU12#,132,222,XZU130;BU100,RZU100..T2..IV3;BU102,140,202,212..WT..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,RZU100..(DM6,T3,T4,TW1,TW4)..WT	05/1995 - 04/1996	4
90948-02167	BU12#,XZU130;BU142..03S..IV3;BU100,RZU100..T2..IV3;BU102,140,RZU140..WT..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,132,RZU100..(DM5,DM6,T3,T4,TW1,TW4)..WT	04/1996 - 12/2999	4
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02032	BU142..03S..IV3;BU12#,132,222,XZU130;BU100,RZU100..T2..IV3;BU102,140,202,212..WT..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,RZU100..(DM6,T3,T4,TW1,TW4)..WT	05/1995 - 04/1996	4
90948-02167	BU12#,XZU130;BU142..03S..IV3;BU100,RZU100..T2..IV3;BU102,140,RZU140..WT..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,132,RZU100..(DM5,DM6,T3,T4,TW1,TW4)..WT	04/1996 - 12/2999	4
48817E - SPACER(FOR STABILIZER BAR)
90560-10044	BU142..03S..IV3;BU12#,132,222,XZU130;BU100,RZU100..T2..IV3;BU102,140,202,212,RZU140..WT..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,RZU100..(DM5,DM6,T3,T4,TW1,TW4)..WT	05/1995 - 12/2999	2
48824 - BRACKET, STABILIZER, FRONT
48824-36032	BU12#,XZU130;BU142..03S..IV3;BU100,RZU100..T2..IV3;BU102,140,RZU140..WT..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,132,RZU100..(DM5,DM6,T3,T4,TW1,TW4)..WT	05/1995 - 11/1998	1
48825 - BRACKET, STABILIZER, NO.2
48825-36010	BU12#,XZU130;BU142..03S..IV3;BU100,RZU100..T2..IV3;BU102,140,RZU140..WT..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,132,RZU100..(DM5,DM6,T3,T4,TW1,TW4)..WT	05/1995 - 12/2999	2
48827 - BRACKET, FRONT STABILIZER, NO.2 RH
48827-36050	BU142..03S..IV3;BU12#,132,XZU130;BU102,140..WT..IV3;BU100,RZU100..T2..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,RZU100..(DM6,T3,T4,TW1,TW4)..WT	05/1995 - 04/1996	1
48828 - BRACKET, FRONT STABILIZER, NO.2 LH
48827-36050	BU142..03S..IV3;BU12#,132,XZU130;BU102,140..WT..IV3;BU100,RZU100..T2..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,RZU100..(DM6,T3,T4,TW1,TW4)..WT	05/1995 - 04/1996	1
48829 - BRACKET, STABILIZER
48829-36022	BU12#,XZU130;BU142..03S..IV3;BU100,RZU100..T2..IV3;BU102,140,RZU140..WT..IV3;BU102..(DM2,DM3,DM5,T4,T5,TW4)..CBU;BU100,132,RZU100..(DM5,DM6,T3,T4,TW1,TW4)..WT	05/1995 - 11/1998	1
Common parts
90119-08080
90119-08276
90119-08A46
90119-10070
90119-10355
90119-10523
90119-10737
90119-12088
90170-16015
90170-16016
90179-08141
90179-10058
90179-16030
90201-16035
90204-16001
91112-81045
94183-60801
94184-01001
94184-61001

BU132-TQMMS3 (1995)

ILLUST NO. 2 OF 2(9505-9508)BU10#..TW4 ; (9505-9609)BU162..03S..IV3 ; (9505-9710)RZU100..T4,TW4 ; (9

ILLUST NO. 2 OF 2(9505- )BU132,140,142..20T ; (9708- )RZU140

ILLUST NO. 2 OF 2(9510- )BU100,102,XZU130..DM6,DM7 ; (9510-)BU102,112,132,142,XZU140..DM7,T3,

ILLUST NO. 2 OF 2(9710- )BU100,102,RZU100..T4,TW4..20T ; (9805- )T4..LPG..IV3 ; (9805- )BU1

ILLUST NO. 2 OF 2(9505- )BU202,212,222..IV3..4FC,5F ; (9708-)BU212,222..IV3..6F ; (9712- )

ILLUST NO. 2 OF 2(9505- )BU10#,112,132,140,142,RZU100,XZU130,140

ILLUST NO. 1 OF 2(9505- )BU10#,112,12#,13#,14#,RZU100,140,XZU130,140

Part Price Details
