BU132-TKPQS3 (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 15BF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

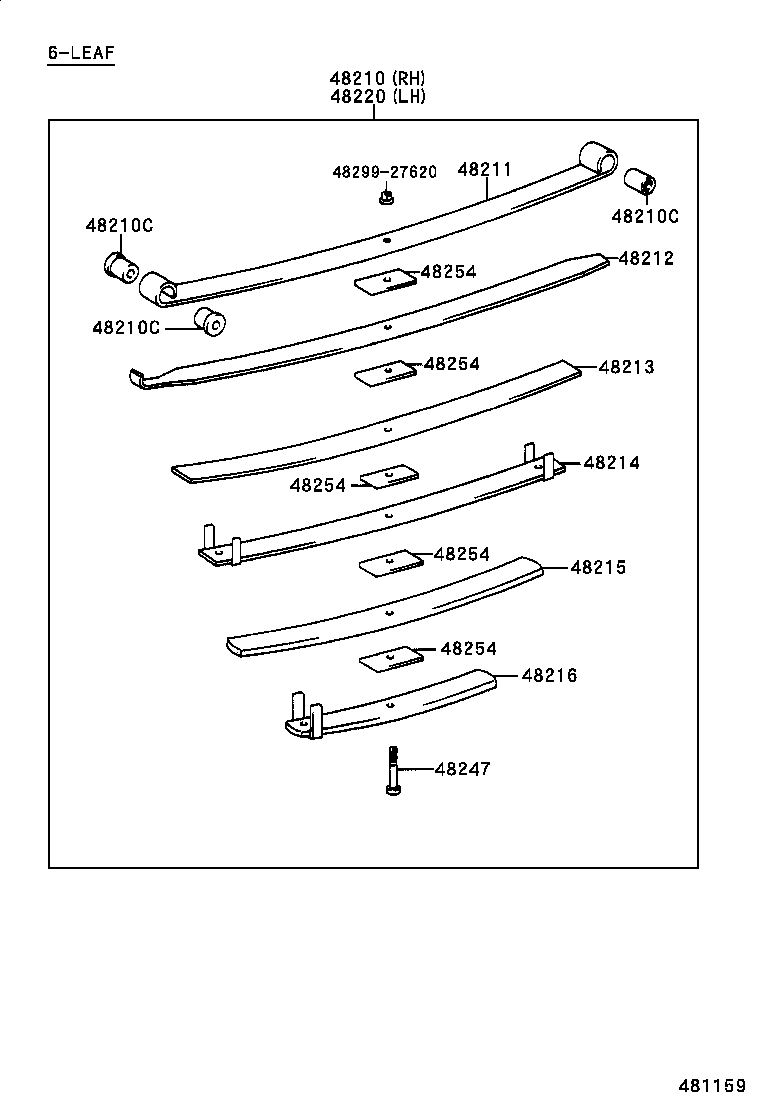

ILLUST NO. 1 OF 2(9505- )BU105..T4,TW4 ; (9505- )BU102..T4..30T ; (9505- )BU107..T4..4FC ;

Click highlighted areas on diagram

diagram 04483 04484 48046 48046 48046A 48047 48047 48210A 48210A 48343 48344 48414B 48415B 48416 48422A 48481 48516 48517 48530 48530A 48530A 48530B 48530C 48530D 48530E 48533 48533A 48540 48542 9010116025 9010116026 9011908276 9011910355 9017016016 9017016016 9017908141 9017916030 9020116035 9020116035 9020116035 9161161020 9413061600 9418461201 9418461601
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-36110

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
04483-36110

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
04484 - PIN KIT, REAR SPRING
04484-36100

BU13#,172,XZU130

 2
04484-36100

BU13#,172,XZU130

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-16142

BU172..T4;BU212..T3,TW1;BU222..T3..TD;BU132,XZU130..(DM7,T3)..30T

長さ=255

 4
90117-16142

BU172..T4;BU212..T3,TW1;BU222..T3..TD;BU132,XZU130..(DM7,T3)..30T

長さ=255

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48344 - STOPPER, BUMPER, REAR
48344-36260

BU137..IV3;BU132..T3,T4;BU102,XZU130..DM7,TW1

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36260

BU137..IV3;BU132..T3,T4;BU102,XZU130..DM7,TW1

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-36302

BU13#,172,XZU130

 1
48414-36302

BU13#,172,XZU130

 1
48415B - BRACKET, SPRING, NO.3 LH
48414-36302

BU13#,172,XZU130

 1
48414-36302

BU13#,172,XZU130

 1
48416 - BRACKET, SPRING, NO.4
48416-36190

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
48416-36190

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
48422A - SUPPORT, REAR SPRING PIN
48422-36100

BU13#,162,172,XZU130

 2
48422-36100

BU13#,162,172,XZU130

 2
48481 - SEAT, REAR SPRING, UPPER
48481-36080

BU132,172,XZU130..DM7,T3,TL4,TW1

 2
48481-36080

BU132,172,XZU130..DM7,T3,TL4,TW1

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-36080

BU162..02S;BU13#,172,XZU130

 1
48505-36080

BU162..02S;BU13#,172,XZU130

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-36080

BU162..02S;BU13#,172,XZU130

 1
48505-36080

BU162..02S;BU13#,172,XZU130

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
90948-03007

RZU100..30T;BU13#,162,172,182,202,212,222;BU100,102,112,RZU100,XZU130..DM3,DM6,DM7,DM8,T5

 2
90948-03007

RZU100..30T;BU13#,162,172,182,202,212,222;BU100,102,112,RZU100,XZU130..DM3,DM6,DM7,DM8,T5

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
48542 - PIN, SHOCK ABSORBER UPPER PIVOT, REAR
48542-26020

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
48542-26020

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
Common parts
90101-16025
90101-16026
90119-08276
90119-10355
90170-16016
90179-08141
90179-16030
90201-16035
91611-61020
94130-61600
94184-61201
94184-61601

ILLUST NO. 1 OF 4(9505- )BU100,102..DM2,DM3,DM5,DM6,T1,T2,T3,T5,TW1,TW2 ; (9505- )BU13#,14#,17

Click highlighted areas on diagram

diagram 04483 04484 04484 48046 48046 48046A 48046A 48047 48047 48344 48344 48344 48414B 48415B 48416 48418A 48418A 48422A 48422A 48435 48435 48475R 48481 48516 48517 48533 48533A 48802 48802E 48805 48815R 48817R 48817R 48817S 48817S 48817S 48817S 48823R 48836R 48837R 9010116018 9010116021 9010116029 9010516021 9011908276 9017016016 9017016016 9017016016 9017016016 9017908141 9017910016 9017916030 9020116035 9020116035 9020116035 9020116035 9020116035 9038513004 9111281045 9161160832 9161161030 91645C1032 9165160820 9413061600 9418360801 9418401001 9418461001 9418461001 9418461001 9418560800
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-36110

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
04483-36110

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
04484 - PIN KIT, REAR SPRING
04484-36100

BU13#,172,XZU130

 2
04484-36100

BU13#,172,XZU130

 2
04484 - PIN KIT, REAR SPRING
04484-36100

BU13#,172,XZU130

 2
04484-36100

BU13#,172,XZU130

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-16142

BU172..T4;BU212..T3,TW1;BU222..T3..TD;BU132,XZU130..(DM7,T3)..30T

長さ=255

 4
90117-16142

BU172..T4;BU212..T3,TW1;BU222..T3..TD;BU132,XZU130..(DM7,T3)..30T

長さ=255

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-16142

BU172..T4;BU212..T3,TW1;BU222..T3..TD;BU132,XZU130..(DM7,T3)..30T

長さ=255

 4
90117-16142

BU172..T4;BU212..T3,TW1;BU222..T3..TD;BU132,XZU130..(DM7,T3)..30T

長さ=255

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48344 - STOPPER, BUMPER, REAR
48344-36260

BU137..IV3;BU132..T3,T4;BU102,XZU130..DM7,TW1

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36260

BU137..IV3;BU132..T3,T4;BU102,XZU130..DM7,TW1

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344 - STOPPER, BUMPER, REAR
48344-36260

BU137..IV3;BU132..T3,T4;BU102,XZU130..DM7,TW1

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36260

BU137..IV3;BU132..T3,T4;BU102,XZU130..DM7,TW1

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344 - STOPPER, BUMPER, REAR
48344-36260

BU137..IV3;BU132..T3,T4;BU102,XZU130..DM7,TW1

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36260

BU137..IV3;BU132..T3,T4;BU102,XZU130..DM7,TW1

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-36302

BU13#,172,XZU130

 1
48414-36302

BU13#,172,XZU130

 1
48415B - BRACKET, SPRING, NO.3 LH
48414-36302

BU13#,172,XZU130

 1
48414-36302

BU13#,172,XZU130

 1
48416 - BRACKET, SPRING, NO.4
48416-36190

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
48416-36190

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
48422A - SUPPORT, REAR SPRING PIN
48422-36100

BU13#,162,172,XZU130

 2
48422-36100

BU13#,162,172,XZU130

 2
48422A - SUPPORT, REAR SPRING PIN
48422-36100

BU13#,162,172,XZU130

 2
48422-36100

BU13#,162,172,XZU130

 2
48481 - SEAT, REAR SPRING, UPPER
48481-36080

BU132,172,XZU130..DM7,T3,TL4,TW1

 2
48481-36080

BU132,172,XZU130..DM7,T3,TL4,TW1

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-36080

BU162..02S;BU13#,172,XZU130

 1
48505-36080

BU162..02S;BU13#,172,XZU130

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-36080

BU162..02S;BU13#,172,XZU130

 1
48505-36080

BU162..02S;BU13#,172,XZU130

 1
Common parts
90101-16018
90101-16021
90101-16029
90105-16021
90119-08276
90170-16016
90179-08141
90179-10016
90179-16030
90201-16035
90385-13004
91112-81045
91611-60832
91611-61030
91645-C1032
91651-60820
94130-61600
94183-60801
94184-01001
94184-61001
94185-60800

ILLUST NO. 1 OF 4(9505- )RZU100..LPGB ; (9505- )BU107..T4..4FC ; (9505- )BU102..T4..30T ; (

Click highlighted areas on diagram

diagram 04483 04484 04484 48046 48046 48046A 48046A 48047 48047 48344 48344 48344 48414B 48415B 48416 48418A 48418A 48422A 48422A 48435 48435 48475R 48481 48516 48517 48533 48533A 48802 48802E 48805 48815R 48817R 48817R 48817S 48817S 48817S 48817S 48823R 48836R 48837R 9010116018 9010116021 9010116029 9010516021 9011908276 9017016016 9017016016 9017016016 9017016016 9017908141 9017910016 9017916030 9020116035 9020116035 9020116035 9020116035 9020116035 9038513004 9111281045 9161160832 9161161030 91645C1032 9165160820 9413061600 9418360801 9418401001 9418461001 9418461001 9418461001 9418560800
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-36110

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
04483-36110

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
04484 - PIN KIT, REAR SPRING
04484-36100

BU13#,172,XZU130

 2
04484-36100

BU13#,172,XZU130

 2
04484 - PIN KIT, REAR SPRING
04484-36100

BU13#,172,XZU130

 2
04484-36100

BU13#,172,XZU130

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-16142

BU172..T4;BU212..T3,TW1;BU222..T3..TD;BU132,XZU130..(DM7,T3)..30T

長さ=255

 4
90117-16142

BU172..T4;BU212..T3,TW1;BU222..T3..TD;BU132,XZU130..(DM7,T3)..30T

長さ=255

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-16142

BU172..T4;BU212..T3,TW1;BU222..T3..TD;BU132,XZU130..(DM7,T3)..30T

長さ=255

 4
90117-16142

BU172..T4;BU212..T3,TW1;BU222..T3..TD;BU132,XZU130..(DM7,T3)..30T

長さ=255

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48344 - STOPPER, BUMPER, REAR
48344-36260

BU137..IV3;BU132..T3,T4;BU102,XZU130..DM7,TW1

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36260

BU137..IV3;BU132..T3,T4;BU102,XZU130..DM7,TW1

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344 - STOPPER, BUMPER, REAR
48344-36260

BU137..IV3;BU132..T3,T4;BU102,XZU130..DM7,TW1

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36260

BU137..IV3;BU132..T3,T4;BU102,XZU130..DM7,TW1

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344 - STOPPER, BUMPER, REAR
48344-36260

BU137..IV3;BU132..T3,T4;BU102,XZU130..DM7,TW1

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36260

BU137..IV3;BU132..T3,T4;BU102,XZU130..DM7,TW1

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-36302

BU13#,172,XZU130

 1
48414-36302

BU13#,172,XZU130

 1
48415B - BRACKET, SPRING, NO.3 LH
48414-36302

BU13#,172,XZU130

 1
48414-36302

BU13#,172,XZU130

 1
48416 - BRACKET, SPRING, NO.4
48416-36190

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
48416-36190

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
48422A - SUPPORT, REAR SPRING PIN
48422-36100

BU13#,162,172,XZU130

 2
48422-36100

BU13#,162,172,XZU130

 2
48422A - SUPPORT, REAR SPRING PIN
48422-36100

BU13#,162,172,XZU130

 2
48422-36100

BU13#,162,172,XZU130

 2
48481 - SEAT, REAR SPRING, UPPER
48481-36080

BU132,172,XZU130..DM7,T3,TL4,TW1

 2
48481-36080

BU132,172,XZU130..DM7,T3,TL4,TW1

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-36080

BU162..02S;BU13#,172,XZU130

 1
48505-36080

BU162..02S;BU13#,172,XZU130

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-36080

BU162..02S;BU13#,172,XZU130

 1
48505-36080

BU162..02S;BU13#,172,XZU130

 1
Common parts
90101-16018
90101-16021
90101-16029
90105-16021
90119-08276
90170-16016
90179-08141
90179-10016
90179-16030
90201-16035
90385-13004
91112-81045
91611-60832
91611-61030
91645-C1032
91651-60820
94130-61600
94183-60801
94184-01001
94184-61001
94185-60800

ILLUST NO. 2 OF 2(9505- )BU137..IV3 ; (9505- )XZU130..30T ;(9505- )BU132..T3,T4

Click highlighted areas on diagram

diagram 48210 48210C 48210C 48210C 48211 48212 48213 48214 48215 48216 48220 48247 48254 48254 48254 48254 48254 4829927620
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-37180

BU137..IV3..4FC;BU132,XZU130..(DM7,T3)..30T

6枚ﾘｰﾌ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16013

BU13#,172,XZU130

ﾌﾛﾝﾄ

 4
90389-16003

BU14#..T2..CBU;BU132,172,XZU130;BU14#..(T2,T3)..20T..IV3

ﾘﾔ

 2
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16013

BU13#,172,XZU130

ﾌﾛﾝﾄ

 4
90389-16003

BU14#..T2..CBU;BU132,172,XZU130;BU14#..(T2,T3)..20T..IV3

ﾘﾔ

 2
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16013

BU13#,172,XZU130

ﾌﾛﾝﾄ

 4
90389-16003

BU14#..T2..CBU;BU132,172,XZU130;BU14#..(T2,T3)..20T..IV3

ﾘﾔ

 2
48211 - LEAF, REAR SPRING, NO.1
48201-37180

BU132,XZU130..(DM7,T3)..30T

 2
48212 - LEAF, REAR SPRING, NO.2
48212-37180

BU132,XZU130..(DM7,T3)..30T

 2
48213 - LEAF, REAR SPRING, NO.3
48213-37180

BU132,XZU130..(DM7,T3)..30T

 2
48214 - LEAF, REAR SPRING, NO.4
48202-37180

BU132,XZU130..(DM7,T3)..30T

 2
48215 - LEAF, REAR SPRING, NO.5
48215-37180

BU132,XZU130..(DM7,T3)..30T

 2
48216 - LEAF, REAR SPRING, NO.6
48203-37180

BU137..IV3;XZU130..30T;BU132..T3,T4

 2
48220 - SPRING ASSY, REAR LH
48210-37180

BU137..IV3..4FC;BU132,XZU130..(DM7,T3)..30T

6枚ﾘｰﾌ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-36280

XZU130..30T;BU112,132..T3

 2
48254 - SPACER, REAR SPRING LEAF
48254-3B730

BU102..(T4,T5)..30T;BU132,172,RZU100,XZU130..30T..(DSL,EFI,LPG)

 10
48254 - SPACER, REAR SPRING LEAF
48254-3B730

BU102..(T4,T5)..30T;BU132,172,RZU100,XZU130..30T..(DSL,EFI,LPG)

 10
48254 - SPACER, REAR SPRING LEAF
48254-3B730

BU102..(T4,T5)..30T;BU132,172,RZU100,XZU130..30T..(DSL,EFI,LPG)

 10
48254 - SPACER, REAR SPRING LEAF
48254-3B730

BU102..(T4,T5)..30T;BU132,172,RZU100,XZU130..30T..(DSL,EFI,LPG)

 10
48254 - SPACER, REAR SPRING LEAF
48254-3B730

BU102..(T4,T5)..30T;BU132,172,RZU100,XZU130..30T..(DSL,EFI,LPG)

 10
Common parts
48299-27620

ILLUST NO. 3 OF 4(9505- )BU10#,13#,14#,172,182,202,212,222,RZU100,140,XZU130,140

Click highlighted areas on diagram

diagram 48530 48530 48530 48530A 48530A 48530A 48530A 48530A 48530A 48530B 48530B 48530B 48530C 48530C 48530C 48530D 48530D 48530D 48530E 48530E 48530E 48540 48540 48540 48542 9161161020 9161161020 9161161020 9418461201 9418461201 9418461201 9418461601
Part # Description Qty Price
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
90948-03007

RZU100..30T;BU13#,162,172,182,202,212,222;BU100,102,112,RZU100,XZU130..DM3,DM6,DM7,DM8,T5

 2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
90948-03007

RZU100..30T;BU13#,162,172,182,202,212,222;BU100,102,112,RZU100,XZU130..DM3,DM6,DM7,DM8,T5

 2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
90948-03007

RZU100..30T;BU13#,162,172,182,202,212,222;BU100,102,112,RZU100,XZU130..DM3,DM6,DM7,DM8,T5

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
48542 - PIN, SHOCK ABSORBER UPPER PIVOT, REAR
48542-26020

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
Common parts
91611-61020
94184-61201
94184-61601

ILLUST NO. 4 OF 4(9505- )BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

Click highlighted areas on diagram

diagram
Part # Description Qty Price

ILLUST NO. 1 OF 2(9505- )BU105..06S ; (9505- )RZU100..LPGB; (9505- )BU107..T4..4FC ; (9505

Click highlighted areas on diagram

diagram 04483 04484 48046 48046 48046A 48046A 48047 48047 48210A 48210A 48306 48344 48414B 48415B 48416 48422A 48516 48517 48530 48530 48530A 48530A 48530A 48530A 48530B 48530B 48530C 48530C 48530D 48530D 48530E 48530E 48533 48533A 48540 48540 9010116025 9010116026 9011908276 9011910355 9011910355 9017016016 9017016016 9017016016 9017916030 9020116035 9020116035 9020116035 9020116035 9161161020 9161161020 9322018045 9413061600 9418461201 9418461201 9418461201 9418461201 9418560800
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-36110

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
04483-36110

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
04484 - PIN KIT, REAR SPRING
04484-36100

BU13#,172,XZU130

 2
04484-36100

BU13#,172,XZU130

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-16142

BU172..T4;BU212..T3,TW1;BU222..T3..TD;BU132,XZU130..(DM7,T3)..30T

長さ=255

 4
90117-16142

BU172..T4;BU212..T3,TW1;BU222..T3..TD;BU132,XZU130..(DM7,T3)..30T

長さ=255

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-16142

BU172..T4;BU212..T3,TW1;BU222..T3..TD;BU132,XZU130..(DM7,T3)..30T

長さ=255

 4
90117-16142

BU172..T4;BU212..T3,TW1;BU222..T3..TD;BU132,XZU130..(DM7,T3)..30T

長さ=255

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48473-36110

BU222..TD;BU142..30T;BU102..275T;BU142..T3..20T;BU212..T3,T4,TW1,TW4;BU132,147,182,XZU130,140..DM7,T3,TL4;BU102,172..(T3,T4,TW1)..(02S,05S,06S)

ｱﾘ(ABS)

 1
48344 - STOPPER, BUMPER, REAR
48344-36260

BU137..IV3;BU132..T3,T4;BU102,XZU130..DM7,TW1

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48344-36260

BU137..IV3;BU132..T3,T4;BU102,XZU130..DM7,TW1

ｱﾘ(ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ)

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-36302

BU13#,172,XZU130

 1
48414-36302

BU13#,172,XZU130

 1
48415B - BRACKET, SPRING, NO.3 LH
48414-36302

BU13#,172,XZU130

 1
48414-36302

BU13#,172,XZU130

 1
48416 - BRACKET, SPRING, NO.4
48416-36190

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
48416-36190

BU102..IV4;BU102,RZU100..T3..(275T,30T)..(DSL,LPGB);BU13#,14#,172,182,202,212,222,RZU140,XZU130,140

 2
48422A - SUPPORT, REAR SPRING PIN
48422-36100

BU13#,162,172,XZU130

 2
48422-36100

BU13#,162,172,XZU130

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-36080

BU162..02S;BU13#,172,XZU130

 1
48505-36080

BU162..02S;BU13#,172,XZU130

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-36080

BU162..02S;BU13#,172,XZU130

 1
48505-36080

BU162..02S;BU13#,172,XZU130

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
90385-16011

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
90948-03007

RZU100..30T;BU13#,162,172,182,202,212,222;BU100,102,112,RZU100,XZU130..DM3,DM6,DM7,DM8,T5

 2
90948-03007

RZU100..30T;BU13#,162,172,182,202,212,222;BU100,102,112,RZU100,XZU130..DM3,DM6,DM7,DM8,T5

 2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
90948-03007

BU102..T3..WT..20T;BU102,112..DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,TW4;BU100,105,107,13#,162,172,182,202,212,222,RZU100,XZU130..WT

 2
90948-03007

RZU100..30T;BU13#,162,172,182,202,212,222;BU100,102,112,RZU100,XZU130..DM3,DM6,DM7,DM8,T5

 2
90948-03007

RZU100..30T;BU13#,162,172,182,202,212,222;BU100,102,112,RZU100,XZU130..DM3,DM6,DM7,DM8,T5

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
90948-03004

BU10#,112,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140..WT

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..20T;BU102..DM2,DM3,DM5,DM6,T2,T4,T5,TW4;BU100,105,107,12#,13#,162,172,182,202,212,222,RZU100,XZU130

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
90948-03003

BU102..T3..WT..20T;RZU100..T3..(EFI,LPG);BU100,105,107,13#,162,172,182,202,212,222,XZU130..WT;BU102,RZU100..(DM2,DM3,DM5,DM6,T2,T4,TW1,TW4)..(CBU,IV3)

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
90948-03004

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
48531-80445

BU102..T4..30T;RZU100..(DM6,T4)..LPGB;RZU100..DM6..(EFI,LPG);RZU100..30T..(EFI,LPG);BU13#,162,172,182,202,212,222;BU100,102,XZU130..DM3,DM6,DM7,T5

 1
Common parts
90101-16025
90101-16026
90119-08276
90119-10355
90170-16016
90179-16030
90201-16035
91611-61020
93220-18045
94130-61600
94184-61201
94185-60800
